Compact poultry feed production line (8-12T/day)


The issue of food safety has always been considered urgent in our country. In this regard, the AFEX-GROUP company recommends a compact production line of specially enriched feed for broiler and egg breeders of chickens, ostriches, geese and ducks. In addition, by changing the crushing part of this equipment, it is possible to produce granulated fodder for livestock. Feed comes in 3 different sizes depending on the production process and the feeding period of the bird. These 3 different products differ not only in size, but also in product composition. Among our people, it is called Start, Rost and Finish. Let’s first get acquainted with the stages of product production and the equipment involved in it.

$23,000

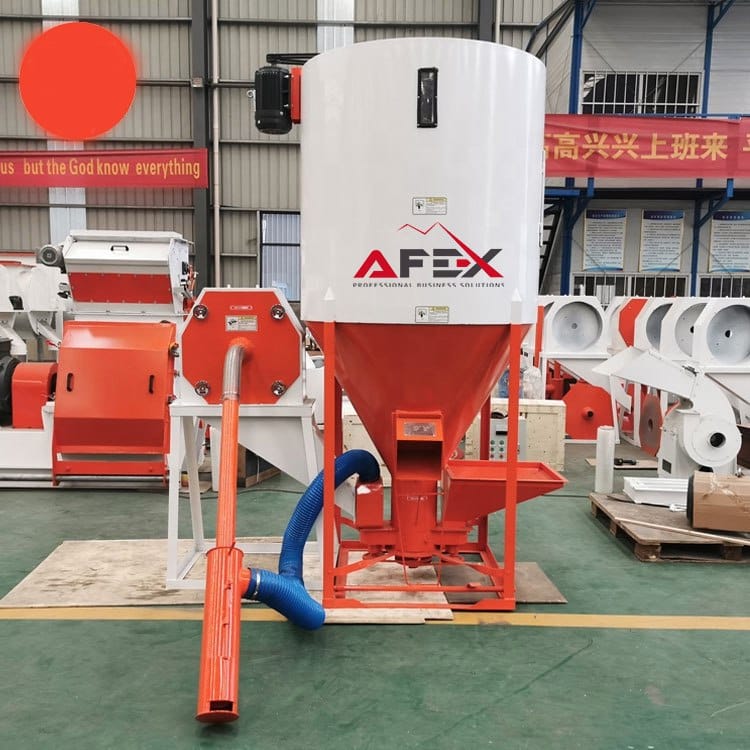

CEREAL PRODUCT GRINDING AND MIXING EQUIPMENT 1000L (MIXER)

Mixer equipment with a grinder will grind your cereal products and send them to the mixing section at the same time. Also, adding products that you don’t need to grind to this equipment through an additional hopper will bring the desired product to the top and then mix it. Due to this, the product is mixed in the same proportion.

Grinding equipment with mixer 1000L
Manufacturer China
City Zenghou
Production capacity 17 at a time
Grinding equipment power consumption 11kw/h
Visible part power consumption 2 kw/h
Material Carbon metal
Weight 490 kg
The size 1600*1730*2420mm

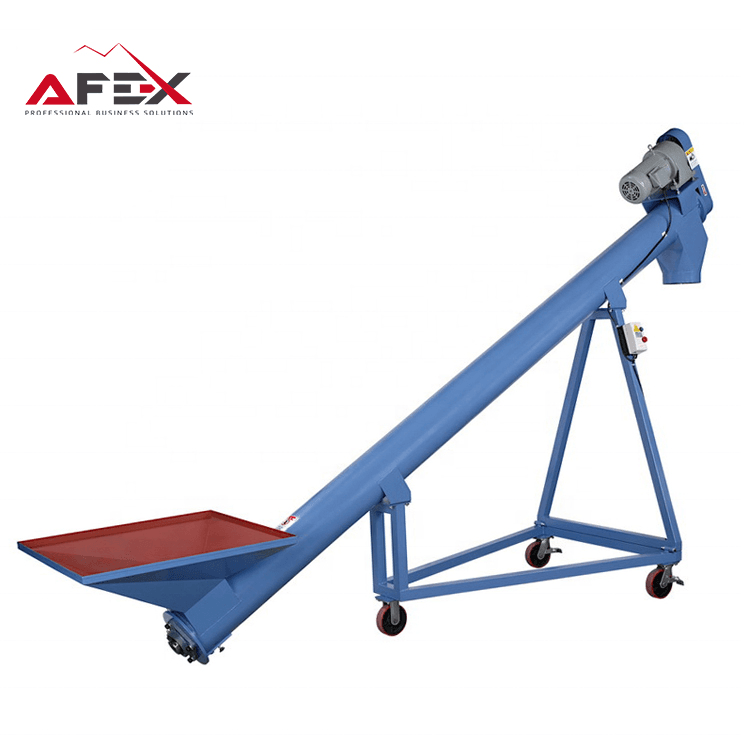

PRODUCT LIFTING SCREW CONVEYOR

Since the granulator equipment is somewhat tall, it is a little difficult to lift the product into it and also requires additional manpower. We recommend the screw conveyor equipment to solve this problem. This mixer is used to feed the finished product into the granulator equipment. Operating the equipment does not require additional knowledge and it works automatically.

Screw conveyor
Manufacturer China
City Zhengzhou
Production capacity 2T per hour
Drop height 3m
Power consumption 0,75 kw/h
Material Carbon metal
Reasonable 120 kg
The size 600*600*3420 mm

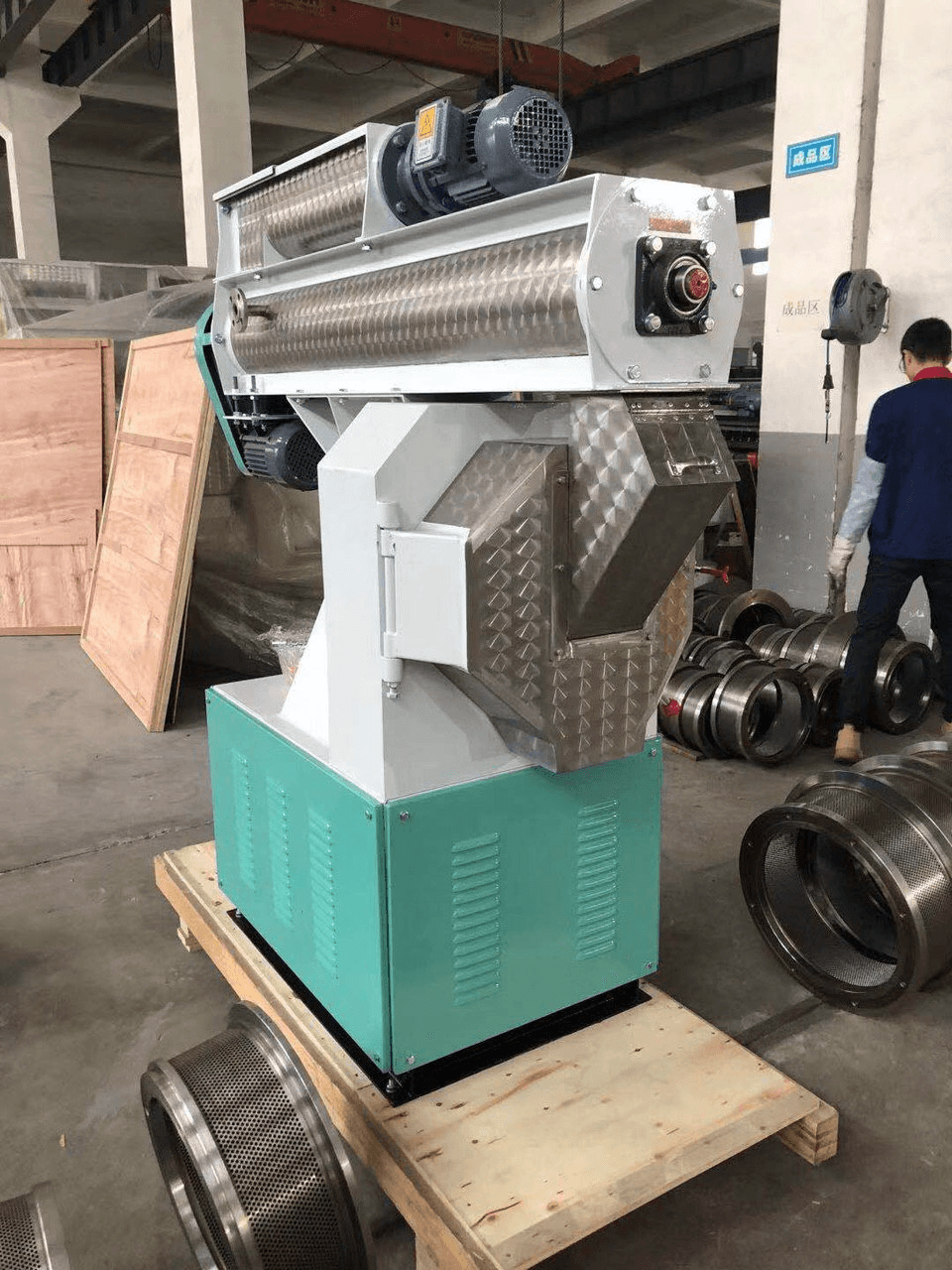

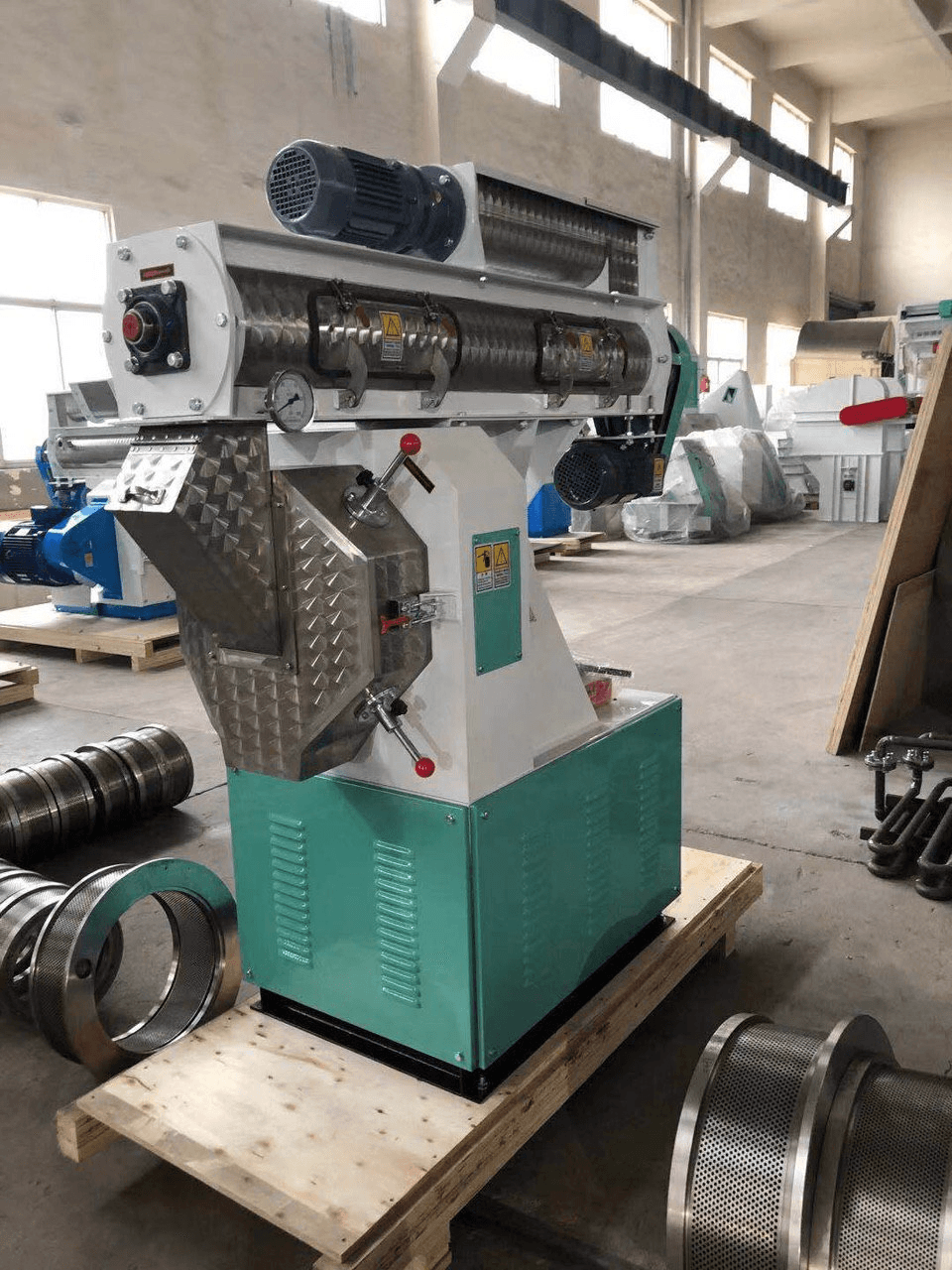

GRANULER EQUIPMENT

The granulator equipment is the main part of the production stage, it turns the thrown semi-finished powder product into the form of granules. The granulator recommended by our company is the latest technology and has the function of moistening the raw materials with the help of steam. The steaming process is important, in this process the product is disinfected and harmful bacteria die at high temperatures. Due to the fact that poultry are susceptible to disease by nature, buyers do not want to buy feed that has not been treated with feathers. In order for the equipment to serve you for a long time, its molds and auger sleeves are made of stainless metal.

GRANULER EQUIPMENT
Production China
City Zhengzhou
Production capacity 1-1,5Т per hour
Caliper diameter 250mm
Power consumption 22-1,5 kw/h
Material Stainless metal+carbon metal
Voltage 380v 50hz
Weight 1500kg
The size 600*600*3420mm
The number of copies to be delivered 2 pieces (additional mold $480)

Depending on the type and age of the bird you are feeding, the right size pellets are selected. Our company will provide you with 2 sizes of molds of any size for free. For additional molds, you need to pay from $480.

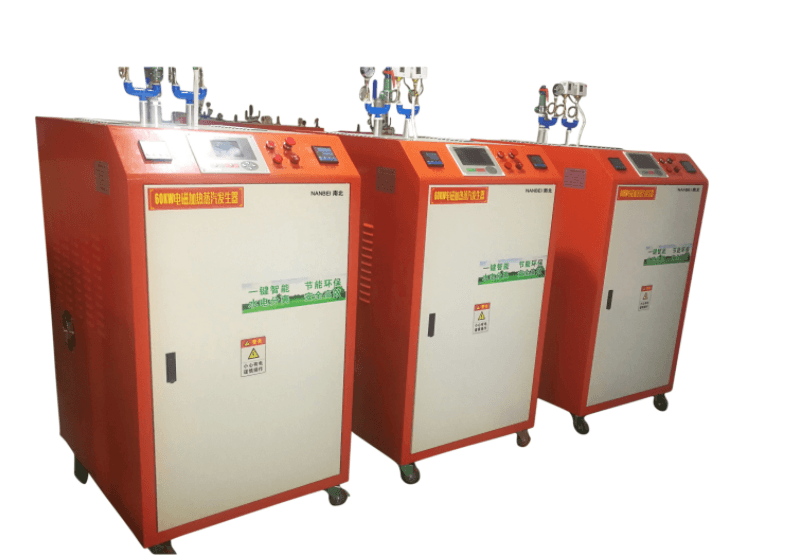

STEAM GENERATOR

High pressure steaming equipment is the most necessary element for the product. Grooming is also essential for the healthy growth of your client’s chicks. According to the customer’s request, this steam generator works on electric current, natural gas options are also available on order. Since the steaming equipment is controlled by the PLC control system, it is possible to adjust it to the required level and volume. Even when the control system is inflexible, the equipment will automatically open when the pressure exceeds the set pressure, to prevent the boiler from bursting due to the safety risk of overpressure. 2, the product is equipped with low-level water protection, when the water supply is interrupted, the boiler will automatically stop working, to prevent damage to the electric heating element of the boiler. 3, the product includes leakage protection, even if there is a short circuit caused by boiler malfunction, the boiler will automatically turn off itself, in time good control is ensured.

STEAM GENERATOR EQUIPMENT
Production China
City Zhengzhou
Production capacity 100 kg/h
Power consumption 36 kw/h
Material Stainless metal+carbon metal
Voltage 380v 50hz
Weight 190 kg
The size 600*600*1200mm

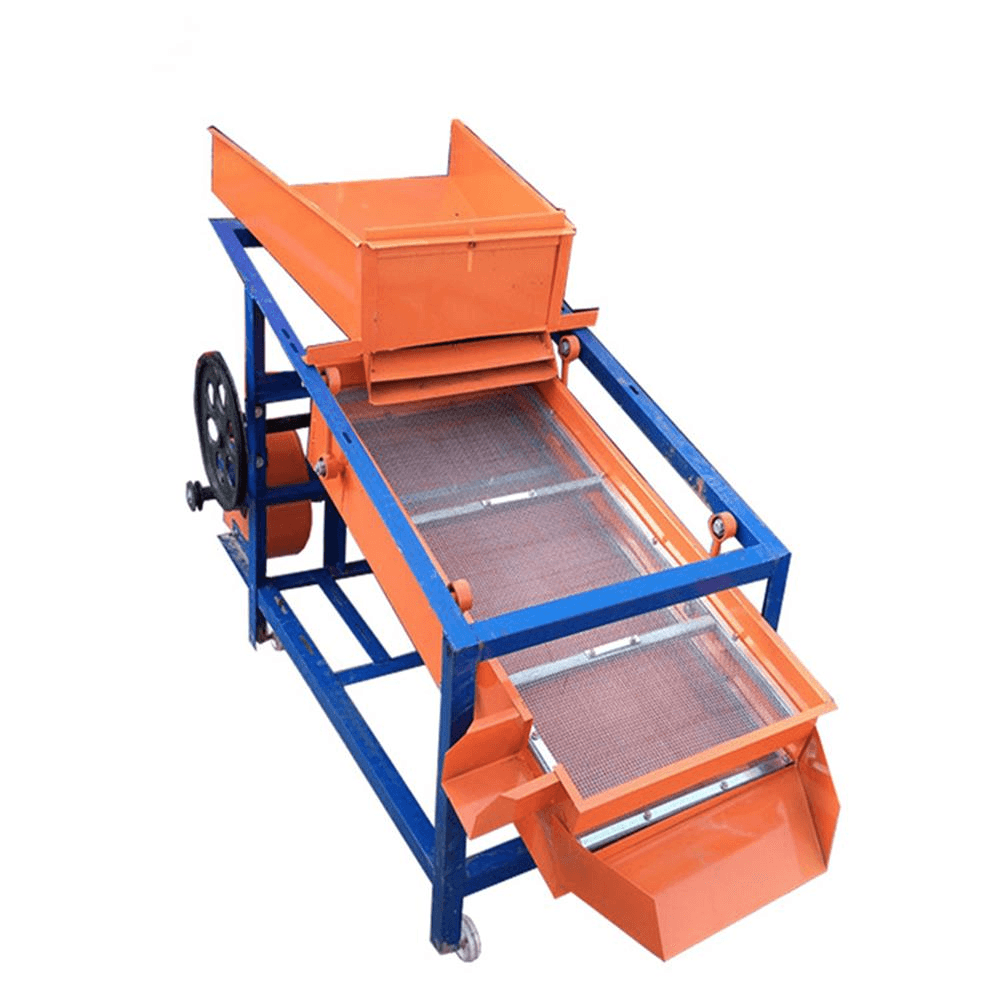

SPECIAL GRINDING EQUIPMENT FOR GRANULES

Sieving equipment separates the granule from crushed powder. It also serves to cool the pellet before coating. According to the requirements of our customers, sieve microns can be ordered in other sizes.

Special sieving equipment
Manufacturer China
City Zhengzhou
Production capacity 1500 kg/h
Power consumption 1 kw/h
Material Stainless metal+carbon metal
Voltage 380v 50hz
Weight 390 kg
The size 900*600*1800mm

You can easily start your own business with the above tools. Our company provides a bag sewing machine FREE OF CHARGE. In addition, it is advisable to buy a scale that is convenient for you.
