1 / 12Solution product linesProduct code: 60a36a640bd70c3f6669389f

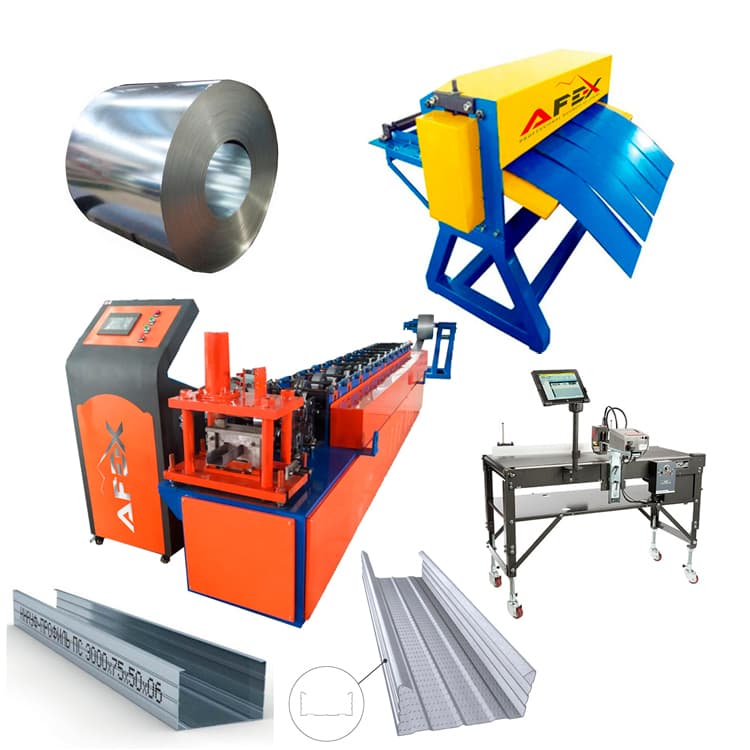

Gypsum board profile production line AF-L030
Gypsum plasterboard products have entered the modern construction industry at a rapid pace, and in turn, the demand for…
Individual offer
- Power consumption
- 3kw/h
- Speed of operation
- 8-12m/min
- Voltage
- 380v50Hz
- Weight
- 600 kg
- Tin thickness
- 0.3-0.8mm
- Base thickness
- 16mm
Price
Overview
About the equipment
Gypsum plasterboard products have entered the modern construction industry at a rapid pace, and in turn, the demand for accessories necessary for the installation of this product has increased significantly. Due to the increase in demand, metal profiles are rapidly replacing wooden slats in the market. But in our opinion, there are some disadvantages in the production process of plasterboard profile available on the market:
- Due to the smooth surface of the plasterboard profile, it is somewhat difficult to harden a self-tapping screw into it, and sometimes it leads to a hole in a place other than the one you intended;
- The plasterboard profile has a standard length, and customers do not have a choice for a product of other lengths. This causes some difficulties in large-scale construction works;
- Since plasterboard profiles do not have special measuring lines, it is always necessary to use a meter when working with them, and this leads to excessive time and labor consumption during construction;
- You once used high-quality plasterboard profiles, and the next time you can find it, because the manufacturers do not print their brands on the profiles, and this leads to the fact that their customers do not recognize them;
- Each profile should have information about its size and metal thickness, and this is available in other foreign countries, but not in our country;
When you first introduce a new product to the market, you need to quickly establish a niche for your product in the market. For this, do a deep analysis of the products of your competitors in the market and add to it the conveniences that your competitors do not have or that can be given to people through that product, and we believe that you will quickly find your customers. Believe me, there are always those who choose quality and branded products.
Let us now offer you a new type of equipment for modern plasterboard profiles, eliminating the above shortcomings.
AFEX-GROUP doesn't just sell you equipment, we sell you modern ideas. Therefore, the business you start with us will definitely pay off. Our line has unique conveniences:
- The equipment works on a modern touch screen PLC control system;
- The equipment is equipped with an INVERTER for high-precision operation;
- Hardware can store commands in memory; (for example, if you order the equipment to produce 200 profiles of 5 meters, it will execute the command you gave);
- The equipment can produce a profile of unlimited length;
- An additional auxiliary laser marking device is added to the equipment, which is used to lower longitudinal lines to measure the surface of the profile, leaving a special line every 10 cm. Also, this equipment includes its technical parameters on the surface of the product.
- The equipment can work with painted and galvanized metal sheets.
- In order to make it easy to transfer shurp to the profile, it leaves a special small hole-shaped concave mark on the surface, and these points also increase the strength of the profile.
01
10 parametersEquipment for horizontal cutting of sheets into pieces
- Manufacturer
- China
- City
- Botou
- Tin thickness
- 0.3-0.8mm
- Roller material
- 45# chrome metal
- Speed of operation
- 8-12m/min
- Base thickness
- 16mm
- The width of the incoming tin
- 600-1250mm
- Voltage
- 380v50Hz
- Weight
- 600 kg
- Power consumption
- 3kw/h
PROFILE MANUFACTURING EQUIPMENT
The profile production equipment is manufactured by an advanced Chinese company, and the rollers are made of CR12 hardened metal so that the rollers do not wear out quickly. The new exterior design and separate control panel provide you with many conveniences in use. The equipment includes the following parts:- Lifting device for rolled tin
- Part of profiling
- Hydraulic pump part
- PLC control panel
- A special table for finished products
- Spare parts
02
9 parametersGeneral
- City
- China
- Tin thickness
- Botou
- Roller material
- 0.3-0.8mm
- Speed of operation
- 45# chrome metal
- Base thickness
- 8-12m/min
- Equipment size
- 16mm
- Voltage
- 5000*1000*1500mm
- Weight
- 380v50Hz
- Management system
- 2 tons
LASER MARKING EQUIPMENT
Laser marking equipment is used to imprint the required information on this profile. This information also includes the measurement of the profile.03
8 parametersGeneral
- City
- China
- Cooling method
- Guangzhou
- Work program
- By air
- Laser power
- EZCAD
- Accuracy level
- 20W
- Marking speed
- 0.02mm
- Voltage
- 0-7000mm/s
- Power consumption
- 220v50hz
Using the above example, you can see the result of calculating the weight of a 1 meter long 0.3 mm thick metal profile. Now let's find out the price from the wholesale tin and calculate how much our 1 meter profile will cost. Of course, this is important for you. Later, based on this account book, you can offer a price for the market. Of course, don't forget to include taxes, electricity, and labor.
Here are some examples of areas where metal profiles are used:
AFEX · CONSULTATION
Operators onlineQuick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentGypsum board profile production line AF-L030Your data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
Equipment for horizontal cutting of sheets into pieces
10 parameters- Manufacturer
- China
- City
- Botou
- Tin thickness
- 0.3-0.8mm
- Roller material
- 45# chrome metal
- Speed of operation
- 8-12m/min
- Base thickness
- 16mm
- The width of the incoming tin
- 600-1250mm
- Voltage
- 380v50Hz
- Weight
- 600 kg
- Power consumption
- 3kw/h
General
9 parameters- City
- China
- Tin thickness
- Botou
- Roller material
- 0.3-0.8mm
- Speed of operation
- 45# chrome metal
- Base thickness
- 8-12m/min
- Equipment size
- 16mm
- Voltage
- 5000*1000*1500mm
- Weight
- 380v50Hz
- Management system
- 2 tons
General
8 parameters- City
- China
- Cooling method
- Guangzhou
- Work program
- By air
- Laser power
- EZCAD
- Accuracy level
- 20W
- Marking speed
- 0.02mm
- Voltage
- 0-7000mm/s
- Power consumption
- 220v50hz
Video
The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
Frequently asked questions
The most common questions about delivery, contracts and tracking.
Is it possible to track my orders online?
You can track orders online. Uzbekistan was one of the first to develop a mechanism for monitoring cargo, determining their location, and estimating the time of arrival using the GPS system. You can get this information only by entering the contract number.
How long will the shipments be delivered?
Delivery time depends on the manufacturer in most cases. Most large-scale production equipment takes 2-3 times longer to deliver than normal equipment. In the case of ready-made equipment, the delivery period starts from 30 days. Excluding the time required for customs clearance of equipment in the territory of Uzbekistan, certification processes.
What are the shipping methods available?
According to the type of goods from abroad and the period when the order was received, the goods are delivered to the territory of Uzbekistan on the following basis:
By air
By rail
By land transport
By mixed transport
What is required of me to conclude a contract?
To become a client of our company, you must:
CERTIFICATE certifying the business entity;
Bank details;
STIR number;
Copy of the manager's passport;
Enterprise seal to confirm the contract
