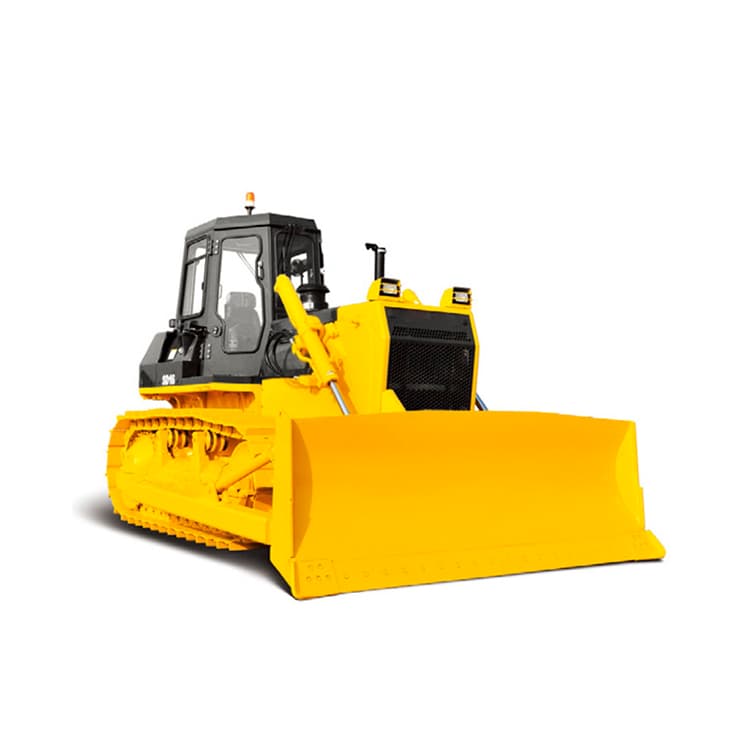

Bulldozer Shantui SD 16 — Image 1 / 121 / 12
Special equipmentProduct code: 618a502d23e41033e8444626

Bulldozer Shantui SD 16

SD16 hydraulic transmission series bulldozers meet the country's III emission requirements, have high technological…

Individual offer
Rated power
120kw
The sony of the cylinders
6-126x130mm
Replace the piston
9.726L
Bulldozer power
4.5 m3 · 4.3m3 · 5.0m3
Min. fuel consumption
214g/kwh
Weight of 3-horn cultivator
1667kg
Price

Overview

About the equipment

SD16 hydraulic transmission series bulldozers meet the country's III emission requirements, have high technological content, advanced design, strong power, high production efficiency, can adapt to tougher working environment.

Bulldozer SD16 is an indispensable equipment for construction and water conservancy construction, such as national defense engineering, mine construction, urban and rural roads, etc. It is suitable for road, railway, mine, airport and other surface transportation, excavation, filling and other bulk material operation. Bulldozer SD16 engine is WEICHAI, operating weight is 17 tons, engine power is 162 kW/180 rpm, bulldozer volume is 4.5 m3.
01

General

5 parameters
General
Type
WD10G178E25 Weichai motor, water cooling system, in-line
Rated power
120kw
The sony of the cylinders
6-126x130mm
Replace the piston
9.726L
Min. fuel consumption
214g/kwh
02

Unit 2

6 parameters
Unit 2
Hydrotransformer
3 elements, 1 stage, 1 phase
Conductor
Planetary gear, multi-disc clutch, hydraulically connected, forced lubrication
Main transmission
Spiral bevel gear, step lubrication, one-step speed reduction, spray lubrication
Steering clutch
Oiled, multi-disc, spring-loaded, hydraulically separated, interlocked with handbrake
Steering brake
Lubricated, floating belt structure, foot brake with hydraulic booster
Final transmission
2-stage gear reduction, step lubrication
03

Bulldozer speed

3 parameters
Transmitter
First · Second · Third
Forward
0-3.29km/h · 0-5.82km/h · 0-9.63km/h
Back
0-4.28km/h · 0-7.59km/h · 0-12.53km/h
04

Unit 4

5 parameters
Unit 4
Carrier rollers
2 on each side
Track rollers
6 on each side
Track type
Assembled, one-step
Drive belt width
560 mm
Height
203.2mm
05

Unit 5

4 parameters
Maximum pressure
14Mpa
Pump type
Gear pump
Release
243L/min
The diameter of the working cylinder
110mm*2
06

Knife

7 parameters
Knife
Knife type
Straight bent · Angle · Half U
Bulldozer power
4.5 m3 · 4.3m3 · 5.0m3
Efficiency
225m3/s · 225m3/s · 250m3/s
Blade width
3388mm · 3970mm · 3556mm
Blade height
1149mm · 1040mm · 1120mm
Underground maximum access
540mm · 540mm · 530mm
Setting the maximum deflection
400mm · - · 400mm

Flat curved blade

This is the shortest type of blade and has no side bends or side fins. S-blades are often equipped with a hydraulic cylinder, which allows you to sleep more powerfully. Due to the correct shape, this type of knives does not allow you to carry heavy loads. It is best suited for work such as grading, trenching and stripping.

Angled knife

This type of blade is connected to the middle of the bulldozer panel. Its location is useful for moving debris sideways, as it has an angle of about 30 degrees to the left or right. Therefore, the angle knife is a double-edged blade. Be aware that this blade can spill because it has no side fins. It is an excellent choice for projects involving soft to medium-density soil, snow and gravel. The best jobs for bevel knives include gouging, shaping, stripping, and gouging.

Semi-U (S-U) blade

This blade combines the features of an S-blade and a U-blade, giving it greater penetration and overall versatility. It is narrower, less curved and has smaller side fins than a regular U-blade. This design makes it ideal for pushing soil over long distances. This blade is attached to the lower back of the blade using angle stabilizers and one or two hydraulic cylinders. It is better for pushing soft and medium density sand and soil. The best tasks for an SU blade include crowning, moving heavy material, prying and throwing. The cultivator is purchased on an optional basis.
07

Cultivator

3 parameters
Cultivator
3-horn cultivator maximum digging depth
572mm
3-horn cultivator maximum rise from the ground
592mm
Weight of 3-horn cultivator
1667kg

3-horn cultivator

AFEX · CONSULTATION
Operators online

Quick price request

Leave your name and phone number — our specialist will take care of the rest.

EquipmentBulldozer Shantui SD 16

Your data is never shared with third parties

Specifications

Data provided by the manufacturer; configuration may vary per order.

General

5 parameters
Type
WD10G178E25 Weichai motor, water cooling system, in-line
Rated power
120kw
The sony of the cylinders
6-126x130mm
Replace the piston
9.726L
Min. fuel consumption
214g/kwh

Section 2

6 parameters
Hydrotransformer
3 elements, 1 stage, 1 phase
Conductor
Planetary gear, multi-disc clutch, hydraulically connected, forced lubrication
Main transmission
Spiral bevel gear, step lubrication, one-step speed reduction, spray lubrication
Steering clutch
Oiled, multi-disc, spring-loaded, hydraulically separated, interlocked with handbrake
Steering brake
Lubricated, floating belt structure, foot brake with hydraulic booster
Final transmission
2-stage gear reduction, step lubrication
03

Bulldozer speed

3 parameters
Transmitter
First · Second · Third
Forward
0-3.29km/h · 0-5.82km/h · 0-9.63km/h
Back
0-4.28km/h · 0-7.59km/h · 0-12.53km/h

Section 4

5 parameters
Carrier rollers
2 on each side
Track rollers
6 on each side
Track type
Assembled, one-step
Drive belt width
560 mm
Height
203.2mm
05

Section 5

4 parameters
Maximum pressure
14Mpa
Pump type
Gear pump
Release
243L/min
The diameter of the working cylinder
110mm*2

Knife

7 parameters
Knife type
Straight bent · Angle · Half U
Bulldozer power
4.5 m3 · 4.3m3 · 5.0m3
Efficiency
225m3/s · 225m3/s · 250m3/s
Blade width
3388mm · 3970mm · 3556mm
Blade height
1149mm · 1040mm · 1120mm
Underground maximum access
540mm · 540mm · 530mm
Setting the maximum deflection
400mm · - · 400mm

Cultivator

3 parameters
3-horn cultivator maximum digging depth
572mm
3-horn cultivator maximum rise from the ground
592mm
Weight of 3-horn cultivator
1667kg

Parts and sections

Main parts and sections of the machine. Specifications for each are in the section above.

  • 01

    Bulldozer speed

    3 parameters

    Specifications
  • Knife02

    Knife

    7 parameters

    • Bulldozer power: 4.5 m3 · 4.3m3 · 5.0m3
    • Efficiency: 225m3/s · 225m3/s · 250m3/s
    Specifications
  • Cultivator03

    Cultivator

    3 parameters

    • 3-horn cultivator maximum digging depth: 572mm
    • 3-horn cultivator maximum rise from the ground: 592mm
    Specifications

Video

The equipment in operation.

Delivery and commissioning

From consultation to launch — four steps under contract.

  1. 1

    Consultation

    We define your needs, configure the line and prepare an offer.

  2. 2

    Contract

    Timeline, payment terms and warranty are fixed in the contract.

  3. 3

    Delivery

    The equipment is delivered from the manufacturer to your site.

  4. 4

    Installation and training

    Our specialists commission the equipment and train your operators.

Frequently asked questions

The most common questions about delivery, contracts and tracking.

Is it possible to track my orders online?
You can track orders online. Uzbekistan was one of the first to develop a mechanism for monitoring cargo, determining their location, and estimating the time of arrival using the GPS system. You can get this information only by entering the contract number.
How long will the shipments be delivered?
Delivery time depends on the manufacturer in most cases. Most large-scale production equipment takes 2-3 times longer to deliver than normal equipment. In the case of ready-made equipment, the delivery period starts from 30 days. Excluding the time required for customs clearance of equipment in the territory of Uzbekistan, certification processes.
What are the shipping methods available?
According to the type of goods from abroad and the period when the order was received, the goods are delivered to the territory of Uzbekistan on the following basis: By air By rail By land transport By mixed transport
What is required of me to conclude a contract?
To become a client of our company, you must: CERTIFICATE certifying the business entity; Bank details; STIR number; Copy of the manager's passport; Enterprise seal to confirm the contract
Consultation

Let’s discuss your project together

Contact us for advice on choosing equipment, technical solutions and offers.

Call us+998 93 381 6699Mon–Sat: 9:00 – 18:00
AFEX · SOCIAL

Follow our channels

New equipment, commissioning and production footage — on our official channels.

Related equipment

View all

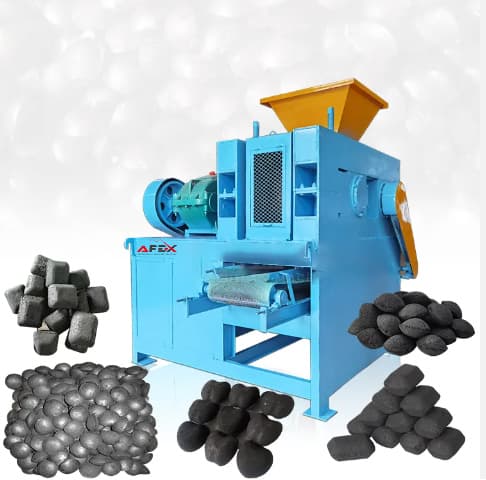

Equipment that produces briquette coal with pressure
Other equipment

Equipment that produces briquette coal with pressure

Details →

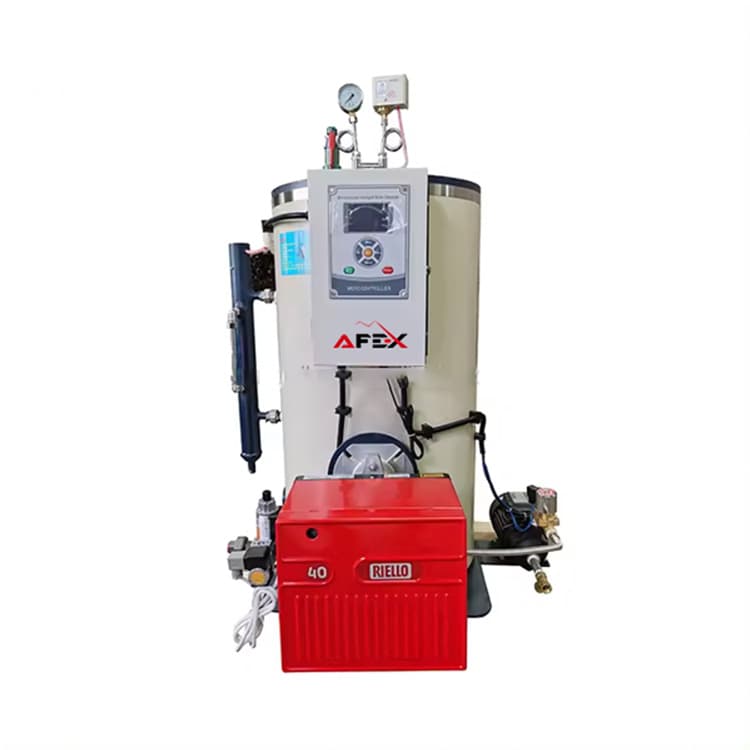

Gas steam generator (parogenerator)
Special equipment

Gas steam generator (parogenerator)

Details →

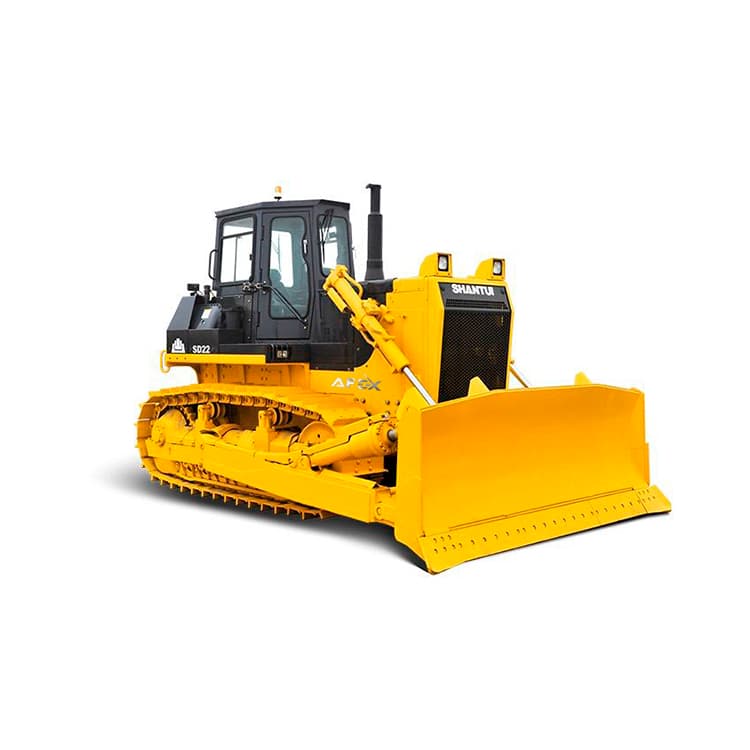

Bulldozer Shantui SD22
Special equipment

Bulldozer Shantui SD22

Details →

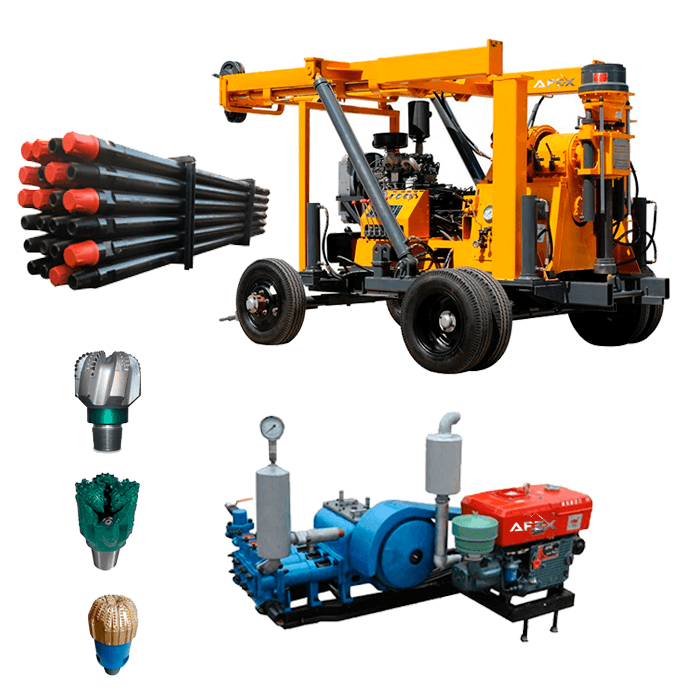

Water well drilling rig AFX-X3YX
