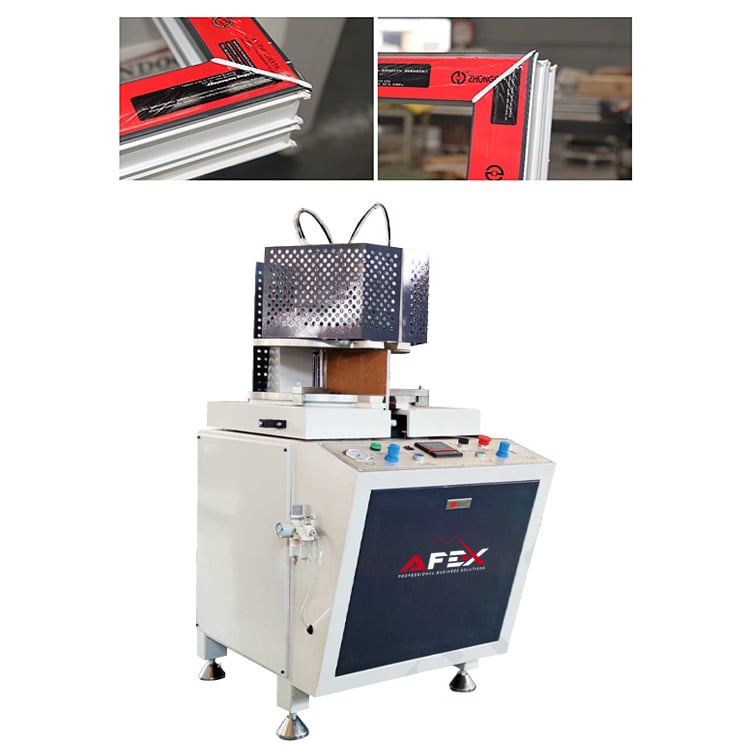

1 / 2PVC Window Frame Profile Welding Machine
PVC profile welding machine — welds window and door profiles at angles from 30° to 180°.
- Power supply
- AC 220–380 V
- Motor power
- 1.5 kW
- Machine dimensions
- 900 × 900 × 1700 mm
- Air pressure
- 0.5–0.8 MPa
- Maximum welding width
- 120 mm
- Welding height
- 20–100 mm
Overview
Key advantages
- The machine is designed for welding PVC window and door profiles
- Robust construction and consistent weld quality ensure long, uninterrupted operation
- High-precision welding technology improves finished product quality and ensures production efficiency

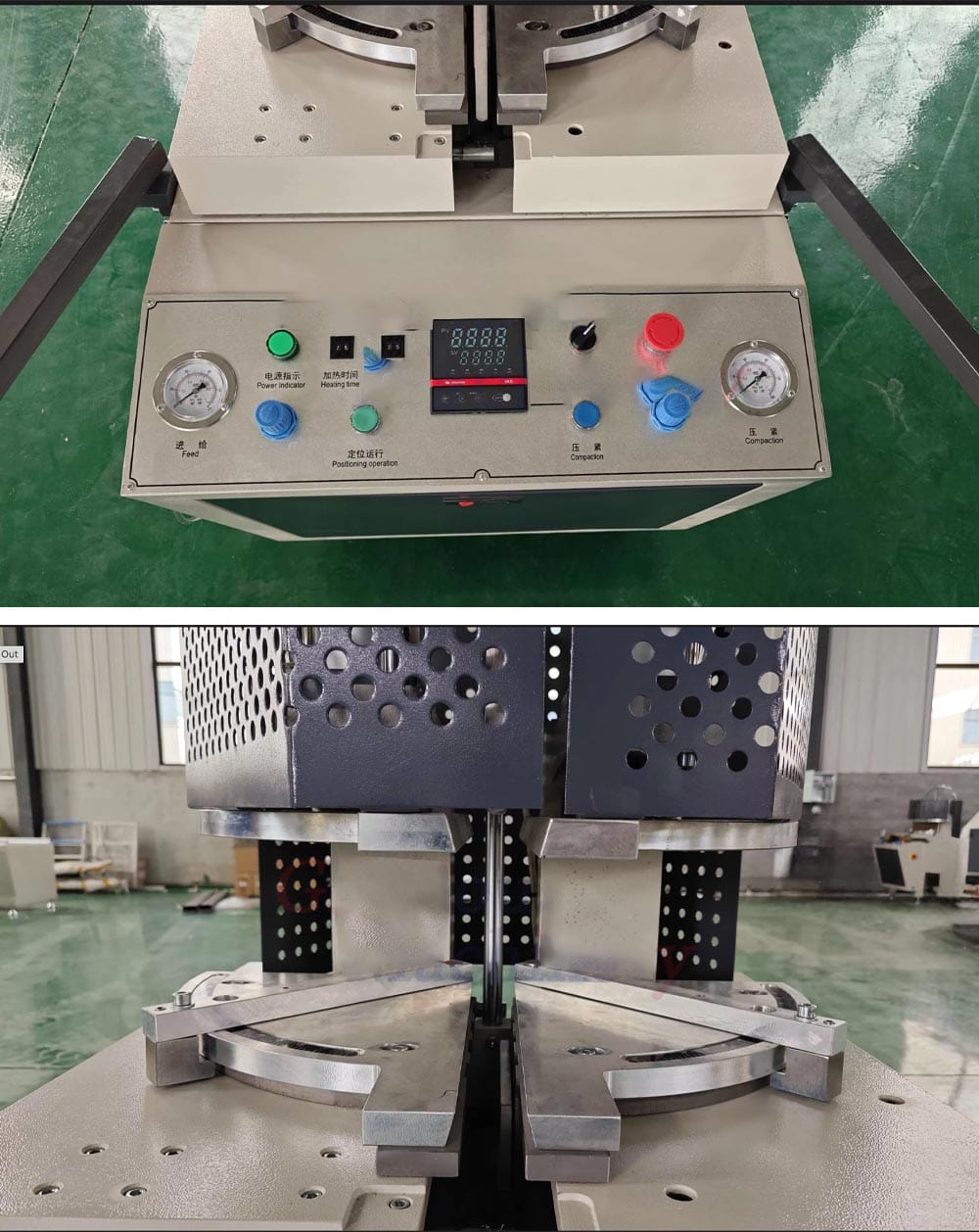

- The simple, convenient control system makes operation and maintenance easier
About the equipment
PVC profile welding machine — welds window and door profiles at angles from 30° to 180°. Welding width up to 120 mm, height 20–100 mm.
The machine welds profiles together when assembling PVC window and door frames. The welding angle is adjustable from 30° to 180°, so in addition to right-angled frames you can also make structures with non-standard angles. Maximum welding width is 120 mm, height 20–100 mm.
The machine connects to a three-phase AC 220–380 V, 50 Hz supply; motor power is 1.5 kW. The pneumatic system operates at 0.5–0.8 MPa and consumes 100 liters of air per minute, so the workshop must have a compressed air source. The control system is simple, which makes operation and maintenance easier. Dimensions: 900×900×1700 mm. The machine is designed for workshops producing PVC windows and doors.
AFEX provides delivery, installation and commissioning of the machine, as well as warranty service. Tell us the profile sizes you use and your daily frame volume — we will check whether the machine is a good fit.
General
- Power supply
- AC 220–380 V / 50 Hz, 3-phase
- Motor power
- 1.5 kW
- Air pressure
- 0.5–0.8 MPa
- Maximum welding width
- 120 mm
- Welding height
- 20–100 mm
- Air consumption
- 100 L/min
- Welding angle range
- 30°–180°
- Machine dimensions
- 900 × 900 × 1700 mm
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentPVC Window Frame Profile Welding MachineYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
8 parameters- Power supply
- AC 220–380 V / 50 Hz, 3-phase
- Motor power
- 1.5 kW
- Air pressure
- 0.5–0.8 MPa
- Maximum welding width
- 120 mm
- Welding height
- 20–100 mm
- Air consumption
- 100 L/min
- Welding angle range
- 30°–180°
- Machine dimensions
- 900 × 900 × 1700 mm
Video
The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
Frequently asked questions
The most common questions about delivery, contracts and tracking.
Is it possible to track my orders online?
How long will the shipments be delivered?
What are the shipping methods available?
What is required of me to conclude a contract?
Let’s discuss your project together
Contact us for advice on choosing equipment, technical solutions and offers.
Follow our channels
New equipment, commissioning and production footage — on our official channels.
Related equipment

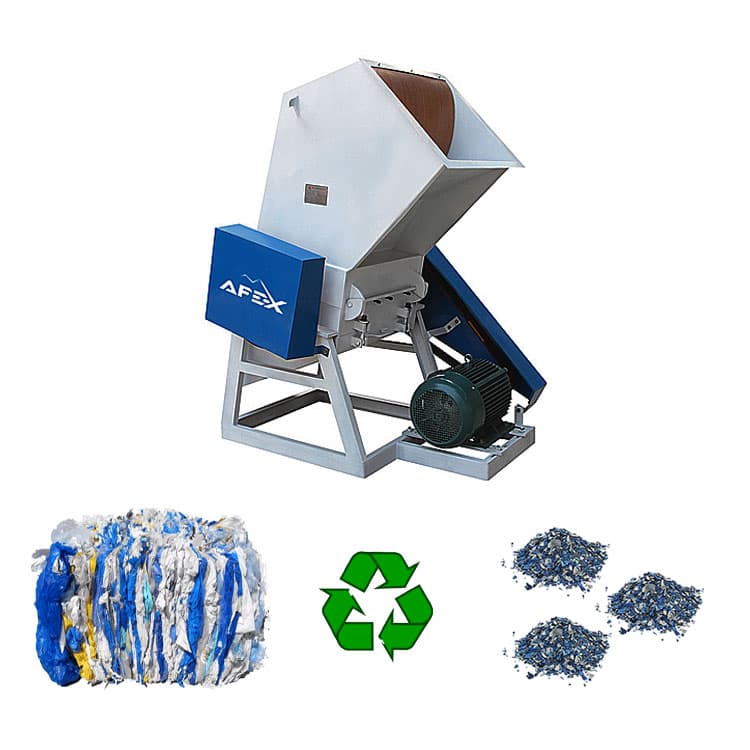

PVC crushing (shredder) equipment
