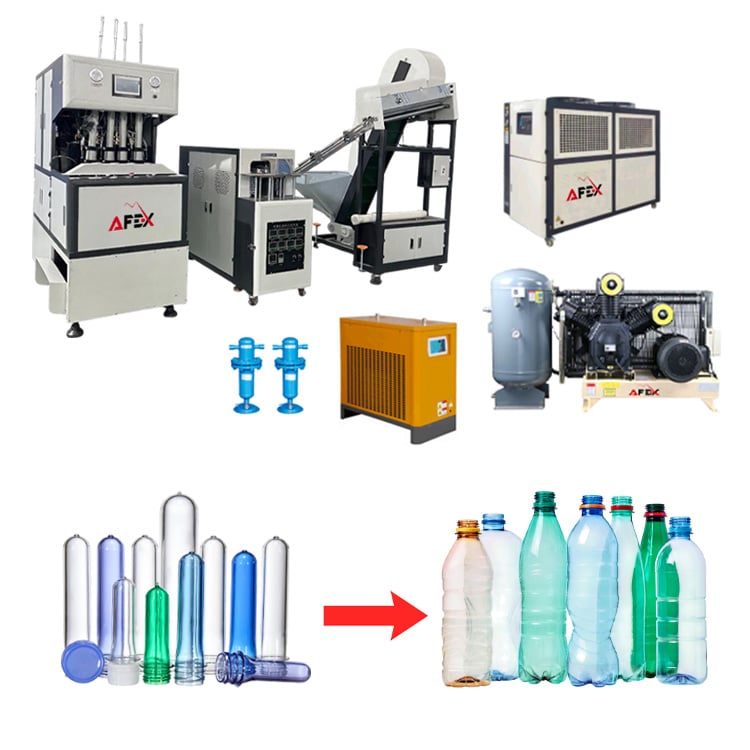

1 / 7PET Bottle Production Line 0.1-2 L
0.1–2 L · 380V 50/60 Hz · 2.0 m³
Individual offer
- Production Capacity
- 0.1–2 L
- Voltage
- 380V 50/60 Hz
- Model
- 2.0 m³
- Power
- 3 HP
- Theoretical Energy Consumption
- 15 kWh
- Actual Energy Consumption
- 10 kWh
Price
Overview
Key features
- Function
Heating PET preforms and blowing them into bottles
- Production Capacity
1800–2300 bottles (0.1–2 L) per hour
About the equipment
01

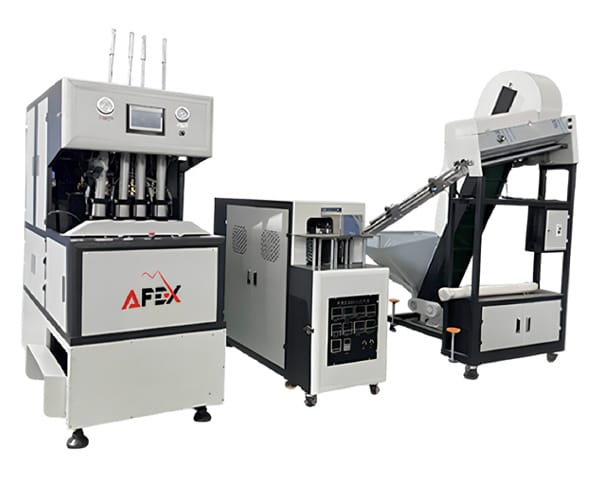

10 parametersPET Preform Blow Molding Machine
- Manufacturer
- China
- Function
- Heating PET preforms and blowing them into bottles
- Voltage
- 380V 50/60 Hz
- Theoretical Energy Consumption
- 15 kWh
- Actual Energy Consumption
- 10 kWh
- Production Capacity
- 1800–2300 bottles (0.1–2 L) per hour
- Blowing Unit
- 1820 × 820 × 1760 mm, 1100 kg
- Heater
- 1620 × 660 × 1520 mm, 350 kg
- Automatic Preform Feeder
- 2440 × 1170 × 1420 mm, 150 kg
- Conveyor
- 1600 × 600 × 1300 mm, 50 kg
02

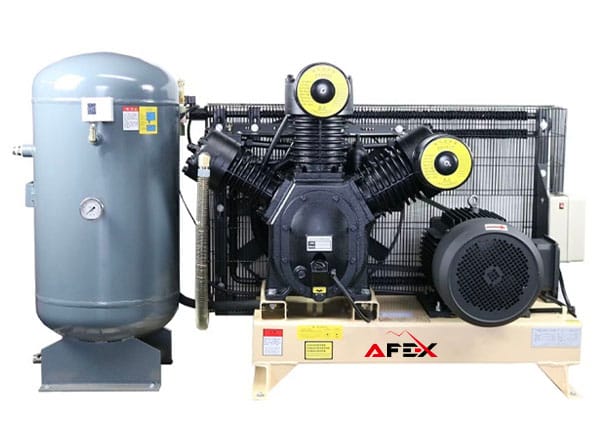

7 parametersHigh-Pressure Air Compressor
- Manufacturer
- China
- Function
- Producing the high-pressure air required by the blow molding machine
- Voltage
- 380V 50/60 Hz
- Theoretical Energy Consumption
- 15 kWh
- Actual Energy Consumption
- 15 kWh
- Dimensions
- 1900 × 1000 × 1300 mm
- Weight
- 600 kg
03

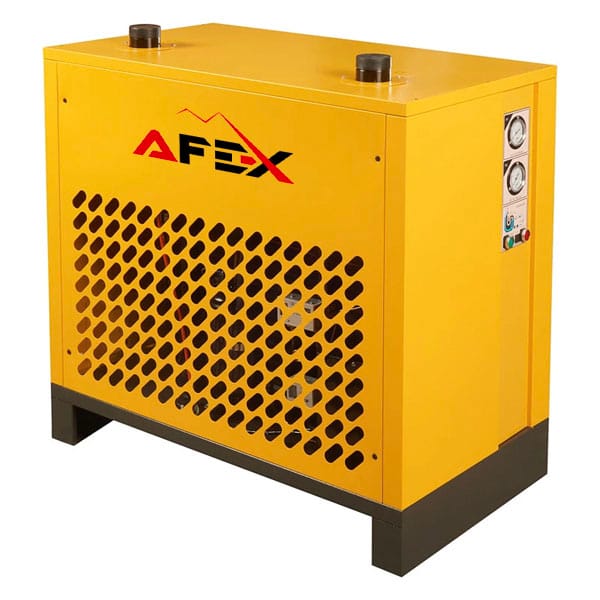

8 parametersHigh-Pressure Air Cooler-Dryer
- Manufacturer
- China
- Model
- 2.0 m³ / 3.0 MPa
- Function
- Lowering the temperature of high-pressure compressor air, filtering out oil, dust and water, and keeping the bottles clean
- Voltage
- 380V 50/60 Hz
- Theoretical Energy Consumption
- 0.73 kWh
- Actual Energy Consumption
- 0.44 kWh
- Dimensions
- 630 × 420 × 800 mm
- Weight
- 65 kg
04

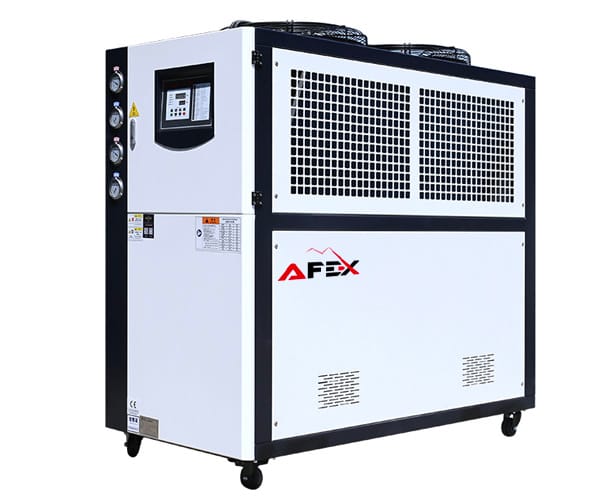

8 parametersWater Chiller
- Manufacturer
- China
- Power
- 3 HP
- Function
- Lowering mold temperature, shortening cooling time and increasing production efficiency
- Voltage
- 380V
- Theoretical Energy Consumption
- 0.73 kWh
- Actual Energy Consumption
- 0.44 kWh
- Dimensions
- 1200 × 680 × 1100 mm
- Weight
- 165 kg
T-class filter (1 µm)
Comes together with an A-class filter (0.01 µm).
Technical Parameters
05

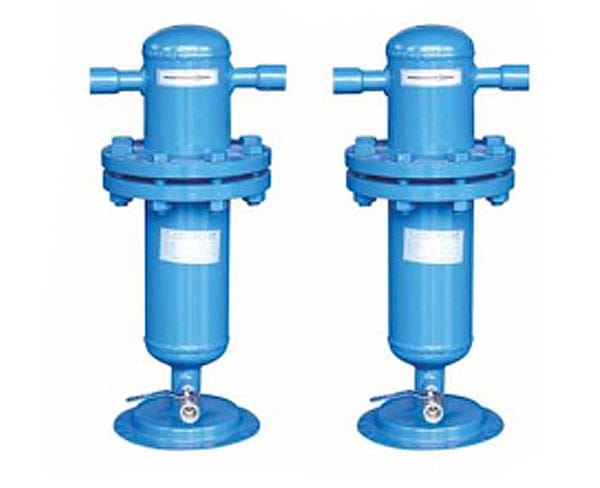

4 parametersAir Filters
- Pressure
- 3.0 m³/3.0 MPa
- Function
- Removes oil and dust.
- Size
- 300×300×660 mm
- Weight
- 17 kg

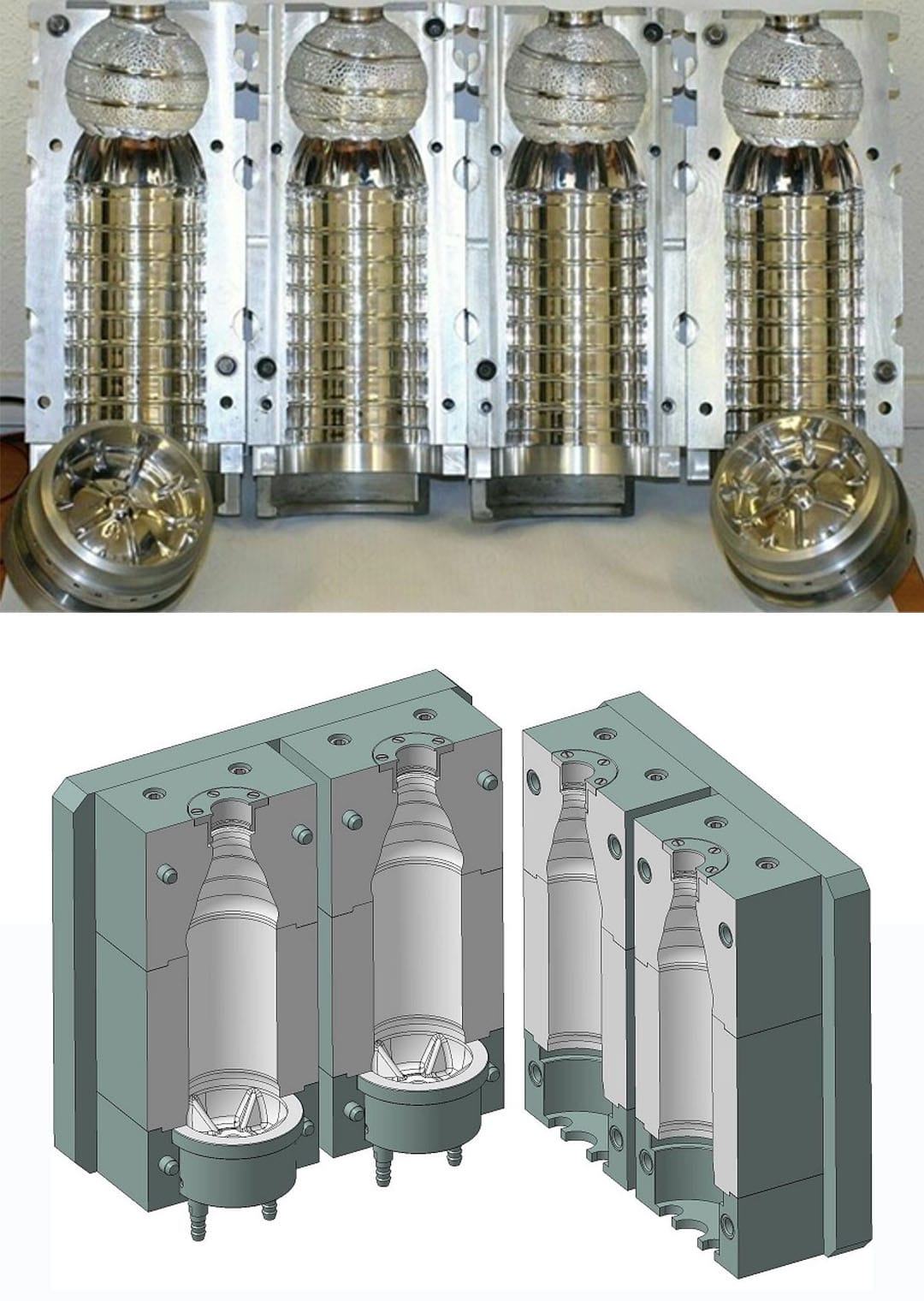

Molds
AFEX · CONSULTATION
Operators onlineQuick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentPET Bottle Production Line 0.1-2 LYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
PET Preform Blow Molding Machine
10 parameters- Manufacturer
- China
- Function
- Heating PET preforms and blowing them into bottles
- Voltage
- 380V 50/60 Hz
- Theoretical Energy Consumption
- 15 kWh
- Actual Energy Consumption
- 10 kWh
- Production Capacity
- 1800–2300 bottles (0.1–2 L) per hour
- Blowing Unit
- 1820 × 820 × 1760 mm, 1100 kg
- Heater
- 1620 × 660 × 1520 mm, 350 kg
- Automatic Preform Feeder
- 2440 × 1170 × 1420 mm, 150 kg
- Conveyor
- 1600 × 600 × 1300 mm, 50 kg
High-Pressure Air Compressor
7 parameters- Manufacturer
- China
- Function
- Producing the high-pressure air required by the blow molding machine
- Voltage
- 380V 50/60 Hz
- Theoretical Energy Consumption
- 15 kWh
- Actual Energy Consumption
- 15 kWh
- Dimensions
- 1900 × 1000 × 1300 mm
- Weight
- 600 kg
High-Pressure Air Cooler-Dryer
8 parameters- Manufacturer
- China
- Model
- 2.0 m³ / 3.0 MPa
- Function
- Lowering the temperature of high-pressure compressor air, filtering out oil, dust and water, and keeping the bottles clean
- Voltage
- 380V 50/60 Hz
- Theoretical Energy Consumption
- 0.73 kWh
- Actual Energy Consumption
- 0.44 kWh
- Dimensions
- 630 × 420 × 800 mm
- Weight
- 65 kg
Water Chiller
8 parameters- Manufacturer
- China
- Power
- 3 HP
- Function
- Lowering mold temperature, shortening cooling time and increasing production efficiency
- Voltage
- 380V
- Theoretical Energy Consumption
- 0.73 kWh
- Actual Energy Consumption
- 0.44 kWh
- Dimensions
- 1200 × 680 × 1100 mm
- Weight
- 165 kg
Air Filters
4 parameters- Pressure
- 3.0 m³/3.0 MPa
- Function
- Removes oil and dust.
- Size
- 300×300×660 mm
- Weight
- 17 kg
Included units
Units and accessories included with the equipment. Specifications for each are in the section above.
- 01
PET Preform Blow Molding Machine
10 parameters
- Voltage: 380V 50/60 Hz
- Theoretical Energy Consumption: 15 kWh
- 02
High-Pressure Air Compressor
7 parameters
- Voltage: 380V 50/60 Hz
- Theoretical Energy Consumption: 15 kWh
- 03
- 04
- 05
Video
The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
