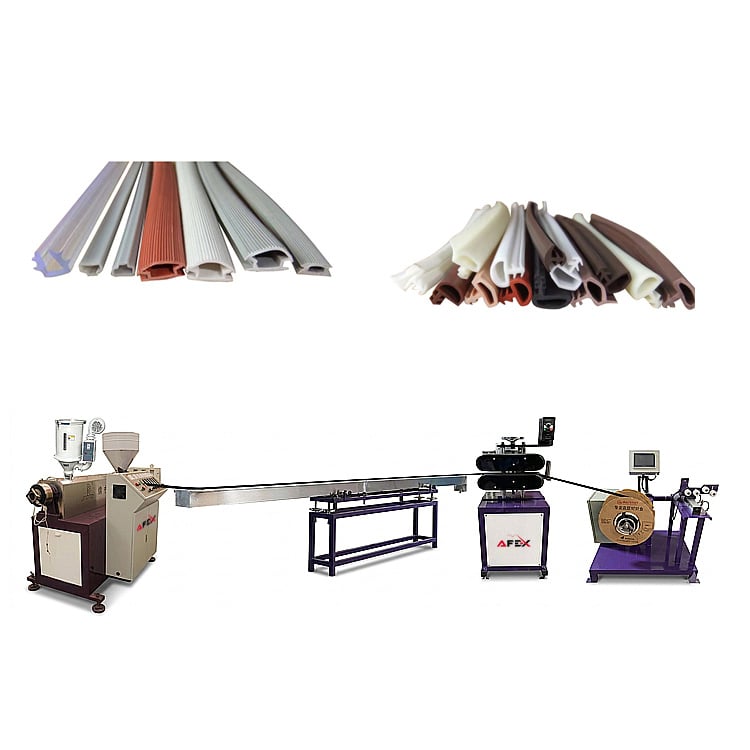

Sealing Strip Extrusion Line

Key features

• Screw and barrel

  Ø65 mm, L/D = 28:1, material – 38CrMoAlA. Heat-treated (quenched and tempered), nitrided and hard chrome-plated.

• Gearbox

  Hardened and ground gears, horizontal square housing.

• Motor

  15 kW, 4-pole, controlled by a frequency converter (inverter).

• Control panel

  6 heating zones, automatic constant temperature control in 4 zones (with air cooling system).

About the equipment

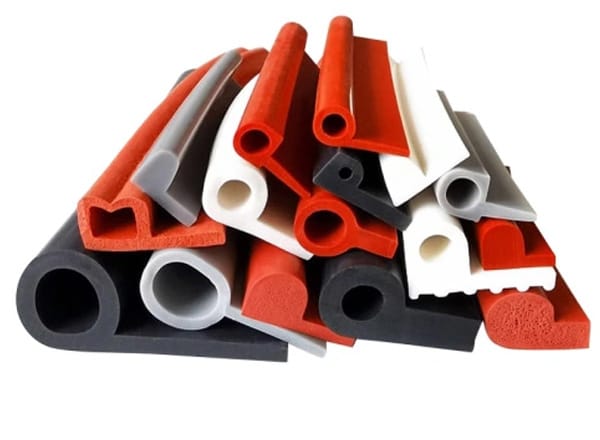

A sealing strip is a flexible polymer strip designed to hermetically seal and protect joints. It prevents the ingress of dust, moisture and air, increasing the reliability and service life of the product. It is widely used in construction, manufacturing, packaging and other industries.

01

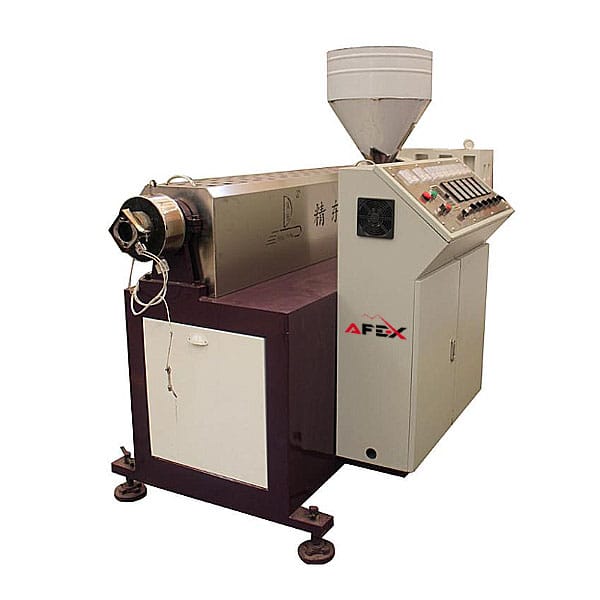

Main Extruder

7 parameters

Screw and barrel

Ø65 mm, L/D = 28:1, material – 38CrMoAlA. Heat-treated (quenched and tempered), nitrided and hard chrome-plated.

Gearbox

Hardened and ground gears, horizontal square housing.

Housing (cover)

Steel construction.

Motor

15 kW, 4-pole, controlled by a frequency converter (inverter).

Control panel

6 heating zones, automatic constant temperature control in 4 zones (with air cooling system).

Weight

1290 kg

Machine dimensions

2800 × 1200 × 1500 mm

02

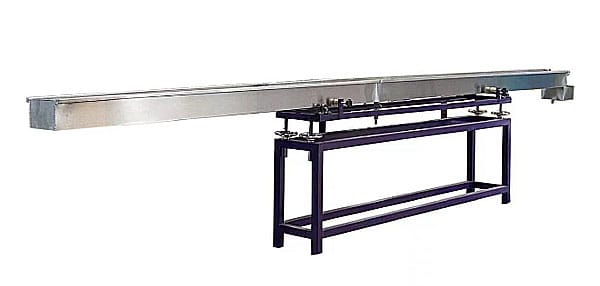

Cooling Tank

4 parameters

Length

5.8 meters

Surface material

Stainless steel. Equipped with a tank frame with manual three-axis (3D) adjustment.

Weight

168 kg

Machine dimensions

5870 × 310 × 430 mm

03

Haul-off Unit

3 parameters

Motor

2 × 0.55 kW, speed control by frequency converter (inverter).

Weight

102 kg

Machine dimensions

730 × 730 × 1580 mm

04

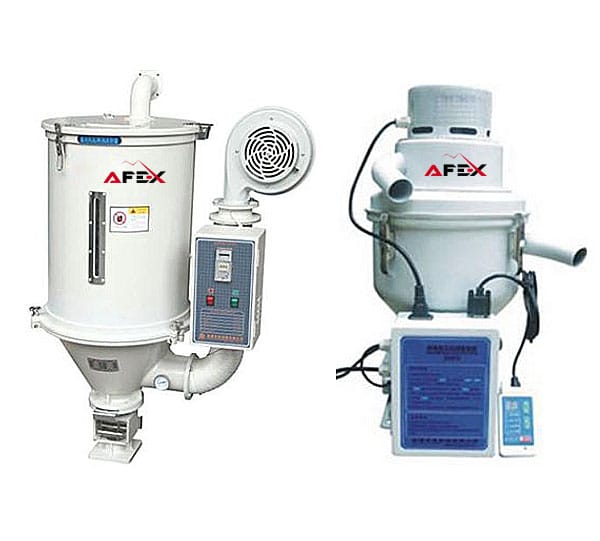

Dryer and Vacuum Loader

4 parameters

Dryer

Capacity – 75 kg

Vacuum loader

Model 300G, automatic vacuum raw material feeding system.

Weight

70 kg

Machine dimensions

940 × 600 × 1890 mm

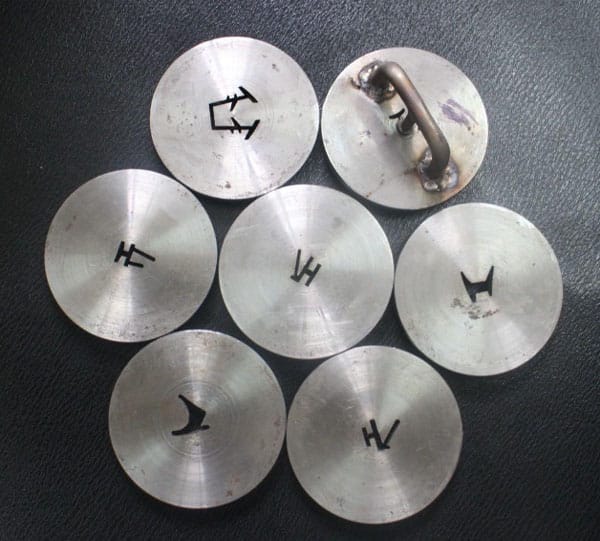

Die (Mold)

Note: 1. The die is custom-made according to the sample or dimensions provided by the customer.2. If the customer requires a die of complex design, an additional charge applies.
