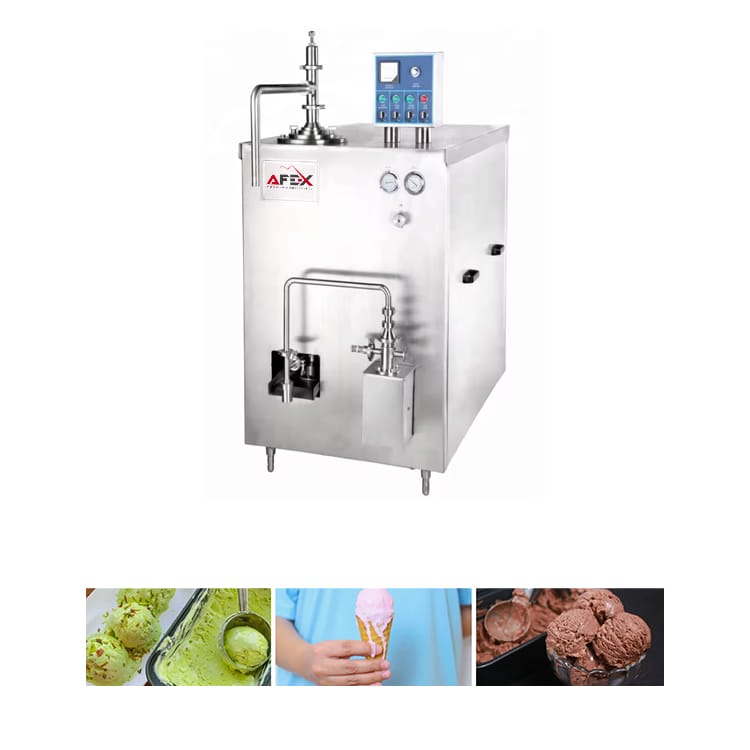

Dual-Function Ice Cream Freezing and Filling Machine

The AFEX ICER-300 ice cream machine is built on modern technology and combines preparing (freezing) the product with simultaneously filling it into molds or containers. The machine fully automates the production process, reduces the human factor and keeps product quality consistent. The machine offers high productivity and is adapted to produce various types of ice cream — classic, soft serve, and ice cream with inclusions (fruit, chocolate). The robust construction and reliable motor system ensure long-term, continuous operation.

This is a combined Freezer + Filling machine (freezing + filling).

In other words, it:

• Cools the mix and turns it into ice cream

• Automatically fills the finished product into containers or molds

This eliminates the need to buy two separate machines.

01

General

17 parameters

Equipment name

Dual-function ice cream freezing and filling machine (Freezer + Filling)

Brand

AFEX

Model

ICER-300

Operating principle

Automatic freezer + filling combination

Production capacity

180–260 L/h

Freezing temperature

-5°C to -8°C

Product type

Soft and hard ice cream

Filling volume

50 ml – 500 ml (adjustable)

Raw material type

Milk mix, fruit and chocolate masses

Main motor

2 × 4.5 kW servo motor

Mixing motor

2.2 kW

Compressor power

3.5 kW

Filling motor

1.1 kW

Cooling system

Freon compressor system

Control system

PLC + touchscreen

Voltage

Customized to order

Dimensions

4.2 × 2.2 × 1.7 m
