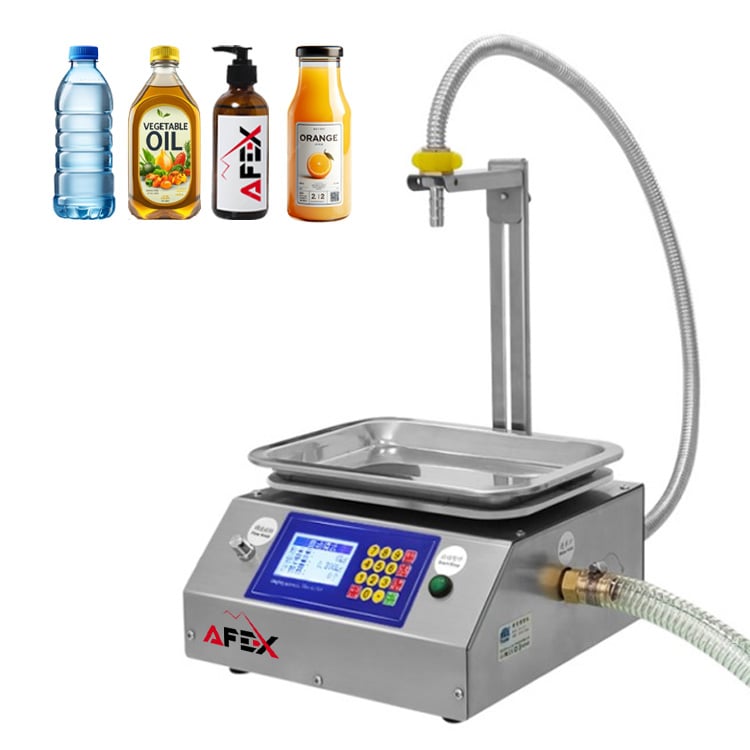

1 / 3Automatic Liquid Filling Machine 30-15000 ml
The automatic filling machine dispenses metered doses of liquids such as water, beverages, shampoo, oil and yogurt into containers.
- Power
- 193W
- Voltage
- 220V 50 Hz
- Max. flow rate
- Thinner: 17 L/min
- Filling range
- 30-15000 grams
- Manufacturer
- China
- Control
- Automatic or by foot pedal
Overview
About the equipment
The automatic filling machine dispenses metered doses of liquids such as water, beverages, shampoo, oil and yogurt into containers. For thinner products, the flow rate is up to 17 liters per minute.
The liquid is drawn in through the inlet tube and delivered into the container through the outlet tube and the filling nozzle. The machine includes a control panel, a speed control knob, a start/stop button and a container tray. Filling is controlled automatically or by a foot pedal — with the pedal, the operator starts each dose manually.
The maximum flow rate is 17 liters per minute for thinner products and 7 liters for thicker ones. Therefore, in addition to water and beverages, the machine is also suitable for thicker free-flowing products such as shampoo, edible and technical oils, and yogurt. Power supply 220 V, power 193 W, made in China. It is convenient for small workshops filling food products, household chemicals and cosmetics.
AFEX delivers the equipment and provides warranty service. Tell us your product and container volume — we will recommend the right mode and settings.
General
- Manufacturer
- China
- Voltage
- 220V 50 Hz
- Power
- 193W
- Filling range
- 30-15000 grams
- Max. flow rate
- Thinner: 17 L/min. Thicker: 7 L/min.
- Control
- Automatic or by foot pedal
- Suitable liquids
- Free-flowing liquids: water, various beverages, shampoo, edible and technical oils, yogurt, etc.
Suitable Products
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentAutomatic Liquid Filling Machine 30-15000 mlYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
7 parameters- Manufacturer
- China
- Voltage
- 220V 50 Hz
- Power
- 193W
- Filling range
- 30-15000 grams
- Max. flow rate
- Thinner: 17 L/min. Thicker: 7 L/min.
- Control
- Automatic or by foot pedal
- Suitable liquids
- Free-flowing liquids: water, various beverages, shampoo, edible and technical oils, yogurt, etc.
Included units
Units and accessories included with the equipment. Specifications for each are in the section above.

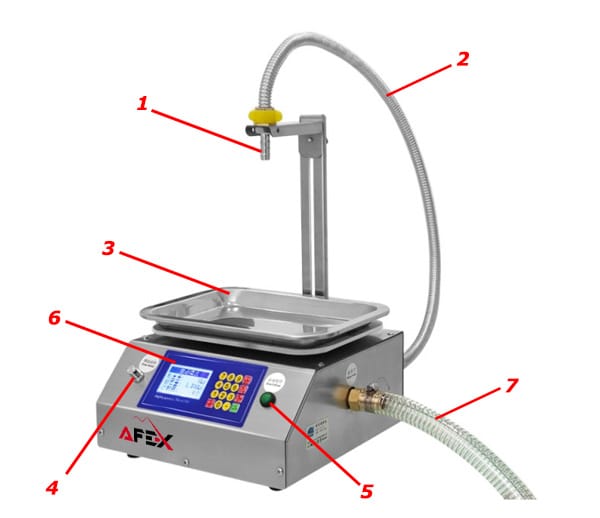

Machine Components
7 items
- 1Filling nozzle
- 2Inlet tube
- 3Tray
- 4Speed control knob
- 5Start / stop button
- 6Control panel
- 7Outlet tube
Video
The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
Frequently asked questions
The most common questions about delivery, contracts and tracking.
Is it possible to track my orders online?
How long will the shipments be delivered?
What are the shipping methods available?
What is required of me to conclude a contract?
Let’s discuss your project together
Contact us for advice on choosing equipment, technical solutions and offers.
Follow our channels
New equipment, commissioning and production footage — on our official channels.
Related equipment
Automatic Filling Machine for Honey and Viscous Products 50-5000 ml
Chemical Additive Dosing Line

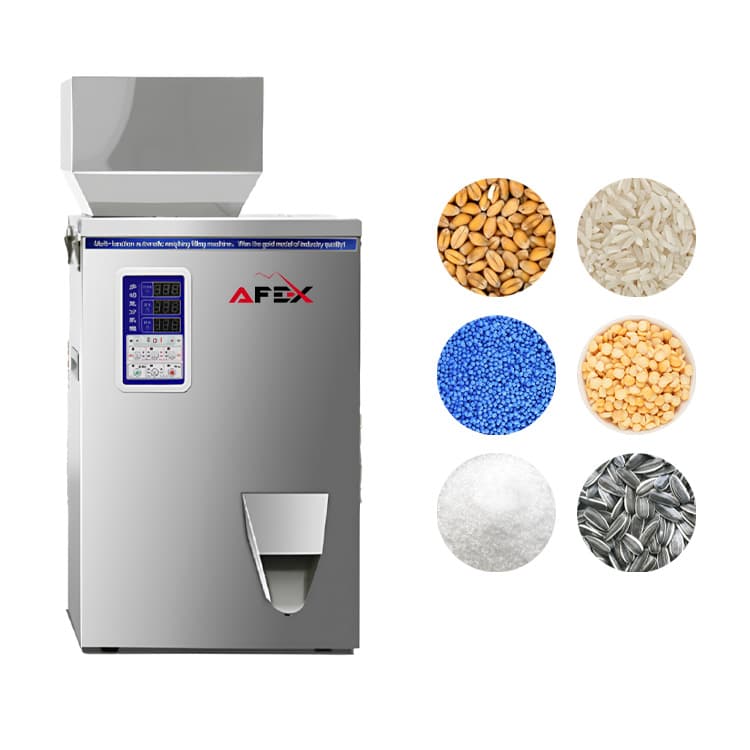

Dosing Machine for Dry Products 500 g

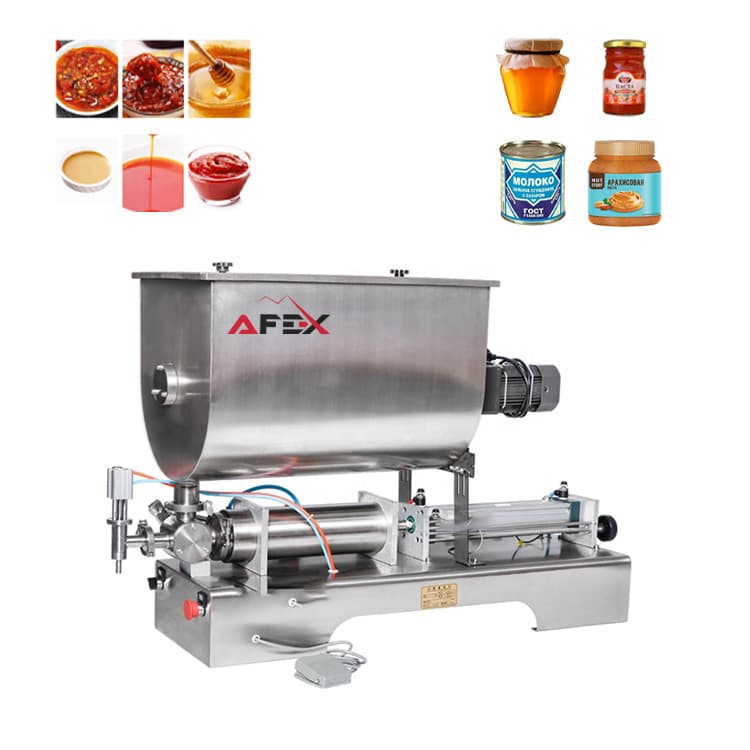

Horizontal Mixing Filler for Liquids and Creams (300-3000 ml)

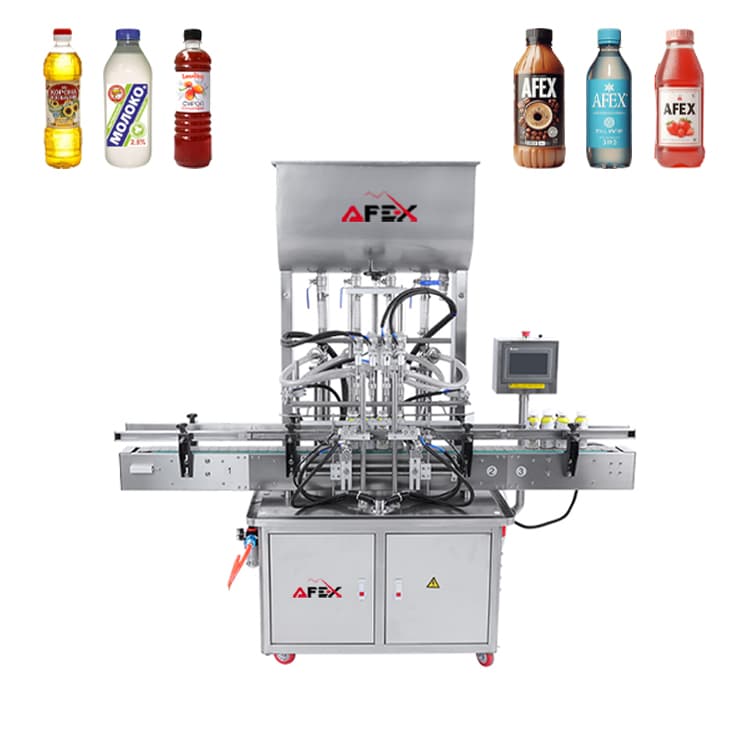

Automatic 4-Head Liquid Filling Machine 100-1000 ml

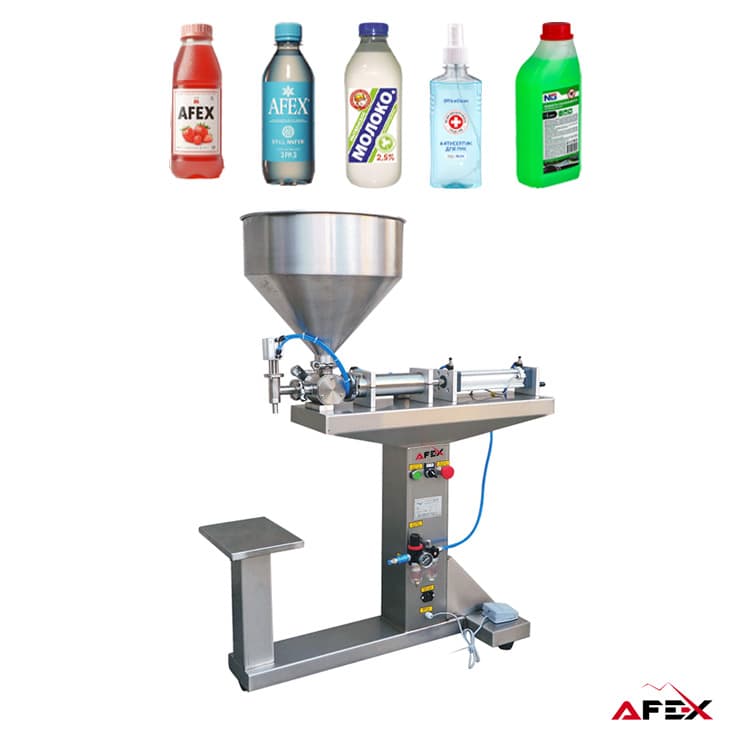

Vertical Hopper Filler for Liquid Products AF-BVD500

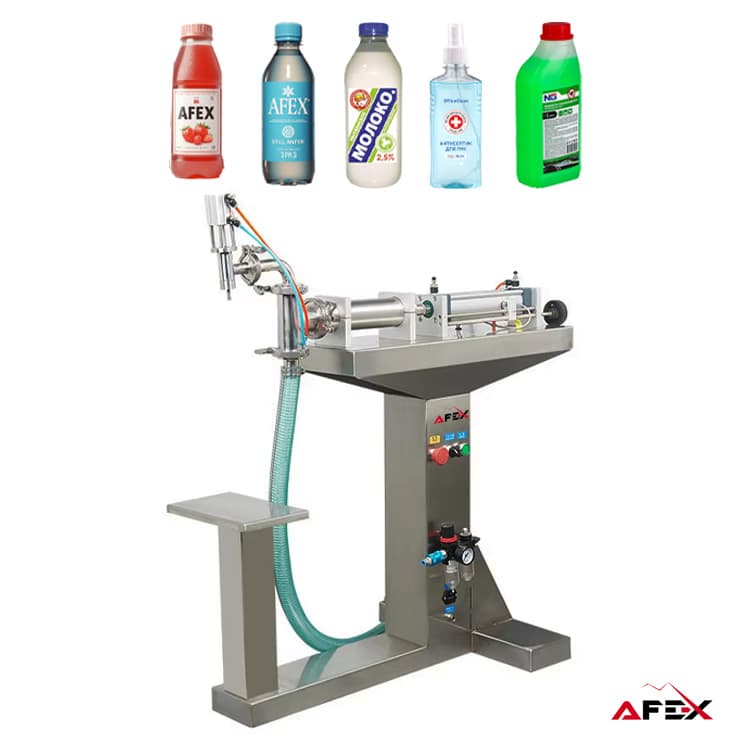

Vertical Liquid Filling Machine AF-VD500
