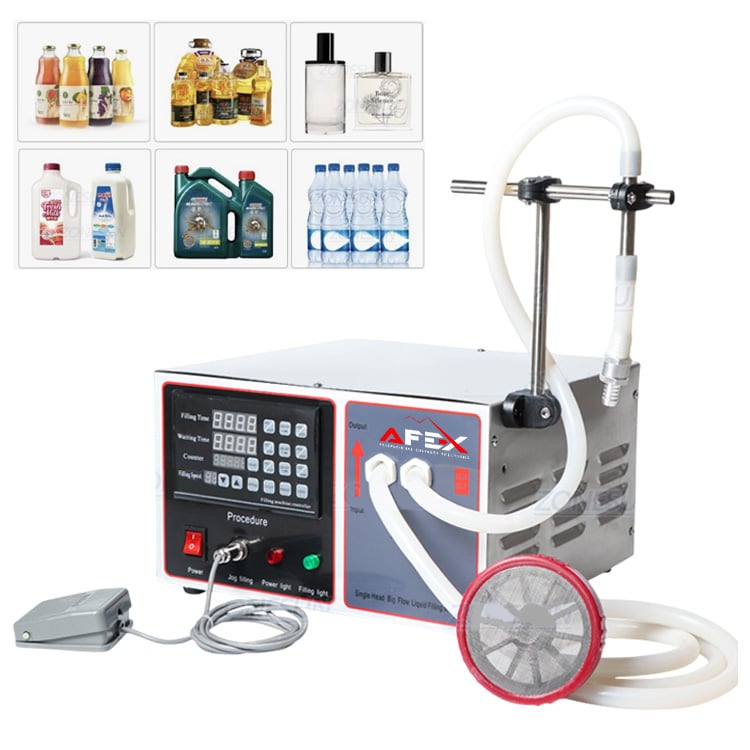

1 / 2Liquid Product Dosing Filler 20-10000 ml
The liquid product dosing filler dispenses 20 to 10 000 ml of liquid into containers with ±2% accuracy.
- Power
- 80W
- Voltage
- 220V
- Max. filling speed
- 10000 ml/min
- Dimensions
- 360x360x220 mm
- Weight
- 20 kg
- Filling accuracy
- ±2%
Overview
About the equipment
The liquid product dosing filler dispenses 20 to 10 000 ml of liquid into containers with ±2% accuracy. It operates in manual (foot pedal) and automatic modes.
The filler has a stainless steel body fitted with a control panel, a filling nozzle, an inlet filter and an on/off switch. The liquid passes through the filter and is dispensed in the set volume through the nozzle into the container. In manual mode, filling starts when the pedal is pressed, allowing the operator to control each container.
The maximum filling speed for water is 10 000 ml per minute. The filling range is wide — from 20 ml to 10 000 ml — so a single machine can fill anything from small vials to large containers. The filler connects to a 220 V mains supply, consumes only 80 W, measures 360×360×220 mm and weighs 20 kg. It is convenient for small workshops filling beverages, oils, household chemicals and cosmetics.
AFEX delivers the equipment and provides warranty service. Tell us the liquid to be filled and the container volume — we will advise on the setup.
General
- Voltage
- 220V, 50/60Hz
- Power
- 80W
- Max. filling speed
- 10000 ml/min (for water)
- Filling range
- 20 ml – 10000 ml
- Optimal filling range
- 20 ml – 10000 ml
- Filling accuracy
- ±2%
- Control mode
- Manual and automatic
- Dimensions
- 360x360x220 mm
- Weight
- 20 kg
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentLiquid Product Dosing Filler 20-10000 mlYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
9 parameters- Voltage
- 220V, 50/60Hz
- Power
- 80W
- Max. filling speed
- 10000 ml/min (for water)
- Filling range
- 20 ml – 10000 ml
- Optimal filling range
- 20 ml – 10000 ml
- Filling accuracy
- ±2%
- Control mode
- Manual and automatic
- Dimensions
- 360x360x220 mm
- Weight
- 20 kg
Included units
Units and accessories included with the equipment. Specifications for each are in the section above.

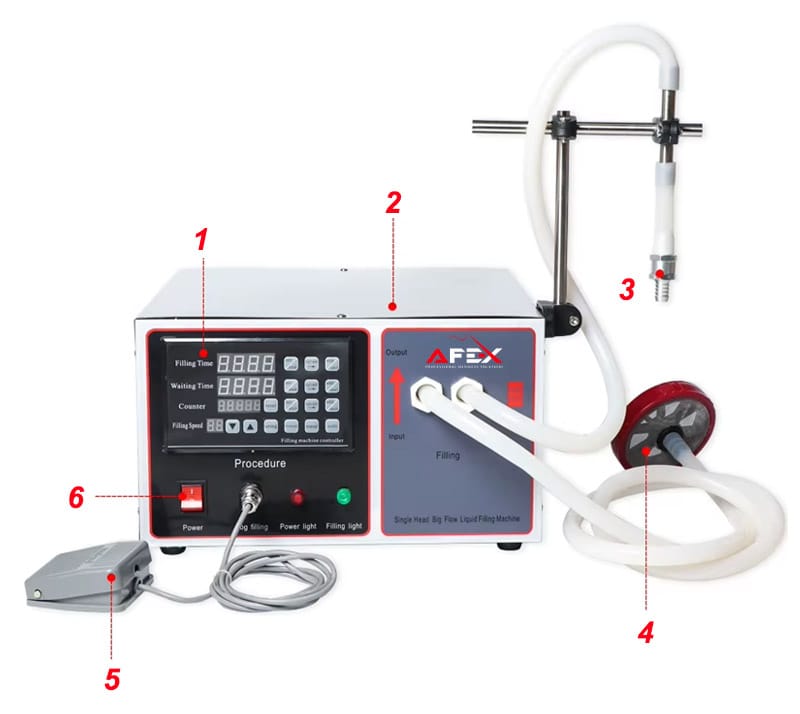

Machine Components
6 items
- 1Control panel
- 2Stainless steel body
- 3Filling nozzle
- 4Inlet filter
- 5Foot pedal to start filling
- 6On/off switch
