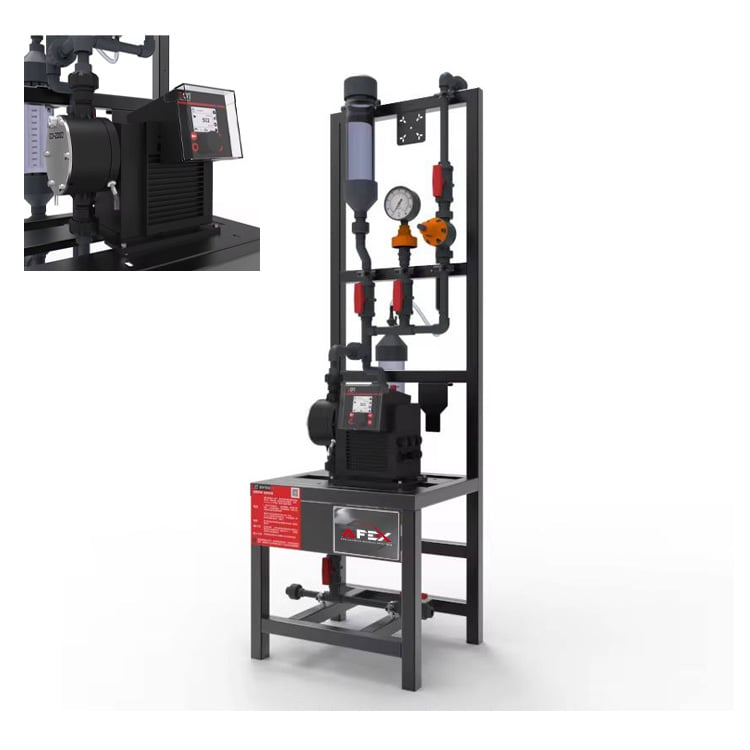

1 / 1Chemical Additive Dosing Line
The chemical additive dosing line is a modular system built around an E01A digital pump and UPVC fittings.
- Max. flow rate
- 90 L/h
- Max. pressure
- 3 bar
- Negative-pressure suction damper assembly
- DN20 · Component
- Outlet dosing valve
- DN20 / ID 25 · UPVC
- Pressure control assembly
- E01A-M1 · Component
- Flushing valve
- DN15 / ID 20 · UPVC
Overview
About the equipment
The chemical additive dosing line is a modular system built around an E01A digital pump and UPVC fittings. It delivers up to 90 liters per hour at pressures up to 3 bar.
At the heart of the system is the E01A digital dosing pump with a polypropylene (PP) pump head. Maximum flow rate is 90 liters per hour, maximum pressure is 3 bar. To stabilize the flow, an E01A-UNV-1.0/1.5L-DN20 damper assembly and a negative-pressure suction damper assembly (DN20) are installed; pressure is controlled by an E01A-M1 pressure control assembly and a back-pressure valve (DN20).
The valves are made of UPVC: the inlet, outlet dosing, damper service and pressure gauge service valves are DN20 (25 mm inner diameter), while the flushing and drain valves are DN15 (20 mm inner diameter). The system includes an E01-DN15 foot valve assembly, a DF-90-200 nylon filter bag and a DN20 Y-strainer, and the set comes with an E01A FKM seal kit (10 pcs). The line is designed for plants that need to feed liquid chemical additives into a process stream in precise quantities.
AFEX supplies, installs, commissions and provides warranty service for the equipment. Tell us the reagent type, required flow rate and system pressure, and we will recommend a suitable configuration.
General
- Item
- Model / Size · Material
- Damper assembly
- E01A-UNV-1.0/1.5L-DN20 · Component
- Negative-pressure suction damper assembly
- DN20 · Component
- Outlet dosing valve
- DN20 / ID 25 · UPVC
- Pressure control assembly
- E01A-M1 · Component
- Damper service valve
- DN20 / ID 25 · UPVC
- Back-pressure valve
- DN20 · Component
- Pressure gauge service valve
- DN20 / ID 25 · UPVC
- Flushing valve
- DN15 / ID 20 · UPVC
- Inlet valve
- DN20 / ID 25 · UPVC
- Drain valve
- DN15 / ID 20 · UPVC
- Negative-pressure damper service valve
- DN20 / ID 25 · UPVC
- Digital dosing pump
- E01A · Component
- Foot valve assembly
- E01-DN15 · Component
- Filter bag
- DF-90-200 · Nylon
- E01A seal kit (10 pcs per kit)
- DN15 φ15×2.65 / DN20 φ21.2×2.65 · FKM
- Y-strainer
- DN20 · Component
- Max. flow rate
- 90 L/h
- Max. pressure
- 3 bar
- Pump head material
- PP (polypropylene)
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentChemical Additive Dosing LineYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
20 parameters- Item
- Model / Size · Material
- Damper assembly
- E01A-UNV-1.0/1.5L-DN20 · Component
- Negative-pressure suction damper assembly
- DN20 · Component
- Outlet dosing valve
- DN20 / ID 25 · UPVC
- Pressure control assembly
- E01A-M1 · Component
- Damper service valve
- DN20 / ID 25 · UPVC
- Back-pressure valve
- DN20 · Component
- Pressure gauge service valve
- DN20 / ID 25 · UPVC
- Flushing valve
- DN15 / ID 20 · UPVC
- Inlet valve
- DN20 / ID 25 · UPVC
- Drain valve
- DN15 / ID 20 · UPVC
- Negative-pressure damper service valve
- DN20 / ID 25 · UPVC
- Digital dosing pump
- E01A · Component
- Foot valve assembly
- E01-DN15 · Component
- Filter bag
- DF-90-200 · Nylon
- E01A seal kit (10 pcs per kit)
- DN15 φ15×2.65 / DN20 φ21.2×2.65 · FKM
- Y-strainer
- DN20 · Component
- Max. flow rate
- 90 L/h
- Max. pressure
- 3 bar
- Pump head material
- PP (polypropylene)
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
