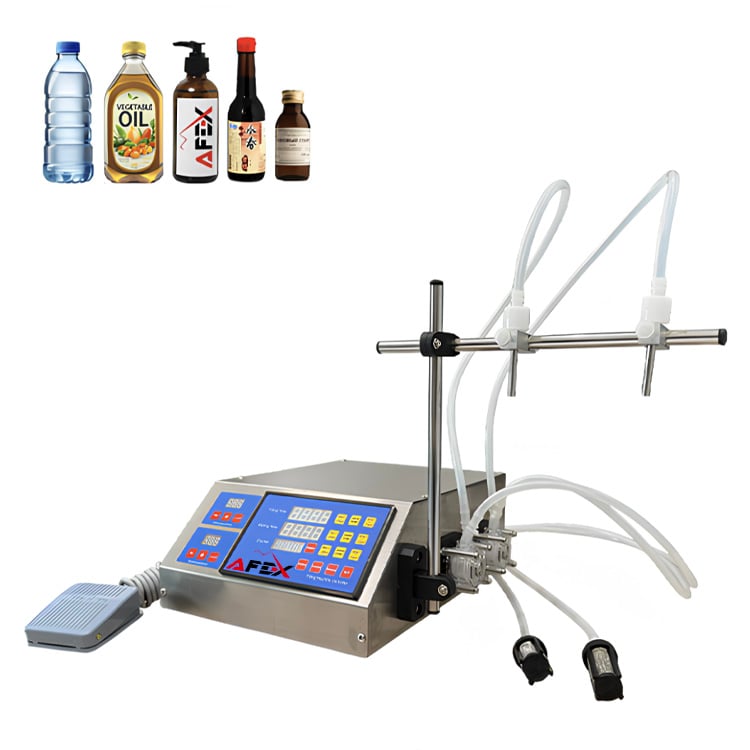

1 / 1Double-Head Peristaltic Pump Filling Machine
Double-head peristaltic filling machine — fills liquids and pastes into containers in doses of 5–650 ml.
- Power
- 118 W
- Voltage
- 220 V
- Suitable liquids
- below 75%
- Filling range
- 5-650 ml
- Maximum flow rate
- 650 ml/min
- Manufacturer
- China
Overview
About the equipment
Double-head peristaltic filling machine — fills liquids and pastes into containers in doses of 5–650 ml. Maximum flow rate is 650 ml per minute.
In a peristaltic pump, the liquid moves only inside a flexible hose and does not touch the pump mechanism, so when switching from one product to another it is usually enough to clean the hose. The machine has two filling heads, and the filling volume is adjustable from 5 ml to 650 ml. Filling is controlled automatically or with a foot pedal.
The machine is suitable for free-flowing liquids and pastes without particles: soy sauce, beverages, white wine, vinegar, milk, liquids with an alcohol content below 75%, and the like. It connects to a 220 V power supply, consumes 118 W and is made in China. It is convenient for filling bottles, vials and jars in small production and packaging workshops.
AFEX delivers the equipment and provides warranty service. Tell us the type of liquid and the container size, and we will advise you on the setup.
General
- Manufacturer
- China
- Voltage
- 220 V, 50 Hz
- Power
- 118 W
- Filling range
- 5-650 ml
- Maximum flow rate
- 650 ml/min
- Control
- Automatic or foot pedal
- Suitable liquids
- All free-flowing pastes and liquids without particles, e.g.: soy sauce, beverages, white wine, vinegar, milk, alcohol (below 75%), etc.
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentDouble-Head Peristaltic Pump Filling MachineYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
7 parameters- Manufacturer
- China
- Voltage
- 220 V, 50 Hz
- Power
- 118 W
- Filling range
- 5-650 ml
- Maximum flow rate
- 650 ml/min
- Control
- Automatic or foot pedal
- Suitable liquids
- All free-flowing pastes and liquids without particles, e.g.: soy sauce, beverages, white wine, vinegar, milk, alcohol (below 75%), etc.
