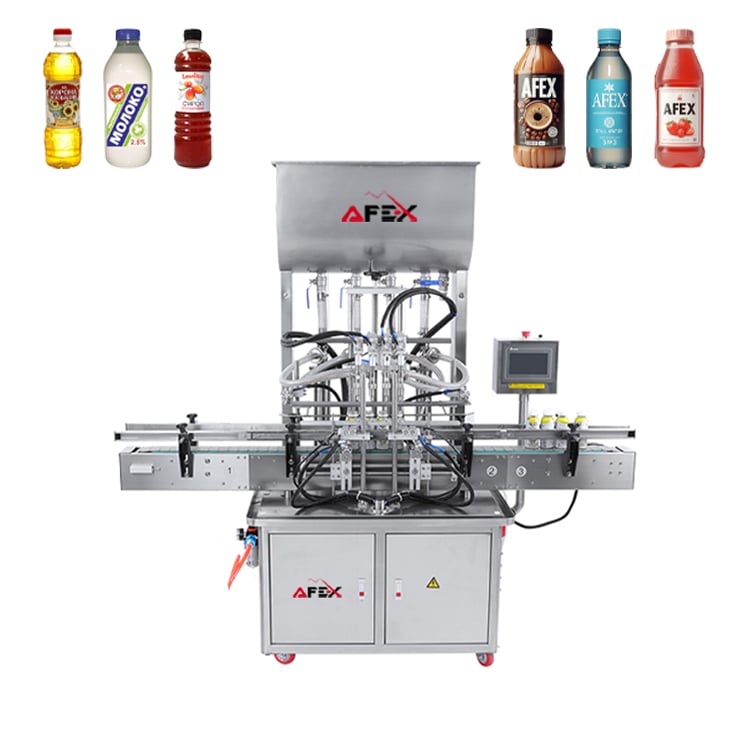

1 / 5Automatic 4-Head Liquid Filling Machine 100-1000 ml
This 4-head filler is designed for fast and accurate filling of liquid and semi-liquid products in volumes from 100 ml to 1000 ml.
- Power
- 500 W
- Voltage
- 220 V
- Filling speed
- 1200-1600 pcs/h
- Machine dimensions
- 2000×900×1700 mm
- Machine weight
- 350 kg
- Air pressure
- 0.4-0.7 MPa
Overview
Key advantages
- Fast and accurate dosed filling
- Production automation
- Simple and reliable design
About the equipment
This 4-head filler is designed for fast and accurate filling of liquid and semi-liquid products in volumes from 100 ml to 1000 ml. The multi-head system fills several containers at the same time, which increases production efficiency.
General
- Manufacturer
- China
- Voltage
- 220 V, 50 Hz
- Power
- 500 W
- Filling speed
- 1200-1600 pcs/h
- Filling volume
- 100-1000 ml
- Number of filling heads
- 4
- Air pressure
- 0.4-0.7 MPa
- Material
- SUS304
- Machine dimensions
- 2000×900×1700 mm
- Machine weight
- 350 kg

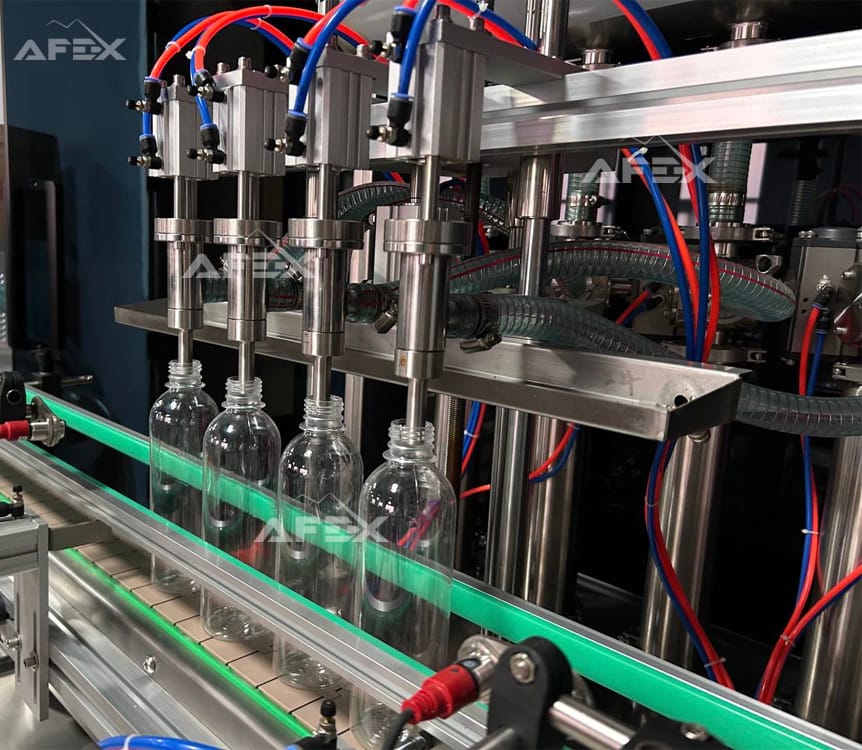

Filling heads
Products
-
water, juice, syrup
-
oils (vegetable, olive)
-
liquid soap, shampoo
-
cream, lotion, gel
-
disinfectants
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentAutomatic 4-Head Liquid Filling Machine 100-1000 mlYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
10 parameters- Manufacturer
- China
- Voltage
- 220 V, 50 Hz
- Power
- 500 W
- Filling speed
- 1200-1600 pcs/h
- Filling volume
- 100-1000 ml
- Number of filling heads
- 4
- Air pressure
- 0.4-0.7 MPa
- Material
- SUS304
- Machine dimensions
- 2000×900×1700 mm
- Machine weight
- 350 kg
Included units
Units and accessories included with the equipment. Specifications for each are in the section above.

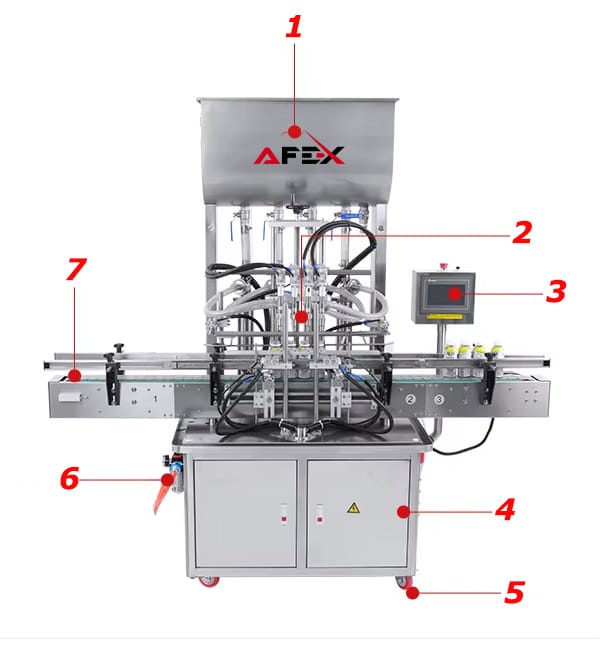

Machine components
7 items
- 1Hopper
- 2Feed pipes
- 3Control panel
- 4Electrical and other components box
- 5Wheels
- 6Pressure gauge
- 7Conveyor
