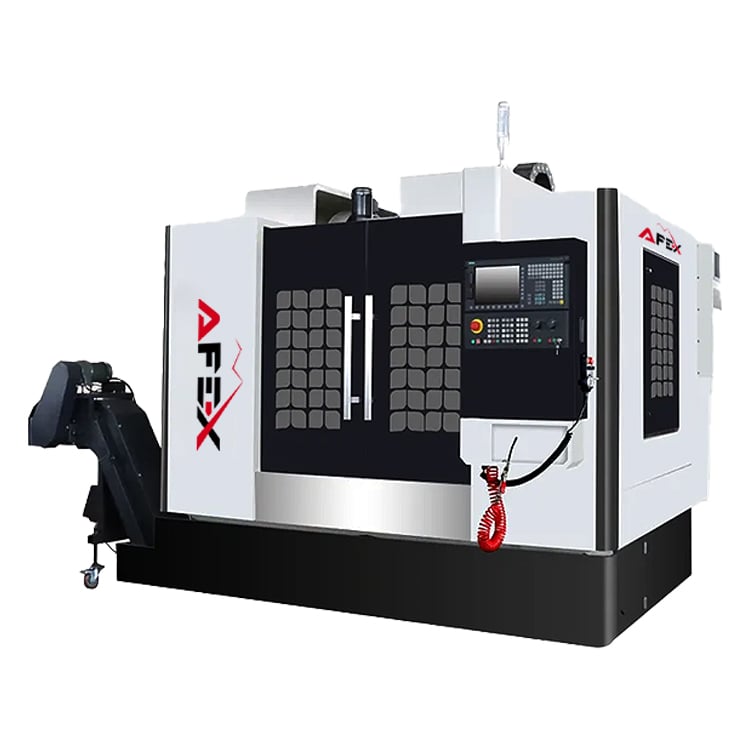

1 / 3VMC850 Vertical Metal Milling Machine
This machine is a vertical machining center designed for high-precision machining; it performs milling, drilling and tapping operations on…
- Main motor power
- 7.5 kW
- Voltage
- 380 V 50/60 Hz
- X/Y/Z rapid traverse speed
- 24/24/20 m/min
- Spindle speed
- 8000 rpm
- Machine dimensions
- 2600x2300x2580 mm
- Machine weight
- 5000 kg
Overview
About the equipment
This machine is a vertical machining center designed for high-precision machining; it performs milling, drilling and tapping operations on metal and other materials. The machine comes with the GSK system; at the customer's request, CNC systems such as Fanuc, Mitsubishi can also be installed. The spindle speed and the tool magazine capacity can also be changed.
General
- Manufacturer
- China
- Voltage
- 380 V 50/60 Hz
- Main motor power
- 7.5 kW
- Table size
- 1000x500 mm
- X-axis travel
- 800 mm
- Y-axis travel
- 500 mm
- Z-axis travel
- 500 mm
- Max. table load
- 500 kg
- T-slots
- 3-18x130
- Spindle speed
- 8000 rpm (can be changed)
- X/Y/Z rapid traverse speed
- 24/24/20 m/min
- Cutting feed rate
- 1-10000 mm/min
- Spindle nose to table surface distance
- 140-640 mm
- Tool magazine
- 24 positions (arm type)
- Machine dimensions
- 2600x2300x2580 mm
- Machine weight
- 5000 kg
Advantages
A system with a simple design for easy maintenance and a color display, program control, tool compensation, and program storage and editing capabilities.Applications
- High-precision linear and arc cutting
- Thread tapping and cutting
The devices and parts shown above can be installed for an additional feeQuick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentVMC850 Vertical Metal Milling MachineYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
16 parameters- Manufacturer
- China
- Voltage
- 380 V 50/60 Hz
- Main motor power
- 7.5 kW
- Table size
- 1000x500 mm
- X-axis travel
- 800 mm
- Y-axis travel
- 500 mm
- Z-axis travel
- 500 mm
- Max. table load
- 500 kg
- T-slots
- 3-18x130
- Spindle speed
- 8000 rpm (can be changed)
- X/Y/Z rapid traverse speed
- 24/24/20 m/min
- Cutting feed rate
- 1-10000 mm/min
- Spindle nose to table surface distance
- 140-640 mm
- Tool magazine
- 24 positions (arm type)
- Machine dimensions
- 2600x2300x2580 mm
- Machine weight
- 5000 kg
Included units
Units and accessories included with the equipment. Specifications for each are in the section above.

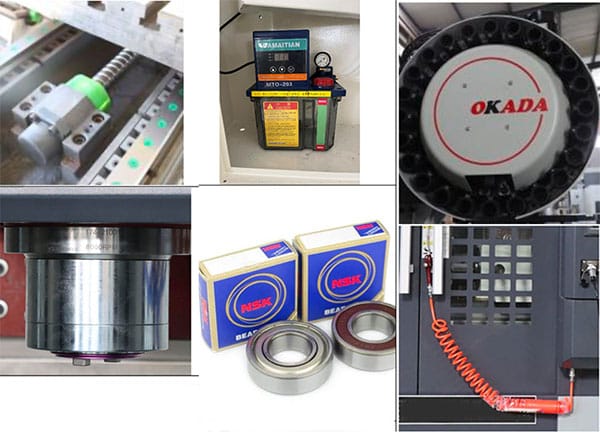

Machine configuration
6 items
- 1Ball screws and linear guides — Taiwan
- 2BT40 spindle — Taiwan
- 3OKADA 24-position tool magazine
- 4Automatic lubrication system
- 5NSK/FAG bearings
- 6Air gun
Optional parts available for purchase and installation (on request)
9 items
- 1Spindle oil cooling system
- 2Automatic chip conveyor and tank
- 34th axis / 5th axis
- 4Tool and workpiece measuring systems (Renishaw/China)
- 5Electrical cabinet air conditioner
- 6Oil-water separator
- 7Vise (6 inch)
- 8M16 clamping kit (58 pcs)
- 9Nitrogen balancing system
