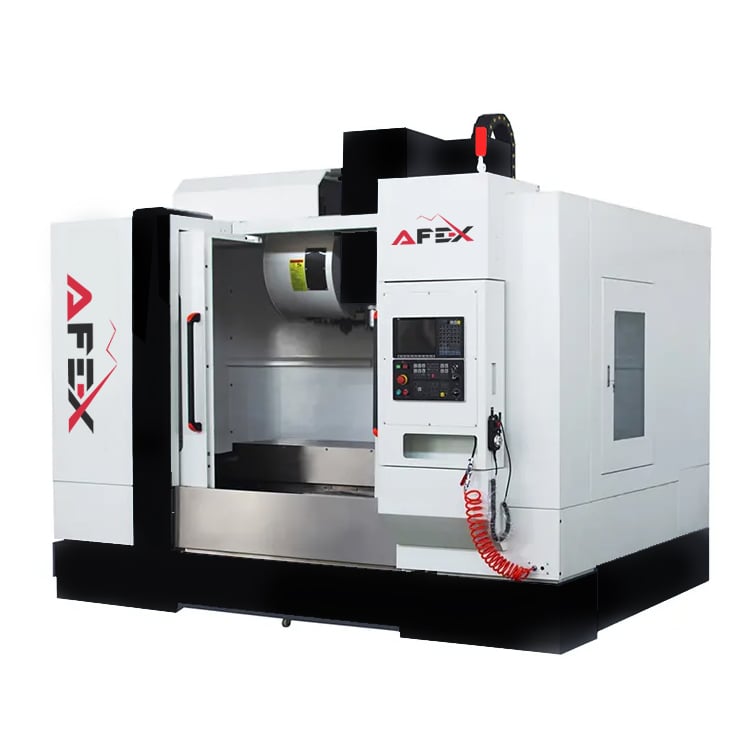

VMC1690 Vertical Metal Milling Machine

The machine is a vertical machining center designed for high-precision machining; it performs milling, drilling and tapping operations on metal and other materials. The machine is offered with the GSK system; at the customer's request, CNC systems such as Fanuc , Mitsubishi can also be installed. The spindle speed and the tool magazine capacity can also be changed. The price of the machine depends on the technical specifications and the type of system chosen by the customer. To get an exact price calculation, click the “Send request” link.

01

General

14 parameters

X-axis travel

1600mm

Y-axis travel

900mm

Z-axis travel

800mm

Distance from spindle nose to table

160-960mm

Distance from spindle center to column guideway

960mm

X/Y/Z rapid traverse speed

12/12/12 m/min

Cutting feed rate

1-10 m/min

Table size

1800*900mm

Table load capacity

1600kg

T-slot table size

5-22*165mm

Spindle taper

BT50-190

Spindle speed

8000 rpm

Main motor power

15KW

Positioning accuracy (JIS standard)

±0.005/300mm

Advantages

A system built with a simple design for easy maintenance and a color display, program control, tool compensation, and program storage and editing capabilities.

Machine Applications

1. Cutting linear and circular edges:

Linear and circular edges can be cut at any angle with high precision; drilling and tapping can also be performed.

1. No backlash:

Driven by a ball screw, it prevents crawling at low speeds as the load increases, which significantly improves speed and accuracy.

1. High reliability:

The use of electrical technology simplifies the mechanical structure, increases reliability and makes maintenance easier.

1. CNC functions:

The standard configuration provides various CNC functions, such as a color LCD screen, various rotation functions, tool compensation, program storage and editing, and more.
