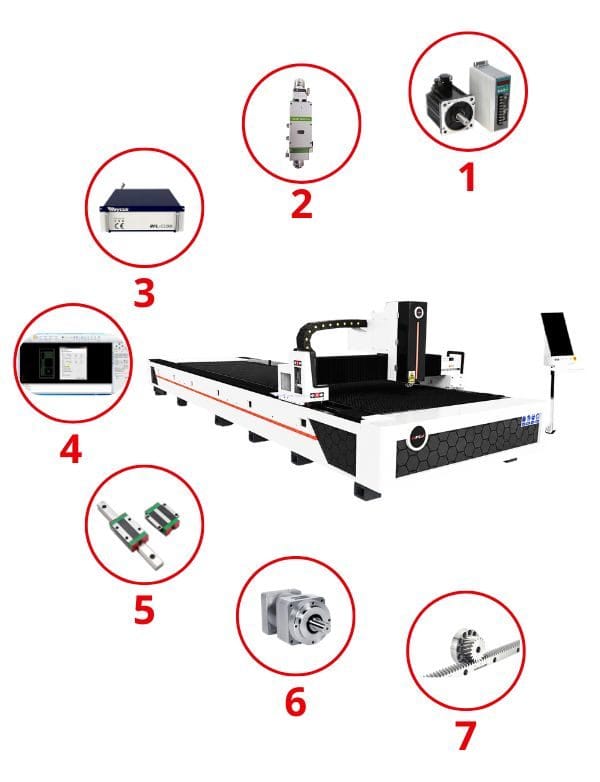

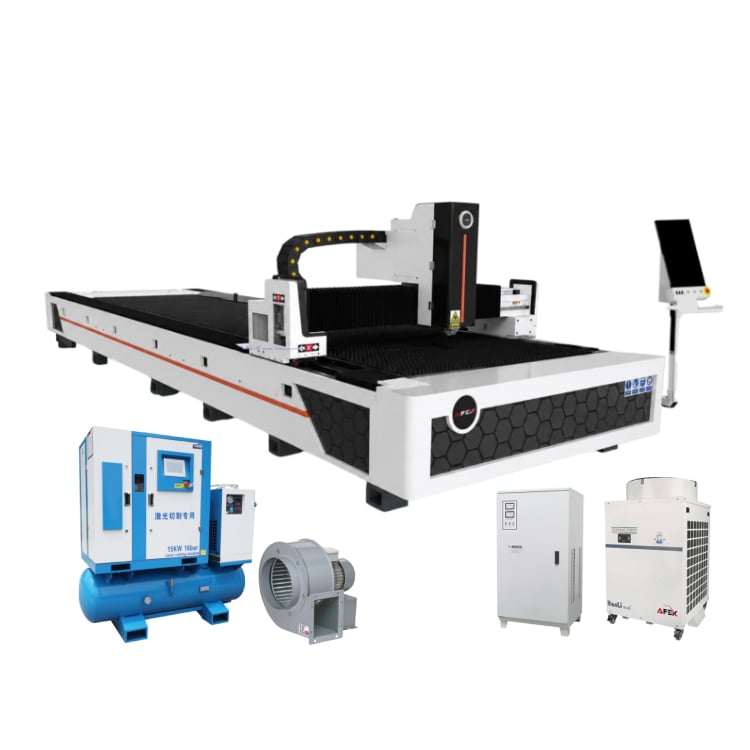

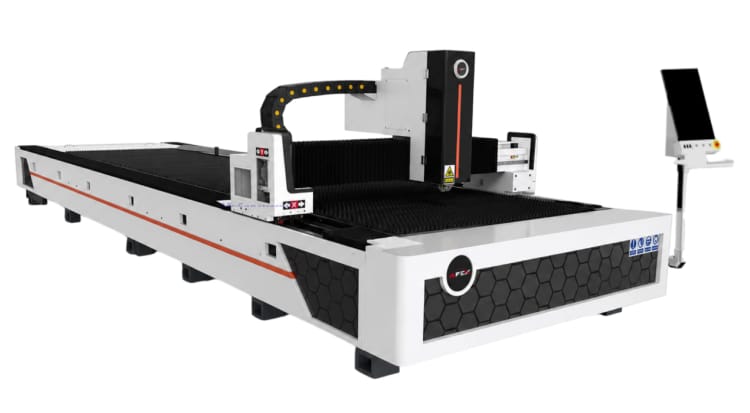

Laser Cutting Machine AFX-6015 3000W

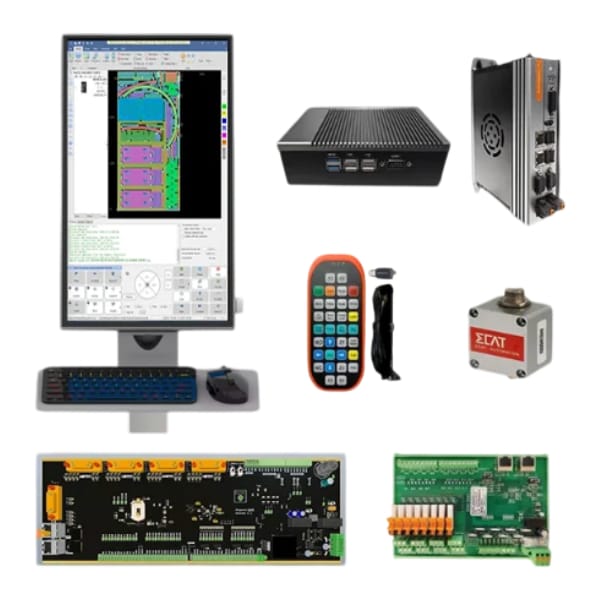

Raytools XC3000S control system

• Raytools XC3000S is a modern CNC control system designed for laser cutting of metal sheets. The system controls the laser cutting process with high precision and stability, increasing production efficiency.
• Advantages:
• Convenient and intuitive touch interface.
• Supports DXF, AI and other common file formats.
• Automatic cutting path optimization.
• Automatic control of piercing and contour cutting.
• Broad compatibility with servo motors and laser sources.
• Reduces material consumption and production time.
• Ensures high-speed and precise cutting.
• Supports remote diagnostics and maintenance.
• Applications:
• Used in fiber laser metal cutting machines for high-precision cutting of carbon steel, stainless steel, aluminum, copper and other metal materials.

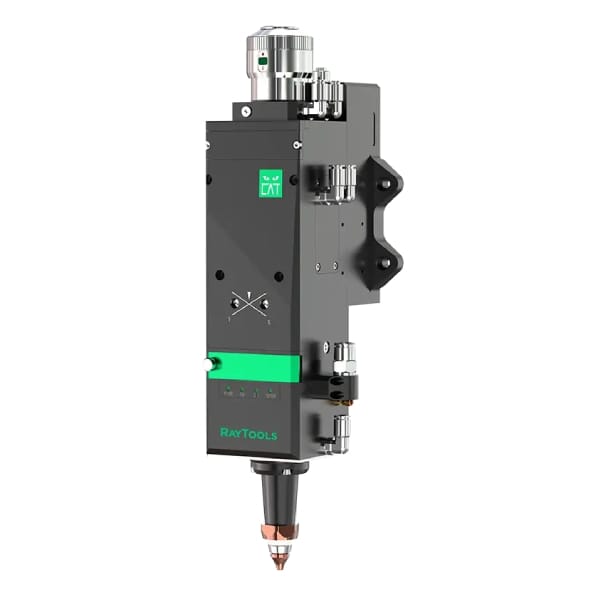

Raytools BS03K-CAT laser cutting head

Raytools BS03K-CAT laser cutting head Raytools BS03K-CAT – a modern smart laser cutting head designed for fiber laser sources of up to 3 kW, providing high precision, fast operation and stable cutting quality. The autofocus system automatically adapts to the material thickness, reducing operator involvement and increasing productivity. Key advantages:

• Works with fiber laser sources of up to 3 kW
• Automatic focusing (Auto Focus) system
• Precise, smooth cutting quality at high speed
• Three-layer protective lenses extend the service life of the optical elements
• Equipped with sensors that monitor gas pressure and protective lens temperature
• An improved water cooling system ensures long-term stable operation
• Quick nozzle replacement and easy maintenance
• Supports high-speed control via the EtherCAT bus
• Low maintenance requirements reduce operating costs.

This laser head is an ideal solution for cutting carbon steel, stainless steel, aluminum and other metal materials with high precision and minimal defects. Its modern optical system and smart control functions significantly increase production efficiency.

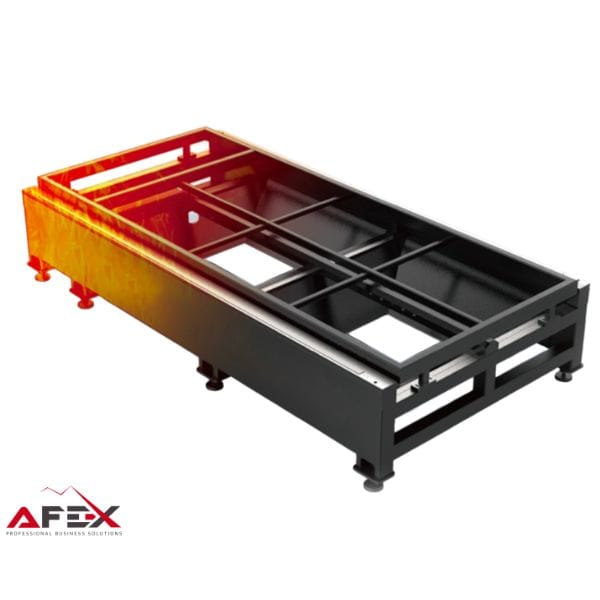

Machine frame

To ensure maximum stability, the rigid frame of the laser cutting machine undergoes a complex anti-aging treatment process. This process includes:

• uniform high-temperature heat treatment at 1600°C,
• slow cooling in the furnace for 24 hours (annealing), and
• precise CO2 shielded-gas welding technology.

As a result, the internal stresses of the frame are completely eliminated, guaranteeing deformation-free operation and perfect geometric accuracy for many years.

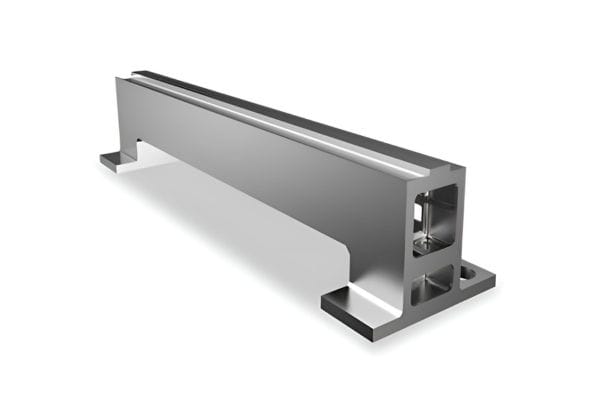

Monolithic cast aluminum beam

Specially designed for the high-speed movement of the laser cutting machine, the monolithic cast aluminum beams combine zero deformation, light weight and high strength.

These lightweight cross beams allow the machine to move faster, significantly increasing processing speed and quality.

Advantages:

• High speed: The lightweight design enables the machine to move at high speed, increasing cutting productivity.

• High productivity: Aluminum profile beams manufactured using aerospace industry technologies guarantee the dynamic performance of the machine, dramatically increasing productivity while maintaining processing quality.

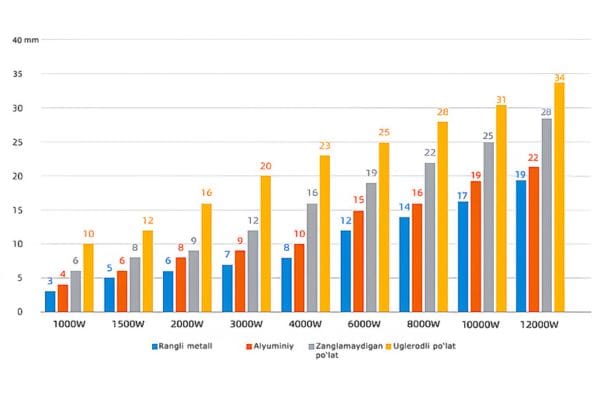

Recommended cutting thickness range by laser power

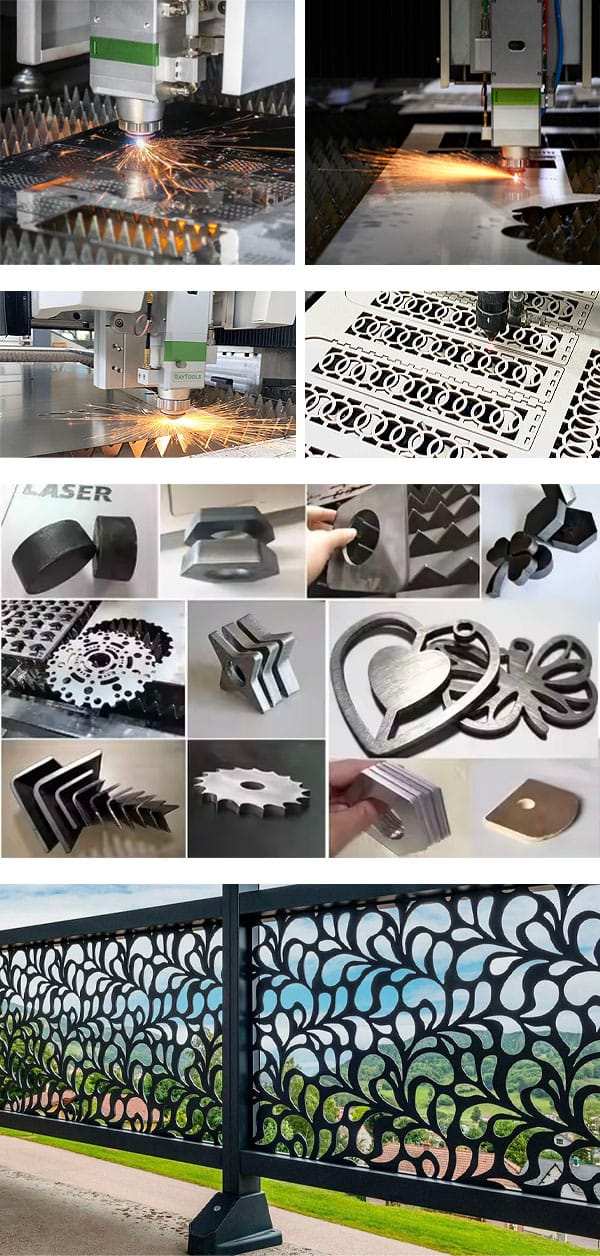

Laser cutting machine work samples
