VMC1160 Vertical Metal Milling Machine — Image 1 / 21 / 2
Metalworking equipmentProduct code: 66476806ab636d052d35a23d

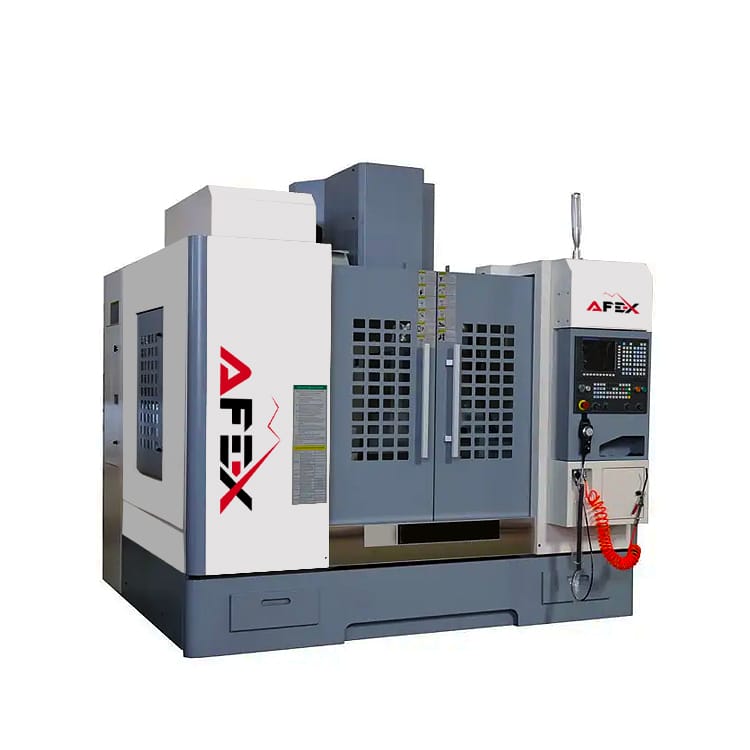

VMC1160 Vertical Metal Milling Machine

The machine is a vertical machining center designed for high-precision machining; it performs milling, drilling and tapping operations on…

Individual offer
Main motor power
11/15 kW
Voltage
380V 50/60 Hz
X/Y/Z rapid traverse speed
24/24/20 m/min
Spindle speed
8000 rpm
Machine dimensions
2600x2300x2580 mm
Machine weight
7000 kg
Price

Overview

About the equipment

The machine is a vertical machining center designed for high-precision machining; it performs milling, drilling and tapping operations on metal and other materials. The machine is offered with the GSK system; at the customer's request, CNC systems such as Fanuc, Mitsubishi can also be installed. The spindle speed and the tool magazine capacity can also be changed.

01

General

19 parameters
General
Manufacturer
China
Voltage
380V 50/60 Hz
Main motor power
11/15 kW
Table size
1200x600 mm
X-axis travel
1100 mm
Y-axis travel
600 mm
Z-axis travel
600 mm
Maximum table load
800 kg
Spindle
BT40
T-slots
5-18x120
Spindle speed
8000 rpm (can be changed)
X/Y/Z rapid traverse speed
24/24/20 m/min
Cutting feed rate
10 m/min
Distance from spindle nose to table surface
140-640 mm
Positioning accuracy
±0.0075 mm
Repeat positioning accuracy
±0.005 mm
Tool magazine
24 positions (arm type)
Machine dimensions
2600x2300x2580 mm
Machine weight
7000 kg

Advantages

A system built with a simple design for easy maintenance and a color display, program control, tool compensation, and program storage and editing capabilities.

Machine Applications

  1. Cutting linear and circular edges:
Linear and circular edges can be cut at any angle with high precision; drilling and tapping can also be performed.
  1. No backlash:
Driven by a ball screw, it prevents crawling at low speeds as the load increases, which significantly improves speed and accuracy.
  1. High reliability:
The use of electrical technology simplifies the mechanical structure, increases reliability and makes maintenance easier.
  1. CNC functions:

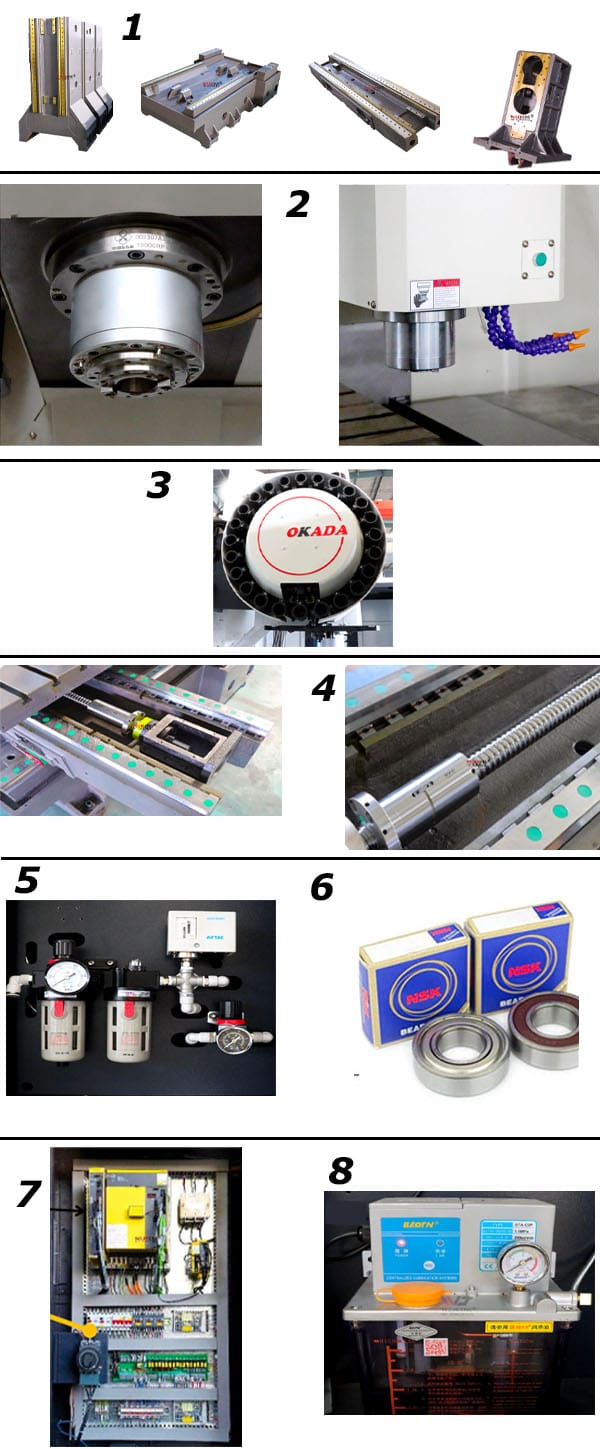

The standard configuration provides various CNC functions, such as a color LCD screen, various rotation functions, tool compensation, program storage and editing, and more. Machine Components
  1. 1 High-quality casting.
  2. Spindle
Spindle from a well-known Taiwanese brand Standard speed 8000 rpm, optional 10000 rpm, 12000 rpm. The spindle features a center air-blow design. When the spindle is released, the central taper is quickly cleaned with high-pressure air, which ensures clamping accuracy and a long service life.
  1. Automatic Tool Changer (Taiwan - OKADA)
Cylindrical cam mechanism with a simple structure, easy maintenance and long service life. – High indexing accuracy, low failure rate  The tool cover is made of imported engineering plastic – lightweight, strong and resistant to damage Indexing arm with bearings on both sides – low noise All electronic switches are made from imported original parts – guaranteed quality
  1. Taiwan Hiwin/PMI screws and guide rails:
  • The X, Y, Z three-axis guideways (45mm 45mm 45mm) use Taiwanese roller linear guides. They feature high speed, high rigidity, low friction, low noise and low thermal variation, and the automatic forced lubrication system increases the accuracy and service life of the machine.
  • Movement along the X, Y and Z axes uses high-precision, high-rigidity, internally recirculating double-nut preloaded long-stroke ball screws with a high feed rate. The drive motors are connected directly to the screws via flexible couplings.
  • The feed servo motor transmits power without backlash to the high-precision ball screw, ensuring positioning accuracy and synchronization.
  1. Pneumatic components (Taiwan - Airtac):
Equipped with an electronic display, which increases system stability. During tool and spindle changes, the air pressure remains very stable and tool jamming does not occur.
  1. NSK/FAG Bearings:
Bearings: imported bearings from Japan's NSK and Germany's FAG brands are used, ensuring the highest quality and reliability.
  1. Lubrication system components (Taiwan - Herg):
PLC control: (most other suppliers use manual control) With PLC control, if the machine runs out of oil, the system triggers an alarm and stops operation. Running without oil is not allowed, which significantly reduces wear on key parts such as the guideways. Large capacity: 4 liters, which reduces how often oil must be refilled.
  1. Chinese brand DELIXI electrical cabinet:
Electrical cabinet (brand-matched system). DELIXI electrical box (optional: can be replaced with the Schneider brand).

Parts that can be additionally purchased and installed on the machine (on request) Spindle oil cooling system Automatic chip conveyor and bin 4th axis / 5th axis Tool and workpiece measuring systems (Renishaw/China) Electrical cabinet air conditioner Oil-water separator Vise (6 inches) M16 clamping kit (58 pcs) Nitrogen balancing system
AFEX · CONSULTATION
Operators online

Quick price request

Leave your name and phone number — our specialist will take care of the rest.

EquipmentVMC1160 Vertical Metal Milling Machine

Your data is never shared with third parties

Specifications

Data provided by the manufacturer; configuration may vary per order.

General

19 parameters
Manufacturer
China
Voltage
380V 50/60 Hz
Main motor power
11/15 kW
Table size
1200x600 mm
X-axis travel
1100 mm
Y-axis travel
600 mm
Z-axis travel
600 mm
Maximum table load
800 kg
Spindle
BT40
T-slots
5-18x120
Spindle speed
8000 rpm (can be changed)
X/Y/Z rapid traverse speed
24/24/20 m/min
Cutting feed rate
10 m/min
Distance from spindle nose to table surface
140-640 mm
Positioning accuracy
±0.0075 mm
Repeat positioning accuracy
±0.005 mm
Tool magazine
24 positions (arm type)
Machine dimensions
2600x2300x2580 mm
Machine weight
7000 kg

Video

The equipment in operation.

Delivery and commissioning

From consultation to launch — four steps under contract.

  1. 1

    Consultation

    We define your needs, configure the line and prepare an offer.

  2. 2

    Contract

    Timeline, payment terms and warranty are fixed in the contract.

  3. 3

    Delivery

    The equipment is delivered from the manufacturer to your site.

  4. 4

    Installation and training

    Our specialists commission the equipment and train your operators.

Frequently asked questions

The most common questions about delivery, contracts and tracking.

Is it possible to track my orders online?
You can track orders online. Uzbekistan was one of the first to develop a mechanism for monitoring cargo, determining their location, and estimating the time of arrival using the GPS system. You can get this information only by entering the contract number.
How long will the shipments be delivered?
Delivery time depends on the manufacturer in most cases. Most large-scale production equipment takes 2-3 times longer to deliver than normal equipment. In the case of ready-made equipment, the delivery period starts from 30 days. Excluding the time required for customs clearance of equipment in the territory of Uzbekistan, certification processes.
What are the shipping methods available?
According to the type of goods from abroad and the period when the order was received, the goods are delivered to the territory of Uzbekistan on the following basis: By air By rail By land transport By mixed transport
What is required of me to conclude a contract?
To become a client of our company, you must: CERTIFICATE certifying the business entity; Bank details; STIR number; Copy of the manager's passport; Enterprise seal to confirm the contract
Consultation

Let’s discuss your project together

Contact us for advice on choosing equipment, technical solutions and offers.

Call us+998 93 381 6699Mon–Sat: 9:00 – 18:00
AFEX · SOCIAL

Follow our channels

New equipment, commissioning and production footage — on our official channels.

Related equipment

View all
VMC850 Vertical Metal Milling Machine
Metalworking equipment

VMC850 Vertical Metal Milling Machine

Details →
Vertical Metal Milling Machine VMC1890
Metalworking equipment

Vertical Metal Milling Machine VMC1890

Details →
VMC1690 Vertical Metal Milling Machine
Metalworking equipment

VMC1690 Vertical Metal Milling Machine

Details →

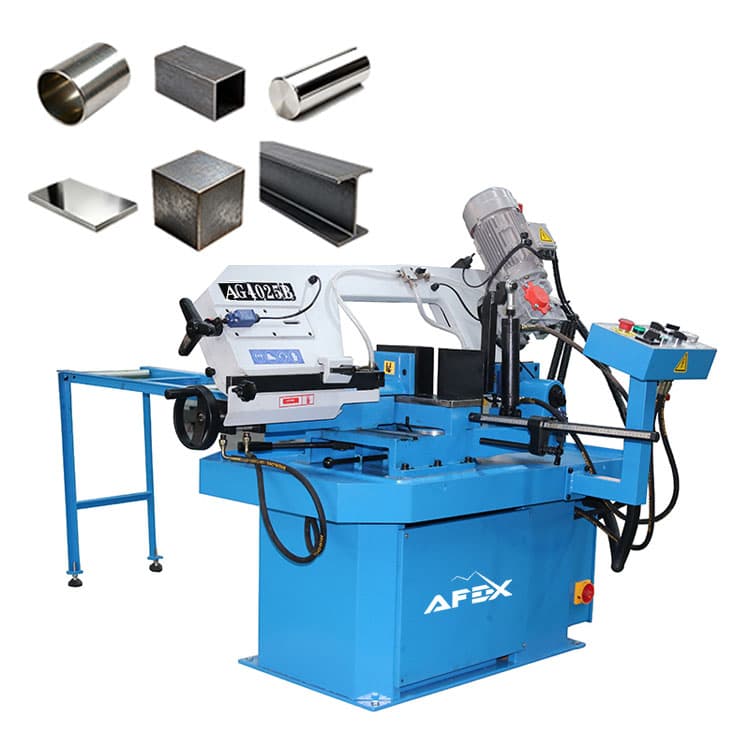

Band Saw Machine AG-4025B
