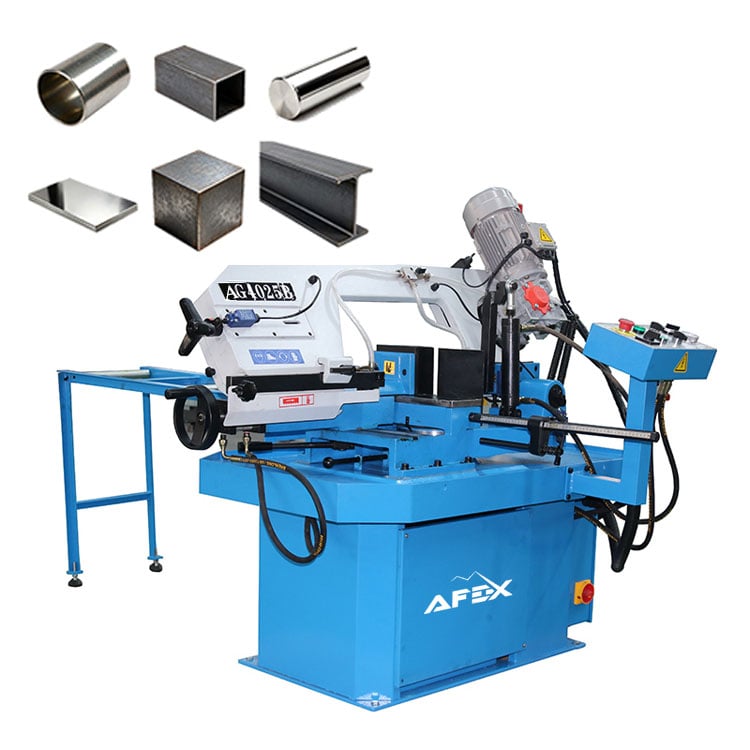

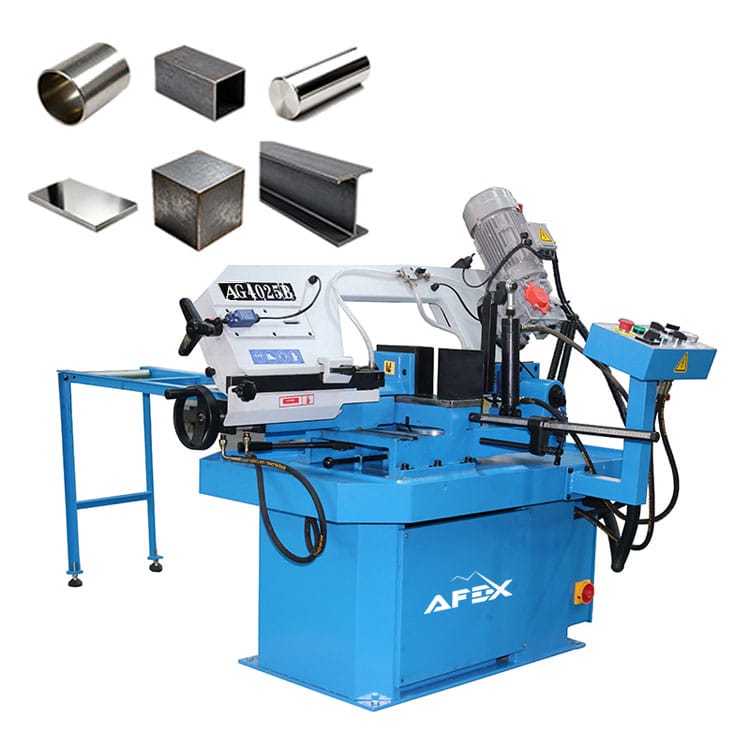

1 / 3Band Saw Machine AG-4025B
Φ250 mm · 280×230 mm · Φ190 mm
Individual offer
- Cutting capacity 0° Round
- Φ250 mm
- Cutting capacity 0° Rectangular
- 280×230 mm
- Cutting capacity 45° Round
- Φ190 mm
- Cutting capacity 45° Rectangular
- 180×230 mm
- Cutting capacity 60° Round
- Φ120 mm
- Cutting capacity 60° Rectangular
- 115×230 mm
Price
Overview
About the equipment
Features
Vise-type metal cutting band saw The miter band saw is used for cutting metal in laboratory or home workshop conditions. It has a vise with easy angle adjustment (forward 0°–60°, backward 0°–45°), allows constant hydraulic speed control, is equipped with a coolant pump that extends blade life, and the saw frame can swivel for angle cuts.

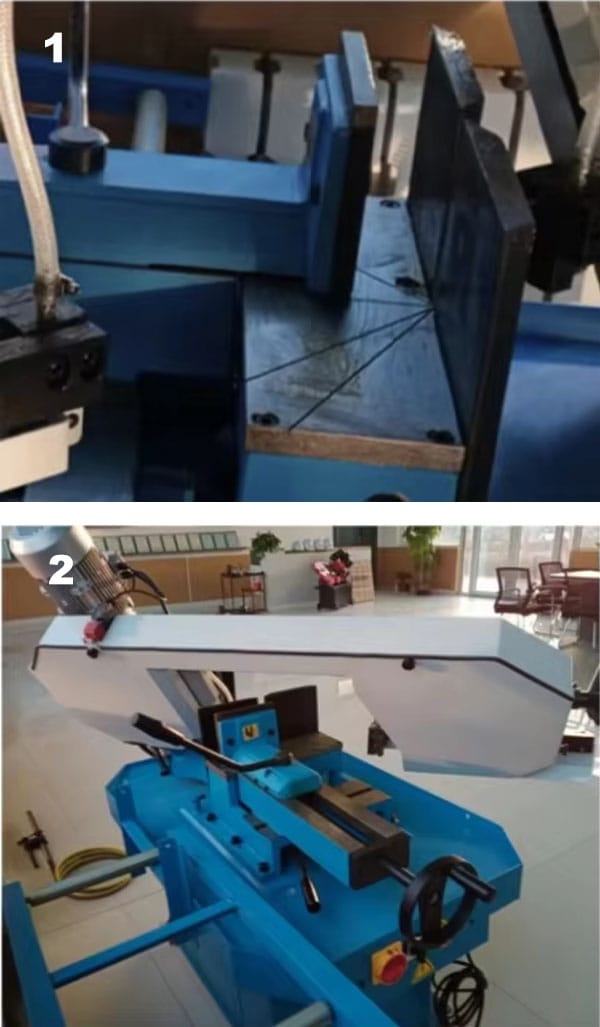

- Angle Cutting
The scale on the vise allows easy setting of angle cuts in the range of 0°~60° and 0°~-45°. Suitable for sawing workpieces that require angled cuts. - Easy Operation
Quick-adjust vise for angle cuts – the saw frame rotates, not the material. It offers simple operation, reliable cutting performance, high cut quality, and energy and material savings.
01
20 parametersGeneral
- Cutting capacity 0° Round
- Φ250 mm
- Cutting capacity 0° Rectangular
- 280×230 mm
- Cutting capacity 45° Round
- Φ190 mm
- Cutting capacity 45° Rectangular
- 180×230 mm
- Cutting capacity 60° Round
- Φ120 mm
- Cutting capacity 60° Rectangular
- 115×230 mm
- Cutting capacity -45° Round
- Φ190 mm
- Cutting capacity -45° Rectangular
- 180×230 mm
- Blade size (W×T)
- 27×9 mm
- Sawing speed
- 53/79 m/min
- Voltage
- 380V 50Hz
- Blade drive motor
- 0.85/1.1 kW
- Coolant pump motor
- 0.04 kW
- Workpiece clamping
- Manually operated vise
- Blade tension
- Manual
- Saw frame feed type
- Hydraulic cylinder
- Material feed type
- Manual
- Main drive
- Worm gear reducer

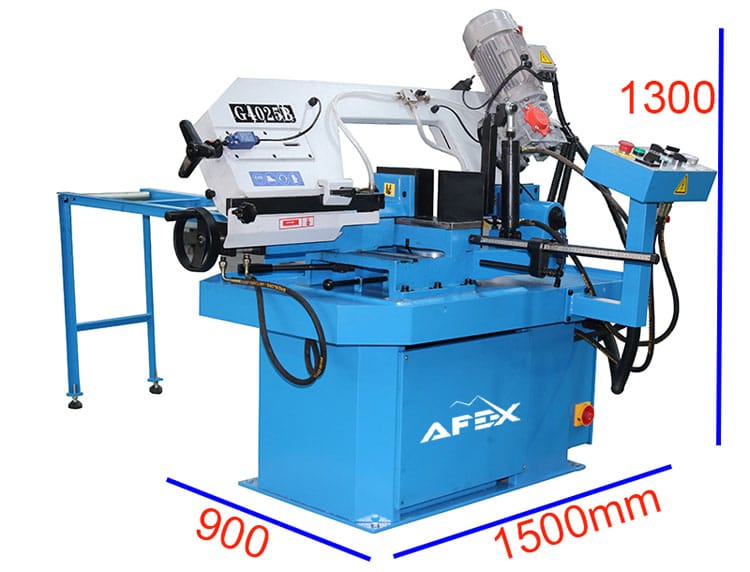

- Machine dimensions (L×W×H)
- 1500×900×1300 mm
- Machine weight
- 450 kg
AFEX · CONSULTATION
Operators onlineQuick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentBand Saw Machine AG-4025BYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
20 parameters- Cutting capacity 0° Round
- Φ250 mm
- Cutting capacity 0° Rectangular
- 280×230 mm
- Cutting capacity 45° Round
- Φ190 mm
- Cutting capacity 45° Rectangular
- 180×230 mm
- Cutting capacity 60° Round
- Φ120 mm
- Cutting capacity 60° Rectangular
- 115×230 mm
- Cutting capacity -45° Round
- Φ190 mm
- Cutting capacity -45° Rectangular
- 180×230 mm
- Blade size (W×T)
- 27×9 mm
- Sawing speed
- 53/79 m/min
- Voltage
- 380V 50Hz
- Blade drive motor
- 0.85/1.1 kW
- Coolant pump motor
- 0.04 kW
- Workpiece clamping
- Manually operated vise
- Blade tension
- Manual
- Saw frame feed type
- Hydraulic cylinder
- Material feed type
- Manual
- Main drive
- Worm gear reducer
- Machine dimensions (L×W×H)
- 1500×900×1300 mm
- Machine weight
- 450 kg
Video
The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
Frequently asked questions
The most common questions about delivery, contracts and tracking.
Is it possible to track my orders online?
You can track orders online. Uzbekistan was one of the first to develop a mechanism for monitoring cargo, determining their location, and estimating the time of arrival using the GPS system. You can get this information only by entering the contract number.
How long will the shipments be delivered?
Delivery time depends on the manufacturer in most cases. Most large-scale production equipment takes 2-3 times longer to deliver than normal equipment. In the case of ready-made equipment, the delivery period starts from 30 days. Excluding the time required for customs clearance of equipment in the territory of Uzbekistan, certification processes.
What are the shipping methods available?
According to the type of goods from abroad and the period when the order was received, the goods are delivered to the territory of Uzbekistan on the following basis:
By air
By rail
By land transport
By mixed transport
What is required of me to conclude a contract?
To become a client of our company, you must:
CERTIFICATE certifying the business entity;
Bank details;
STIR number;
Copy of the manager's passport;
Enterprise seal to confirm the contract
Consultation
Let’s discuss your project together
Contact us for advice on choosing equipment, technical solutions and offers.
AFEX · SOCIAL
Follow our channels
New equipment, commissioning and production footage — on our official channels.
Related equipment
Metalworking equipment

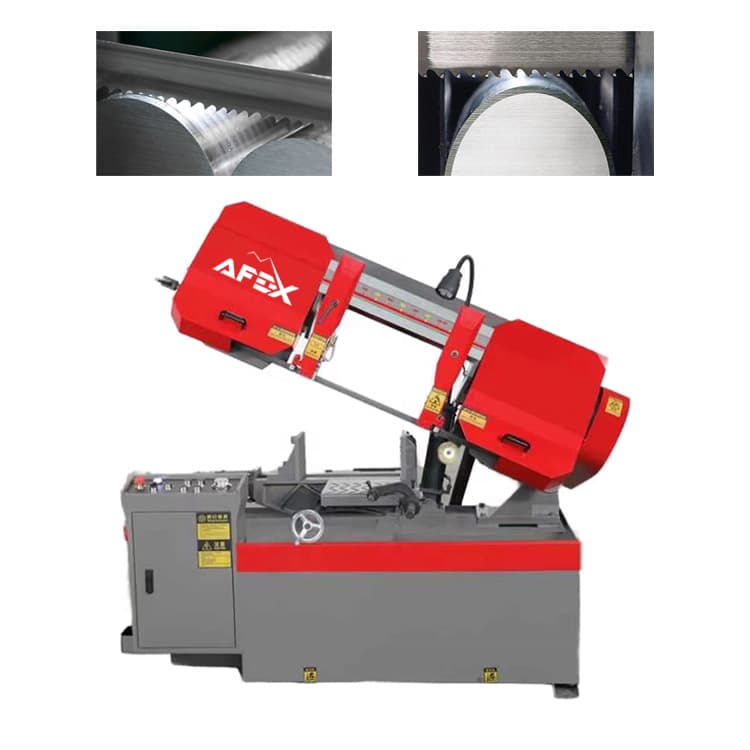

Band Saw Machine AGZ-4028
