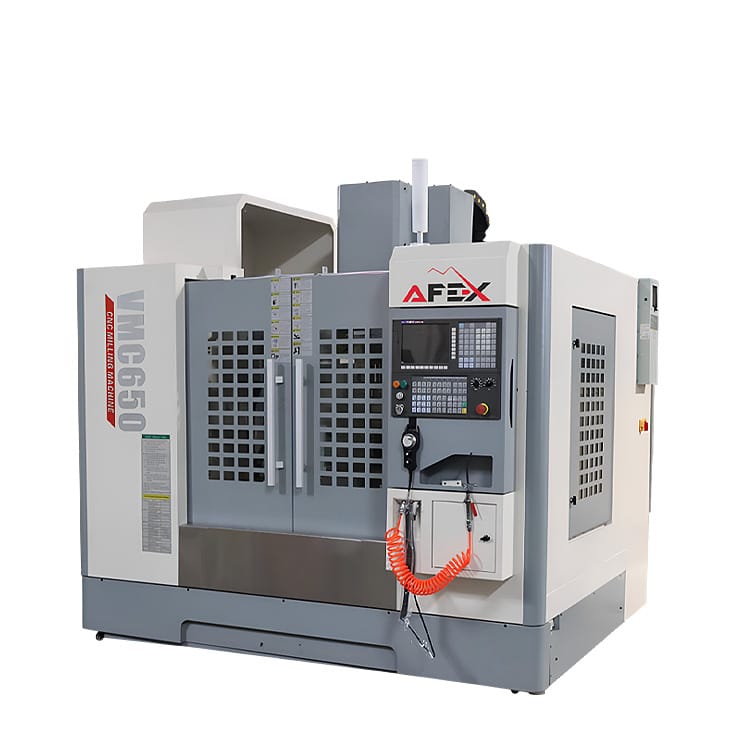

1 / 2VMC650 Vertical Metal Milling Machine
The machine can be fitted with GSK or FANUC control systems.
- Main motor power
- 5.5 kW
- Max. spindle speed
- 12 000 rpm
- Machine overall dimensions
- 2400 × 2000 × 2550 mm
- Machine weight
- 4000 kg
- Table size
- 900 × 400 mm
- X-axis travel
- 650 mm
Overview
About the equipment
The machine can be fitted with GSK or FANUC control systems.
Applications
- High-precision linear and arc cutting
- Drilling and tapping
- Simplified design for easy maintenance
- Color display, program control, tool compensation, program storage and editing
Main Specifications
- Table size
- 900 × 400 mm
- X-axis travel
- 650 mm
- Y-axis travel
- 400 mm
- Z-axis travel
- 500 mm
- Distance from spindle center to column surface
- 550 mm
- Distance from spindle nose to table surface
- 120–620 mm
- T-slots
- 3 × 18 × 125
- Spindle taper
- BT40
- Max. spindle speed
- 12 000 rpm
- Main motor power
- 5.5 kW
- Max. table load
- 400 kg
- Machine overall dimensions
- 2400 × 2000 × 2550 mm
- Machine weight
- 4000 kg
Optional Equipment (available at extra cost)
- Through-center hole: delivers coolant through the center of the tool to quickly remove chips and reduce tool overheating. This improves machining quality and efficiency - 5600$
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentVMC650 Vertical Metal Milling MachineYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
Main Specifications
13 parameters- Table size
- 900 × 400 mm
- X-axis travel
- 650 mm
- Y-axis travel
- 400 mm
- Z-axis travel
- 500 mm
- Distance from spindle center to column surface
- 550 mm
- Distance from spindle nose to table surface
- 120–620 mm
- T-slots
- 3 × 18 × 125
- Spindle taper
- BT40
- Max. spindle speed
- 12 000 rpm
- Main motor power
- 5.5 kW
- Max. table load
- 400 kg
- Machine overall dimensions
- 2400 × 2000 × 2550 mm
- Machine weight
- 4000 kg

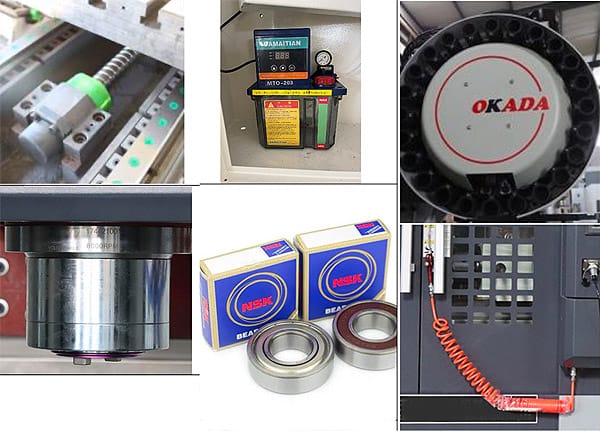

Included units
Units and accessories included with the equipment. Specifications for each are in the section above.
Configuration
6 items
- 1Ball screws and guideways — Taiwan
- 2BT40 spindle — Taiwan
- 3OKADA tool magazine
- 4Automatic lubrication system
- 5NSK/FAG bearings
- 6Air gun
