1 / 1Liquid product packaging equipment AF-ML-1000
AF-ML-1000 is a vertical machine that packs liquid products into 200–1000 ml film pouches.
- Power
- 2,5 kw
- Voltage
- 220V 50/60 Hz
- Speed of operation
- 15-20 min
- Packet length
- 50-250 mm
- Equipment weight
- 380 kg
- Pack width
- 40-175 mm
Overview
About the equipment
AF-ML-1000 is a vertical machine that packs liquid products into 200–1000 ml film pouches. Speed is 15–20 pouches per minute.
The machine forms a pouch from roll film, fills it with product and seals it; the pouch has a lengthwise centre seal. Film width is up to 380 mm, pouch length 50–250 mm, pouch width 40–175 mm and fill volume 200 to 1000 ml.
It has a power of 2.5 kW and runs on 220 V. It measures 95×110×205 cm, weighs 380 kg and is made in China. The machine is intended for producers of milk, fermented dairy products, juices, vegetable oil and liquid household chemicals in pouches of up to one litre.
AFEX supplies the equipment and provides installation, commissioning and warranty service. Tell us the pouch volume and your daily production plan, and we will advise on the model and film.
General
- Produced
- China
- Voltage
- 220V 50/60 Hz
- Power
- 2,5 kw
- Type of packaging
- Middle packing
- Speed of operation
- 15-20 min
- Packet length
- 50-250 mm
- Pack width
- 40-175 mm
- Film width
- up to 380 mm
- Filling volume
- up to 200-1000 ml
- Equipment weight
- 380 kg
- Equipment size
- 95*110*205 sm
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentLiquid product packaging equipment AF-ML-1000Your data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
11 parameters- Produced
- China
- Voltage
- 220V 50/60 Hz
- Power
- 2,5 kw
- Type of packaging
- Middle packing
- Speed of operation
- 15-20 min
- Packet length
- 50-250 mm
- Pack width
- 40-175 mm
- Film width
- up to 380 mm
- Filling volume
- up to 200-1000 ml
- Equipment weight
- 380 kg
- Equipment size
- 95*110*205 sm

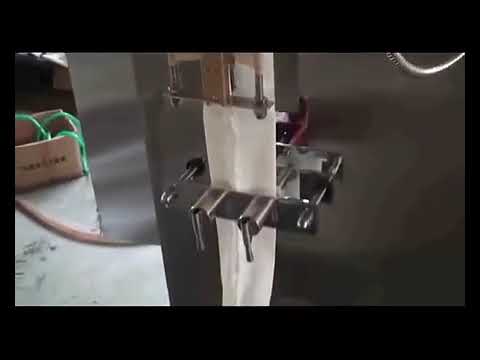

Video
The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
