1 / 2Extraction equipment
Oil and oil come out of the oil pressing equipment.
- Model
- AX-3000
- Voltage
- 380 v 50xz
- Weight
- 140 kg
- Electricity consumption
- 5.5 kw/h
- Par pressure
- 10BAr
- The size
- 5000*700*2400 mm
Overview
About the equipment
Oil and oil come out of the oil pressing equipment. Extraction equipment is used to extract the 5-6% oil remaining in the kunjara. The extraction process is carried out using Hexane or Ethanol 95%. Oil is extracted from micelles by heating and vacuum. 0.5-1% of fat remains in the resulting meal. Since the extraction process is carried out using ethyl alcohol, the oil obtained from it can be consumed by refining and deodorizing. Ethyl alcohol quickly and completely evaporates from the oil. The equipment is fully equipped with anti-explosion shields and motors. Work to be done by the buyer for the extraction equipment: Solvent (Hexane or Ethanol above 95%) storage tank and assembly pipes Water for cooling and cooling tower or chiller for condensing Water pump Special space on demand for concrete construction and individual works

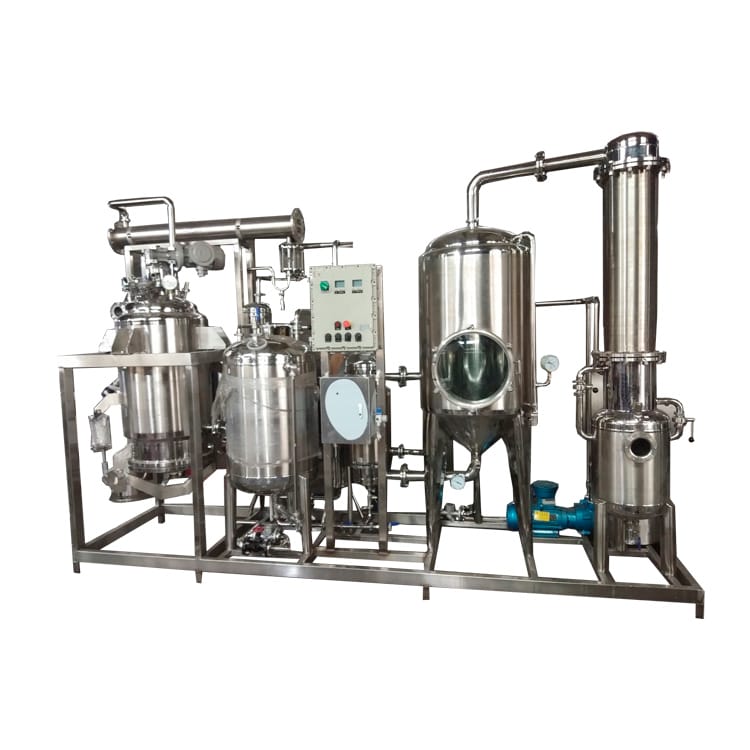

Extraction and concentration equipment
- Produced
- China
- Model
- AX-3000
- Energy type
- Electric
- Voltage
- 380 v 50xz
- Electricity consumption
- 5.5 kw/h
- Weight
- 140 kg
- Par pressure
- 10BAr (1 spa 200 kg/h)
- The size
- 5000*700*2400 mm
- Material
- Silence 304
- Solvent
- Ethanol 95%, hexane, extraction gasoline
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentExtraction equipmentYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
Extraction and concentration equipment
10 parameters- Produced
- China
- Model
- AX-3000
- Energy type
- Electric
- Voltage
- 380 v 50xz
- Electricity consumption
- 5.5 kw/h
- Weight
- 140 kg
- Par pressure
- 10BAr (1 spa 200 kg/h)
- The size
- 5000*700*2400 mm
- Material
- Silence 304
- Solvent
- Ethanol 95%, hexane, extraction gasoline
