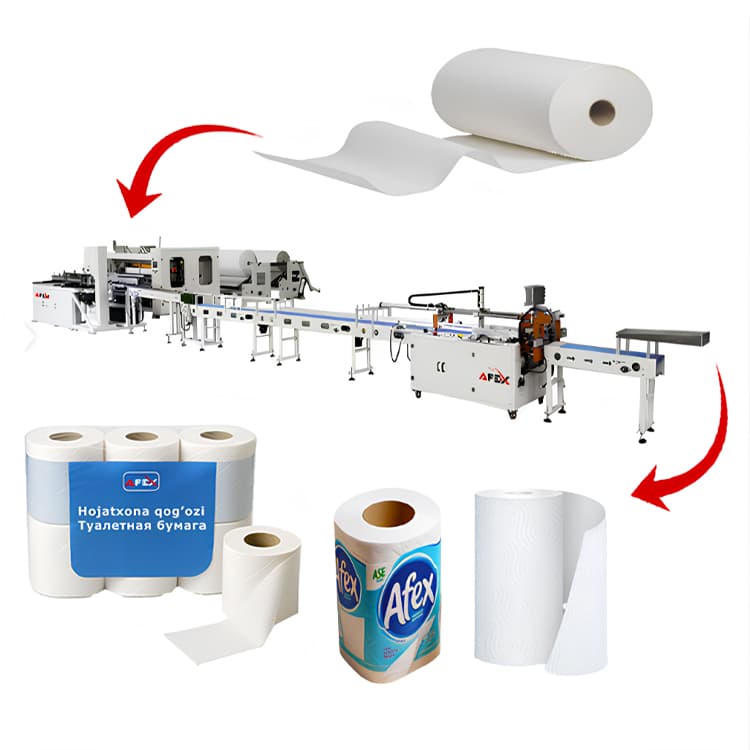

Automatic Toilet Paper Production Line, Industrial Version

The Industrial version is a fully automated production line designed to produce up to 2 tons of product per day. The line continuously and with high precision rewinds paper from a jumbo roll, embosses patterns on the paper surface, forms perforation lines, and performs automatic cutting and packaging. Full automation of the production process keeps product quality stable, increases productivity and reduces labor costs.

This machine automatically rewinds large paper rolls into small rolls of a set size. During operation, paper tension and winding quality are continuously monitored, producing uniform, smooth, high-quality toilet paper rolls. The machine can also emboss patterns onto the paper surface (embossing), further improving the appearance and softness of the product. It supports the production of 1-, 2- and 3-ply toilet paper and continuously feeds finished product to the subsequent cutting and packaging stages. Technical Specifications

01

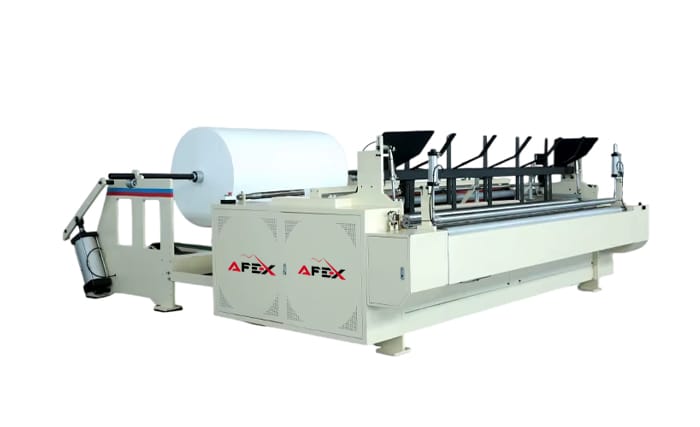

1. Jumbo Roll to Small Roll Rewinding Machine

17 parameters

Power Supply

3-phase, 380 V, 50 Hz

Total Power

7.5 kW

Production Speed

220 m/min

Production Volume

2 tons/day

Base Paper Grammage

12–40 g/m²

Base Paper Roll Width

Max. 1800 mm

Base Paper Roll Diameter

1200 mm

Finished Roll Diameter

50–180 mm

Finished Roll Inner Core Diameter

20–50 mm

Jumbo Roll Core Diameter

76.2 mm

Control System

PLC computer control, touch screen

Perforation Pitch

120 mm

Paper Loading System

Automatic pneumatic

Glue Spraying and Cutting

Automatic

Winding and Perforation

Automatic

Dimensions

7100 × 4000 × 1800 mm

Weight

3000 kg

This machine automatically cuts wound toilet paper logs to a set length and size with high precision. Thanks to a modern control system, every roll is made to the same size, ensuring product quality and appearance. High-speed, stable and safe operation increases productivity, and finished product is continuously fed to the subsequent packaging stage. Technical Specifications

02

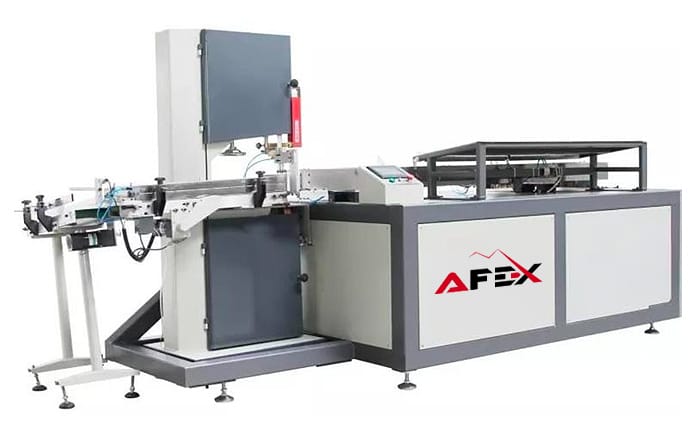

2. Automatic Cutting Machine

8 parameters

Power Supply

380 V, 50 Hz

Cutting Length

Adjustable

Operating Speed

50–110 cuts/min

Control System

PLC control, servo drive, touch screen

Blade Oscillation Mechanism

Cam design

Compressed Air Pressure

0.5–0.6 MPa

Weight

1200 kg

Toilet Paper Log Diameter

60–180 mm

This machine automatically transfers cut toilet paper rolls via a conveyor belt to the packaging section. During packaging, the rolls are grouped in a set quantity, wrapped in polyethylene film and securely sealed. The automatic system ensures packaging speed and quality, improves product appearance and makes it ready for storage and transport.

03

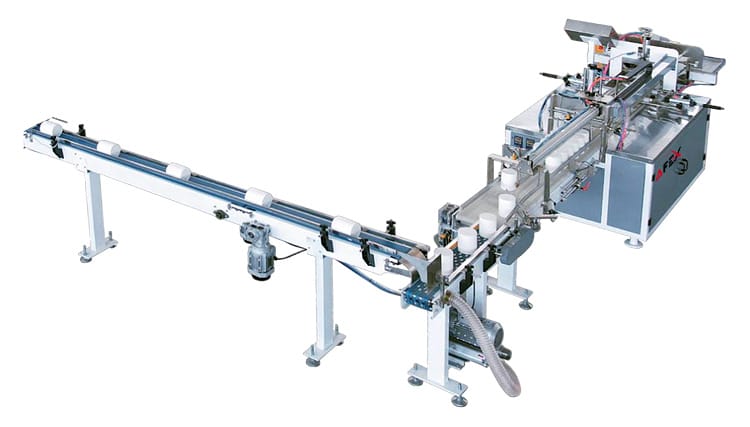

3. Conveyor Belt and Automatic Packaging

7 parameters

Power Supply

380 V, 50 Hz

Power

3 kW

Production Capacity

16–22 packs/min

Pack Capacity

8–16 rolls/pack

Compressed Air Pressure

0.6 MPa

Dimensions

5000 × 1000 × 1500 mm

Weight

1000 kg

Advantages: Automatically packs toilet paper. Can place from 8 to 16 rolls in one pack. High productivity – 16–22 packs per minute. Reduces labor costs and increases production efficiency. Ensures consistent packaging quality and appearance. Packs of different sizes can be produced.
