Toilet Paper Production Line from Waste Paper 0.8-1 t/day

A toilet paper production line is a profitable and sustainable business.

Individual offer
Production capacity (per 8 hours)
1.2 t
Power consumption
5.5–15 kW
Winding speed
150-280 m/min
Dimensions
6200 × 2600 × 800 mm
Finished product diameter
F50-1800 mm
Inner core diameter
F30-55 mm
Price

Overview

Key features

  • Finished product diameter

    F50-1800 mm (width and diameter are adjustable)

  • Parent roll diameter

    Standard 1100 mm (other sizes available)

About the equipment

A toilet paper production line is a profitable and sustainable business. Advantages: Made from waste paper — cheap and readily available raw material Constant demand for the product — it always sells Automatic equipment — efficient production with a small workforce Fast return on investment Eco-friendly solution — turns waste into profit Suitable for both domestic and export markets This project is an ideal option for a small business or manufacturing company and generates a stable income.

General Technical Specifications

  1. Raw material: waste paper (old used paper)
  2. Product: sanitary (toilet) paper
  3. Paper weight: 15–30 grams per square meter
  4. Paper width: 1800 mm
  5. Cylinder mould width: 1100 mm
  6. Production capacity: 0.8 to 1 ton per day
  7. Design speed: 50 m/min
  8. Operating speed: 20–40 m/min
  9. Technology: electric motor speed is controlled by AC frequency conversion

Toilet Paper Production Stages

  • Making paper from waste paper: used paper (waste paper) is mixed with water and turned into paper pulp. The pulp is then formed into thin paper on special equipment, dried and wound into a large roll.
  • Rewinding the large roll into small rolls: special equipment rewinds the paper into small rolls and applies tear lines (perforation) to their surface.
  • Roll cutting: the small rolls are cut to standard sizes.
  • Packaging: finished rolls are placed in bags of 4, 6 or 12 pieces and packed.

Pulp Preparation Equipment

High-consistency pulper

Purpose: Breaks down and mixes waste paper, separating out large contaminants such as stones, nails, and pieces of plastic and leather. This machine produces a clean, uniform pulp for papermaking. It uses little water, while the mixture stays thick. Total power: 11 kW Volume: 1.5 m3 Quantity: 1 set

Vibrating screen



Purpose: Screens out large contaminants from the pulp — stones, nails, pieces of plastic and leather, and similar impurities. This machine screens the pulp by vibration and lets through only the fine fraction suitable for further processing, while the remaining coarse waste is discharged. Total power: 1.5 kW Volume: 0.5 m3 Quantity: 1 set

Disc mill (disc refiner)



Purpose: Refining the pulp to a finer state, thoroughly separating the fibers and bringing the mixture to a uniform consistency. This machine further grinds the pre-crushed and cleaned pulp into finer particles, making it soft, smooth and of high quality — which is essential for producing good paper. Total power: 7.5 kW Quantity: 1 set

Agitator (mixer)



Purpose: Continuously stirs the pulp so that it does not settle and stays uniform. The agitator keeps the pulp in motion, preventing it from settling and keeping it evenly mixed. Total power: 5.5 kW Quantity: 1 set

Bleaching unit



Purpose: Washes the pulp several times and treats it chemically to bring it to a white color. This unit washes and bleaches the darkish or yellowish pulp obtained from waste paper, preparing it for the production of high-quality, bright white paper. Total power: 1.5 kW Quantity: 1 set

Pulp transfer pump (pulp pump)

Purpose: Transferring the pulp from one machine to another and keeping it circulating (i.e. conveying the pulp between all systems). These pumps move the pulp through pipelines and ensure its continuous flow throughout the production system. 6-inch pump – 7.5 kW – 1 pc 3-inch pump – 3 kW – 3 pcs

Sand remover (desander)

Purpose: Removes light impurities and sand particles from the pulp. Through rotation, this unit settles out the fine sand, soil and other light debris remaining in the pulp, cleaning it further. Volume: 400 L Quantity: 2 pcs

Horizontal mixer

Purpose: thoroughly mixing the pulp with water to ensure a uniform thickness of the produced paper. Power: 3 kW Quantity: 2 pcs

Centrifugal screen (centrifuge)

Purpose:  Rotating at high speed, the machine separates residues (contaminants) from the pulp through a special mesh. The clean pulp passes through the screen and is sent on to the next stage. Total power: 5.5 kW Area: 0.35 m2 Quantity: 1 set

Dispersing mixer (disperser)

Purpose: This is a mixing-type machine that breaks down powder, pigment or other substances in a liquid into fine particles and distributes them evenly (disperses them). This process improves the quality of the mixture and makes it stable. Total power: 0.75 kW Quantity: 1 set

Electrical control cabinet

Quantity: 2 sets Gas-fired boiler Purpose: generates hot steam, which is fed to the paper dryer to carry out the paper drying process. Quantity: 1 pc

Paper Making Machine

Machine Components

1) Wet paper forming section:
  • Stainless steel cylinder mould, 700 mm in diameter and 1100 mm wide – 1 pc
  • Press roll, 200 mm in diameter and 1100 mm wide – 1 pc, rubber-covered
  • Rubber hardness: 40 degrees
  • Adapted to the vat in which the paper fibers are suspended
2) Drying section:
  • Heated drying drum, 1000 mm in diameter and 1100 mm wide – 1 pc
  • Pressure roller, 280 mm in diameter and 1100 mm wide – 1 pc
  • Pneumatic pressing system, metal doctor blade for cleaning the paper
  • Rubber-covered, hardness: 90 degrees
3) Electric motors:
  • For the drying drum – 4 kW
  • For winding the paper into rolls – 0.75 kW motor
4) Drive and control section:
  • Modern control system with automatic speed adjustment
  • Each section is controlled separately

Auxiliary Equipment

  1. Pressure water pump: increases water pressure for washing the forming wire and filter felt
  2. Water spray device: for cleaning the felt and wire
  3. Vacuum pump: draws excess water out of the wet paper
  4. Suction box: works together with the vacuum pump and is used to extract moisture during papermaking.
  5. Steam hood over the drying section: collects and removes vapors
  6. Exhaust fan, 400 mm in diameter: removes steam during drying
  7. Papermaking felt: carries the wet paper through the machine
  8. Special wire for the cylinder mould – 2 pcs

Toilet Paper Production Equipment

Purpose:
A large roll of paper is loaded into the machine. The machine forms the paper into 1–3 plies and winds it as a long strip into small rolls. At the same time, a decorative pattern (embossing) is applied to the paper surface.

01

Rewinding Machine: Large Roll to Small Rolls

14 parameters
Rewinding Machine: Large Roll to Small Rolls
Paper width (mm)
1800
Production capacity (per 8 hours)
1.2 t
Finished product diameter
F50-1800 mm (width and diameter are adjustable)
Inner core diameter
F30-55 mm
Parent roll diameter
Standard 1100 mm (other sizes available)
Parent roll inner core
76 mm
Winding speed
150-280 m/min
Control mode
PLC computer control
Number of plies
3-ply
Tear-line perforation
2 blades, 150-300 mm
Pneumatic system
3-valve compressor
Power consumption
5.5–15 kW, depending on speed
Dimensions
6200 × 2600 × 800 mm
Weight
5 tons
This saw cuts the small rolls produced by the machine above into pieces of the required size. If you are making toilet paper, the rolls should be cut 10–12 cm long; if you plan to produce paper towels, they should be cut longer. The machine can be used for toilet paper both with and without an inner core.
02

Small Roll Cutting Machine

7 parameters
Small Roll Cutting Machine
Cutting length (mm)
Adjustable
Capacity (t/day)
1.5
Cutting length (mm)
3750
Diameter (mm)
1300 × 70 × 1800
Weight (kg)
560
With and without core
Suitable for both
Power consumption (kW)
1.1

Special heat-sealing machine for individual packaging

This machine lets you pack one or two rolls of toilet paper individually — something not yet done in our market, yet people need it. After all, demand must be taken into account in any business. Individually packed products come in handy when traveling to the mountains or elsewhere. You can also use this machine to pack other products (napkins and other items sealed in an envelope-style wrap).

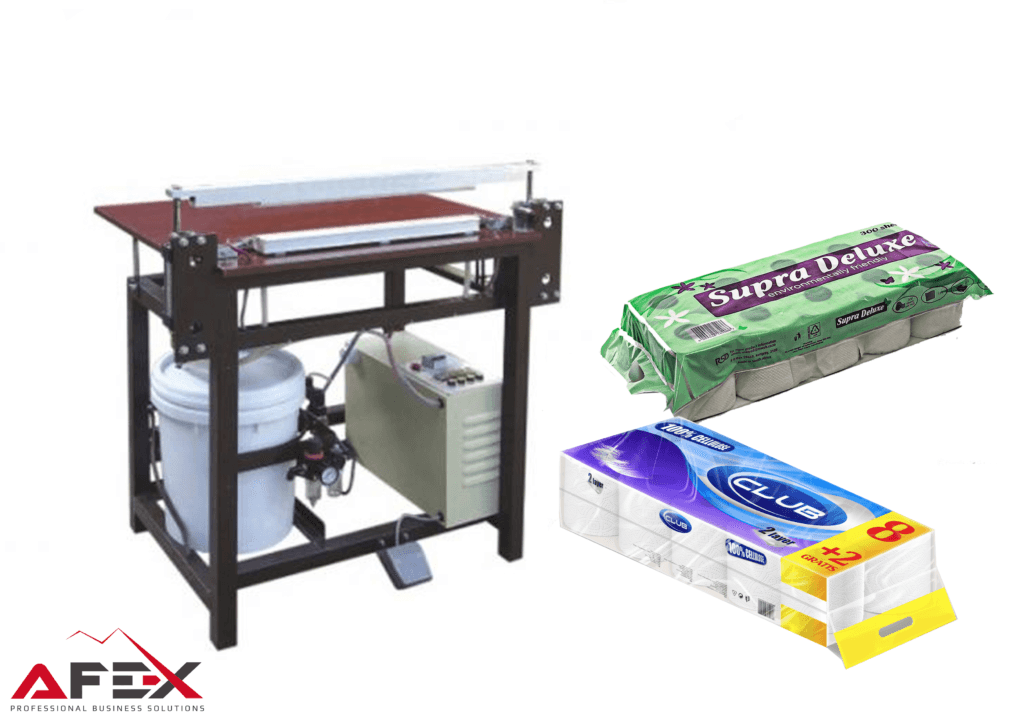

Multi-pack packaging machine

The final stage, as always, is the bundle packaging machine, which delivers the product to the customer in a convenient form. Depending on the requirements of buyers in the region where you are based and plan to sell your product, packs of 2, 4, 6 or 8 rolls are possible. When ordering packaging bags, remember to include holes that make them easy to carry by hand. This adds extra convenience for customers buying your product. The packaging bag comes ready-made and closed on three sides. The product is then placed in it by hand, and the top is securely sealed using the machine below.

Finished Product

AFEX · CONSULTATION
Operators online

Quick price request

Leave your name and phone number — our specialist will take care of the rest.

EquipmentToilet Paper Production Line from Waste Paper 0.8-1 t/day

Your data is never shared with third parties

Specifications

Data provided by the manufacturer; configuration may vary per order.

Rewinding Machine: Large Roll to Small Rolls

14 parameters
Paper width (mm)
1800
Production capacity (per 8 hours)
1.2 t
Finished product diameter
F50-1800 mm (width and diameter are adjustable)
Inner core diameter
F30-55 mm
Parent roll diameter
Standard 1100 mm (other sizes available)
Parent roll inner core
76 mm
Winding speed
150-280 m/min
Control mode
PLC computer control
Number of plies
3-ply
Tear-line perforation
2 blades, 150-300 mm
Pneumatic system
3-valve compressor
Power consumption
5.5–15 kW, depending on speed
Dimensions
6200 × 2600 × 800 mm
Weight
5 tons

Small Roll Cutting Machine

7 parameters
Cutting length (mm)
Adjustable
Capacity (t/day)
1.5
Cutting length (mm)
3750
Diameter (mm)
1300 × 70 × 1800
Weight (kg)
560
With and without core
Suitable for both
Power consumption (kW)
1.1

Included units

Units and accessories included with the equipment. Specifications for each are in the section above.

  • Rewinding Machine: Large Roll to Small Rolls01

    Rewinding Machine: Large Roll to Small Rolls

    14 parameters

    • Paper width (mm): 1800
    • Production capacity (per 8 hours): 1.2 t
    Specifications
  • Small Roll Cutting Machine02

    Small Roll Cutting Machine

    7 parameters

    • Capacity (t/day): 1.5
    • Cutting length (mm): 3750
    Specifications

  • Main Components

    6 items

    1. 1Paper-forming cylinder mould
    2. 2Large pulp vat
    3. 3Heated drying drum
    4. 4Paper reel-up (winding) unit
    5. 5Machine metal frame
    6. 6Speed reduction gears

Delivery and commissioning

From consultation to launch — four steps under contract.

  1. 1

    Consultation

    We define your needs, configure the line and prepare an offer.

  2. 2

    Contract

    Timeline, payment terms and warranty are fixed in the contract.

  3. 3

    Delivery

    The equipment is delivered from the manufacturer to your site.

  4. 4

    Installation and training

    Our specialists commission the equipment and train your operators.
