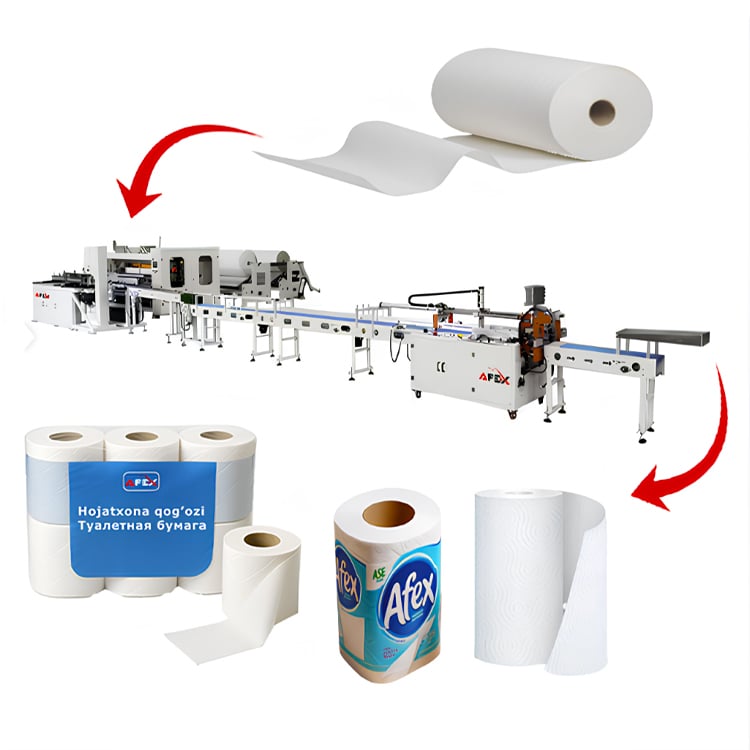

1 / 7High-Speed Automatic Toilet Paper Production Line
🧻 A modern, automated solution for high-quality hygiene products!
Individual offer
- Power
- 15 kW
- Voltage
- 380 V
- Production speed
- 180-230 m/min
- Machine dimensions
- 8600×2400×2100 mm
- Machine weight
- 6 t
- Jumbo roll width
- 2200 mm
Price
Overview
Key advantages
- This model uses a PLC control system; the production process is fully automated and the production speed is high
- The machine can change cores automatically and automatically reduce and increase speed during core changes
- The machine also has an automatic alarm function that warns the operator when the cores or paper run out
- The cellulose roll is held by pneumatic pressure
- The machine can produce toilet paper both with and without a core
About the equipment
🧻 A modern, automated solution for high-quality hygiene products! Unlike conventional toilet paper production equipment, this line features automatic glue application between the plies. This makes the product stronger, higher in quality and more durable. ✨ This technology is especially useful for producing paper towel rolls (paper napkins) — the plies do not separate, the structure is dense and the shape holds firmly. ✅ Fully automatic production line ✅ Modern technologies ✅ Glue lamination function ✅ Strong and attractive product High-quality, automated production – a guarantee of competitive results!
The toilet paper production line also meets all the requirements listed above. That is why this business is considered a promising project. The production line we offer increases output, and the equipment operates in fully automatic mode. Now let's take a closer look at the production line.
General information
Production capacity: 2-3 tons/8 hours Number of plies: 3 Number of workers: 1 Required floor space: 70-80 m² Power: 27.5 kW Required raw materials: cellulose rolls, packaging bags01

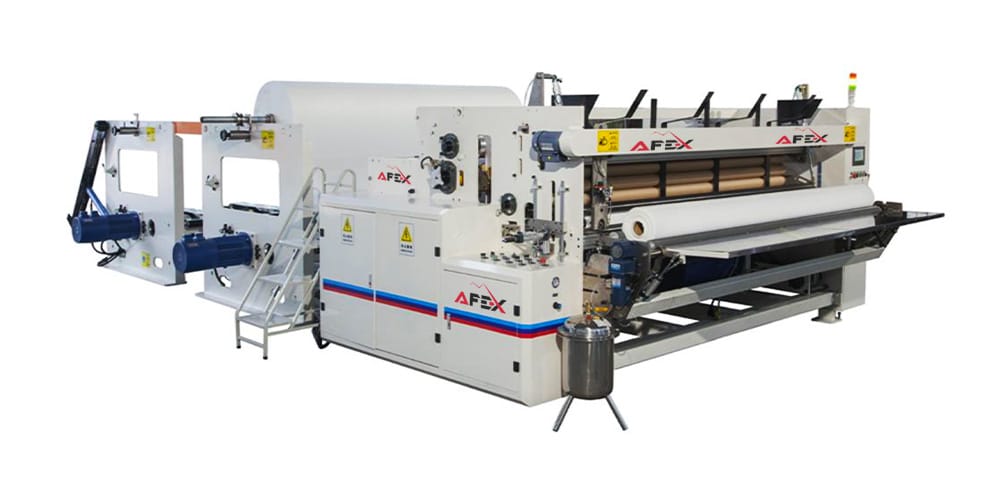

13 parametersAutomatic rewinding machine (from jumbo roll to small rolls)
- Voltage
- 380 V, 50 Hz
- Power
- 15 kW
- Production speed
- 180-230 m/min
- Jumbo roll width
- 2200 mm
- Jumbo roll diameter
- 1200 mm
- Jumbo roll core inner diameter
- 76.2 mm
- Finished roll diameter
- 90-120 mm
- Finished roll core inner diameter
- 38-76 mm
- Perforation pitch (tear line spacing)
- 4 blades (90-150 mm)
- Motor
- Individual motor for each roll winding unit
- Control panel
- PLC
- Machine dimensions
- 8600×2400×2100 mm
- Machine weight
- 6 t
Functions:
- Pattern embossing
- Automatic rewinding, perforation and cutting
- Automatic glue spraying
- Automatic pneumatic paper loading
- Automatic core feeding system
- Automatic feeding unit for the cutting machine

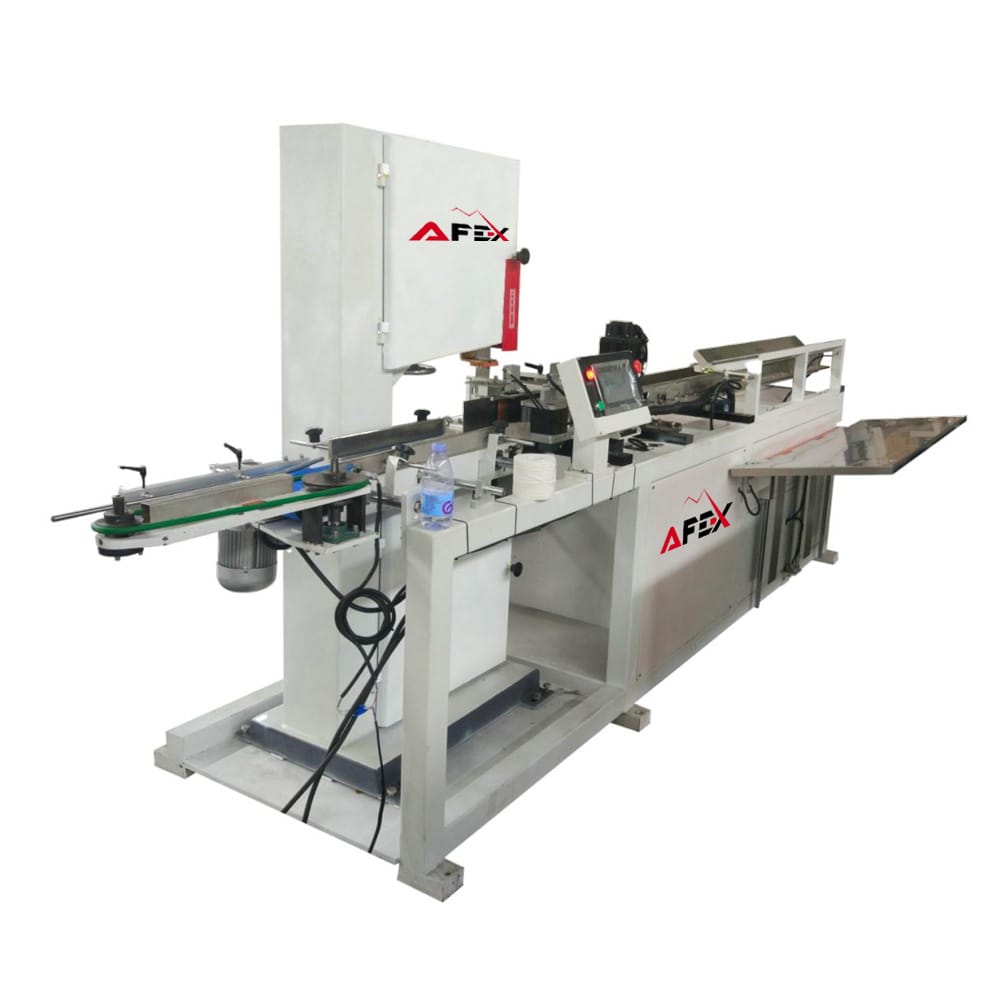

Automatic cutting machine
Paper logs coming out of the rewinding machine automatically go to the cutting machine. No manual labor is required. The machine can cut rolls of various lengths. For toilet paper, the cutting length should be 10-12 cm; for paper towels, the rolls need to be cut longer (15-20 cm).- The LCD touchscreen makes settings easy to control.
- No workers are needed during the cutting process, making it very safe.
- The number of cuts and the cutting length are easy to set, and the machine can be connected to an automatic packaging machine.
- Machine settings are advanced and stable. The control components are mainly high-quality imported parts.
02
10 parametersUnit 2
- Voltage
- 380 V, 50 Hz
- Power
- 5 kW
- Cutting speed
- 80-100 cuts/min
- Blade type
- Band blade
- Cutting accuracy
- ± 1.5 mm
- Cutting diameter
- 90-140 mm
- Cutting length
- 100-200 mm
- Cutting width
- 90-120 mm
- Machine dimensions
- 2800×1500×2100 mm
- Machine weight
- 1100 kg
03

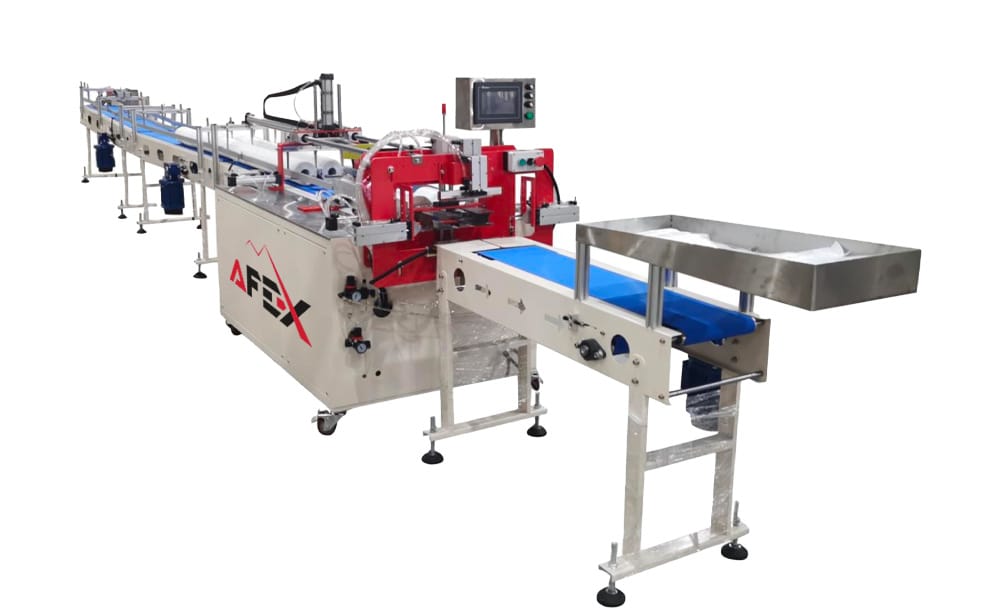

7 parametersAutomatic packaging machine
- Voltage
- 380 V, 50 Hz
- Power
- 7.5 kW
- Packaging speed
- 15 packs/min
- Package dimensions
- Length 400-600 mm, width 160-240 mm, height 160-240 mm
- Packaging type
- 2-4-6-8 rolls per pack
- Machine dimensions
- 8700×1000×1300 mm
- Machine weight
- 700 kg
04

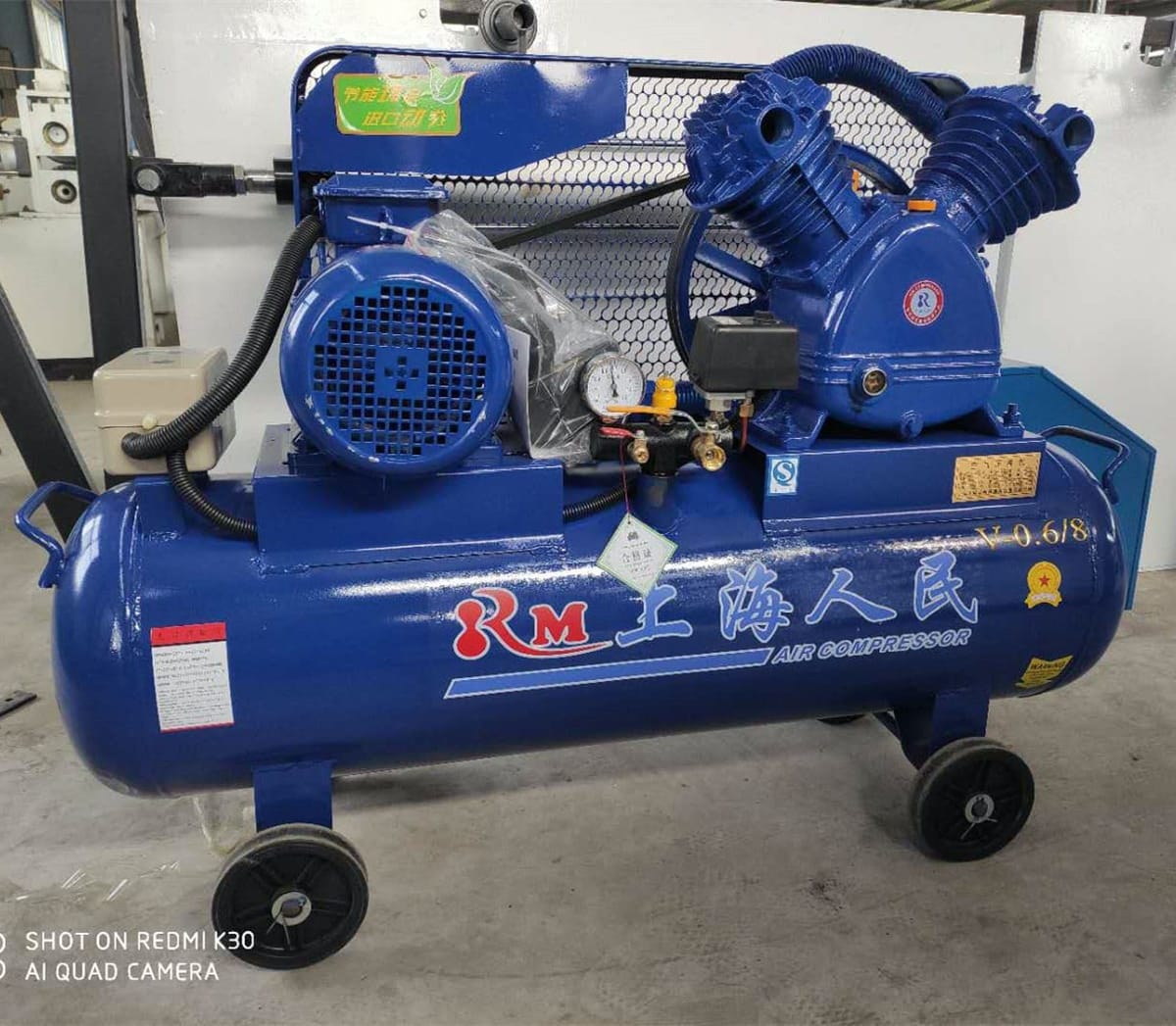

4 parametersCompressor
- Air pressure
- 0.6 m3
- Voltage
- 380 V, 50 Hz
- Power
- 4 kW
- Rotation speed
- 2890 rpm

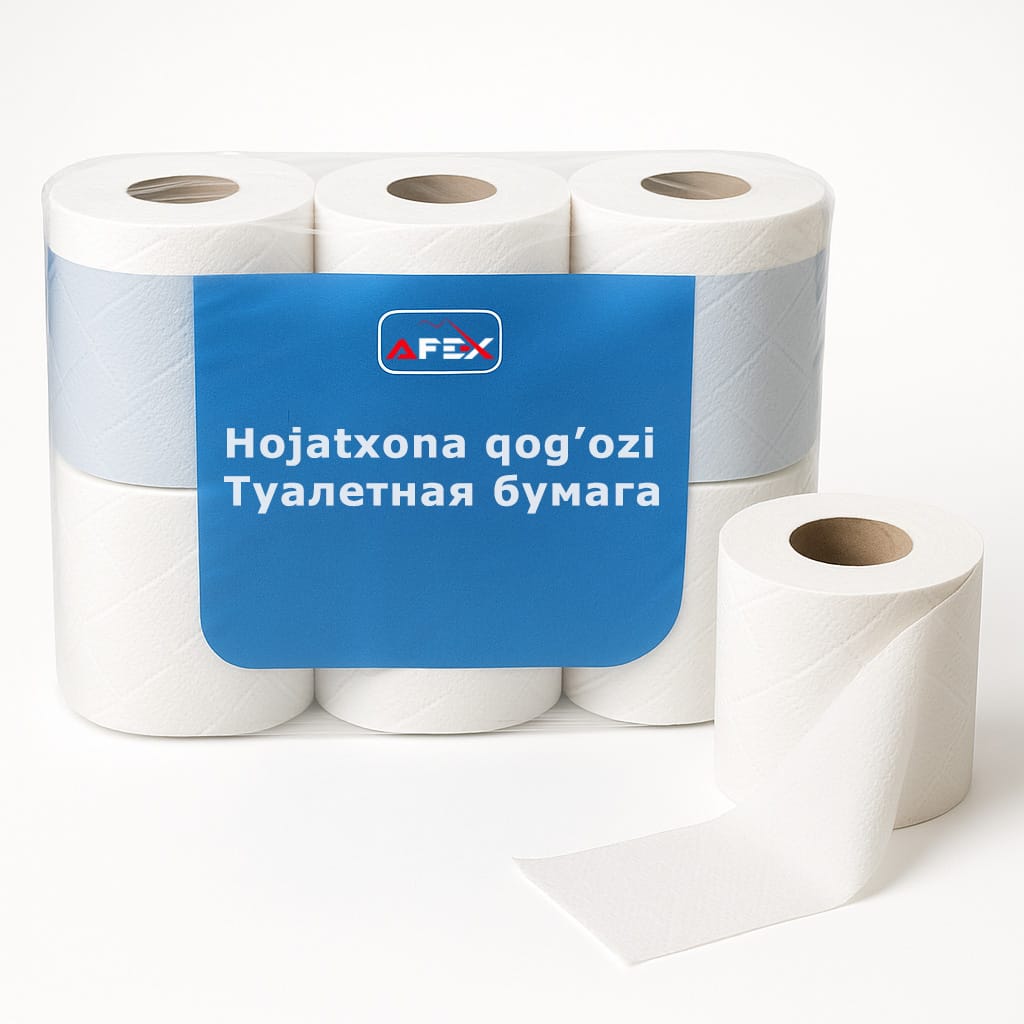

Products made on this equipment
AFEX · CONSULTATION
Operators onlineQuick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentHigh-Speed Automatic Toilet Paper Production LineYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
Automatic rewinding machine (from jumbo roll to small rolls)
13 parameters- Voltage
- 380 V, 50 Hz
- Power
- 15 kW
- Production speed
- 180-230 m/min
- Jumbo roll width
- 2200 mm
- Jumbo roll diameter
- 1200 mm
- Jumbo roll core inner diameter
- 76.2 mm
- Finished roll diameter
- 90-120 mm
- Finished roll core inner diameter
- 38-76 mm
- Perforation pitch (tear line spacing)
- 4 blades (90-150 mm)
- Motor
- Individual motor for each roll winding unit
- Control panel
- PLC
- Machine dimensions
- 8600×2400×2100 mm
- Machine weight
- 6 t
Unit 2
10 parameters- Voltage
- 380 V, 50 Hz
- Power
- 5 kW
- Cutting speed
- 80-100 cuts/min
- Blade type
- Band blade
- Cutting accuracy
- ± 1.5 mm
- Cutting diameter
- 90-140 mm
- Cutting length
- 100-200 mm
- Cutting width
- 90-120 mm
- Machine dimensions
- 2800×1500×2100 mm
- Machine weight
- 1100 kg
Automatic packaging machine
7 parameters- Voltage
- 380 V, 50 Hz
- Power
- 7.5 kW
- Packaging speed
- 15 packs/min
- Package dimensions
- Length 400-600 mm, width 160-240 mm, height 160-240 mm
- Packaging type
- 2-4-6-8 rolls per pack
- Machine dimensions
- 8700×1000×1300 mm
- Machine weight
- 700 kg
Compressor
4 parameters- Air pressure
- 0.6 m3
- Voltage
- 380 V, 50 Hz
- Power
- 4 kW
- Rotation speed
- 2890 rpm
Included units
Units and accessories included with the equipment. Specifications for each are in the section above.
- 01
Automatic rewinding machine (from jumbo roll to small rolls)
13 parameters
- Voltage: 380 V
- Power: 15 kW
- 02
- 03
Video
The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
Frequently asked questions
The most common questions about delivery, contracts and tracking.
Is it possible to track my orders online?
You can track orders online. Uzbekistan was one of the first to develop a mechanism for monitoring cargo, determining their location, and estimating the time of arrival using the GPS system. You can get this information only by entering the contract number.
How long will the shipments be delivered?
Delivery time depends on the manufacturer in most cases. Most large-scale production equipment takes 2-3 times longer to deliver than normal equipment. In the case of ready-made equipment, the delivery period starts from 30 days. Excluding the time required for customs clearance of equipment in the territory of Uzbekistan, certification processes.
What are the shipping methods available?
According to the type of goods from abroad and the period when the order was received, the goods are delivered to the territory of Uzbekistan on the following basis:
By air
By rail
By land transport
By mixed transport
What is required of me to conclude a contract?
To become a client of our company, you must:
CERTIFICATE certifying the business entity;
Bank details;
STIR number;
Copy of the manager's passport;
Enterprise seal to confirm the contract
Consultation
Let’s discuss your project together
Contact us for advice on choosing equipment, technical solutions and offers.
AFEX · SOCIAL
Follow our channels
New equipment, commissioning and production footage — on our official channels.
Related equipment
Paper processing
2-Shaft Laminating Toilet Paper and Paper Towel Production Line
Details →
Paper processing
Automatic Toilet Paper Production Line, Industrial Version
Details →
In stockPaper processing

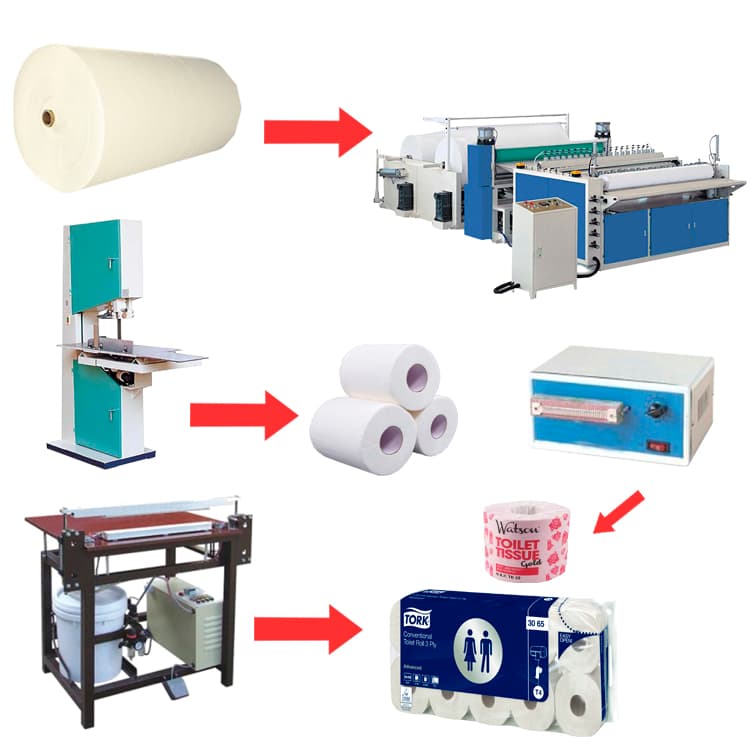

Toilet paper and paper towel production line AF-L016
Details →
Paper processing

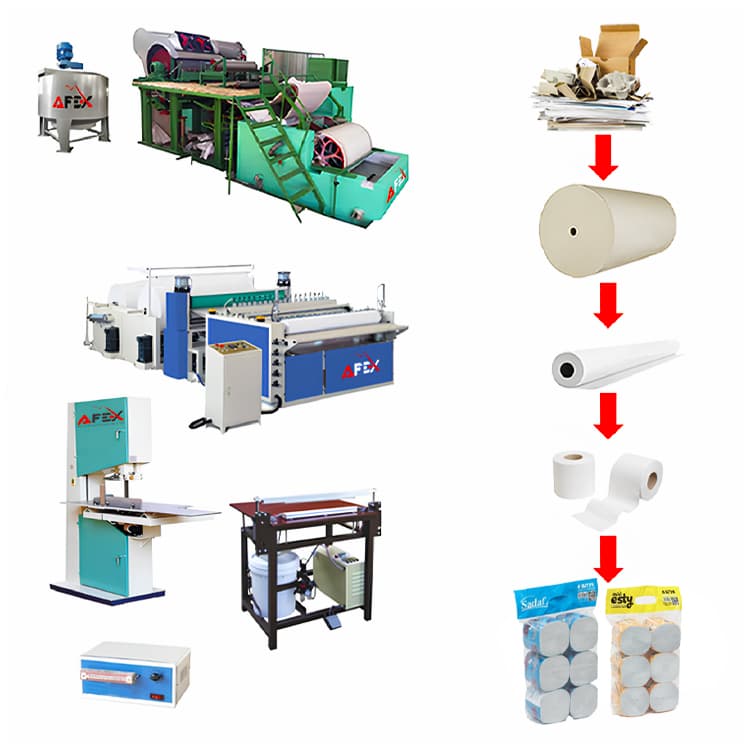

Toilet Paper Production Line from Waste Paper 0.8-1 t/day
Details →
Paper processing
Disposable toilet seat cover production equipment
Details →
Paper processing

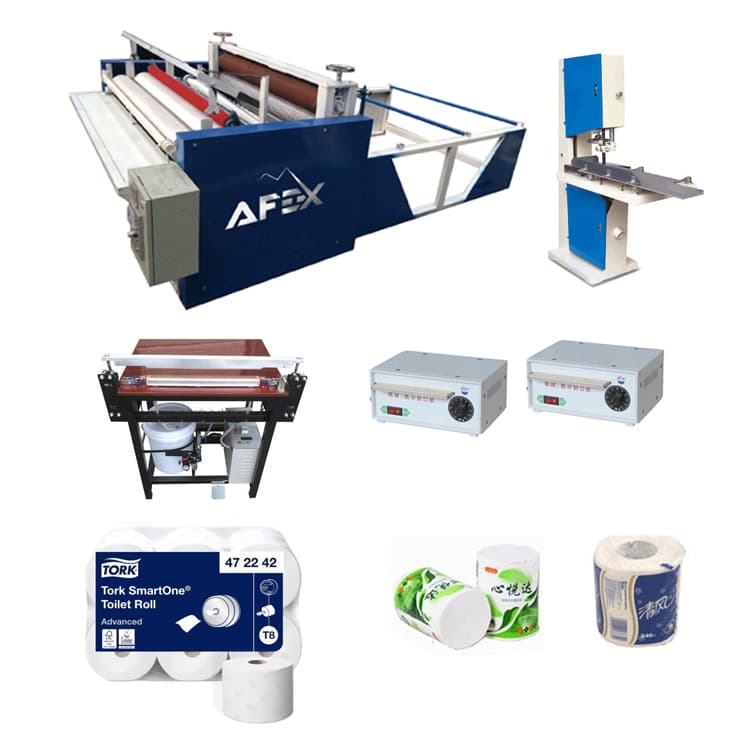

Compact toilet paper production line
