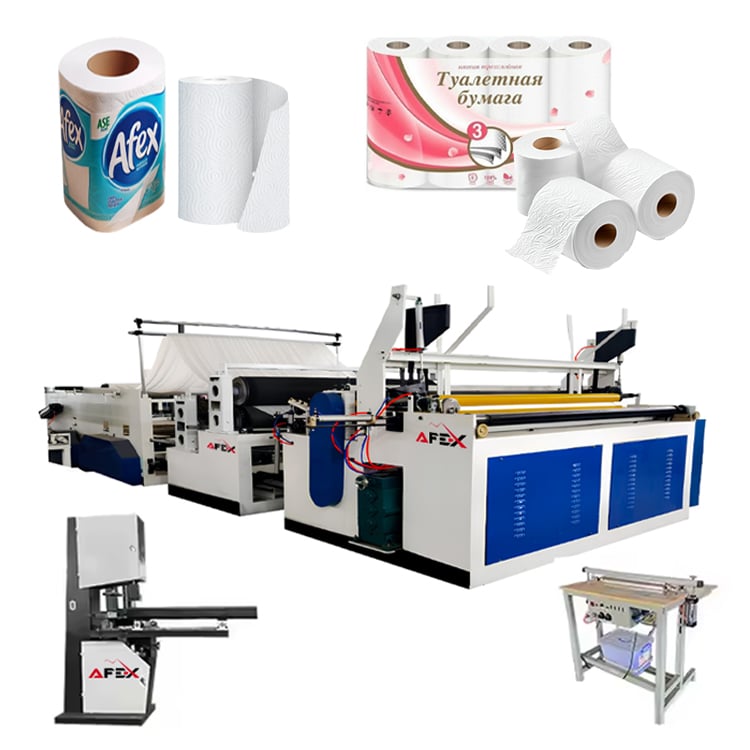

1 / 62-Shaft Laminating Toilet Paper and Paper Towel Production Line
🧻 A modern solution for high-quality hygiene products!
- Total power
- 7 kW
- Production speed
- 180–200 m/min
- Voltage
- 380 V
- Dimensions
- 6500 × 3500 × 1800 mm
- Weight
- 4000 kg
- Power
- 1.5 kW
Overview
About the equipment
🧻 A modern solution for high-quality hygiene products! Unlike a conventional toilet paper machine, this equipment automatically applies glue between the paper plies. This makes the product stronger, higher in quality and more durable. ✨ This technology is especially useful in the production of rolled paper towels (paper napkins) — the plies do not separate, the structure is dense and the shape is firm. ✅ Modern technologies ✅ Glue lamination function ✅ Strong and attractive products Quality production – a competitive result!

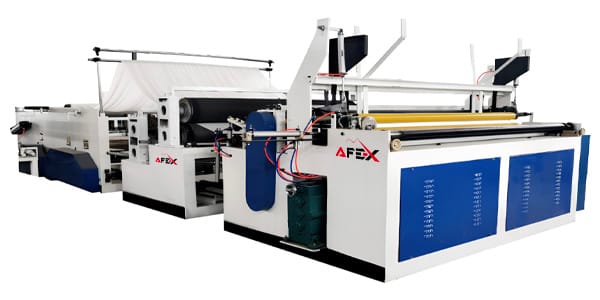

Paper Towel Roll and Toilet Paper Making Machine
The machine can produce 1-, 2- and 3-ply paper. It is also equipped with an automatic gluing device.Technical specifications
General
- Finished product
- Toilet paper rolls and paper towel rolls
- Base paper weight
- 12–40 g/m² tissue paper
- Base paper width
- Max. 1800 mm
- Parent roll diameter
- <1100 mm
- Finished roll diameter
- 75–180 mm
- Finished roll core diameter
- 20–55 mm
- Jumbo roll core diameter
- 76.2 mm
- Control system
- PLC, touchscreen
- Rear paper stand
- 2-tier
- Perforation pitch
- 100–200 mm
- Embossing rollers
- 2 sets: steel roller – wool roller
- Embossing pattern
- Customizable (to order)
- Paper feeding
- Automatic pneumatic loading
- Glue lamination
- Automatic gluing function
- Total power
- 7 kW
- Production speed
- 180–200 m/min
- Voltage
- 3-phase, 380 V
- Air pressure
- 0.6 MPa
- Dimensions
- 6500 × 3500 × 1800 mm
- Weight
- 4000 kg
Technical specifications

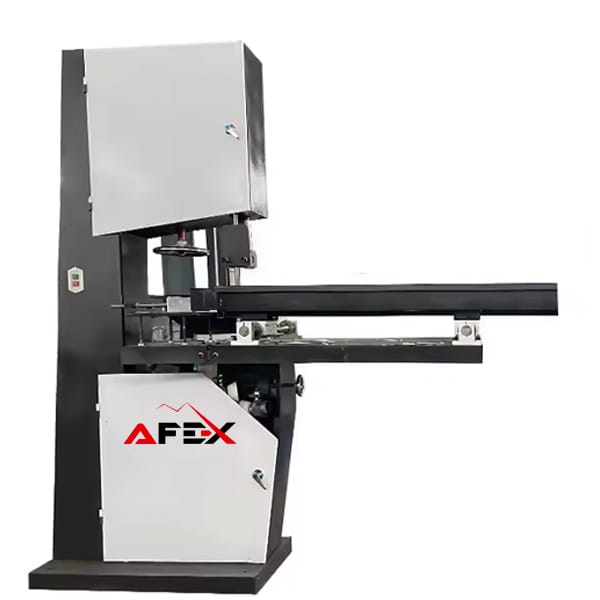

Small Roll Cutting Machine
- Function
- Cutting a large jumbo roll into small rolls
- Finished product
- Small paper rolls
- Finished roll diameter
- Ø80 mm – Ø280 mm (adjustable)
- Power
- 1.5 kW
- Voltage
- 3-phase, 380 V
- Weight
- 500 kg
Technical specifications

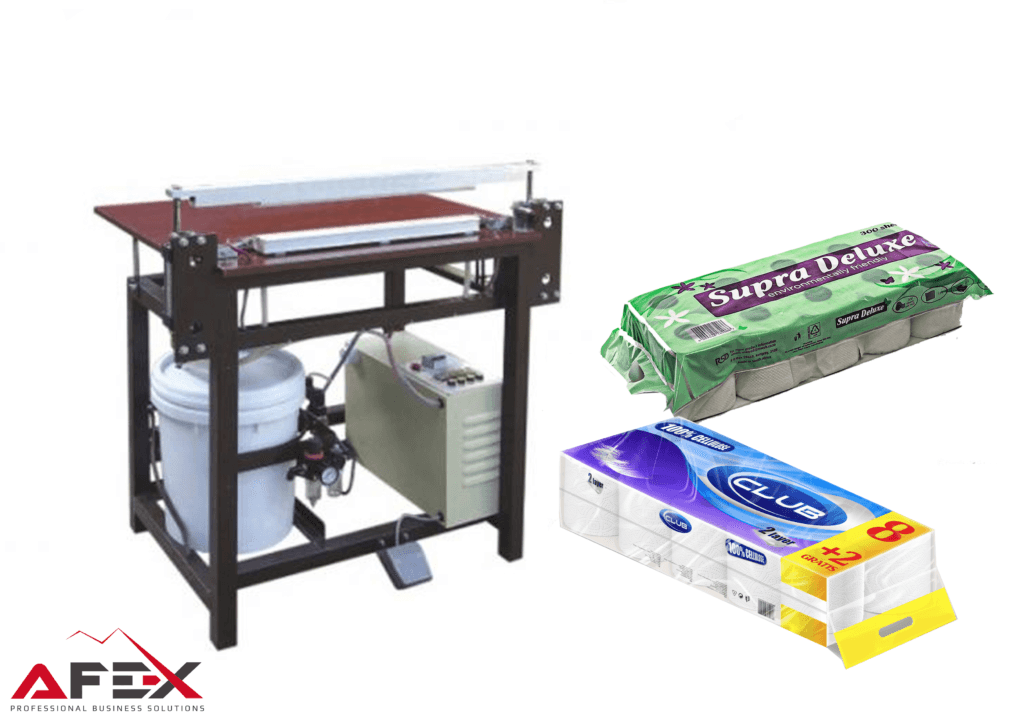

Packaging Machine
- Function
- Packing small paper rolls into a large bag
- Motor power
- 30–100 W
- Heating wire power
- 50 W
- Seal size
- 5 mm × 0.3 mm
- Cutting wire diameter
- 0.5 mm
- Sealing width
- 380 mm – 800 mm (made to order)
Products made with the equipment
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
Equipment2-Shaft Laminating Toilet Paper and Paper Towel Production LineYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
20 parameters- Finished product
- Toilet paper rolls and paper towel rolls
- Base paper weight
- 12–40 g/m² tissue paper
- Base paper width
- Max. 1800 mm
- Parent roll diameter
- <1100 mm
- Finished roll diameter
- 75–180 mm
- Finished roll core diameter
- 20–55 mm
- Jumbo roll core diameter
- 76.2 mm
- Control system
- PLC, touchscreen
- Rear paper stand
- 2-tier
- Perforation pitch
- 100–200 mm
- Embossing rollers
- 2 sets: steel roller – wool roller
- Embossing pattern
- Customizable (to order)
- Paper feeding
- Automatic pneumatic loading
- Glue lamination
- Automatic gluing function
- Total power
- 7 kW
- Production speed
- 180–200 m/min
- Voltage
- 3-phase, 380 V
- Air pressure
- 0.6 MPa
- Dimensions
- 6500 × 3500 × 1800 mm
- Weight
- 4000 kg
Small Roll Cutting Machine
6 parameters- Function
- Cutting a large jumbo roll into small rolls
- Finished product
- Small paper rolls
- Finished roll diameter
- Ø80 mm – Ø280 mm (adjustable)
- Power
- 1.5 kW
- Voltage
- 3-phase, 380 V
- Weight
- 500 kg
Packaging Machine
6 parameters- Function
- Packing small paper rolls into a large bag
- Motor power
- 30–100 W
- Heating wire power
- 50 W
- Seal size
- 5 mm × 0.3 mm
- Cutting wire diameter
- 0.5 mm
- Sealing width
- 380 mm – 800 mm (made to order)
Included units
Units and accessories included with the equipment. Specifications for each are in the section above.
- 01
- 02
Equipment included in the line
3 items
- 1Paper towel roll and toilet paper making machine
- 2Small roll cutting machine
- 3Packaging machine
