1 / 2Paper tube cutting machine
This paper tube cutting machine is designed for precise cutting of paper tubes of various diameters.
- Main Motor Power
- 1.5 kW
- Cutting Length Range
- 70–1500 mm
- Main Machine Dimensions (L×W×H)
- 2000 × 800 × 1020 mm
- Total Weight
- 270 kg
- Paper Tube Diameter
- Φ30–100 mm
- Paper Tube Thickness
- 1–6 mm
Overview
About the equipment
This paper tube cutting machine is designed for precise cutting of paper tubes of various diameters. The machine supports cutting tubes from Φ30 to 100 mm, with a thickness of 1–6 mm. The cuts with a length of 70 mm to 1500 mm are accurate and smooth. 8 groups of knives ensure a stable and smooth cutting process at the same time. The machine operates at a working air pressure of 0.6 MPa and is controlled by a button, which makes it very convenient and safe.
The machine features a compact and robust structure and is designed to be operated by a single operator. The 1.5 kW main motor provides continuous and stable operation while maintaining energy efficiency. The cutting blades are made of high-quality steel, ensuring long service life.
With overall dimensions of 2000 × 800 × 1020 mm, the machine is ideal for use in small production workshops and packaging lines. It is easy to maintain, delivers precise cutting results, and significantly improves production efficiency.
Description
- Parameter
- Specification
- Paper Tube Diameter
- Φ30–100 mm
- Paper Tube Thickness
- 1–6 mm
- Cutting Length Range
- 70–1500 mm
- Number of Blade Sets
- 8 pcs (standard)
- Working Air Pressure
- 0.6 MPa
- Control Mode
- Button control
- Main Motor Power
- 1.5 kW
- Number of Operators
- 1 person
- Main Machine Dimensions (L×W×H)
- 2000 × 800 × 1020 mm
- Blade Size
- 2 × 105 × 43 mm
- Total Weight
- 270 kg
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentPaper tube cutting machineYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
Description
12 parameters- Parameter
- Specification
- Paper Tube Diameter
- Φ30–100 mm
- Paper Tube Thickness
- 1–6 mm
- Cutting Length Range
- 70–1500 mm
- Number of Blade Sets
- 8 pcs (standard)
- Working Air Pressure
- 0.6 MPa
- Control Mode
- Button control
- Main Motor Power
- 1.5 kW
- Number of Operators
- 1 person
- Main Machine Dimensions (L×W×H)
- 2000 × 800 × 1020 mm
- Blade Size
- 2 × 105 × 43 mm
- Total Weight
- 270 kg

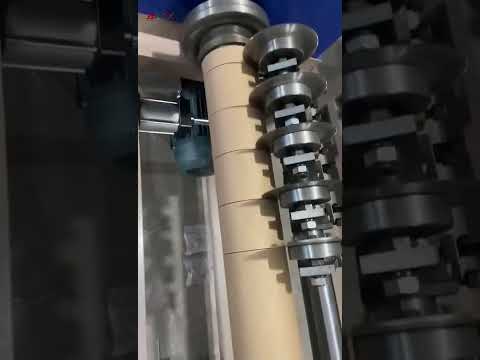

Video
The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
