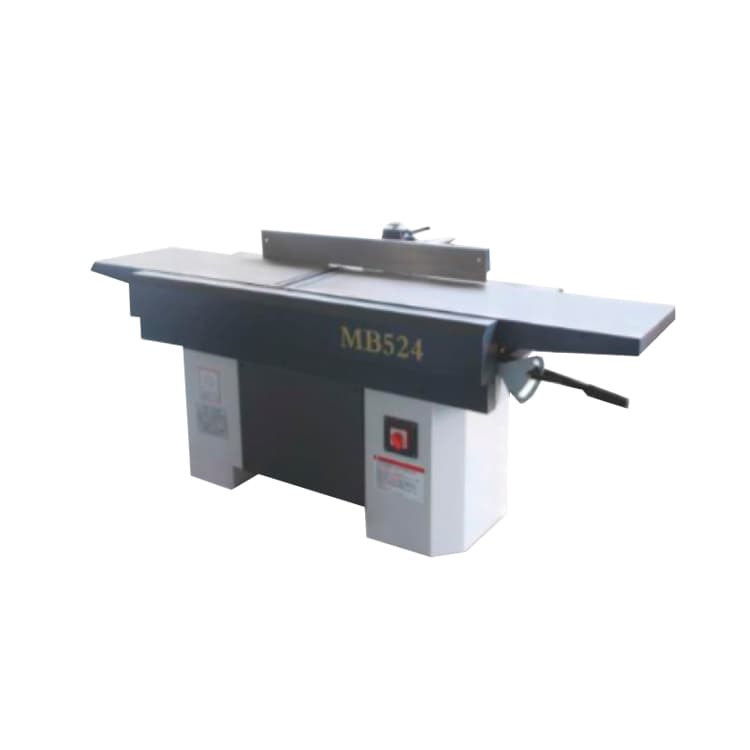

1 / 1Wood surface planing machine AF-MB524
AF-MB524 is a planer for flattening the surface of wooden workpieces.
- Motor power
- 3 Kw
- Model
- AF-MB524
- Spindle speed
- 5600 rpm/min
- The total length of the desktop
- 2200 mm
- Motor speed
- 2880 rmp/min
- Weight
- 380 Kg
Overview
About the equipment
AF-MB524 is a planer for flattening the surface of wooden workpieces. It planes up to 400 mm wide, and the worktable is 2200 mm long overall.
The spindle carries 4 knives, runs at 5600 rpm and removes up to 5 mm per pass. Motor power is 3 kW, with a motor speed of 2880 rpm. The flattened face then serves as the reference surface for further machining.
The long worktable helps guide long boards and bars straight. The machine measures 2200×750×1020 mm and weighs 380 kg. Joinery and furniture workshops use it to flatten warped or uneven workpieces and prepare them for the next steps: thicknessing, cutting and gluing.
AFEX supplies the equipment and provides installation, commissioning and warranty service. Tell us the length and width of your workpieces, and we will check that the machine suits you.
General
- Model
- AF-MB524
- Maximum cutting width
- 400 mm
- Maximum leveling depth
- 5 mm
- Spindle speed
- 5600 rpm/min
- Number of blades
- 4 ta
- The total length of the desktop
- 2200 mm
- Motor power
- 3 Kw
- Motor speed
- 2880 rmp/min
- Weight
- 380 Kg
- Size
- 2200*750*1020
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentWood surface planing machine AF-MB524Your data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
10 parameters- Model
- AF-MB524
- Maximum cutting width
- 400 mm
- Maximum leveling depth
- 5 mm
- Spindle speed
- 5600 rpm/min
- Number of blades
- 4 ta
- The total length of the desktop
- 2200 mm
- Motor power
- 3 Kw
- Motor speed
- 2880 rmp/min
- Weight
- 380 Kg
- Size
- 2200*750*1020
