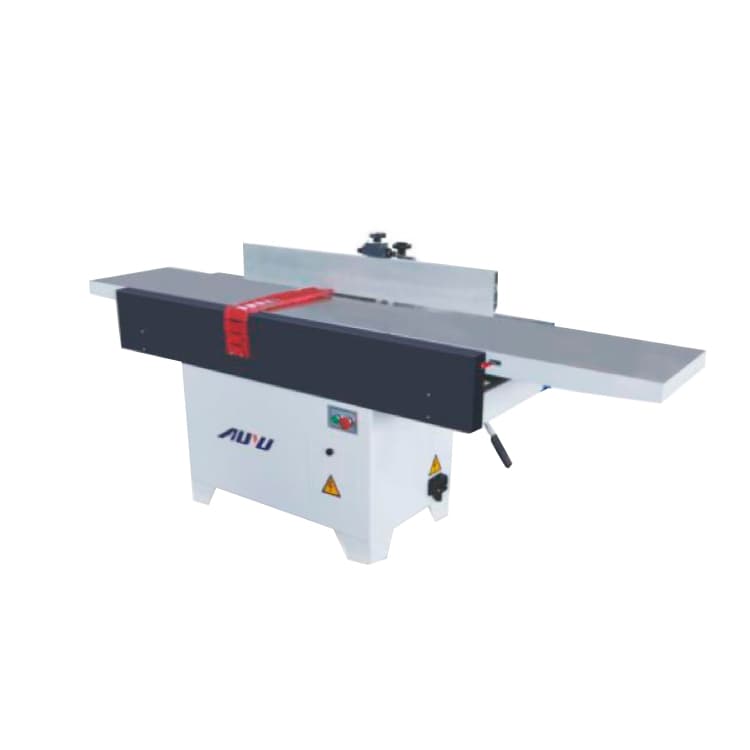

1 / 1Wood surface planing equipment AF-504F
AF-504F is a planer for flattening the surface of wooden workpieces.
- Motor power
- 3 Kw
- Model
- AF-504F
- Spindle speed
- 5000 rpm/min
- The total length of the desktop
- 2500 mm
- Weight
- 380 Kg
- Maximum cutting width
- 400 mm
Overview
About the equipment
AF-504F is a planer for flattening the surface of wooden workpieces. It planes up to 400 mm wide and removes up to 5 mm per pass.
The spindle carries 4 knives and runs at 5000 rpm, with a 3 kW motor. The guide fence measures 900×95 mm and supports the workpiece when planing its side edge. This way one face and the adjacent edge are flattened and become the reference surfaces for further machining.
The machine weighs 380 kg. It is used to flatten warped or uneven surfaces of boards and bars and prepare them for thicknessing on a thickness planer. It suits joinery and furniture workshops as well as door and window production.
AFEX supplies the equipment and provides installation, commissioning and warranty service. Tell us the sizes of the workpieces you process, and we will check that the machine suits your tasks.
General
- Model
- AF-504F
- Maximum cutting width
- 400 mm
- Maximum leveling depth
- 5 mm
- Spindle speed
- 5000 rpm/min
- Number of blades
- 4 ta
- The total length of the desktop
- 2500 mm
- Motor power
- 3 Kw
- Block size
- 900*95
- Weight
- 380 Kg
- Size
- 2200*750*1020
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentWood surface planing equipment AF-504FYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
10 parameters- Model
- AF-504F
- Maximum cutting width
- 400 mm
- Maximum leveling depth
- 5 mm
- Spindle speed
- 5000 rpm/min
- Number of blades
- 4 ta
- The total length of the desktop
- 2500 mm
- Motor power
- 3 Kw
- Block size
- 900*95
- Weight
- 380 Kg
- Size
- 2200*750*1020
