Wood slat production line
ADSR_1050 is a heavy-duty, double spindle modern rip saw machine designed for precise and high-efficiency cutting of raw tree logs into multiple pieces. Equipped with high-power motors, an automatic feeding system, and water-cooled saw blades, this equipment is ideal for continuous production environments. It is especially suitable for factories manufacturing wood slats, planks, or panels.

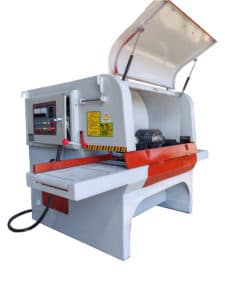

ADSR 1050 double spindle multiple rip saw for wood
| Parameter Name | Value |
| Main motor power | 30 + 37 kW |
| Voltage | 380V, 50Hz, 3-phase |
| Spindle rotation speed | 2800 rpm |
| Feeding motor power | 1.5 kW × 2 |
| Cutting diameter | 100 – 300 mm |
| Cutting length | 600 – 4000 mm |
| Spindle diameter | 60 mm |
| Feeding speed | 0 – 10 m/min (frequency adjustable) |
| Max. number of saw blades | 16 pcs |
| Table length | 2000 mm (front), 2000 mm (rear) |
| Saw blade size | 420 × (3.4–3.8) × 60 × 36T + 4 mm |
| Blade cooling method | Water spray on shaft |
| Cooling water pressure | 0.3 – 0.6 MPa |
| Overall dimensions | 4000 × 1600 × 1550 mm |
| Weight | 2800 kg |
| Loading type | 1 × 20′ FCL container |
ADSR-2010 – Slab Multiple Rip Saw Machine
| Parameter Name | Value |
| Main motor power | 30 + 30 kW |
| Voltage | 380V, 50Hz, 3-phase |
| Spindle rotation speed | 2800 rpm |
| Feeding motor power | 1.1 kW × 2 |
| Cutting thickness | 30 – 120 mm |
| Cutting width | ≤350 mm |
| Cutting length | 600 – 4000 mm |
| Spindle diameter | 70 mm |
| Feeding speed | 0 – 8 m/min (frequency adjustable) |
| Max. number of saw blades | 10 pcs |
| Table length | 800 mm (front), 400 mm (rear) |
| Saw blade size | 230 × 2.6 × 70 × 36P + 4T mm |
| Blade cooling method | Water spray on shaft |
| Cooling water pressure | 0.3 – 0.6 MPa |
| Overall dimensions | 2000 × 1500 × 1400 mm |
| Weight | 2200 kg |
