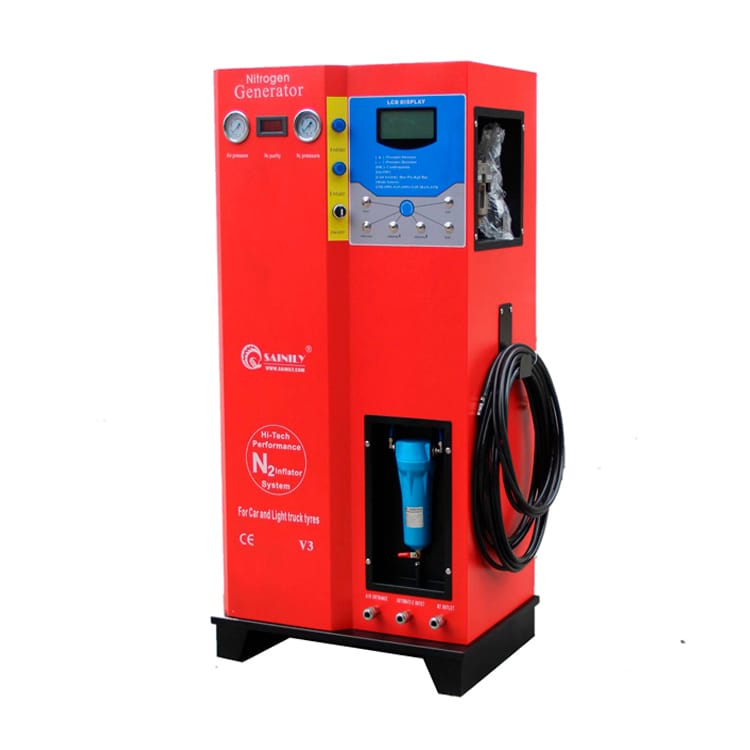

Tire nitrogen filling equipment AF-SD1

Nitrogen filling is not yet a widespread method and many people do not use it. But it is good business if spread through good advertising. Due to the small number of this device, the price of one filling in our country is around 30-35 thousand soums. When filled with nitrogen, tires become much softer, due to the fact that nitrogen gas exerts less pressure on the surface compared to air. This is especially true in our conditions, where the pits on the roads are quite common in many places. This method will result in fewer parts going to your car. On the other hand, like air, there are no cases where the pressure drops in cold air and the pressure increases by itself in hot weather. the device we recommend to you separates nitrogen gas from the air itself. You can even sell the nitrogen gas collected with this equipment to 99% lysine food nitrogen packaging shops.

FUNCTIONS:

LCD screen to display pressure

All tasks are done with a single multi-functional hose

Equipped with a high efficiency filter

Oil and water can also be suctioned out through the fully automatic suction unit

with two-stage filtering, you will achieve a long service life of the equipment

01

General

11 parameters

It is possible to use

For light and small trucks

Voltage

220v 5hz

Nitrogen generator

Advanced filter orca

Degree of purity

97-99%

Inlet air pressure

9~10bar, 130~145 psi

Required compressor

10bar/145psi, 1~1,5m3/min

Exhaust nitrogen gas pressure

1-6bar, 14~85 psi

Output Nitrogen gas volume

70~90l/min, 18,5~23,8 gallon/min

The size

72*52*141sm

Weight

110 kg

Nitrogen gas cylinder capacity

90l
