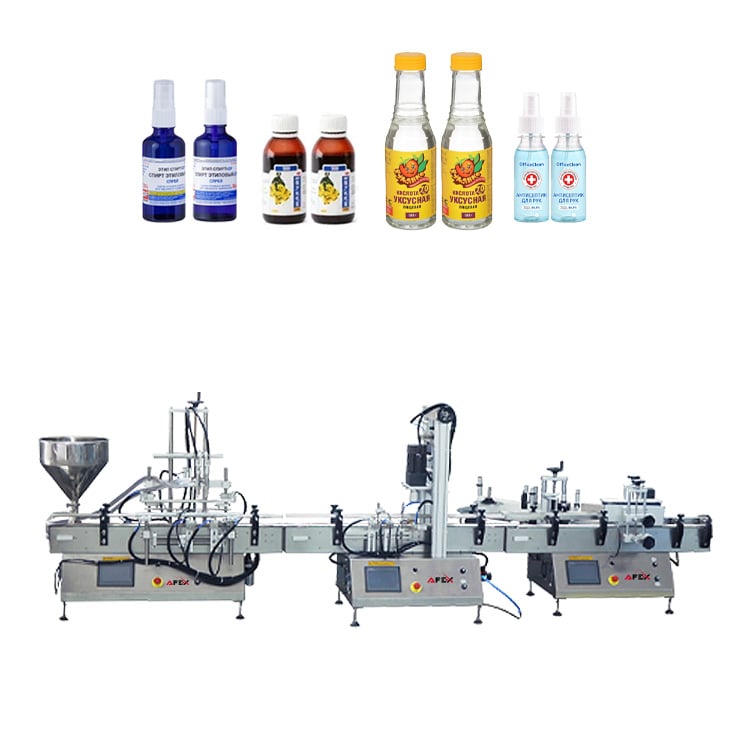

1 / 4Automatic Filling, Capping and Labeling Line 10-280
This line allows filling containers of 10-280 ml with liquid products, capping and labeling them.
- Power supply
- 220V 50/60Hz
- Production capacity
- 0–16 bottles/min
- Machine dimensions
- 1300 × 900 × 1300 mm
- Weight
- 180 kg
- Filling heads (nozzles)
- 2 pcs
- Hopper volume
- 40 liters
Overview
About the equipment
This line allows filling containers of 10-280 ml with liquid products, capping and labeling them.

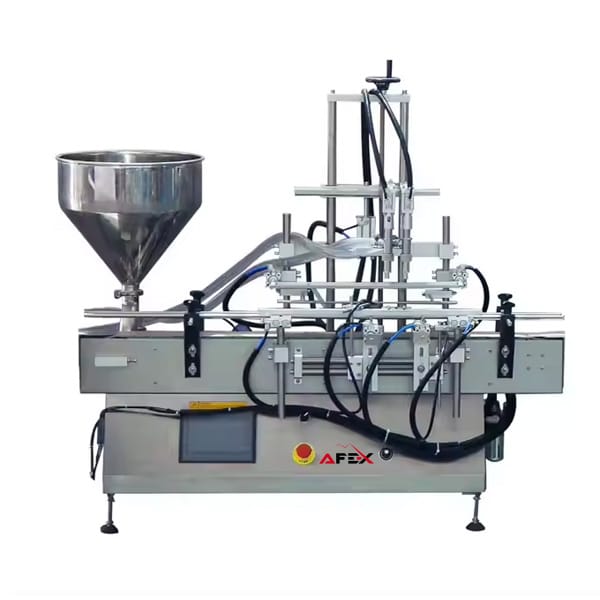

Filling machine
- Power supply
- 220V 50/60Hz
- Production capacity
- 0–16 bottles/min
- Filling range
- 10–160 ml, 20–280 ml or customized to order
- Hopper volume
- 40 liters
- Filling heads (nozzles)
- 2 pcs
- Machine dimensions
- 1300 × 900 × 1300 mm
- Weight
- 180 kg

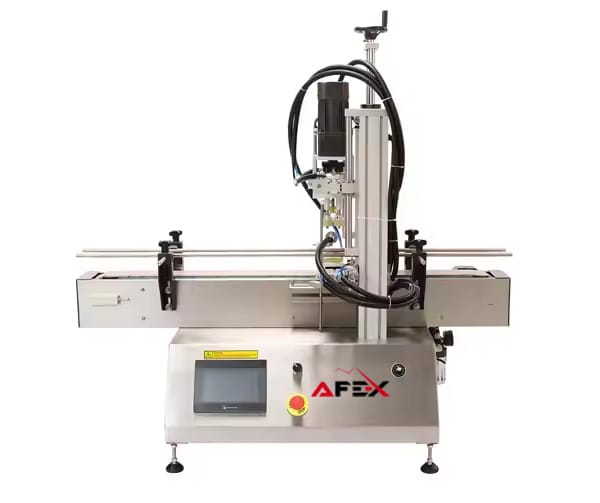

Capping machine
- Power supply
- 220V 50/60Hz
- Bottle diameter
- 20–120 mm
- Cap (closure) diameter
- φ20–φ50 mm
- Capping speed
- 10–30 bottles/min
- Machine dimensions
- 1300 × 900 × 1400 mm
- Weight
- 100 kg

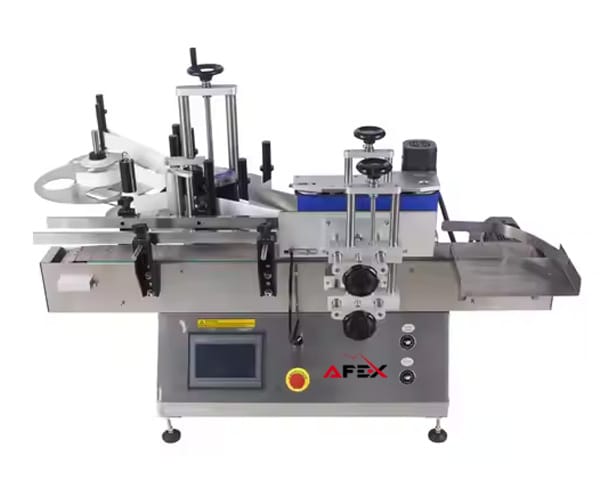

Labeling machine
- Power supply
- 220V 50/60Hz
- Label width
- 10–100 mm
- Label length
- 15–300 mm
- Bottle diameter
- 20–120 mm
- Labeling speed
- 20–40 bottles/min
- Machine dimensions
- 1300 × 900 × 970 mm
- Weight
- 120 kg
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentAutomatic Filling, Capping and Labeling Line 10-280Your data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
Filling machine
7 parameters- Power supply
- 220V 50/60Hz
- Production capacity
- 0–16 bottles/min
- Filling range
- 10–160 ml, 20–280 ml or customized to order
- Hopper volume
- 40 liters
- Filling heads (nozzles)
- 2 pcs
- Machine dimensions
- 1300 × 900 × 1300 mm
- Weight
- 180 kg
Capping machine
6 parameters- Power supply
- 220V 50/60Hz
- Bottle diameter
- 20–120 mm
- Cap (closure) diameter
- φ20–φ50 mm
- Capping speed
- 10–30 bottles/min
- Machine dimensions
- 1300 × 900 × 1400 mm
- Weight
- 100 kg
Labeling machine
7 parameters- Power supply
- 220V 50/60Hz
- Label width
- 10–100 mm
- Label length
- 15–300 mm
- Bottle diameter
- 20–120 mm
- Labeling speed
- 20–40 bottles/min
- Machine dimensions
- 1300 × 900 × 970 mm
- Weight
- 120 kg
Included units
Units and accessories included with the equipment. Specifications for each are in the section above.
- 01
Filling machine
7 parameters
- Power supply: 220V 50/60Hz
- Production capacity: 0–16 bottles/min
- 02
- 03
Video
The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
Frequently asked questions
The most common questions about delivery, contracts and tracking.
Is it possible to track my orders online?
How long will the shipments be delivered?
What are the shipping methods available?
What is required of me to conclude a contract?
