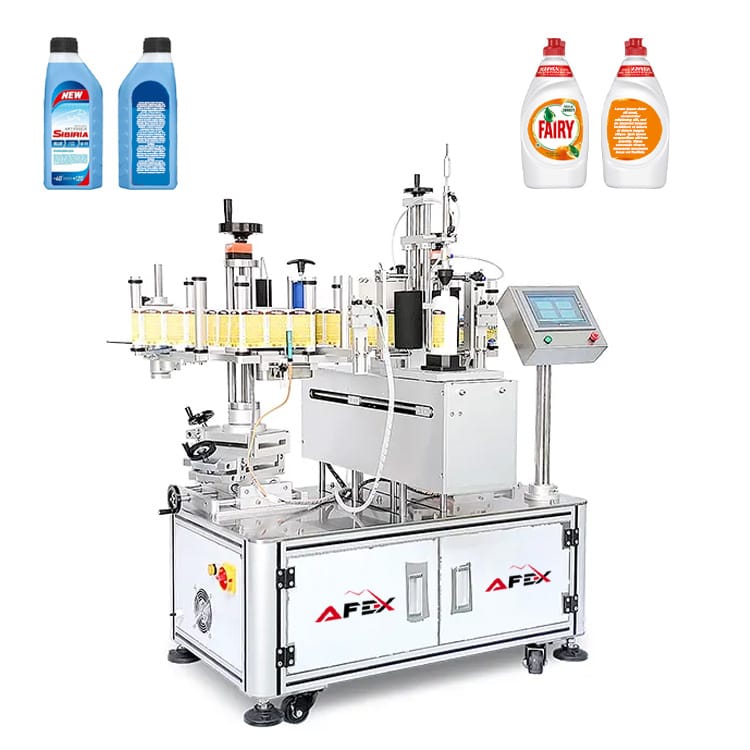

1 / 3Double-Sided Labeling Machine AF-T2
The machine applies labels to the sides of various items such as vials, containers and plastic products.
- Voltage
- 220 V 50 Hz
- Labeling speed
- 15-30 pcs/min
- Applicable product (container) dimensions
- : 20 mm〜250 mm Width
- Label dimensions
- Length: 15 mm〜200 mm Width
- Machine dimensions
- 1350 mm × 1180 mm × 1350 mm
- Machine weight
- 315 kg
Overview
Key features
- Applicable product (container) dimensions
Length (L): 20 mm〜250 mm Width (W): 20 mm〜150 mm Height (H): 0.2 mm〜250 mm
- Label dimensions
Length: 15 mm〜200 mm Width (height of the backing paper release section): 20 mm〜170 mm
- Label roll dimensions
Inner diameter: 76 mm Outer diameter: ≤260 mm
About the equipment
The machine applies labels to the sides of various items such as vials, containers and plastic products. Thanks to the upgraded head, labels can also be applied to curved, cylindrical and complex-shaped surfaces. By making custom fixtures, the machine can also be adapted to non-standard items. Labels can be applied to two sides at the same time.
General
- Country of manufacture
- China
- Voltage
- 220 V 50 Hz
- Labeling accuracy
- ±0.5 mm
- Labeling speed
- 15-30 pcs/min
- Applicable product (container) dimensions
- Length (L): 20 mm〜250 mm Width (W): 20 mm〜150 mm Height (H): 0.2 mm〜250 mm
- Label dimensions
- Length: 15 mm〜200 mm Width (height of the backing paper release section): 20 mm〜170 mm
- Label roll dimensions
- Inner diameter: 76 mm Outer diameter: ≤260 mm
- Machine dimensions
- 1350 mm × 1180 mm × 1350 mm
- Machine weight
- 315 kg

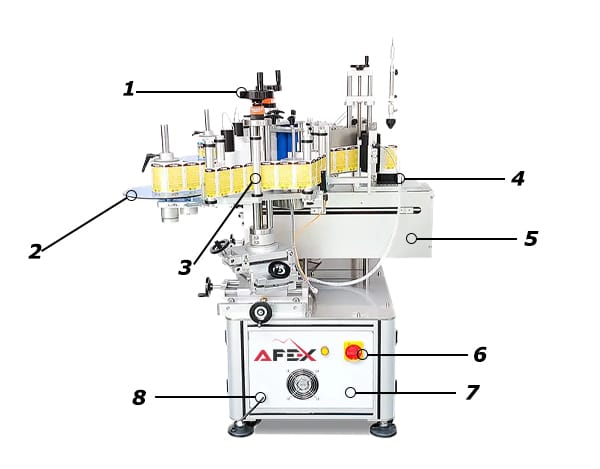

Main Components
- Adjustment wheel
- Label tray
- Label feed roller
- Product holding unit
- Guide rail
- Main power switch
- Electrical cabinet
- Power cable
