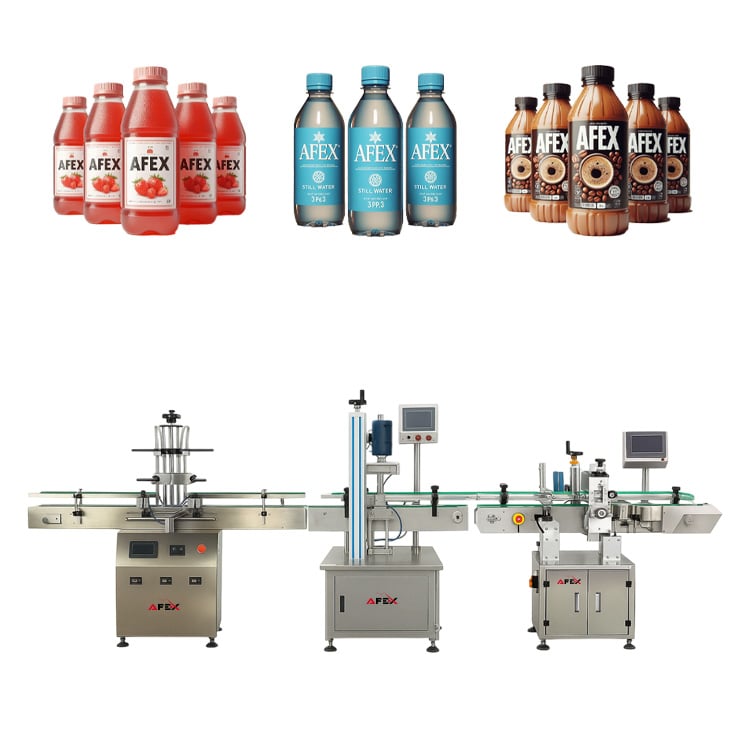

1 / 5Filling and Packaging Line for Water and Other Liquid Products
0.5 kW · 0.3 kW · 220 V
Individual offer
- Power
- 0.5 kW
- Conveyor power
- 0.3 kW
- Voltage
- 220 V
- Speed
- 20-50 pcs/min
- Machine dimensions
- 1700×850×1400 mm
- Machine weight
- 90 kg
Price
Overview
About the equipment
Equipment included in the line
- 4-head computerized liquid filling machine
- PLC-controlled capping machine
- Container labeling machine
Operating procedure
In the first stage, containers pass through the 4-head computerized liquid filling machine to be filled. The filled containers move along the conveyor to the PLC-controlled capping machine, where the caps are closed. Labels are then applied to the finished containers by the labeling machine.01

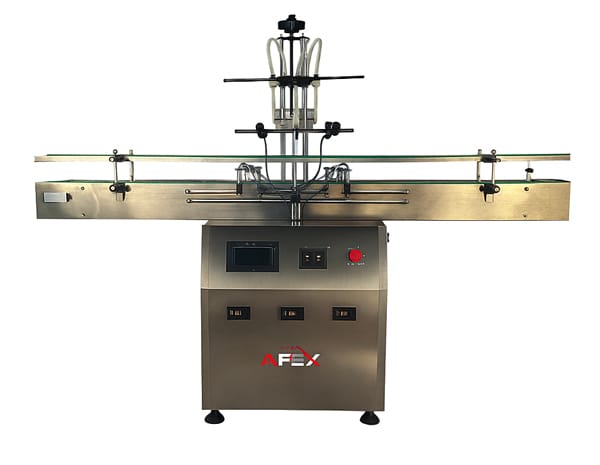

9 parameters4-head computerized liquid filling machine
- Voltage
- 220 V
- Power
- 0.5 kW
- Conveyor power
- 0.3 kW
- Filling range
- 20-2000 ml
- Number of filling heads (nozzles)
- 4
- Speed
- 20-50 pcs/min
- Control type
- Touchscreen
- Machine dimensions
- 1700×850×1400 mm
- Machine weight
- 90 kg
02

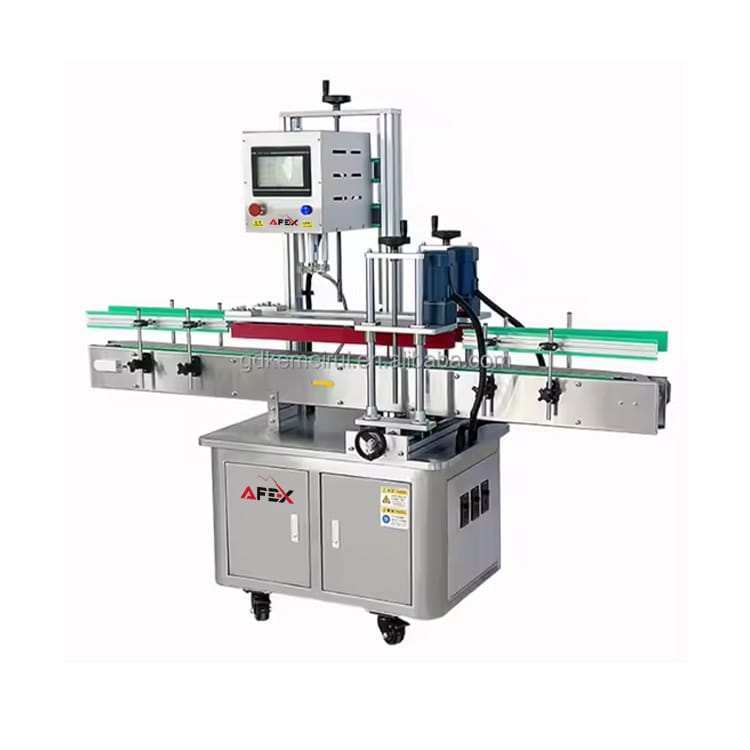

13 parametersPLC-controlled capping machine
- Operating voltage
- 220 V
- Operation mode
- Automatic
- Material
- SS304 stainless steel
- PLC
- Yes
- Sensor
- Yes
- Pneumatic components
- Yes
- Working pressure
- 0.3–0.6 MPa
- Capping head lifting
- Servo
- Capping speed
- 20–150 pcs/min (adjustable)
- Cap diameter range
- 15–95 mm
- Container height range
- 40–300 mm
- Machine dimensions
- 2000 × 730 × 1300 mm
- Weight
- Approx. 200 kg
03

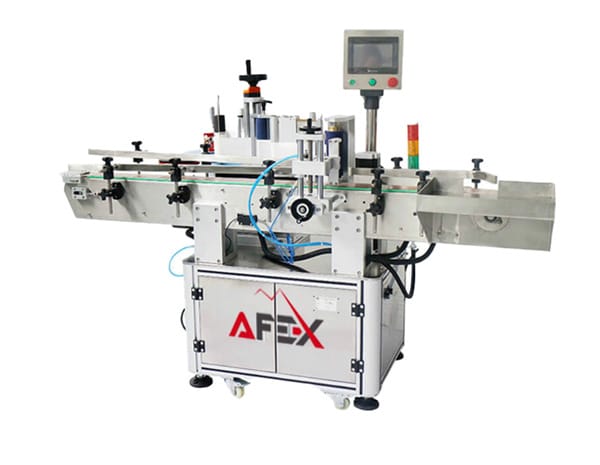

8 parametersContainer labeling machine
- Labeling area
- L <300 mm, H <120 mm
- Made in
- Shanghai, China
- Production capacity
- 1800 pcs (500 ml)
- Operating speed
- 30 bottles/min
- Labeling accuracy
- ± 1.5 mm
- Dimensions
- L1900 × W800 × H1450 mm
- Voltage & power consumption
- 220 V & 420 W
- Weight
- 250 kg
Examples of finished products
AFEX · CONSULTATION
Operators onlineQuick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentFilling and Packaging Line for Water and Other Liquid ProductsYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
4-head computerized liquid filling machine
9 parameters- Voltage
- 220 V
- Power
- 0.5 kW
- Conveyor power
- 0.3 kW
- Filling range
- 20-2000 ml
- Number of filling heads (nozzles)
- 4
- Speed
- 20-50 pcs/min
- Control type
- Touchscreen
- Machine dimensions
- 1700×850×1400 mm
- Machine weight
- 90 kg
PLC-controlled capping machine
13 parameters- Operating voltage
- 220 V
- Operation mode
- Automatic
- Material
- SS304 stainless steel
- PLC
- Yes
- Sensor
- Yes
- Pneumatic components
- Yes
- Working pressure
- 0.3–0.6 MPa
- Capping head lifting
- Servo
- Capping speed
- 20–150 pcs/min (adjustable)
- Cap diameter range
- 15–95 mm
- Container height range
- 40–300 mm
- Machine dimensions
- 2000 × 730 × 1300 mm
- Weight
- Approx. 200 kg
Container labeling machine
8 parameters- Labeling area
- L <300 mm, H <120 mm
- Made in
- Shanghai, China
- Production capacity
- 1800 pcs (500 ml)
- Operating speed
- 30 bottles/min
- Labeling accuracy
- ± 1.5 mm
- Dimensions
- L1900 × W800 × H1450 mm
- Voltage & power consumption
- 220 V & 420 W
- Weight
- 250 kg
Included units
Units and accessories included with the equipment. Specifications for each are in the section above.
- 01
- 02
PLC-controlled capping machine
13 parameters
- Operating voltage: 220 V
- Material: SS304 stainless steel
- 03
Container labeling machine
8 parameters
- Labeling area: L <300 mm
- Production capacity: 1800 pcs
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
Frequently asked questions
The most common questions about delivery, contracts and tracking.
Is it possible to track my orders online?
You can track orders online. Uzbekistan was one of the first to develop a mechanism for monitoring cargo, determining their location, and estimating the time of arrival using the GPS system. You can get this information only by entering the contract number.
How long will the shipments be delivered?
Delivery time depends on the manufacturer in most cases. Most large-scale production equipment takes 2-3 times longer to deliver than normal equipment. In the case of ready-made equipment, the delivery period starts from 30 days. Excluding the time required for customs clearance of equipment in the territory of Uzbekistan, certification processes.
What are the shipping methods available?
According to the type of goods from abroad and the period when the order was received, the goods are delivered to the territory of Uzbekistan on the following basis:
By air
By rail
By land transport
By mixed transport
What is required of me to conclude a contract?
To become a client of our company, you must:
CERTIFICATE certifying the business entity;
Bank details;
STIR number;
Copy of the manager's passport;
Enterprise seal to confirm the contract
