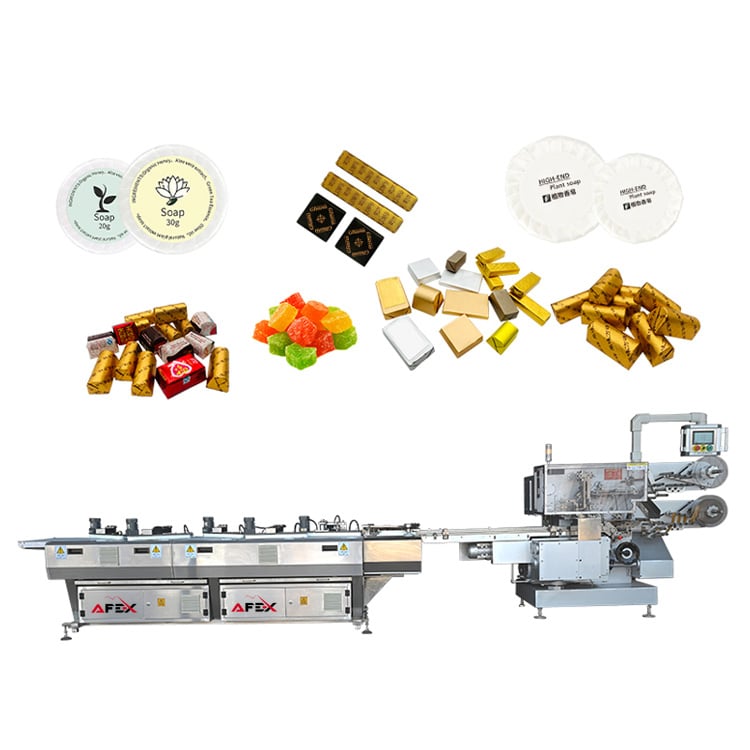

1 / 3Automatic Chocolate and Candy Packaging Machine
The machine is designed for automatic sorting, feeding and packaging of square or trapezoid-shaped chocolates and candies, as well as tea…
- Production capacity
- 280 pcs/min
- Motor power
- 10.2 kW
- Power supply
- 5 kW
- Air supply requirements
- Air pressure 0.6 MPa
- Roll diameter
- 73–75 mm
- Chocolate size
- Diameter — made to order
Overview
Key features
- Production capacity
280 pcs/min (actual speed depends on product size)
- Chocolate size
Diameter — made to order
- Air supply requirements
Air pressure 0.6 MPa; air volume 0.6 m³/min
- Packaging material
Composite paper, adhesive paper, aluminized film
About the equipment
The machine is designed for automatic sorting, feeding and packaging of square or trapezoid-shaped chocolates and candies, as well as tea products. Products can be packed in different ways with this machine: fold wrapping or envelope-style wrapping. It also supports various sealing methods — glue-dispensing sealing or heat sealing. The equipment includes a modern packaging machine and a feeding conveyor. As a result, the production process becomes more efficient, faster and more reliable.
Main equipment parameters
- Production capacity
- 280 pcs/min (actual speed depends on product size)
- Chocolate size
- Diameter — made to order
- Motor power
- 10.2 kW
- Power supply
- 5 kW / 380 V / 3-phase
- Air supply requirements
- Air pressure 0.6 MPa; air volume 0.6 m³/min
- Packaging material
- Composite paper, adhesive paper, aluminized film
- Roll thickness
- Determined by paper type
- Roll diameter
- Inner — 73–75 mm, outer — up to 310 mm
Main electrical components
- Programmable controller
- Panasonic
- Touchscreen
- Panasonic
- Servo system
- Panasonic
- Main frequency inverter
- Panasonic
- Feed frequency inverter
- Panasonic
- Color mark sensor
- Panasonic
- Encoder
- Omron
- Proximity sensor
- Panasonic
- Main motor
- Chinese brand
Machine components
- Frame and cast parts
- HT200
- CAM
- 38CrMoAl, 20CrMnTi
- Shaft
- Steel
- Shaft sleeve (bushing)
- Tin bronze
- Candy-contact parts
- Stainless steel, food-grade polypropylene
- Gear
- Alloy steel
- Bearings
- Harbin, SKF, IKO, Silver
- Conveyor belts
- Food-grade PU
- Solenoid valve
- 4V210-08, China
- Filter
- AFR2000, China

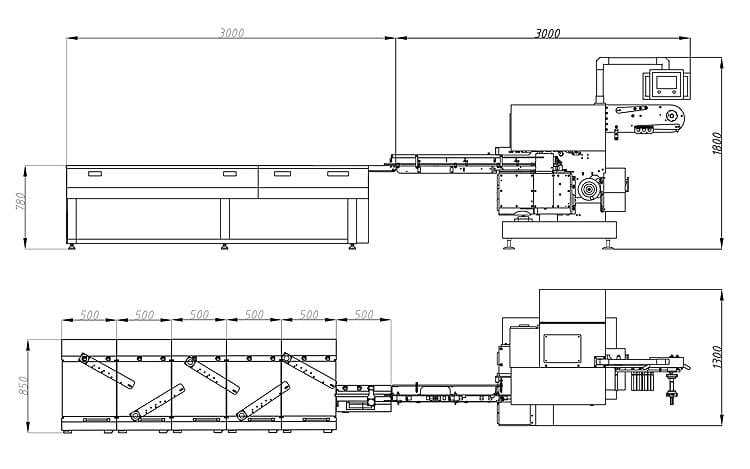

Equipment drawing
Finished products
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentAutomatic Chocolate and Candy Packaging MachineYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
Main equipment parameters
8 parameters- Production capacity
- 280 pcs/min (actual speed depends on product size)
- Chocolate size
- Diameter — made to order
- Motor power
- 10.2 kW
- Power supply
- 5 kW / 380 V / 3-phase
- Air supply requirements
- Air pressure 0.6 MPa; air volume 0.6 m³/min
- Packaging material
- Composite paper, adhesive paper, aluminized film
- Roll thickness
- Determined by paper type
- Roll diameter
- Inner — 73–75 mm, outer — up to 310 mm
Main electrical components
9 parameters- Programmable controller
- Panasonic
- Touchscreen
- Panasonic
- Servo system
- Panasonic
- Main frequency inverter
- Panasonic
- Feed frequency inverter
- Panasonic
- Color mark sensor
- Panasonic
- Encoder
- Omron
- Proximity sensor
- Panasonic
- Main motor
- Chinese brand
Machine components
10 parameters- Frame and cast parts
- HT200
- CAM
- 38CrMoAl, 20CrMnTi
- Shaft
- Steel
- Shaft sleeve (bushing)
- Tin bronze
- Candy-contact parts
- Stainless steel, food-grade polypropylene
- Gear
- Alloy steel
- Bearings
- Harbin, SKF, IKO, Silver
- Conveyor belts
- Food-grade PU
- Solenoid valve
- 4V210-08, China
- Filter
- AFR2000, China
Included units
Units and accessories included with the equipment. Specifications for each are in the section above.
- 01
Main equipment parameters
8 parameters
- Production capacity: 280 pcs/min
- Motor power: 10.2 kW
- 02
- 03
Video
The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
