1 / 5Automatic Pharmaceutical Suppository Production Line
The RTY-G300 is a modern production line designed for the automatic manufacture of suppositories in the pharmaceutical industry.
- Production capacity
- 1000–1800 pcs/h
- Total power
- 7.5 kW
- Model
- RTY-G300
- Power supply
- 3-phase AC
- Machine dimensions
- 2500 × 2500 × 1800 mm
- Weight
- 950 kg
Overview
Key advantages
- Automates all stages of suppository production
- PLC and servo control system ensures high precision
- Produces 1000–1800 units per hour
- Filling accuracy within ±2%
- Ability to produce suppositories of various shapes
- Works with PVC/PE packaging film
About the equipment
The RTY-G300 is a modern production line designed for the automatic manufacture of suppositories in the pharmaceutical industry. The line fully automatically performs cavity forming from PVC/PE film, precise dosed filling of the medicinal mass, cooling, hermetic sealing, batch code printing and cutting of the finished product. The PLC control system, servo drives and touch screen control panel ensure high production accuracy and stability. The ability to produce suppositories of various shapes (bullet, torpedo, duck-bill, etc.) makes this line a versatile solution for pharmaceutical manufacturers

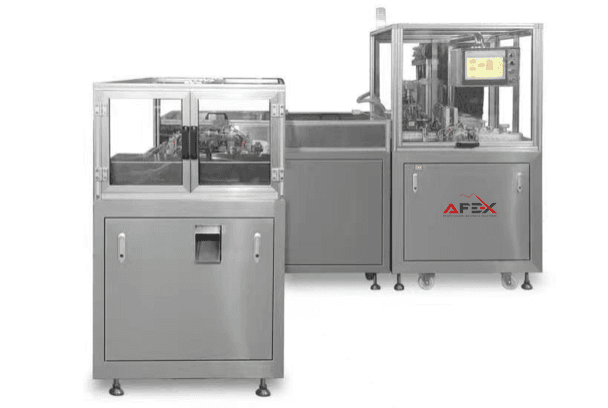

Automatic Suppository Production Machine
- Model
- RTY-G300
- Equipment type
- Automatic suppository production line
- Production capacity
- 1000–1800 pcs/h
- Unit volume
- 0.5–5 ml
- Dosing accuracy
- ±2%
- Hopper volume
- 20 L
- Working pressure
- 0.6 MPa
- Air consumption
- 0.6 m³/min
- Water consumption
- 20 kg/h (recirculating)
- Total power
- 7.5 kW
- Power supply
- 3-phase AC
- Packaging material
- PVC/PE film
- Compatible product shapes
- Bullet, torpedo, duck-bill, etc.
- Machine dimensions
- 2500 × 2500 × 1800 mm
- Weight
- 950 kg

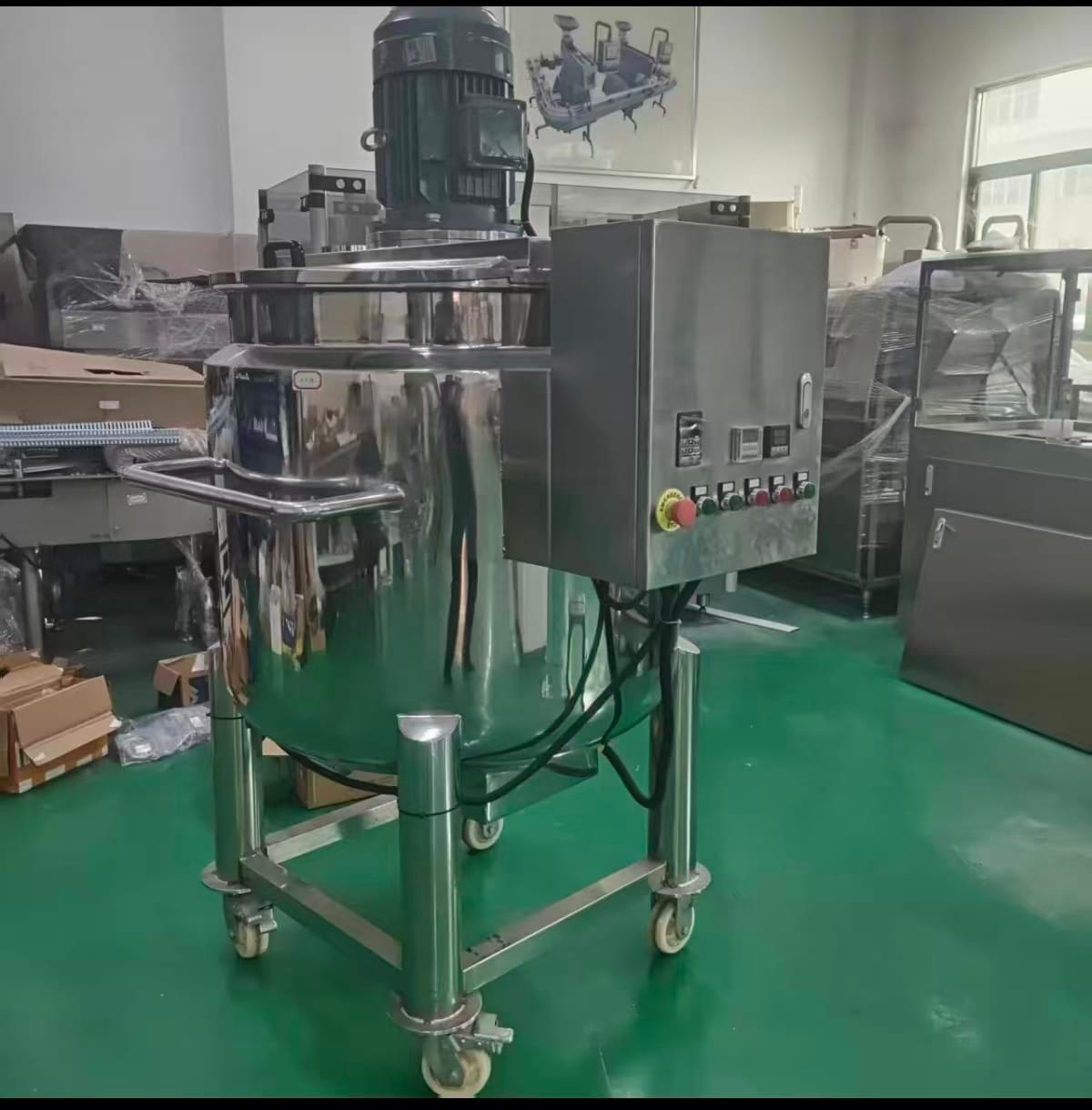

150 L Medicinal Emulsion Preparation and Mixing Tank
- Capacity
- 150 L
- Material (product-contact parts)
- 316L stainless steel
- Outer cladding
- 304 stainless steel
- Mixing type
- Homogenizer and emulsifier
- Mixing speed
- 2860 rpm
- Mixing power
- 3 kW
- Heating type
- Electric heating (PID control)
- Heating power
- 4 kW
- Total power
- 7.2 kW
- Power supply
- 380 V, 50 Hz
- Dimensions
- 1500 × 800 × 1850 mm

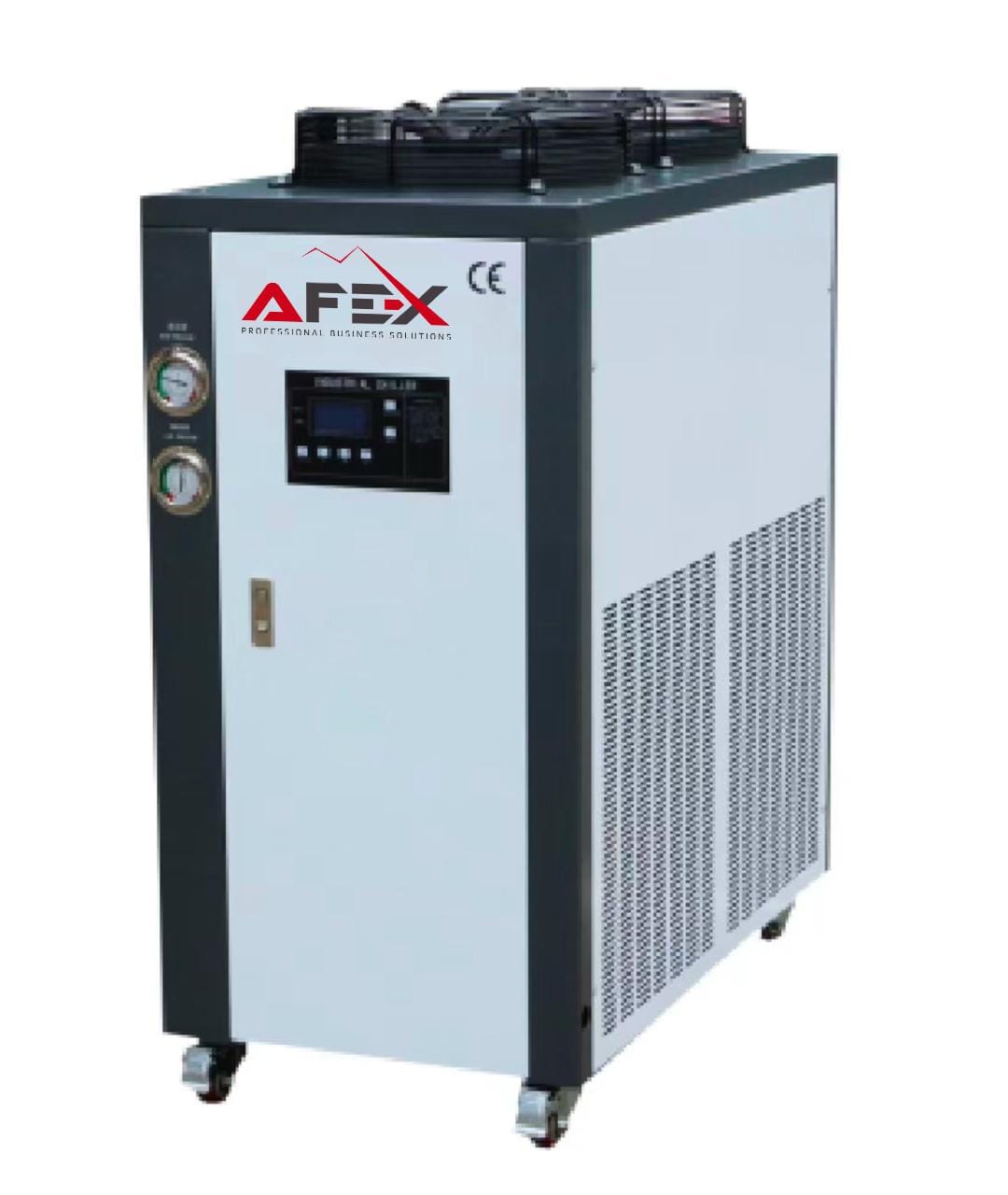

Cooling Chiller
- Equipment type
- Industrial cooling unit (chiller)
- Function
- Cooling of the suppository production line
- Cooling type
- Water cooling
- Application
- For the cooling tunnel
- Quantity included
- 1 pc

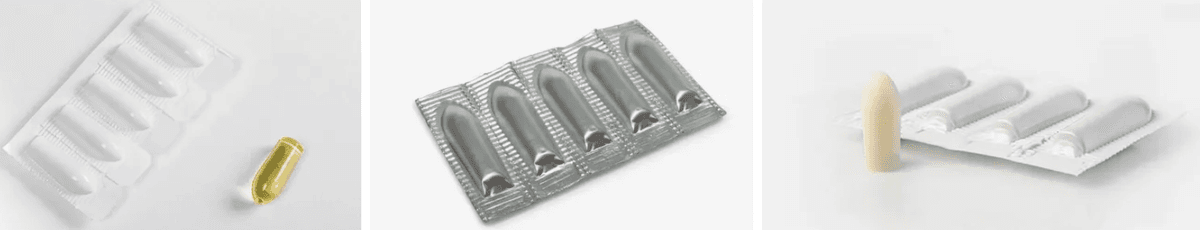

Finished Product
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentAutomatic Pharmaceutical Suppository Production LineYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
Automatic Suppository Production Machine
15 parameters- Model
- RTY-G300
- Equipment type
- Automatic suppository production line
- Production capacity
- 1000–1800 pcs/h
- Unit volume
- 0.5–5 ml
- Dosing accuracy
- ±2%
- Hopper volume
- 20 L
- Working pressure
- 0.6 MPa
- Air consumption
- 0.6 m³/min
- Water consumption
- 20 kg/h (recirculating)
- Total power
- 7.5 kW
- Power supply
- 3-phase AC
- Packaging material
- PVC/PE film
- Compatible product shapes
- Bullet, torpedo, duck-bill, etc.
- Machine dimensions
- 2500 × 2500 × 1800 mm
- Weight
- 950 kg
150 L Medicinal Emulsion Preparation and Mixing Tank
11 parameters- Capacity
- 150 L
- Material (product-contact parts)
- 316L stainless steel
- Outer cladding
- 304 stainless steel
- Mixing type
- Homogenizer and emulsifier
- Mixing speed
- 2860 rpm
- Mixing power
- 3 kW
- Heating type
- Electric heating (PID control)
- Heating power
- 4 kW
- Total power
- 7.2 kW
- Power supply
- 380 V, 50 Hz
- Dimensions
- 1500 × 800 × 1850 mm
Cooling Chiller
5 parameters- Equipment type
- Industrial cooling unit (chiller)
- Function
- Cooling of the suppository production line
- Cooling type
- Water cooling
- Application
- For the cooling tunnel
- Quantity included
- 1 pc
Included units
Units and accessories included with the equipment. Specifications for each are in the section above.
- 01
Automatic Suppository Production Machine
15 parameters
- Model: RTY-G300
- Production capacity: 1000–1800 pcs/h
- 02
150 L Medicinal Emulsion Preparation and Mixing Tank
11 parameters
- Capacity: 150 L
- Material (product-contact parts): 316L stainless steel
- 03
Video
The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
