1 / 2Pneumatic Perfume Bottle Capping Machine
The pneumatic perfume bottle capping machine is a compressed-air device used to quickly and securely fit metal or plastic caps onto perfume…
- Operating speed
- 10-20 pcs/min
- Machine dimensions
- 290x240x600 mm
- Net weight
- 13 kg
- Air pressure
- 0.4-0.6 MPa
- Crimping force
- 4-8 kg/cm
- Crimping head diameter
- 13mm
Overview
Key features
- Crimping head diameter
13mm, 15mm, 17mm, 20mm, 22mm optional (adjustable)
- Operating speed
Approx. 10-20 pcs/min (depending on operator speed)
About the equipment

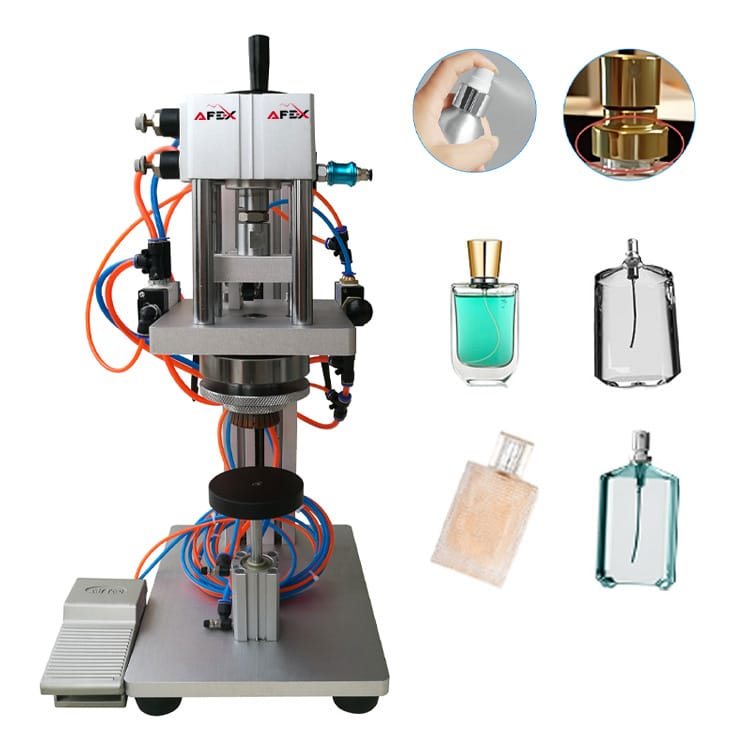

The pneumatic perfume bottle capping machine is a compressed-air device used to quickly and securely fit metal or plastic caps onto perfume bottles. Using air pressure, the machine evenly crimps the cap onto the bottle neck, ensuring a hermetic seal. It is mainly used in perfumery, cosmetics and small production lines.
General
- Manufacturer
- China
- Material
- Aluminum alloy
- Type
- Pneumatic
- Air pressure
- 0.4-0.6 MPa
- Crimping force
- 4-8 kg/cm
- Crimping head diameter
- 13mm, 15mm, 17mm, 20mm, 22mm optional (adjustable)
- Applicable bottle height
- 60-200mm, adjustable
- Operating speed
- Approx. 10-20 pcs/min (depending on operator speed)
- Machine dimensions
- 290x240x600 mm
- Net weight
- 13 kg
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentPneumatic Perfume Bottle Capping MachineYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
10 parameters- Manufacturer
- China
- Material
- Aluminum alloy
- Type
- Pneumatic
- Air pressure
- 0.4-0.6 MPa
- Crimping force
- 4-8 kg/cm
- Crimping head diameter
- 13mm, 15mm, 17mm, 20mm, 22mm optional (adjustable)
- Applicable bottle height
- 60-200mm, adjustable
- Operating speed
- Approx. 10-20 pcs/min (depending on operator speed)
- Machine dimensions
- 290x240x600 mm
- Net weight
- 13 kg
Included units
Units and accessories included with the equipment. Specifications for each are in the section above.
Machine Components
7 items
- 1Height adjustment handle
- 2Air inlet port
- 3Crimping force adjustment unit
- 4Emergency stop button
- 5Capping unit
- 6Bottle holder
- 7Foot pedal
