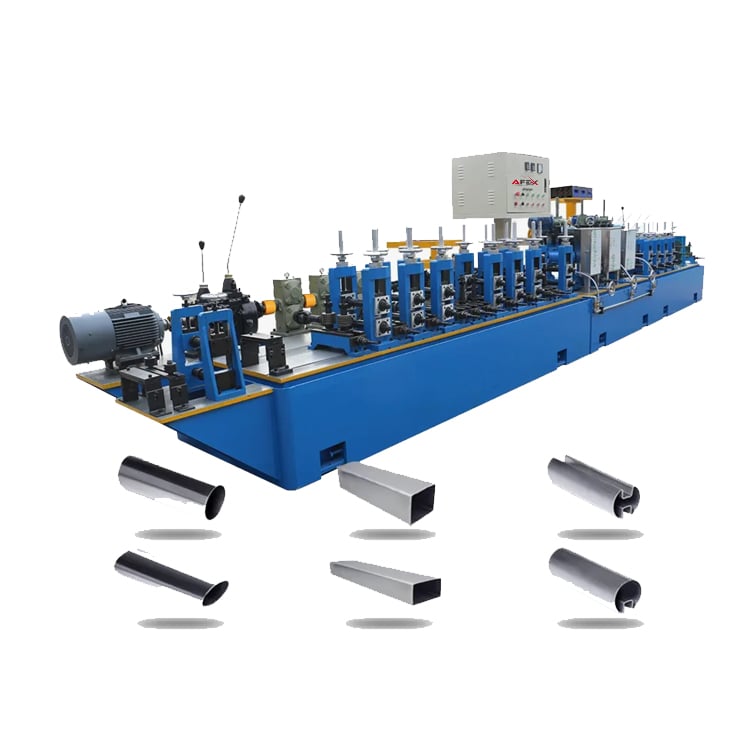

1 / 6Sheet Metal Pipe Production Line
The D-FR40 stainless steel tube production line is high-precision, stable and energy-efficient industrial equipment designed to produce…
Individual offer
- Model
- D-FR40
- Production speed
- 10 m/min
- Pipe length
- 6 m
- Installation dimensions (L×W×H)
- 21.5 m × 1.1 m × 1.4 m
- Power
- 6000 W
- Outer diameter
- Ø63.5 mm
Price
Overview
Key features
- Cooling system
Yes, for the grinding and straightening sections
- Additional units
Uncoiler, forming, welding, grinding, sizing, cutting, run-out table, control system
About the equipment
The D-FR40 stainless steel tube production line is high-precision, stable and energy-efficient industrial equipment designed to produce tubes from Ø12.7 mm to Ø63.5 mm in diameter. The line is fully automated and includes stages such as welding with internal argon shielding, grinding and sizing.
0.2–2.0 mm wall thickness
0–10 m/min production speed
Abrasive cutting technology
Siemens motors and reliable Chinese components
Full cooling system and 1-person operation
0–10 m/min production speed
Abrasive cutting technology
Siemens motors and reliable Chinese components
Full cooling system and 1-person operation
01

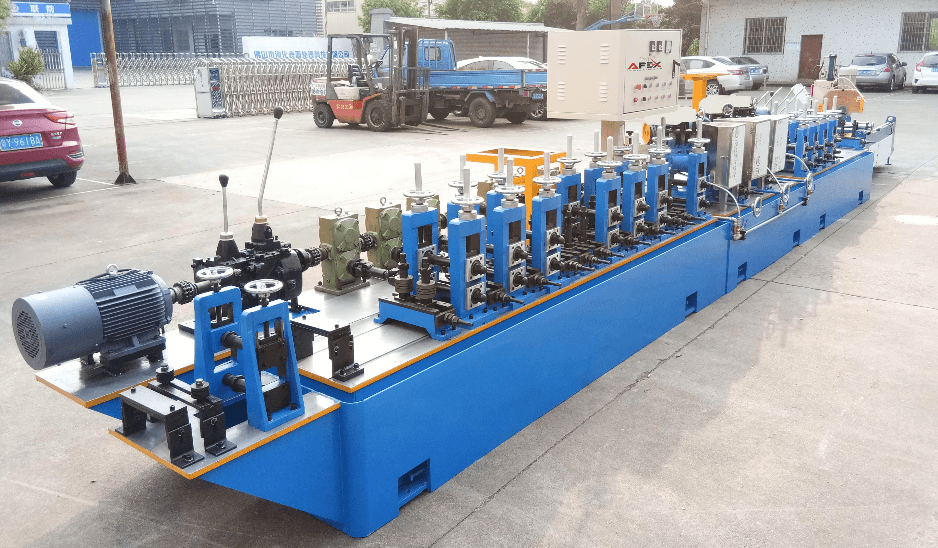

11 parametersGeneral
- Model
- D-FR40
- Outer diameter
- Ø12.7 – Ø63.5 mm
- Wall thickness
- 0.2 – 2.0 mm
- Pipe length
- 3 – 6 m
- Production speed
- 0 – 10 m/min
- Cutting machine
- Abrasive cutting machine
- Cooling system
- Yes, for the grinding and straightening sections
- Power source
- Electricity and argon gas
- Number of operators
- 1 person operates 2 lines
- Installation dimensions (L×W×H)
- 21.5 m × 1.1 m × 1.4 m
- Additional units
- Uncoiler, forming, welding, grinding, sizing, cutting, run-out table, control system
Additional Equipment Included in the Line
02

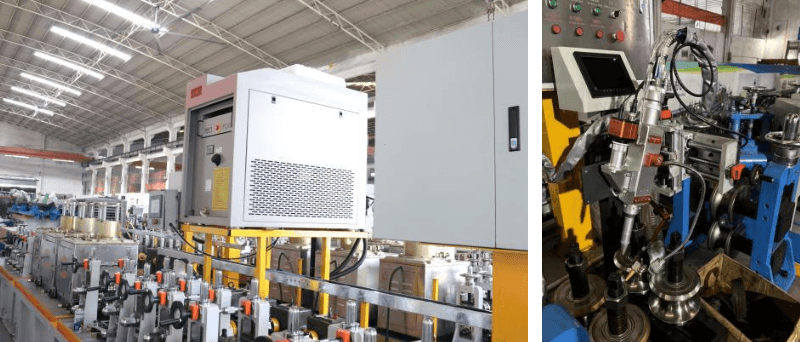

6 parametersLaser Welding Unit
- Device type
- Laser welder
- Power
- 6000 W (6 kW)
- Voltage
- 380 V / 50 Hz / 3-phase
- Operating mode
- Continuous
- Application
- High-precision joining of metals
- Recommended materials
- Stainless steel, aluminum, galvanized iron, carbon steel
03

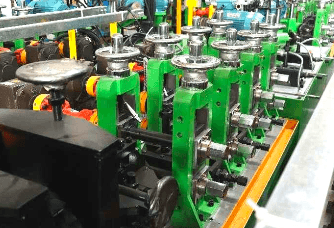

6 parametersHorizontal Forming Stands
- Type
- Horizontal stands (working stands)
- Material
- Die casting
- Internal design
- Needle bearings
- Advantages
- Quick roll change, high-precision operation
- Versatility
- Suitable for rolls of various sizes
- Recommended for
- Pipe, profile and sheet metal production lines
04

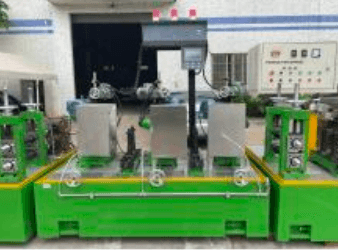

7 parametersAutomatic Grinding Section
- Number of units
- 3 pcs
- Type
- Automatic grinding module
- Grinding wheel
- Flap wheel (soft abrasive)
- Movement
- The wheel moves up/down automatically
- Control
- Fully automated, minimal operator involvement
- Advantages
- Easy to maintain consistent grinding quality
- Recommended for
- Smoothing pipe surfaces and improving their appearance
05

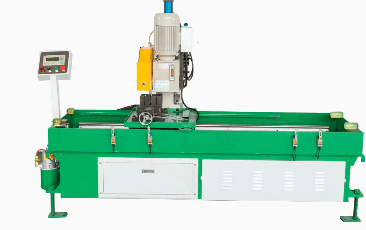

6 parametersMetal Cutting Unit
- Device type
- Hydraulic metal cutting machine
- Cutting method
- Rotary metal saw blade
- Control
- Hydraulic, stable and precise cutting
- Cut quality
- Smooth, burr-free pipe ends
- Application
- Tubes, profiles, square and round section metal pipes
- Advantages
- Precision, stability, clean finish
AFEX · CONSULTATION
Operators onlineQuick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentSheet Metal Pipe Production LineYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
11 parameters- Model
- D-FR40
- Outer diameter
- Ø12.7 – Ø63.5 mm
- Wall thickness
- 0.2 – 2.0 mm
- Pipe length
- 3 – 6 m
- Production speed
- 0 – 10 m/min
- Cutting machine
- Abrasive cutting machine
- Cooling system
- Yes, for the grinding and straightening sections
- Power source
- Electricity and argon gas
- Number of operators
- 1 person operates 2 lines
- Installation dimensions (L×W×H)
- 21.5 m × 1.1 m × 1.4 m
- Additional units
- Uncoiler, forming, welding, grinding, sizing, cutting, run-out table, control system
Laser Welding Unit
6 parameters- Device type
- Laser welder
- Power
- 6000 W (6 kW)
- Voltage
- 380 V / 50 Hz / 3-phase
- Operating mode
- Continuous
- Application
- High-precision joining of metals
- Recommended materials
- Stainless steel, aluminum, galvanized iron, carbon steel
Horizontal Forming Stands
6 parameters- Type
- Horizontal stands (working stands)
- Material
- Die casting
- Internal design
- Needle bearings
- Advantages
- Quick roll change, high-precision operation
- Versatility
- Suitable for rolls of various sizes
- Recommended for
- Pipe, profile and sheet metal production lines
Automatic Grinding Section
7 parameters- Number of units
- 3 pcs
- Type
- Automatic grinding module
- Grinding wheel
- Flap wheel (soft abrasive)
- Movement
- The wheel moves up/down automatically
- Control
- Fully automated, minimal operator involvement
- Advantages
- Easy to maintain consistent grinding quality
- Recommended for
- Smoothing pipe surfaces and improving their appearance
Metal Cutting Unit
6 parameters- Device type
- Hydraulic metal cutting machine
- Cutting method
- Rotary metal saw blade
- Control
- Hydraulic, stable and precise cutting
- Cut quality
- Smooth, burr-free pipe ends
- Application
- Tubes, profiles, square and round section metal pipes
- Advantages
- Precision, stability, clean finish
Included units
Units and accessories included with the equipment. Specifications for each are in the section above.
- 01
- 02
- 03
- 04
Video
The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
Frequently asked questions
The most common questions about delivery, contracts and tracking.
Is it possible to track my orders online?
You can track orders online. Uzbekistan was one of the first to develop a mechanism for monitoring cargo, determining their location, and estimating the time of arrival using the GPS system. You can get this information only by entering the contract number.
How long will the shipments be delivered?
Delivery time depends on the manufacturer in most cases. Most large-scale production equipment takes 2-3 times longer to deliver than normal equipment. In the case of ready-made equipment, the delivery period starts from 30 days. Excluding the time required for customs clearance of equipment in the territory of Uzbekistan, certification processes.
What are the shipping methods available?
According to the type of goods from abroad and the period when the order was received, the goods are delivered to the territory of Uzbekistan on the following basis:
By air
By rail
By land transport
By mixed transport
What is required of me to conclude a contract?
To become a client of our company, you must:
CERTIFICATE certifying the business entity;
Bank details;
STIR number;
Copy of the manager's passport;
Enterprise seal to confirm the contract
