1 / 8Semi-automatic potato chips production line
Equipment in the line: Washing and cleaning equipment Cutting equipment Bleaching equipment Dewatering equipment Frying…
Individual offer
- Power consumption
- 1.5 kv
- Shaft length
- 800 mm
- Strengthening
- 380V 50Hz
- Equipment size
- 1100x850x900 mm
- Speed
- 300-400 kg/h
- Speed of operation
- 0-12m /min
Price
Overview
About the equipment
Equipment in the line: Washing and cleaning equipment Cutting equipment Bleaching equipment Dewatering equipment Frying equipment Degreasing equipment Additional flavoring equipment Dispenser Air packaging equipment
With the help of the equipment, potatoes for chips are peeled and washed.
01
6 parametersWashing and cleaning equipment
- Manufacturer
- China
- Strengthening
- 380V 50Hz
- Power consumption
- 1.5 kv
- Shaft length
- 800 mm
- Equipment size
- 1100x850x900 mm
- Material
- SUS304
In this equipment, peeled potatoes are cut into special chips. Basically, potatoes are cut 2-3 mm thick.
02
5 parametersCutting equipment
- Manufacturer
- China
- Strengthening
- 380V 50Hz
- Power consumption
- 1.1 kv
- Speed
- 300-400 kg/h
- Equipment size
- 750x460x970 mm
With the help of this equipment, the activity of substances contained in karoshka is reduced. Handling prevents potatoes from browning when cut.
03

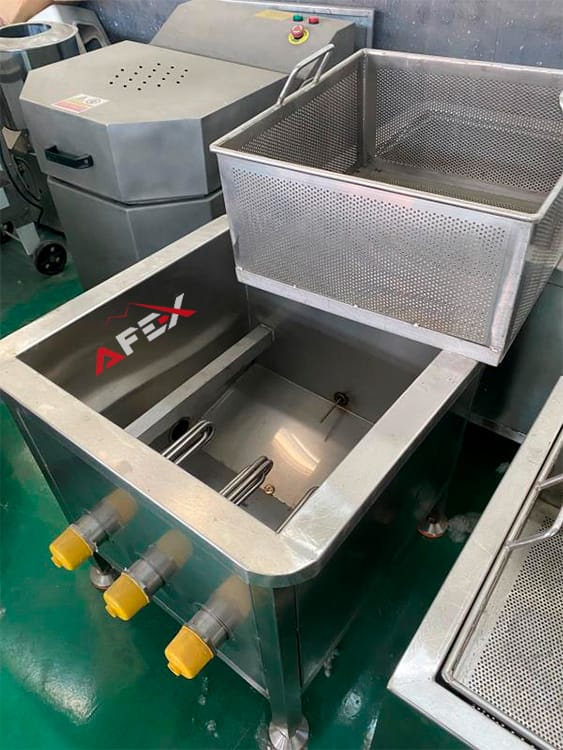

6 parametersPotato processing equipment using water
- Manufacturer
- China
- Strengthening
- 380V 50Hz
- Power consumption
- 12 kv
- Frame size
- 40x40x40 mm
- Uskuna o’lchami
- 900x600x650 mm
- Material
- SUS304
Before frying the chips, the water contained in them is extracted. This prevents the chips from changing shape during frying.
04
5 parametersDewatering equipment
- Manufacturer
- China
- Strengthening
- 380V 50Hz
- Power consumption
- 1.5 kv
- Equipment size
- 1100x650x955 mm
- Material
- SUS304
Frying equipment
Chips are fried in the equipment. There is a temperature control function.
05
6 parametersUnit 5
- Manufacturer
- China
- Strengthening
- 380V 50Hz
- Power consumption
- 36 kv
- Frame size
- 50x50x50 mm
- Equipment size
- 900x600x650 mm
- Material
- SUS304
The equipment removes excess fat from the surface of the fried chips.
06
5 parametersDegreasing equipment
- Manufacturer
- China
- Strengthening
- 380V 50Hz
- Power consumption
- 1.5 kv
- Frame size
- 1100x650x955 mm
- Material
- SUS304
Chips are given different flavors with the help of the equipment.
07
5 parametersAdditional flavoring equipment
- Manufacturer
- China
- Strengthening
- 220V 50Hz
- Power consumption
- 1 kv
- Speed
- 35 RPM
- Equipment size
- 600x1200x1460 mm
This equipment is needed to measure finished products at the required weight.
08
9 parametersDispenser 1 kg
- Manufacturer
- China
- Size
- 40*30*96 sm
- Strengthening
- 220V
- Level of automation
- Semi-automatic
- Measurement quantity
- 30-999 gr gacha
- Material
- Stainless metal
- Speed
- 10-20 pieces/min
- Accuracy level
- 0-0.3 gr
- Weight
- 45 kg
This equipment packs the chips using air. Air packaging is necessary to keep the chips intact inside the package.
09
7 parametersAir packaging equipment
- Manufacturer
- China
- Speed of operation
- 0-12m /min
- Strengthening
- 220V/50HZ/ 0.7KW
- Melting temperature
- 0-300℃
- Material
- 304 Stainless metal
- Size
- 900*480*380 мм
- Weight
- 35kg
AFEX · CONSULTATION
Operators onlineQuick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentSemi-automatic potato chips production lineYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
Washing and cleaning equipment
6 parameters- Manufacturer
- China
- Strengthening
- 380V 50Hz
- Power consumption
- 1.5 kv
- Shaft length
- 800 mm
- Equipment size
- 1100x850x900 mm
- Material
- SUS304
Cutting equipment
5 parameters- Manufacturer
- China
- Strengthening
- 380V 50Hz
- Power consumption
- 1.1 kv
- Speed
- 300-400 kg/h
- Equipment size
- 750x460x970 mm
Potato processing equipment using water
6 parameters- Manufacturer
- China
- Strengthening
- 380V 50Hz
- Power consumption
- 12 kv
- Frame size
- 40x40x40 mm
- Uskuna o’lchami
- 900x600x650 mm
- Material
- SUS304
Dewatering equipment
5 parameters- Manufacturer
- China
- Strengthening
- 380V 50Hz
- Power consumption
- 1.5 kv
- Equipment size
- 1100x650x955 mm
- Material
- SUS304
Unit 5
6 parameters- Manufacturer
- China
- Strengthening
- 380V 50Hz
- Power consumption
- 36 kv
- Frame size
- 50x50x50 mm
- Equipment size
- 900x600x650 mm
- Material
- SUS304
Degreasing equipment
5 parameters- Manufacturer
- China
- Strengthening
- 380V 50Hz
- Power consumption
- 1.5 kv
- Frame size
- 1100x650x955 mm
- Material
- SUS304
Additional flavoring equipment
5 parameters- Manufacturer
- China
- Strengthening
- 220V 50Hz
- Power consumption
- 1 kv
- Speed
- 35 RPM
- Equipment size
- 600x1200x1460 mm
Dispenser 1 kg
9 parameters- Manufacturer
- China
- Size
- 40*30*96 sm
- Strengthening
- 220V
- Level of automation
- Semi-automatic
- Measurement quantity
- 30-999 gr gacha
- Material
- Stainless metal
- Speed
- 10-20 pieces/min
- Accuracy level
- 0-0.3 gr
- Weight
- 45 kg
Air packaging equipment
7 parameters- Manufacturer
- China
- Speed of operation
- 0-12m /min
- Strengthening
- 220V/50HZ/ 0.7KW
- Melting temperature
- 0-300℃
- Material
- 304 Stainless metal
- Size
- 900*480*380 мм
- Weight
- 35kg
Included units
Units and accessories included with the equipment. Specifications for each are in the section above.
- 01
Washing and cleaning equipment
6 parameters
- Strengthening: 380V 50Hz
- Power consumption: 1.5 kv
- 02
- 03
Potato processing equipment using water
6 parameters
- Strengthening: 380V 50Hz
- Power consumption: 12 kv
- 04
- 05
- 06
Additional flavoring equipment
5 parameters
- Strengthening: 220V 50Hz
- Power consumption: 1 kv
- 07
- 08
Air packaging equipment
7 parameters
- Speed of operation: 0-12m /min
- Strengthening: 220V/50HZ/ 0.7KW
Video
The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
Frequently asked questions
The most common questions about delivery, contracts and tracking.
Is it possible to track my orders online?
You can track orders online. Uzbekistan was one of the first to develop a mechanism for monitoring cargo, determining their location, and estimating the time of arrival using the GPS system. You can get this information only by entering the contract number.
How long will the shipments be delivered?
Delivery time depends on the manufacturer in most cases. Most large-scale production equipment takes 2-3 times longer to deliver than normal equipment. In the case of ready-made equipment, the delivery period starts from 30 days. Excluding the time required for customs clearance of equipment in the territory of Uzbekistan, certification processes.
What are the shipping methods available?
According to the type of goods from abroad and the period when the order was received, the goods are delivered to the territory of Uzbekistan on the following basis:
By air
By rail
By land transport
By mixed transport
What is required of me to conclude a contract?
To become a client of our company, you must:
CERTIFICATE certifying the business entity;
Bank details;
STIR number;
Copy of the manager's passport;
Enterprise seal to confirm the contract
