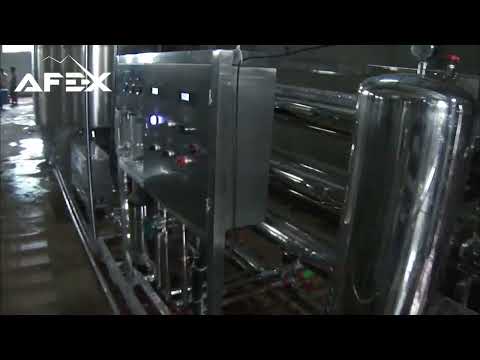

Reverse osmosis water filtration system (8000 L/h)

Availability:

Out of stock


The demand for clean water is increasing all over the world. Providing clean water to every resident remains one of the priority tasks of the government and businessmen. For this reason, we offer reverse osmosis filter system equipment for water purification to you, dear entrepreneurs, members of AFEX-GROUP.

$49,800

Out of stock

Operating system

General information

  1. Production capacity: 5000 L/h
  2. Type: two-stage
  3. Voltage: 380V 50Hz, 20 kw/h
  4. Maximum pressure: 600 psi
  5. Desalination rate: 87%
  6. Maximum working temperature: 45℃

Basic technical parameters

  • Filter: 5 micron PP filter
  • With SS304 housing cartridges.
  • Reverse osmosis system: 8040 membranes * 13
  • Membrane housing: FRP
  • Electronic control system: fully automatic
  • Pipes: UPVC
  • International certificates: ISO9001:2015, CE

Equipment list

Water treatment unit

1 Water tanker 3000L 1
2 Solenoid valve DN 40 1
3 Liquid level control part 2
4 Water pump Flexible CNP 1

Quartz sand filter

1 Filter 900*1900 mm 1
2 Automatic control shaft F77 1
3 Central tube DN40 1
4 Water dispenser Adaptable 1
5 Quartz sand 6-8 bags 1100 kg
6 Pressure measuring part SS304 0,7 Mp 1
7 Ball shaft DN 40 1
8 Pipes UPVC DN40 1 set

Active carbon filter

1 Filtr FRP 900*1900 mm
2 Automatic control shaft F77
3 Central tube DN40
4 Water dispenser Adaptable
5 Quartz sand 6-8 bag 400 kg
6 Pressure measuring part SS304 0,7 Mp
7 Ball shaft DN 40
8 Pipes UPVC DN40 1 set

Dosing system of chemical additives

1 Measuring pump AMS 200
2 Dosing tanker 100L
3 Filtering chemical additives 25 kg
4 Liquid level control part
5 Ball shaft DN15

Main filter

1 Filtr SS304 40“* 7
2 PP filter cartridges 20“5 цm
3 Pressure measuring part SS304 0,7 MPa
4 Load shaft ¼“

Reverse osmosis system (part one)

1 High pressure pump CNP 1
2 TO membrane housing 8040*2 FRP
3 TO membrane 8040
4 Solenoid shaft DN40
5 Solenoid shaft (concentrated) DN32
6 Shift shaft DN32
7 Flow meter (pure water) 8000 L
8 Flow meter (concentrated water) 8000 L
9 Electrical conductivity measuring part CM-230
10 Pipes UPVC DN40-DN25
11 Vacuum part DN15
12 High pressure control P30
13 Low pressure control P6
14 Liquid level control part 4 metr
15 Pressure measuring part 0,7 MP
16 Pressure measuring part 2,5 MP

Reverse osmosis system (part two)

1 High pressure pump CNP
2 TO membrane housing 8040*2 FRP
3 TO membrane 8040
4 Solenoid shaft DN40
5 Solenoid shaft (concentrated) DN32
6 Shift shaft DN32
7 Flow meter (pure water) 8000 L
8 Flow meter (concentrated water) 8000 L
9 Electrical conductivity measuring part CM-230
10 Quvurlar UPVC DN40-DN25
11 Vacuum part DN15
12 High pressure control P30
13 Low pressure control P6
14 Liquid level control part 4 metr
15 Pressure measuring part 0,7 MP
16 Pressure measuring part 2,5 MP

CIP system

1 Cleaning pump CNP
2 Determining filter 40“7
3 Body SS304
4 Fitting pipes DN40
5 Cleaning water tanker 500L

Electronic control system

1 Cabinet SS304 300*400*180
2 Electronic parts Adaptive
3 Liquid level control part Cabled 2 sets
