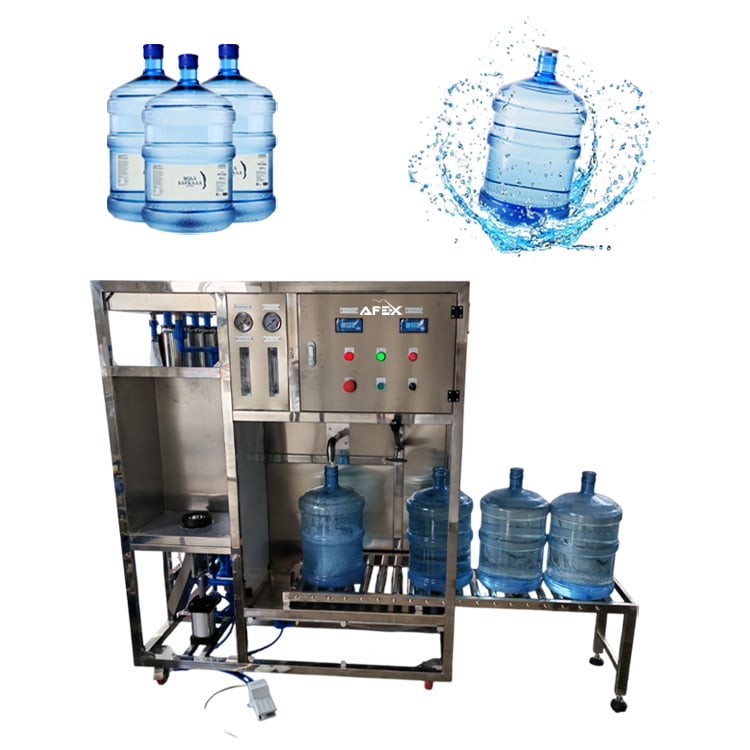

1 / 319L Water Filtration and Filling Machine
The 19-liter water filling machine is designed for preparing and purifying drinking water and filling it semi-automatically into 19-liter…
- Power
- 220 V
- Purified water output
- 500 liters per hour
- Filling speed
- 30 pcs/h
- Water storage tank capacity
- 200 liters
- Machine dimensions
- 1300×1000×1600 mm
- Ozone concentration
- 3 g/h
Overview
About the equipment

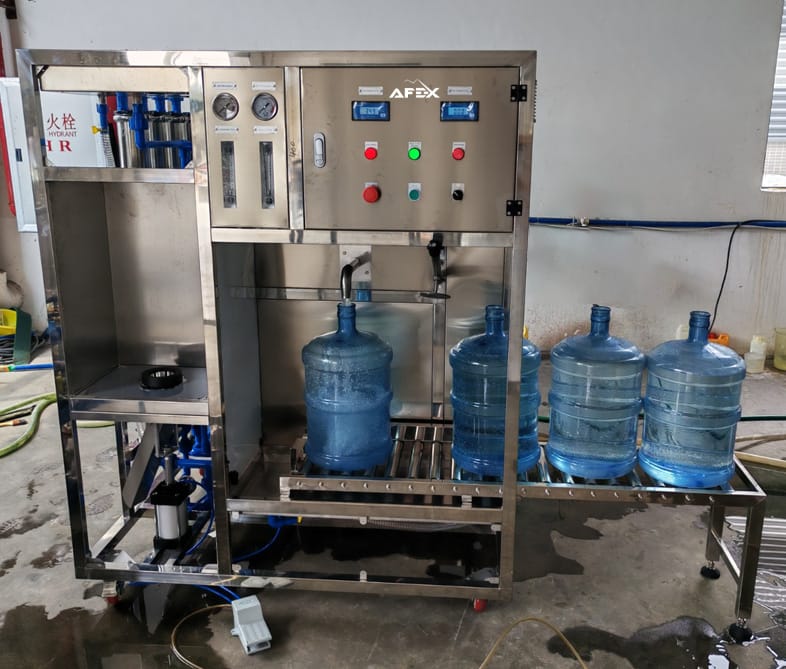

The 19-liter water filling machine is designed for preparing and purifying drinking water and filling it semi-automatically into 19-liter bottles. It features a deep purification system with a reverse osmosis (RO) filter that removes salts, harmful impurities and microorganisms from the water. The machine is also equipped with a semi-automatic capping device that ensures fast and safe bottle capping.
General
- Power
- 220 V, 2.5 kW
- Purified water output
- 500 liters per hour
- Filling speed
- 30 pcs/h (19 L bottle)
- Water storage tank capacity
- approx. 200 liters
- Ozone concentration
- 3 g/h
- Water source
- Municipal tap water (we recommend providing a raw water quality analysis report showing TDS, pH, hardness, etc.)
- Tap water TDS
- less than 1000 ppm
- Tap water hardness
- less than 200 ppm
- Machine dimensions
- 1300×1000×1600 mm
General
- Machine body
- 304 stainless steel
- Feeding pump
- 0.37 kW, 220 V, 50 Hz
- Quartz sand filter
- 250×1000 (quartz sand: 50 kg) (with automatic multi-port control valve)
- Activated carbon filter
- 250×1000 (activated carbon: 20 kg) (with automatic multi-port control valve)
- PP cartridge
- 20-inch PP filter
- RO high-pressure pump
- 1.1 kW, 220 V, 50 Hz
- RO membrane
- 4040
- Ozone generator
- 1000 mg/h
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
Equipment19L Water Filtration and Filling MachineYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
9 parameters- Power
- 220 V, 2.5 kW
- Purified water output
- 500 liters per hour
- Filling speed
- 30 pcs/h (19 L bottle)
- Water storage tank capacity
- approx. 200 liters
- Ozone concentration
- 3 g/h
- Water source
- Municipal tap water (we recommend providing a raw water quality analysis report showing TDS, pH, hardness, etc.)
- Tap water TDS
- less than 1000 ppm
- Tap water hardness
- less than 200 ppm
- Machine dimensions
- 1300×1000×1600 mm
General
8 parameters- Machine body
- 304 stainless steel
- Feeding pump
- 0.37 kW, 220 V, 50 Hz
- Quartz sand filter
- 250×1000 (quartz sand: 50 kg) (with automatic multi-port control valve)
- Activated carbon filter
- 250×1000 (activated carbon: 20 kg) (with automatic multi-port control valve)
- PP cartridge
- 20-inch PP filter
- RO high-pressure pump
- 1.1 kW, 220 V, 50 Hz
- RO membrane
- 4040
- Ozone generator
- 1000 mg/h
Included units
Units and accessories included with the equipment. Specifications for each are in the section above.
Machine sections
4 items
- 1Water filtration section
- 2Bottle washing section
- 3Filling section
- 4Capping section
Video
The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
