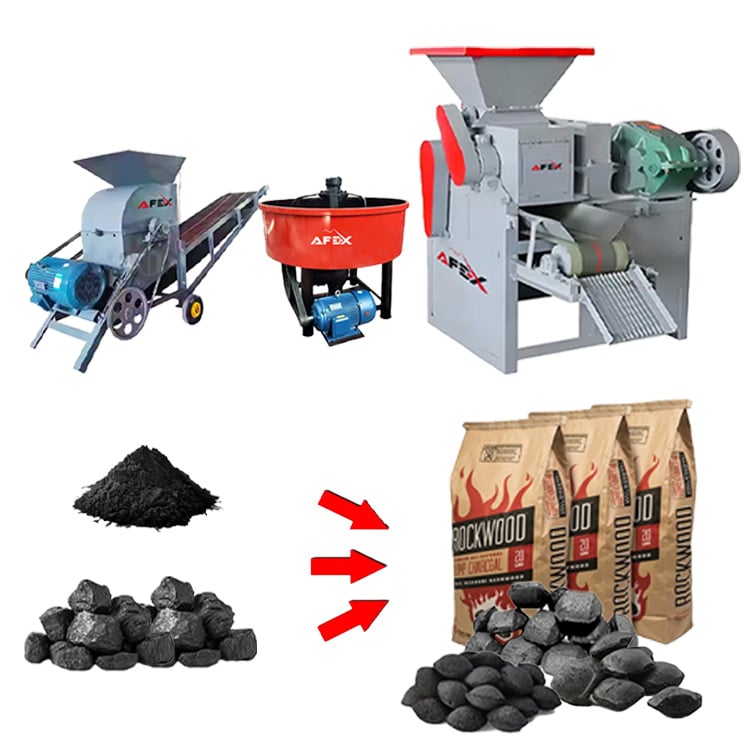

1 / 7Pressed Coal Briquette Production Line
7.5 kW · 1–2 t/h · < 5 mm
Individual offer
- Power
- 7.5 kW
- Capacity
- 1–2 t/h
- Output particle size
- < 5 mm
- Voltage
- 380V 50 Hz
- Dimensions
- 1500 × 1500 × 1000 mm
- Weight
- 900 kg
Price
Overview
About the equipment

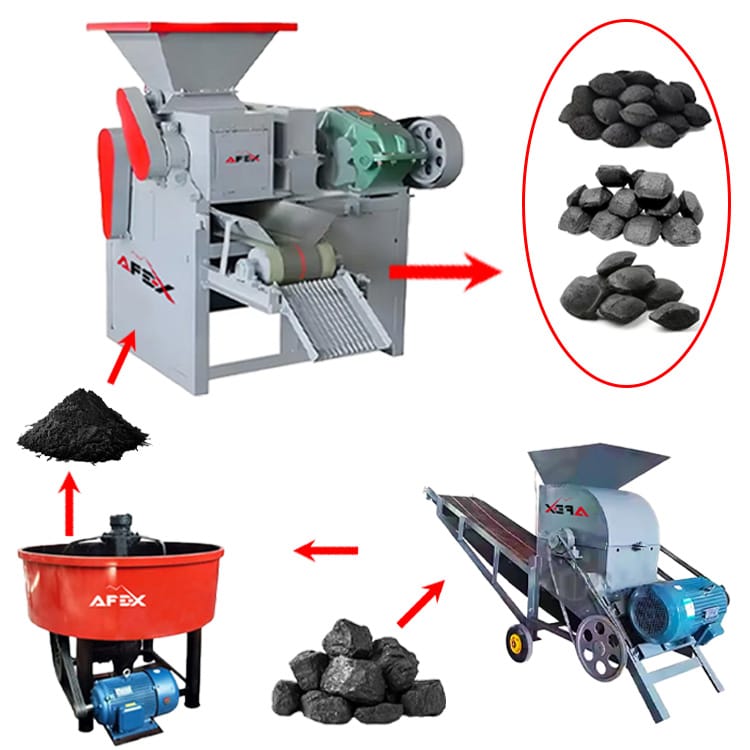

Production Process
01

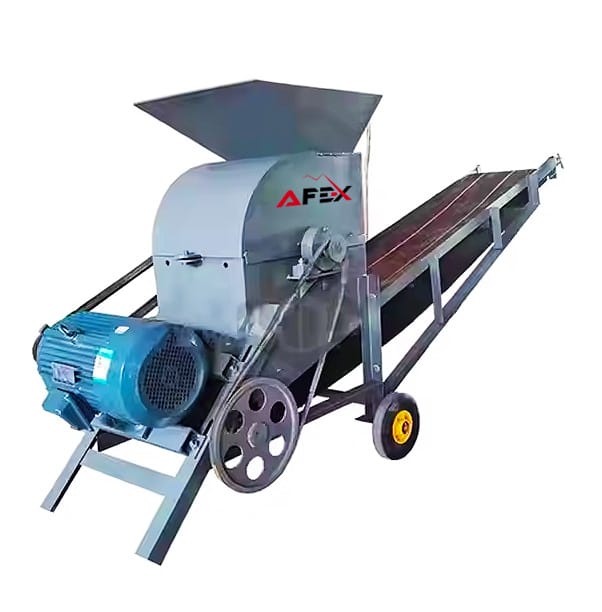

5 parametersCoal Crusher
- Manufacturer
- China
- Voltage
- 380V 50 Hz
- Power
- 7.5 kW
- Capacity
- 1–2 t/h
- Output particle size
- < 5 mm
Used to mix the raw material with water and starch and to grind it.
02

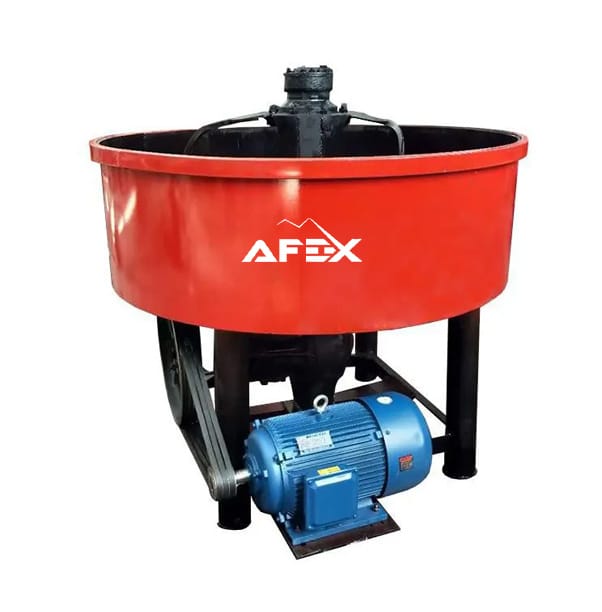

6 parametersMixer (Mixing Machine)
- Manufacturer
- China
- Voltage
- 380V 50 Hz
- Power
- 7.5 kW
- Capacity
- 1–2 t/h
- Dimensions
- 1500 × 1500 × 1000 mm
- Weight
- 900 kg
Used to convey materials and reduce manual labor.
03

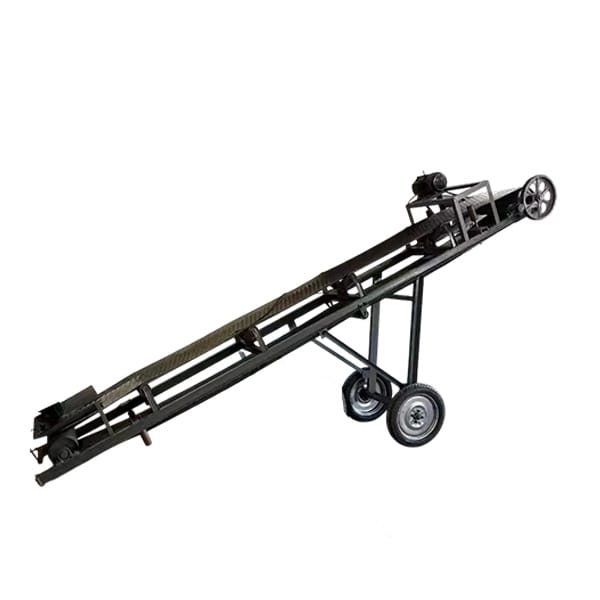

4 parametersBelt Conveyor
- Manufacturer
- China
- Voltage
- 220V
- Power
- 3 kW
- Size
- 500 × 5000 mm
Used to compress the mixed coal powder under high pressure into briquettes of various shapes (usually balls or pillows). The machine is used to make fuel briquettes, improve energy efficiency and make the material easier to transport and store.
04

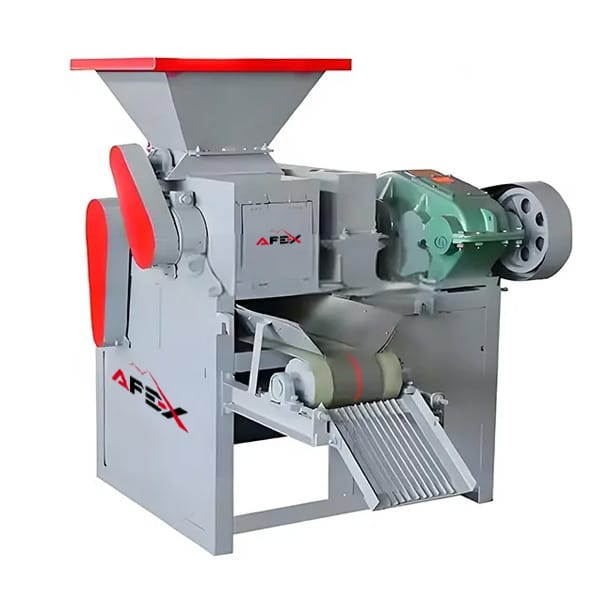

8 parametersCoal Briquette Press
- Manufacturer
- China
- Voltage
- 380V 50 Hz
- Power
- 5.5 kW
- Capacity
- 1–2 t/h
- Reducer/ZQ
- 350
- Press roller size
- Φ 290 × 200 mm
- Machine dimensions
- 1500 × 1200 × 1600 mm
- Machine weight
- 750 kg

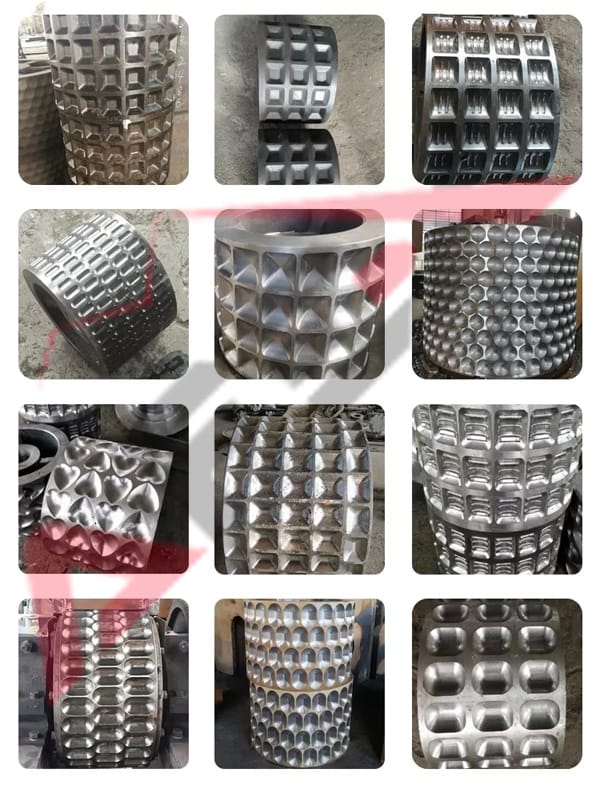

Molds
Coal molds are offered in a pillow shape. Mold shapes can be changed at the customer's request
AFEX · CONSULTATION
Operators onlineQuick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentPressed Coal Briquette Production LineYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
Coal Crusher
5 parameters- Manufacturer
- China
- Voltage
- 380V 50 Hz
- Power
- 7.5 kW
- Capacity
- 1–2 t/h
- Output particle size
- < 5 mm
Mixer (Mixing Machine)
6 parameters- Manufacturer
- China
- Voltage
- 380V 50 Hz
- Power
- 7.5 kW
- Capacity
- 1–2 t/h
- Dimensions
- 1500 × 1500 × 1000 mm
- Weight
- 900 kg
Belt Conveyor
4 parameters- Manufacturer
- China
- Voltage
- 220V
- Power
- 3 kW
- Size
- 500 × 5000 mm
Coal Briquette Press
8 parameters- Manufacturer
- China
- Voltage
- 380V 50 Hz
- Power
- 5.5 kW
- Capacity
- 1–2 t/h
- Reducer/ZQ
- 350
- Press roller size
- Φ 290 × 200 mm
- Machine dimensions
- 1500 × 1200 × 1600 mm
- Machine weight
- 750 kg
Included units
Units and accessories included with the equipment. Specifications for each are in the section above.
- 01
- 02
- 03
- 04
Equipment Included in the Line
4 items
- 1Coal crusher
- 2Mixer (mixing machine)
- 3Coal briquette press
- 4Molds
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
Frequently asked questions
The most common questions about delivery, contracts and tracking.
Is it possible to track my orders online?
You can track orders online. Uzbekistan was one of the first to develop a mechanism for monitoring cargo, determining their location, and estimating the time of arrival using the GPS system. You can get this information only by entering the contract number.
How long will the shipments be delivered?
Delivery time depends on the manufacturer in most cases. Most large-scale production equipment takes 2-3 times longer to deliver than normal equipment. In the case of ready-made equipment, the delivery period starts from 30 days. Excluding the time required for customs clearance of equipment in the territory of Uzbekistan, certification processes.
What are the shipping methods available?
According to the type of goods from abroad and the period when the order was received, the goods are delivered to the territory of Uzbekistan on the following basis:
By air
By rail
By land transport
By mixed transport
What is required of me to conclude a contract?
To become a client of our company, you must:
CERTIFICATE certifying the business entity;
Bank details;
STIR number;
Copy of the manager's passport;
Enterprise seal to confirm the contract
Consultation
Let’s discuss your project together
Contact us for advice on choosing equipment, technical solutions and offers.
