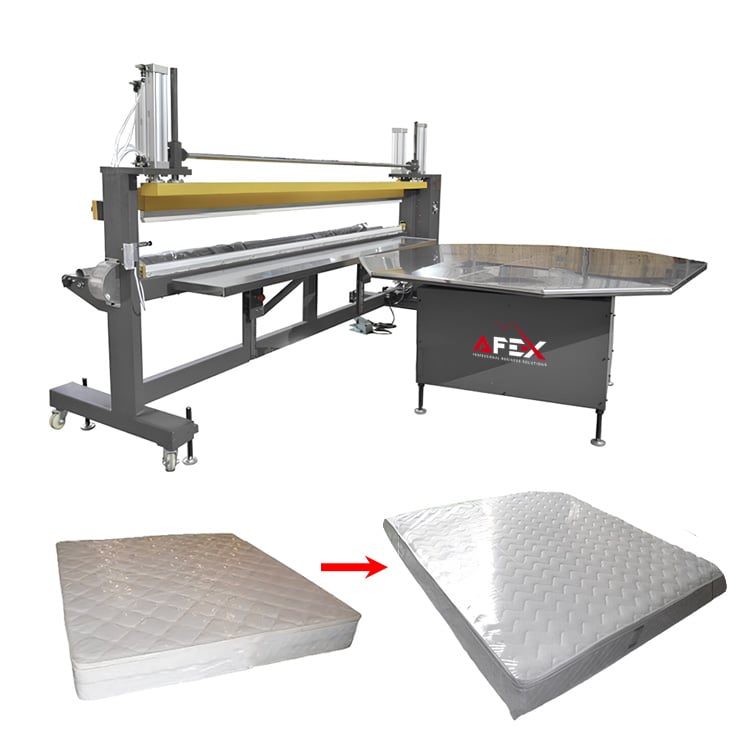

1 / 1Mattress Packing Machine AF-M2600
The AF-M2600 mattress packing machine packs mattresses up to 2100×2200×500 mm in size.
- Total power
- 3 kW
- Model
- AF-M2600
- Voltage
- 220 V
- Packing section length
- 2600 mm
- Dimensions
- 3200 × 800 × 1650 mm
- Weight
- 500 kg
Overview
About the equipment
The AF-M2600 mattress packing machine packs mattresses up to 2100×2200×500 mm in size. Packing one mattress takes 1 minute.
The packing section is up to 2600 mm long and 5 mm wide, allowing even large mattresses to be packed in a single pass. The machine connects to a single-phase 220 V, 50 Hz supply; total power is 3 kW. A compressor is required for operation: air consumption 0.3 m³ per minute, pressure 0.8 MPa.
The machine measures 3200×800×1650 mm and weighs 500 kg, so enough space must be allocated in the workshop both for the machine itself and for moving mattresses. The machine is designed for mattress manufacturers: the finished mattress is shipped to the warehouse and to the customer already packed.
AFEX provides delivery, installation and commissioning of the machine, as well as warranty service. Send us your mattress sizes and daily volume — we will check whether the machine is suitable.
General
- Model
- AF-M2600
- Voltage
- 220 V, 50 Hz, single-phase
- Total power
- 3 kW
- Productivity
- 1 min / pc
- Maximum mattress size
- 2100 × 2200 × 500 mm
- Packing section length
- Max. 2600 mm
- Packing section width
- 5 mm
- Air requirement (compressor required)
- 0.3 m³/min, 0.8 MPa
- Dimensions
- 3200 × 800 × 1650 mm
- Weight
- 500 kg
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentMattress Packing Machine AF-M2600Your data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
10 parameters- Model
- AF-M2600
- Voltage
- 220 V, 50 Hz, single-phase
- Total power
- 3 kW
- Productivity
- 1 min / pc
- Maximum mattress size
- 2100 × 2200 × 500 mm
- Packing section length
- Max. 2600 mm
- Packing section width
- 5 mm
- Air requirement (compressor required)
- 0.3 m³/min, 0.8 MPa
- Dimensions
- 3200 × 800 × 1650 mm
- Weight
- 500 kg
