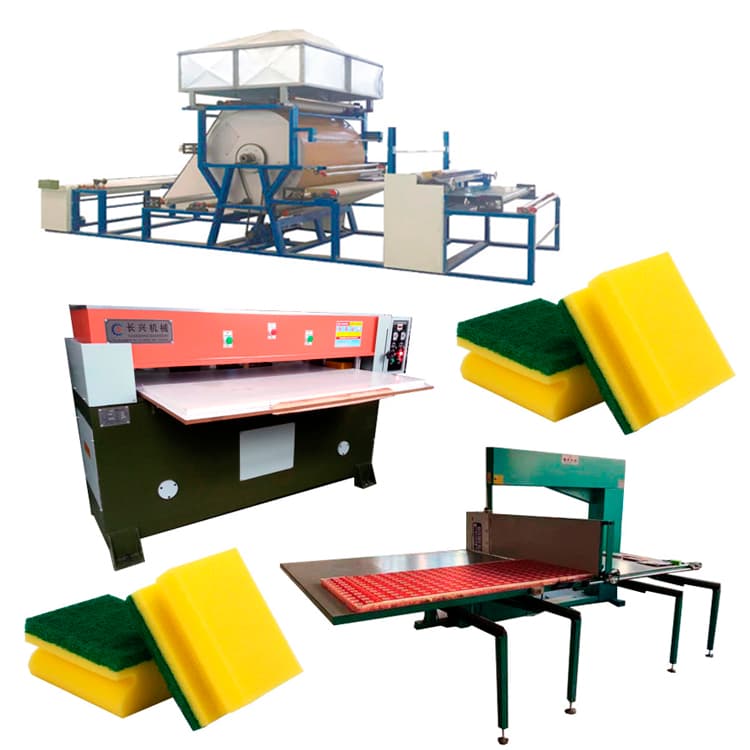

Kitchen sponge production line

Each household needs certain types of permanent products.

Individual offer
Heating power
45kw
Normal operating speed
5-45m/min
Voltage
380v/280v
Dimensions
6,2*1,3*2m
Net weight
2500kg
Hydraulic oil capacity
220l
Price

Overview

About the equipment

Each household needs certain types of permanent products. By producing them, you will relieve the burden of our people by supplying high-quality products and you will be able to earn a good income for yourself. Without further ado, let's move on to providing detailed information about this production line.

General information:

We need the following set of equipment:
  1. Adhesive equipment
  2. Press equipment
  3. Vertical cutting equipment
  4. Hydraulic die cutting equipment (optional)
  5. Equipment for cutting off foreign parts
Working area: 60 square meters Number of employees: 5 Power: 55kw Performance: 2000-3000 per day The raw materials we will need include:
  1. Sponge part (yellow) and cleaning part (green)
  2. Special PU glue
So, let's move on to the production process.

At the first stage, two parts are glued together using PU glue

To do this step, we need a gluing machine, which is one of the largest pieces of equipment on the production line. We insert glue into the initial part of the equipment (on the right in the picture) between two separate parts. After passing between the two circles, it goes to the big circle. Here, two separate parts are qualitatively joined under the influence of heat under high pressure. It is very important that the parts do not separate in this process. You can find out the technical parameters of the equipment using the table below.
01

General

11 parameters
General
Working width
1m
Normal operating speed
5-45m/min
Heating power
45kw
Dimensions
6,2*1,3*2m
Clay
PU glue
Number of runs
2,-3
Voltage
380v/280v
Net weight
2500kg
Automatic level
Semi-automatic
Power source
Electric
Certificate
СЕ

In the second stage, the glued parts are pressed

The main purpose of doing this is to improve the quality of our products. By pressing them with this equipment for a certain time, the glue will be more firmly fixed and the quality of the product will increase. Below is a picture of our press equipment. Let's get acquainted with the technical characteristics of the equipment
02

Unit 2

9 parameters
Unit 2
Press equipment
2300*1000mm
Work area
5-45m/min
Heating power
1,5 kw
Dimensions
2,5*1,2*1,5m
Number of workers
1-2
Voltage
380v/280v
Net weight
2500kg
Automatic level
Semi-automatic
Certificate
СЕ
O`ylaymizki bu zaruriyatni tezdaga hech qandayiyat yo`q. Bizga bir dona kesuvchi uskunaning o`zi yetarli.
03

Uchinchi bosqichda gubkalar kesiladi

9 parameters
Uchinchi bosqichda gubkalar kesiladi
Press equipment
2300*1000mm
Work area
5-45m/min
Heating power
1,5 kw
Dimensions
2,5*1,2*1,5m
Number of workers
1-2
Voltage
380v/220v
Net weight
500kg
Automatic level
Semi-automatic
Certificate
СЕ
Sotuv miqdorini va mahsulotlar rang-barangligini sotib olish mumkin. Buning uchun turli xil shakldagi pichoqlar kerak bo`ladi.
04

To`rtinchi bosqichda qoliplar shaklida shakl beriladi (ixtiyoriy)

10 parameters
To`rtinchi bosqichda qoliplar shaklida shakl beriladi (ixtiyoriy)
Work table dimensions
1600*800mm
Cutting pressure
60T
Heating power
4,5kw
Outline size
50-240mm
Voltage
380V/220v
Net weight
3500kg
Automatic level
In hand
Hydraulic oil capacity
220l
General dimensions
2300*1300*1570mm
Power source
Electr
One of the advantages of this process is that it makes it easier to catch the sponges. This process is done with the help of heat.
05

At the last stage, the side of the sponge is cut

7 parameters
At the last stage, the side of the sponge is cut
Average operating speed
20-40 min
Heating power
1,5kw
Dimensions
1,2*1,2*1m
Number of workers
1-2
Voltage
380V/220v
Net weight
350kg
Automatic level
In hand
This is how all the processes came to an end. All that remains is to pack them. You arrange cellophane bags in agreement with local manufacturers and put the sponges in the bags. Now they are ready for sale. Now let's go to the accounting books. You can see the total prices of the equipment in the table below. This price does not include installation and delivery of equipment.
AFEX · CONSULTATION
Operators online

Quick price request

Leave your name and phone number — our specialist will take care of the rest.

EquipmentKitchen sponge production line

Your data is never shared with third parties

Specifications

Data provided by the manufacturer; configuration may vary per order.

General

11 parameters
Working width
1m
Normal operating speed
5-45m/min
Heating power
45kw
Dimensions
6,2*1,3*2m
Clay
PU glue
Number of runs
2,-3
Voltage
380v/280v
Net weight
2500kg
Automatic level
Semi-automatic
Power source
Electric
Certificate
СЕ

Unit 2

9 parameters
Press equipment
2300*1000mm
Work area
5-45m/min
Heating power
1,5 kw
Dimensions
2,5*1,2*1,5m
Number of workers
1-2
Voltage
380v/280v
Net weight
2500kg
Automatic level
Semi-automatic
Certificate
СЕ

Uchinchi bosqichda gubkalar kesiladi

9 parameters
Press equipment
2300*1000mm
Work area
5-45m/min
Heating power
1,5 kw
Dimensions
2,5*1,2*1,5m
Number of workers
1-2
Voltage
380v/220v
Net weight
500kg
Automatic level
Semi-automatic
Certificate
СЕ

To`rtinchi bosqichda qoliplar shaklida shakl beriladi (ixtiyoriy)

10 parameters
Work table dimensions
1600*800mm
Cutting pressure
60T
Heating power
4,5kw
Outline size
50-240mm
Voltage
380V/220v
Net weight
3500kg
Automatic level
In hand
Hydraulic oil capacity
220l
General dimensions
2300*1300*1570mm
Power source
Electr

At the last stage, the side of the sponge is cut

7 parameters
Average operating speed
20-40 min
Heating power
1,5kw
Dimensions
1,2*1,2*1m
Number of workers
1-2
Voltage
380V/220v
Net weight
350kg
Automatic level
In hand

Included units

Units and accessories included with the equipment. Specifications for each are in the section above.

  • Uchinchi bosqichda gubkalar kesiladi01

    Uchinchi bosqichda gubkalar kesiladi

    9 parameters

    • Press equipment: 2300*1000mm
    • Work area: 5-45m/min
    Specifications
  • To`rtinchi bosqichda qoliplar shaklida shakl beriladi (ixtiyoriy)02

    To`rtinchi bosqichda qoliplar shaklida shakl beriladi (ixtiyoriy)

    10 parameters

    • Work table dimensions: 1600*800mm
    • Cutting pressure: 60T
    Specifications
  • At the last stage, the side of the sponge is cut03

    At the last stage, the side of the sponge is cut

    7 parameters

    • Average operating speed: 20-40 min
    • Heating power: 1,5kw
    Specifications

Delivery and commissioning

From consultation to launch — four steps under contract.

  1. 1

    Consultation

    We define your needs, configure the line and prepare an offer.

  2. 2

    Contract

    Timeline, payment terms and warranty are fixed in the contract.

  3. 3

    Delivery

    The equipment is delivered from the manufacturer to your site.

  4. 4

    Installation and training

    Our specialists commission the equipment and train your operators.

Frequently asked questions

The most common questions about delivery, contracts and tracking.

Is it possible to track my orders online?
You can track orders online. Uzbekistan was one of the first to develop a mechanism for monitoring cargo, determining their location, and estimating the time of arrival using the GPS system. You can get this information only by entering the contract number.
How long will the shipments be delivered?
Delivery time depends on the manufacturer in most cases. Most large-scale production equipment takes 2-3 times longer to deliver than normal equipment. In the case of ready-made equipment, the delivery period starts from 30 days. Excluding the time required for customs clearance of equipment in the territory of Uzbekistan, certification processes.
What are the shipping methods available?
According to the type of goods from abroad and the period when the order was received, the goods are delivered to the territory of Uzbekistan on the following basis: By air By rail By land transport By mixed transport
What is required of me to conclude a contract?
To become a client of our company, you must: CERTIFICATE certifying the business entity; Bank details; STIR number; Copy of the manager's passport; Enterprise seal to confirm the contract
Consultation

Let’s discuss your project together

Contact us for advice on choosing equipment, technical solutions and offers.

Call us+998 93 381 6699Mon–Sat: 9:00 – 18:00
AFEX · SOCIAL

Follow our channels

New equipment, commissioning and production footage — on our official channels.

Related equipment

View all
Grape juice production line
Food equipment

Grape juice production line

Details →
Acrylic Bathtub Production Line
Solution product lines

Acrylic Bathtub Production Line

Details →
Line for the production of crackers from potato starch
Food equipment

Line for the production of crackers from potato starch

Details →
The only line that can clean vegetables and dry them is AF-500T
Metalworking equipment

The only line that can clean vegetables and dry them is AF-500T

Details →
Washing powder production line
Other equipment

Washing powder production line

Details →
Compact poultry feed production line (8-12T/day)In stock
Solution product lines

Compact poultry feed production line (8-12T/day)

Details →
Quick-lighting charcoal briquette production line
Solution product lines

Quick-lighting charcoal briquette production line

Details →

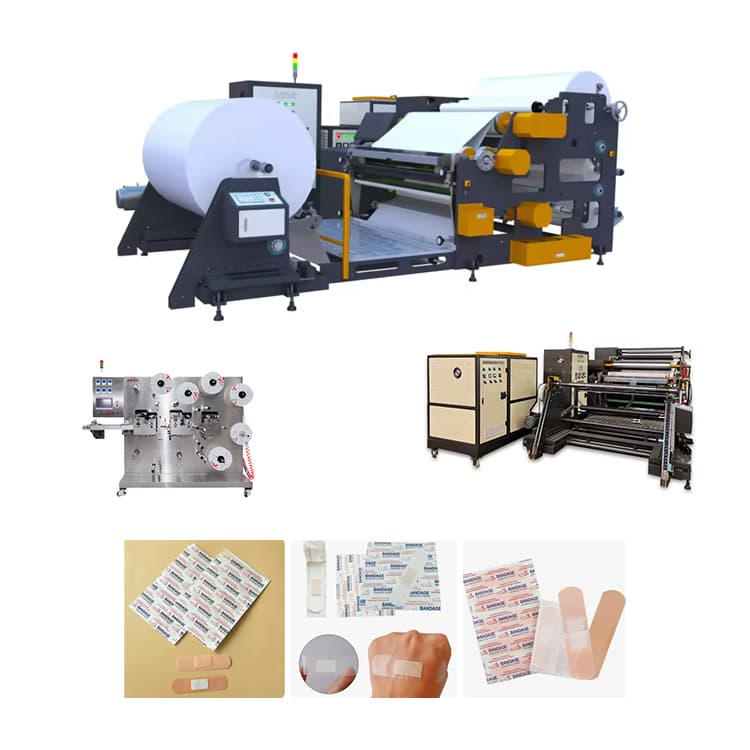

First aid plaster production line
