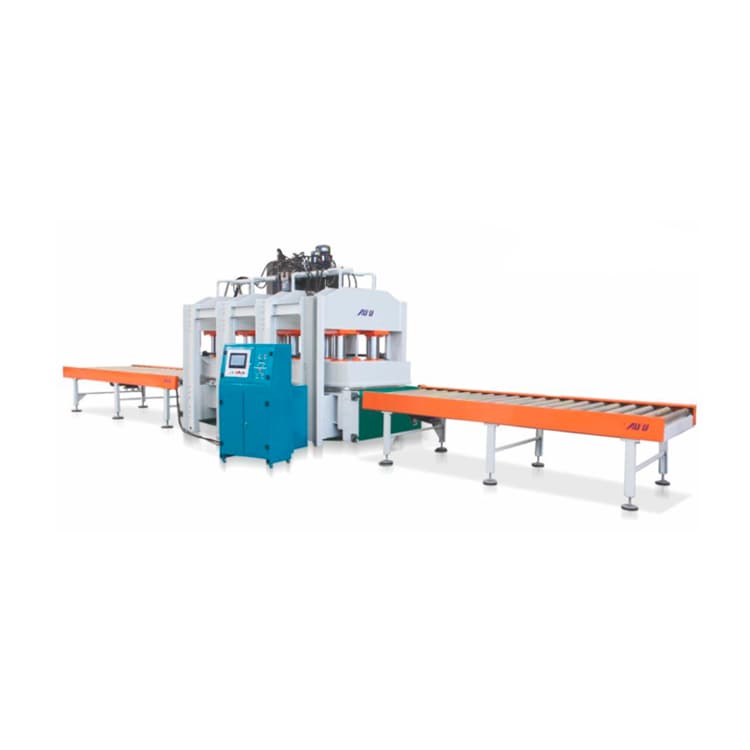

1 / 1Hot surface press equipment for MDF, LMDF, LDSP AF-BY214x14/60(1)
AF-BY214x14/60(1) is a single-opening hot press for MDF, LMDF and LDSP boards.
- Oil heating furnace capacity
- 55.5 Kw
- Hydraulic motor power
- 7.0 Kw
- Model
- AF-BY214x14/60
- Overall equipment dimensions
- 13000*1900*2232 mm
- The size of the heating surface
- 4200*1300*42 mm
- Nominal pressure
- 6000 (KN)
Overview
About the equipment
AF-BY214x14/60(1) is a single-opening hot press for MDF, LMDF and LDSP boards. Nominal force is 6000 kN, and the heated platen measures 4200×1300×42 mm.
The press has 2 heated platens with one working opening between them, so one layer of product is pressed per cycle. The platens are heated by a 55.5 kW thermal oil furnace, and the hydraulic motor is rated 7.0 kW. Both figures should be taken into account when preparing the workshop for installation.
Overall dimensions are 13,000×1900×2232 mm, so a long area with access for loading and unloading boards must be set aside when planning the workshop layout. The 4200×1300 mm platen format is designed for furniture companies and manufacturers working with MDF, LMDF and LDSP boards.
AFEX supplies the equipment and provides installation, commissioning and warranty service. Tell us your board format, board type and daily volume, and we will advise on the press configuration.
General
- Model
- AF-BY214x14/60(1)
- Nominal pressure
- 6000 (KN)
- The size of the heating surface
- 4200*1300*42 mm
- Layer number
- 1
- Number of heating surfaces
- 2
- Oil heating furnace capacity
- 55.5 Kw
- Hydraulic motor power
- 7.0 Kw
- Overall equipment dimensions
- 13000*1900*2232 mm
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentHot surface press equipment for MDF, LMDF, LDSP AF-BY214x14/60(1)Your data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
8 parameters- Model
- AF-BY214x14/60(1)
- Nominal pressure
- 6000 (KN)
- The size of the heating surface
- 4200*1300*42 mm
- Layer number
- 1
- Number of heating surfaces
- 2
- Oil heating furnace capacity
- 55.5 Kw
- Hydraulic motor power
- 7.0 Kw
- Overall equipment dimensions
- 13000*1900*2232 mm
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
