Cottage cheese and protein bar production line
The protein bar production line is a modern, automated, and efficient solution that will become your best partner in producing products promoting a healthy lifestyle.
The line includes a mixer, extruder, chocolate enrober, cooling tunnel, wrapping machine, and other necessary modules.
The machines are made of stainless steel, energy-saving, highly productive, and adaptable for producing products in different shapes.
The production process is automated, enabling the manufacture of high-quality and hygienic products without human interference.
Take your products to a professional level!
-
Up to 60 bars per minute
-
Smooth and even chocolate coating
-
Nitrogen packaging — for long shelf life
-
Flexible configuration for small workshops or large factories
| Parameter Name | Information |
| Model | FGW-60 |
| Country of Manufacture | China |
| Raw Materials | Protein mass, chocolate, cereals, nuts, honey, etc. |
| Product Type | Protein bar, chocolate bar, cereal bar, energy bar |
| Production Capacity | 20–99 pcs/min, average 60 pcs/min |
| Material | Stainless steel SUS304, PU belts |
| Equipment Weight | 132 kg – 600 kg (depending on equipment) |
| Dimensions | Each unit has its own size (e.g., mixer: 930 × 800 × 1520 mm) |
| Voltage/Power | 220V / 380V, 0.5–6 kW |
| Labor Requirement | 1–2 people (mainly automatic line) |
| Power Consumption | Total ≈ 25–30 kW (all equipment combined) |
Mixer Machine
| Parameter Name | Information |
| Model | UMX-60 |
| Dimensions (L × W × H) | 930 × 800 × 1520 mm |
| Voltage | 380V / 50Hz |
| Equipment Weight | 200 kg |
| Capacity | 60 L |
| Production Capacity | 6–10 kg / 15 minutes |
| Power | 3.3 kW |
| Mixing Speed | 74 / 141 / 277 rpm |
Extruder Machine
| Parameter Name | Information |
| Model | EXT-180 |
| Dimensions (L × W × H) | 1800 × 560 × 1360 mm |
| Equipment Weight | 181 kg |
| Power | 0.81 kW |
| Voltage | 220V |
| Production Capacity | 20–99 pcs/min, average 60 pcs/min |
| Product Weight | 10 g – 250 g |
| Product Shape | Bar, rectangular, round, strip, etc. |
| Changeable Molds | Yes, for different sizes and shapes |
| Adjustable Thickness | Yes |
Chocolate Enrobing Machine
| Parameter Name | Information |
| Model | ENB-8 |
| Power | 1.8 kW |
| Voltage | 220V, single-phase (customizable) |
| Dimensions (L × W × H) | 800 × 500 × 1230 mm |
| Production Capacity | 8 kg/h |
| Equipment Weight | 132 kg |
| Packing Weight | 180 kg |
| Mesh Belt Width | 150 mm |
| Equipment Material | Stainless steel (304) |
| Belt Material | PU (polyurethane) |
| Packing Dimensions | 900 × 600 × 600 mm |
| Enrober Dimensions | 650 × 550 × 580 mm |
| Warranty | 1 year |
| Certificate | CE |
| Packing Method | Oiled surface, wrapped in polyethylene, packed in wooden case |
Cooling Tunnel
| Parameter Name | Information |
| Model | CLT-3200 |
| Power | 2.2 kW |
| Voltage | 220V, single-phase (customizable) |
| Dimensions (L × W × H) | 3250 × 500 × 950 mm |
| Production Capacity | 8 kg/h |
| Equipment Weight | 350 kg |
| Packing Weight | 200 kg |
| Belt Width | 400 mm |
| Equipment Material | Stainless steel (304) |
| Belt Material | PU (polyurethane) |
| Packing Dimensions | 3350 × 860 × 1180 mm |
| Warranty | 1 year |
| Certificate | CE |
| Packing Method | Oiled surface, wrapped in polyethylene, packed in wooden case |
| Note | Equipment length and conveyor speed can be adjusted according to customer requirements |
Chocolate Melting Tank
| Parameter Name | Information |
| Model | CMT-100 |
| Max Capacity | 100 L |
| Dimensions (Ø × H) | Ø750 × 700 mm |
| Equipment Weight | 290 kg |
| Main Motor Power | 0.75 kW |
| Electric Heating Power | 2.5 kW |
| Heat Preservation Power | 2.5 kW |
| Rotation Speed | 22.5 rpm |
| Functions | Heating, cooling, temperature holding, continuous mixing, degassing, deodorizing, dehumidifying, preventing mass and fat separation |
Chocolate Pump
| Parameter Name | Information |
| Model | CHP-5 |
| Flow Rate | 5 m³/h (≈ 83 L/min) |
| Head | 30 m |
| Rotation Speed | 200 rpm |
| Power | 1.5 kW |
| Material | Stainless steel SUS304 |
| Description | Equipped with water circulation heating system, designed for chocolate mass, can be connected to the line or used independently |

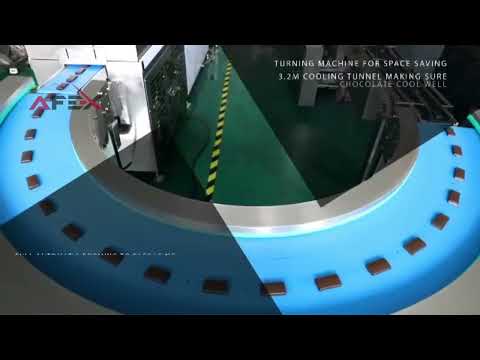

180° Turning Machine
| Parameter Name | Information |
| Model | TM-180 |
| Turning Angle | 180° |
| Material | Stainless steel SUS304 |
| Belt Material | PU (polyurethane) |
| Description | Designed to change product direction, used for saving space or changing direction on the line, made entirely of stainless steel, hygienic and durable |
Automatic Packing Machine
| Parameter Name | Information |
| Model | FWM-350 |
| Packing Speed | 35 – 150 pcs/min |
| Film Width | 90 – 240 mm |
| Bag Length | 85 – 300 mm |
| Bag Width | 30 – 100 mm |
| Bag Height | 5 – 30 mm |
| Total Power | 3.0 kW |
| Main Motor Power | 0.75 + 0.75 kW |
| Heating Power | 1.2 kW |
| Equipment Weight | 600 kg |
| Dimensions (L × W × H) | 1640 × 830 × 1350 mm |
| Noise Level | ≤78 dB |
| Packing Accuracy | ≥98% |
| Sealing Pressure | 15 N/mm² |
| Voltage | 220V, 50Hz |
| Suitable Film Types | OPP, PE, PVC, OPP/CPP, PT/PE, KOP/CPP, aluminum foil film, etc. |
Finished products
