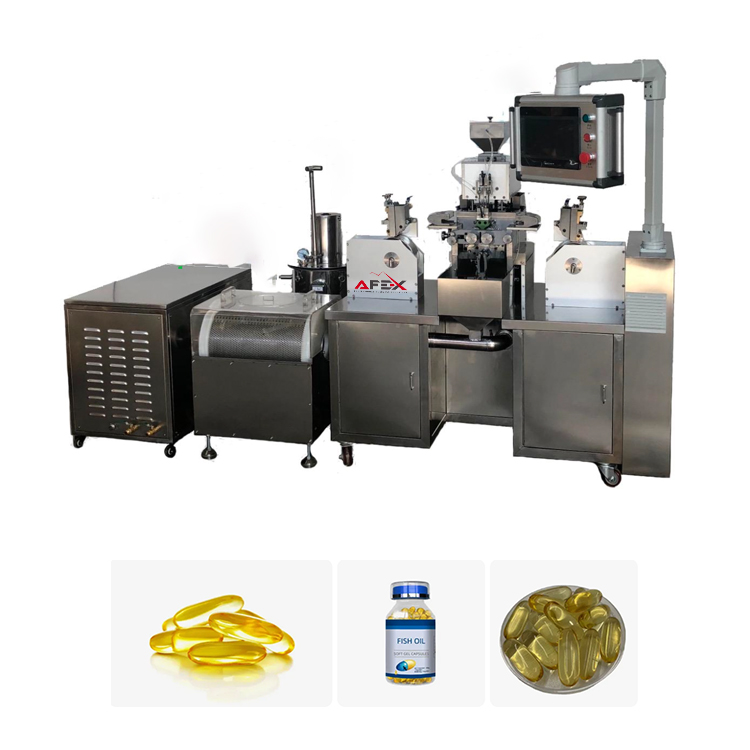

1 / 10Fish oil capsule packaging equipment
This fully automated soft gelatin capsule production line is designed for the pharmaceutical and food industries and…
- Power
- 2 kW
- Power supply
- 380 V
- Model
- FA-50
- Production capacity
- 7,000 capsules/hour
- Roller rotation speed
- 5 rpm
- Weight
- 300 kg
Overview
About the equipment
This fully automated soft gelatin capsule production line is designed for the pharmaceutical and food industries and allows the production of capsules from fish oil, vitamins, vegetable oils and other liquid products. The line fully automates the processes of capsule forming, filling, cutting, drying and stabilization.
The main capsule machine ensures high-precision dosing and stable production speed. The gelatin melting tank, colloid mill, vacuum pump, and cooling system maintain a high level of product quality. The tumbler dryer and drying trolleys shape the final quality of the capsules. All equipment is manufactured from materials compliant with food and pharmaceutical standards.
The line is equipped with a PLC automatic control system, ensuring convenient and reliable operation for the operator. This solution is ideal for small and medium-scale industrial production.
Advantages
Fully automated production process
High-precision dosing (±1%)
Stable and continuous operating mode
Customizable capsule shape and size upon request
Materials compliant with food and pharmaceutical standards
Siemens PLC control system with touch screen
High-quality drying and stabilization process
Low maintenance requirements
Capability to work with various products (fish oil, vitamins, extracts)
Expandable production capacity
Fully integrated and compatible single production line
Suitable For
This production line is suitable for the following business customers:
Pharmaceutical manufacturers
Dietary supplement (BAA) manufacturers
Fish oil and omega-3 product manufacturers
Vitamin and nutritional supplement production companies
Private Label companies
Investors planning to launch new production
Small and medium industrial production projects
Equipment Included

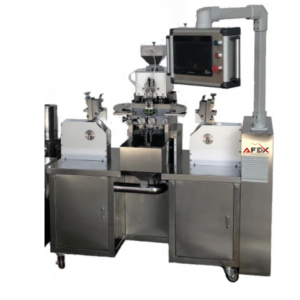

FA-50 Capsule Production Machine
- Model
- FA-50
- Production capacity
- 7,000 capsules/hour
- Filling volume
- 0 – 1.5 ml
- Dosing accuracy
- ±1%
- Roller rotation speed
- 0 – 5 rpm
- Roll-mold size
- Φ64 × 65 mm
- Power
- 2 kW
- Power supply
- 220 / 380 V, 50 Hz
- Weight
- 300 kg
- Control system
- Siemens PLC, touch screen

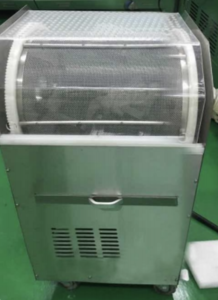

Tumbler Dryer
Unit 2
- Drum size
- Φ320 × 450 mm
- Rotation speed
- 21 rpm
- Motor power
- 90 W
- Fan speed
- 1,250 rpm
- Air flow
- 1,400 m³/h
- Weight
- 150 kg

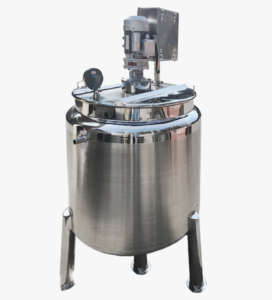

Gelatin Melting Tank
Unit 3
- Capacity
- 60 liters
- Heating power
- 1.1 kW
- Inner layer material
- SUS304, 5 mm
- Outer layer material
- SUS304, 4 mm
- Insulation
- PPU
- Agitator material
- SUS304
- Electrical components
- Schneider

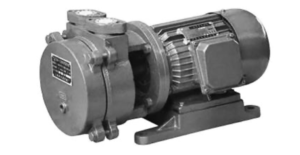

Vacuum Pump
Unit 4
- Air flow
- 1.5 m³/min
- Maximum vacuum
- 700 mmHg
- Rotation speed
- 2,860 rpm
- Power
- 1.5 kW
- Water consumption
- 8–12 liters/min

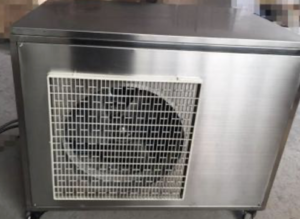

Chiller (Cooling Unit)
- Cooling water capacity
- 35 liters
- Cooling temperature range
- –5 to +16 °C
- Dimensions
- 960 × 650 × 660 mm
- Power
- 1 kW

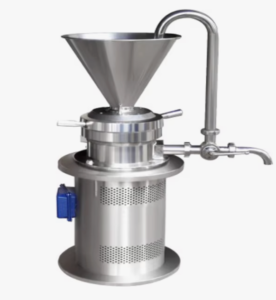

Colloid Mill
Unit 6
- Dimensions
- 420 × 280 × 700 mm
- Weight
- 40 kg
- Power
- 1.1 kW
- Power supply
- 220 / 380 V, 50 Hz
- Rotation speed
- 2,900 rpm
- Grinding fineness
- ≤ 2 μm
- Production capacity
- 0.1 – 0.5 t/hour

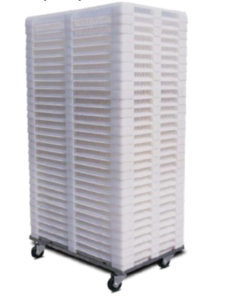

Drying Trolley
Unit 7
- Purpose
- Final drying of soft capsules
- Structure
- Steel frame (typically SUS304)
- Tray type
- Food-grade polyethylene (PE)
- Capacity
- 20–40 trays (model dependent)
- Application
- Final drying and stabilization stage
- Function
- Even capsule distribution and easy transport
- Tray surface
- Perforated or smooth
- Operating temperature
- Ambient, 20–28 °C
Finished products
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentFish oil capsule packaging equipmentYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
FA-50 Capsule Production Machine
10 parameters- Model
- FA-50
- Production capacity
- 7,000 capsules/hour
- Filling volume
- 0 – 1.5 ml
- Dosing accuracy
- ±1%
- Roller rotation speed
- 0 – 5 rpm
- Roll-mold size
- Φ64 × 65 mm
- Power
- 2 kW
- Power supply
- 220 / 380 V, 50 Hz
- Weight
- 300 kg
- Control system
- Siemens PLC, touch screen
Unit 2
6 parameters- Drum size
- Φ320 × 450 mm
- Rotation speed
- 21 rpm
- Motor power
- 90 W
- Fan speed
- 1,250 rpm
- Air flow
- 1,400 m³/h
- Weight
- 150 kg
Unit 3
7 parameters- Capacity
- 60 liters
- Heating power
- 1.1 kW
- Inner layer material
- SUS304, 5 mm
- Outer layer material
- SUS304, 4 mm
- Insulation
- PPU
- Agitator material
- SUS304
- Electrical components
- Schneider
Unit 4
5 parameters- Air flow
- 1.5 m³/min
- Maximum vacuum
- 700 mmHg
- Rotation speed
- 2,860 rpm
- Power
- 1.5 kW
- Water consumption
- 8–12 liters/min
Chiller (Cooling Unit)
4 parameters- Cooling water capacity
- 35 liters
- Cooling temperature range
- –5 to +16 °C
- Dimensions
- 960 × 650 × 660 mm
- Power
- 1 kW
Unit 6
7 parameters- Dimensions
- 420 × 280 × 700 mm
- Weight
- 40 kg
- Power
- 1.1 kW
- Power supply
- 220 / 380 V, 50 Hz
- Rotation speed
- 2,900 rpm
- Grinding fineness
- ≤ 2 μm
- Production capacity
- 0.1 – 0.5 t/hour
Unit 7
8 parameters- Purpose
- Final drying of soft capsules
- Structure
- Steel frame (typically SUS304)
- Tray type
- Food-grade polyethylene (PE)
- Capacity
- 20–40 trays (model dependent)
- Application
- Final drying and stabilization stage
- Function
- Even capsule distribution and easy transport
- Tray surface
- Perforated or smooth
- Operating temperature
- Ambient, 20–28 °C
Included units
Units and accessories included with the equipment. Specifications for each are in the section above.
- 01
FA-50 Capsule Production Machine
10 parameters
- Model: FA-50
- Production capacity: 7,000 capsules/hour
- 02
Chiller (Cooling Unit)
4 parameters
- Cooling water capacity: 35 liters
- Cooling temperature range: –5 to +16 °C

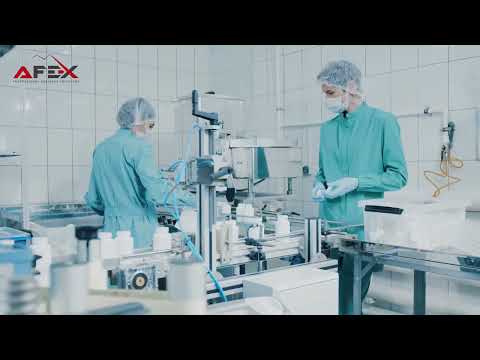

Video
