1 / 4Automatic plastic and metal tube filling and packaging equipment
RWE-200 is a high-precision industrial equipment designed for automatic filling, labeling and sealing of plastic and…
- Max Power
- Plastic tubes: 7.5 kW
- Power Supply
- AC 380 V
- Production Capacity
- 80–100 pcs/min
- Model
- RWE-200
- Tube Length
- 50–230 mm
- Machine Dimensions
- 2150 × 1150 × 2100 mm
Overview
Key features
- Sealing Type
Plastic: hot air sealing; Metal: folding sealing
- Max Power
Plastic tubes: 7.5 kW; Metal tubes: 1.5 kW
- Plastic Tube Process
Feeding → Positioning → Filling → Hot Air Sealing → Coding → Inspection → Sorting → Output
- Metal Tube Process
Feeding → Positioning → Filling → Folding Sealing → Inspection → Sorting → Output
About the equipment
RWE-200 is a high-precision industrial equipment designed for automatic filling, labeling and sealing of plastic and metal tubes. The machine automatically positions the tubes, detects the position through a photoelectric sensor, fills the product to the specified volume, and then performs the heat sealing or folding sealing process depending on the type. The finished tubes are inspected and defective ones are automatically separated. This equipment is very suitable for the cosmetics, pharmaceutical, chemical and food industries. It is used in large production lines due to its low error rate, fast operation and stable sealing quality.
Advantages
The PTM-200 / RWE-200 offers a range of benefits suitable for many manufacturers. It securely seals plastic tubes using hot air and tightly closes metal tubes by folding. The high-speed filling system easily handles large production volumes.
Low deformation risk ensures uniform tube appearance, which is a major advantage for product design and branding.
The touchscreen control system provides precise positioning, reducing product waste. Filling volume can be adjusted easily, and molds for different tube diameters can be changed quickly. Stable daily operation makes this machine a reliable solution for continuous production.
Application Areas
This machine is widely used for filling and sealing the following products:
-
Cosmetics: creams, gels, shampoos, masks, toothpaste
-
Pharmaceuticals: ointments, antiseptic gels, medical creams
-
Chemicals: adhesives, lubricants, technical pastes
-
Food: paste products, sauces
General
- Parameter
- Specification
- Model
- RWE-200
- Sealing Type
- Plastic: hot air sealing; Metal: folding sealing
- Max Power
- Plastic tubes: 7.5 kW; Metal tubes: 1.5 kW
- Water Consumption
- Plastic tubes: 3–6 L/min
- Power Supply
- AC 380 V / 220 V, 50/60 Hz
- Production Capacity
- 80–100 pcs/min
- Filling Volume
- 5–200 ml (pump replaceable)
- Tube Diameter
- 11–38 mm (mold replaceable)
- Tube Length
- 50–230 mm (customizable)
- Machine Dimensions
- 2150 × 1150 × 2100 mm
- Weight
- Approx. 1300 kg
- Plastic Tube Process
- Feeding → Positioning → Filling → Hot Air Sealing → Coding → Inspection → Sorting → Output
- Metal Tube Process
- Feeding → Positioning → Filling → Folding Sealing → Inspection → Sorting → Output
FINISHED PRODUCTS
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentAutomatic plastic and metal tube filling and packaging equipmentYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
14 parameters- Parameter
- Specification
- Model
- RWE-200
- Sealing Type
- Plastic: hot air sealing; Metal: folding sealing
- Max Power
- Plastic tubes: 7.5 kW; Metal tubes: 1.5 kW
- Water Consumption
- Plastic tubes: 3–6 L/min
- Power Supply
- AC 380 V / 220 V, 50/60 Hz
- Production Capacity
- 80–100 pcs/min
- Filling Volume
- 5–200 ml (pump replaceable)
- Tube Diameter
- 11–38 mm (mold replaceable)
- Tube Length
- 50–230 mm (customizable)
- Machine Dimensions
- 2150 × 1150 × 2100 mm
- Weight
- Approx. 1300 kg
- Plastic Tube Process
- Feeding → Positioning → Filling → Hot Air Sealing → Coding → Inspection → Sorting → Output
- Metal Tube Process
- Feeding → Positioning → Filling → Folding Sealing → Inspection → Sorting → Output

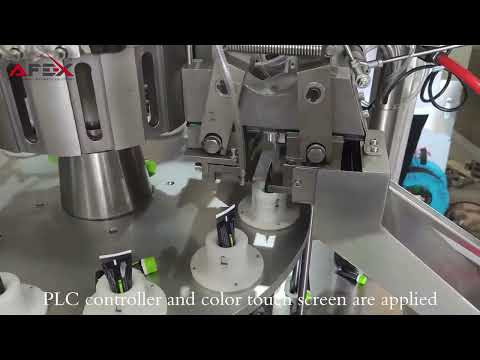

Video
The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
