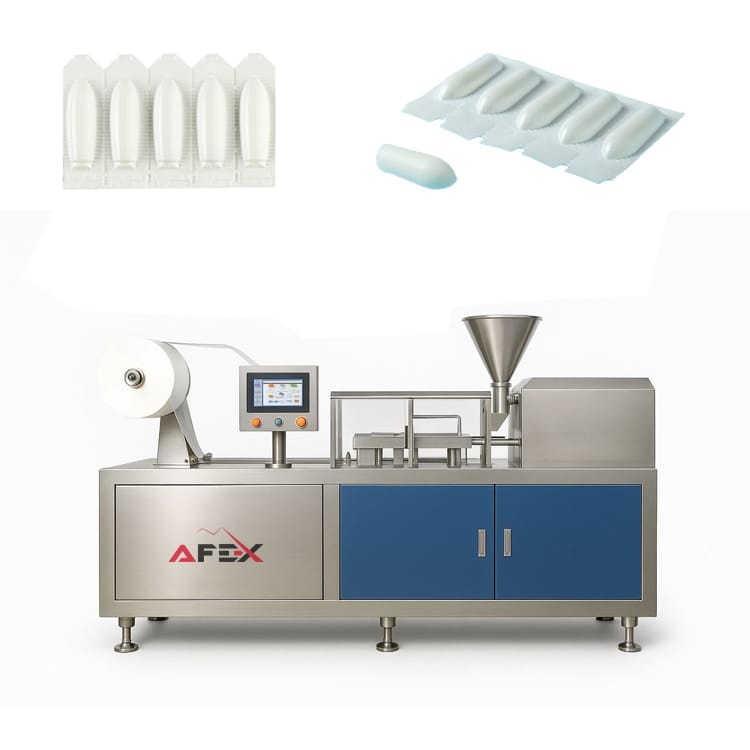

1 / 2Automatic Medical Suppository Production Line AF-1LS
1000-1500 pcs/h · 4 kW · AF-1LS
Individual offer
- Production capacity
- 1000-1500 pcs/h
- Power
- 4 kW
- Model
- AF-1LS
- Weight
- 650 kg
- Dimensions
- L2547 × 969 × 919 × 819 × 819 mm
- Accuracy
- ±2%
Price
Overview
About the equipment
Function Description
The AF-1LS fully automatic suppository production line is designed to produce suppositories of various shapes — bullet, torpedo and duck-bill. The machine features PLC control and a touch-screen interface; it is easy to operate and adjust, provides precise temperature control and ensures continuous operation. The 316L stainless steel liquid tank is equipped with a heating and stirring system. The filling mechanism operates with high accuracy (±2%), with a dose volume of 1-4 ml each. After filling, the suppositories pass through a cooling stage and are fully formed. Features include non-stick filling, anti-static protection, and PLC-based fault detection and alarms.Production Principle
All parts of the machine are made of stainless steel. The surface is smooth and easy to clean. Product appearance, stability and continuous operation are ensured. High-quality imported and domestic components are used.
Equipment Safety
The machine is fitted with sufficient safety devices to ensure operator safety.Machine Advantages
- High filling accuracy (±2%). 2. Clean cutting with a combination of triangular and dotted-line (perforating) blades. 3. Filling mechanism that does not stick to the walls. 4. Adjustable stirring speed. 5. Highly efficient cooling system. 6. Automatic PLC monitoring and fault alarms. 7. Anti-static protected filling section. 8. Easy operation and a convenient control station.
01
15 parametersGeneral
- Model
- AF-1LS
- Production capacity
- 1000-1500 pcs/h
- Single dose volume
- 1-4 ml
- Accuracy
- ±2%
- Packaging material
- PVC/PE (thickness 0.15–0.18 mm)
- Mixing tank volume
- 20 L
- Air pressure
- 0.6 MPa
- Air consumption
- 1.2 m³/min
- Water consumption
- 50 kg/h (recirculated)
- Power
- 4 kW, 380V, 3-phase
- Compatible shapes
- bullet, torpedo, duck-bill
- Weight
- 650 kg
- Materials
- Glycerin, gelatin, polyethylene glycol
- Suppository pitch
- 17.4 mm
- Dimensions
- L2547 × 969 × 919 × 819 × 819 mm
AFEX · CONSULTATION
Operators onlineQuick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentAutomatic Medical Suppository Production Line AF-1LSYour data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
15 parameters- Model
- AF-1LS
- Production capacity
- 1000-1500 pcs/h
- Single dose volume
- 1-4 ml
- Accuracy
- ±2%
- Packaging material
- PVC/PE (thickness 0.15–0.18 mm)
- Mixing tank volume
- 20 L
- Air pressure
- 0.6 MPa
- Air consumption
- 1.2 m³/min
- Water consumption
- 50 kg/h (recirculated)
- Power
- 4 kW, 380V, 3-phase
- Compatible shapes
- bullet, torpedo, duck-bill
- Weight
- 650 kg
- Materials
- Glycerin, gelatin, polyethylene glycol
- Suppository pitch
- 17.4 mm
- Dimensions
- L2547 × 969 × 919 × 819 × 819 mm

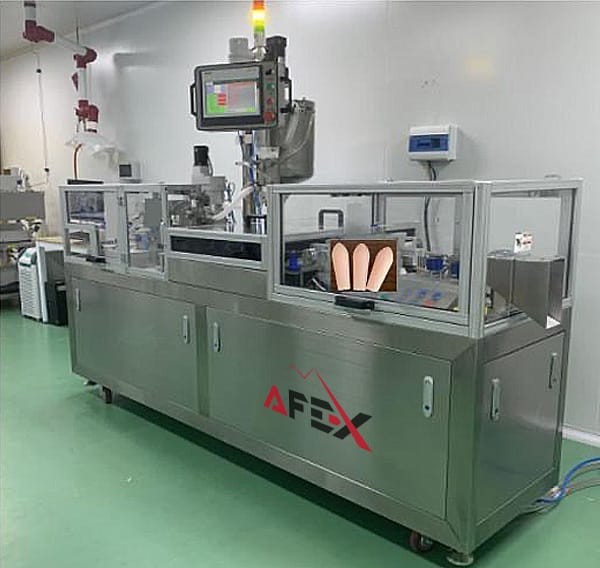

Video
The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
Frequently asked questions
The most common questions about delivery, contracts and tracking.
Is it possible to track my orders online?
You can track orders online. Uzbekistan was one of the first to develop a mechanism for monitoring cargo, determining their location, and estimating the time of arrival using the GPS system. You can get this information only by entering the contract number.
How long will the shipments be delivered?
Delivery time depends on the manufacturer in most cases. Most large-scale production equipment takes 2-3 times longer to deliver than normal equipment. In the case of ready-made equipment, the delivery period starts from 30 days. Excluding the time required for customs clearance of equipment in the territory of Uzbekistan, certification processes.
What are the shipping methods available?
According to the type of goods from abroad and the period when the order was received, the goods are delivered to the territory of Uzbekistan on the following basis:
By air
By rail
By land transport
By mixed transport
What is required of me to conclude a contract?
To become a client of our company, you must:
CERTIFICATE certifying the business entity;
Bank details;
STIR number;
Copy of the manager's passport;
Enterprise seal to confirm the contract
Consultation
Let’s discuss your project together
Contact us for advice on choosing equipment, technical solutions and offers.
AFEX · SOCIAL
Follow our channels
New equipment, commissioning and production footage — on our official channels.
Related equipment
Medical equipment

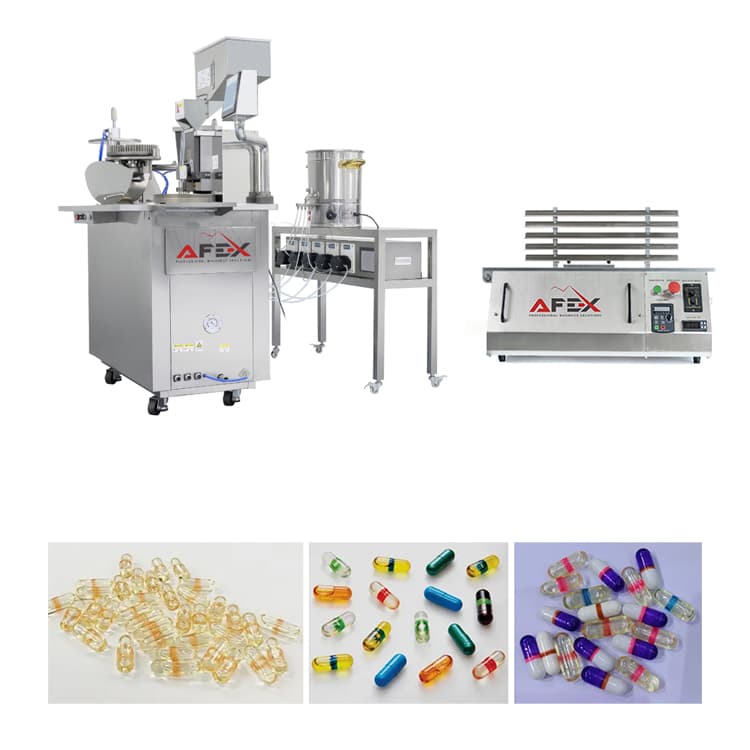

Semi-Automatic Liquid Capsule Production Line
