1 / 2Aluminum foil sealing device for container lid (compact)
AF-215-13 is a compact induction foil sealer for caps 10–70 mm in diameter.
- Model
- AF-215-13
- Voltage
- 220 V 50/60 Hz
- Power
- 1300 watts
- Excess cargo weight
- 10 kg
- Conveyor width
- 200 mm
- Maximum product height
- 240 mm
Overview
About the equipment
AF-215-13 is a compact induction foil sealer for caps 10–70 mm in diameter. It seals up to 60 containers per minute on a conveyor.
The induction aluminium/PE liner placed under the cap heats up as the container passes beneath the sealer and bonds to the container neck. Containers travel on a 200 mm wide conveyor, output is adjustable from 0 to 60 pcs/min, and the maximum product height is 240 mm.
The unit runs on 220 V, 50/60 Hz, is rated at 1300 W and measures 75×42×53 cm, so it can be used on a table. It suits plastic and glass containers of food, medicines, cosmetics and household chemicals: the seal shows that the pack has not been opened and prevents leaks.
AFEX supplies the equipment and provides installation, commissioning and warranty service. Tell us your container and cap sizes, and we will recommend this or a larger model.
General
- Produced
- China
- Model
- AF-215-13
- Voltage
- 220 V 50/60 Hz
- Power
- 1300 watts
- Conveyor width
- 200 mm
- Maximum product height
- 240 mm
- Efficiency
- 0-60 units/min
- Cap diameter
- 10-70 mm
- Excess cargo weight
- 10 kg
- Sealing material
- induction aluminum/PE film
- Size
- 75*42*53 cm
Quick price request
Leave your name and phone number — our specialist will take care of the rest.
EquipmentAluminum foil sealing device for container lid (compact)Your data is never shared with third parties
Specifications
Data provided by the manufacturer; configuration may vary per order.
General
11 parameters- Produced
- China
- Model
- AF-215-13
- Voltage
- 220 V 50/60 Hz
- Power
- 1300 watts
- Conveyor width
- 200 mm
- Maximum product height
- 240 mm
- Efficiency
- 0-60 units/min
- Cap diameter
- 10-70 mm
- Excess cargo weight
- 10 kg
- Sealing material
- induction aluminum/PE film
- Size
- 75*42*53 cm
Video

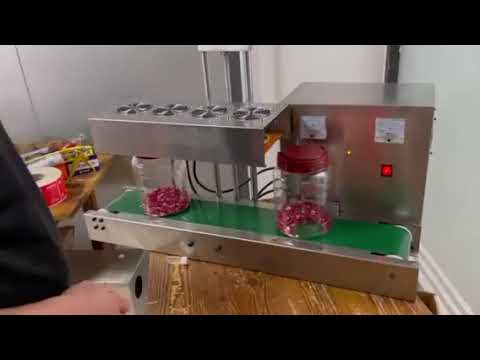

The equipment in operation.
Delivery and commissioning
From consultation to launch — four steps under contract.
Consultation
We define your needs, configure the line and prepare an offer.
Contract
Timeline, payment terms and warranty are fixed in the contract.
Delivery
The equipment is delivered from the manufacturer to your site.
Installation and training
Our specialists commission the equipment and train your operators.
