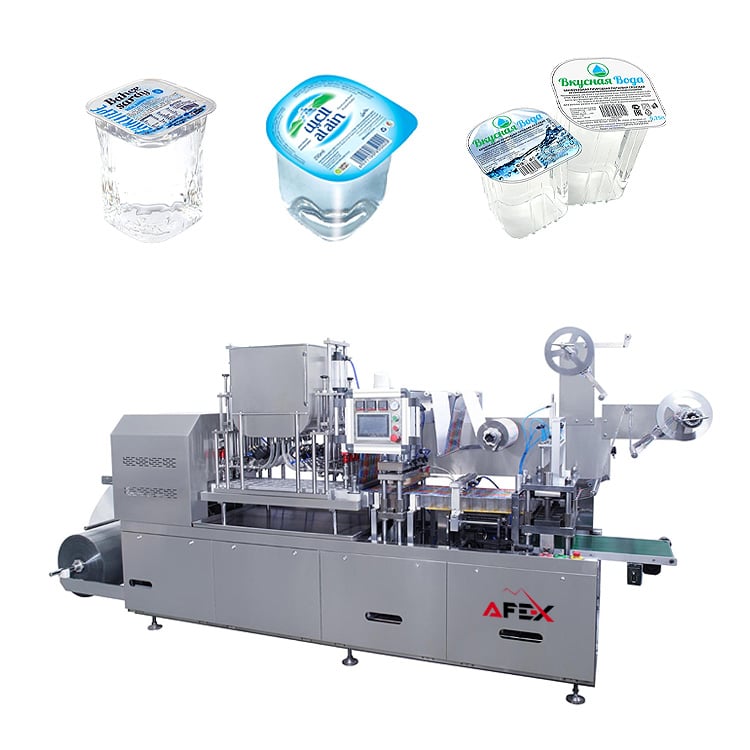

AFSL-420P Automatic Cup Drinking Water Production Machine — Image 1 / 61 / 6
Packaging equipment

AFSL-420P Automatic Cup Drinking Water Production Machine

6000-7200 pcs/min · 0.75 kW × 1 set · 12 kW

Individual offer
Production capacity
6000-7200 pcs/min
Film feed servo motor power
0.75 kW × 1 set
Heating power
12 kW
Power supply
380 V
Model
AFSL-420P
Independent servo motor of the cutting unit
2 kW × 1
Price

Overview

About the equipment

AFSL-420P automatic plastic cup forming, water filling and sealing machine

The AFSL-420P automatic plastic cup forming, water filling and sealing machine is modern, high-tech equipment developed by our company's professional engineering team. It is equipped with a PLC control system, a touch control panel and a servo-driven film feeding system, ensuring a high level of automation, convenient operation and stable performance. This machine is widely used for packaging drinking water in PET cups, as well as yogurt and other free-flowing liquid or semi-liquid products in PS cups. The machine fully automatically performs the following processes:
  • feeding PS/PET/PVC sheet material from the roll;
  • heating the material;
  • forming the cup;
  • filling the product;
  • sealing with film;
  • printing the production date (optional);
  • cutting the product;
  • discharging the finished product via conveyor;
  • connecting to an automatic carton packing system (optional).
The entire production process is designed in accordance with GMP (Good Manufacturing Practice) requirements, ensuring the safety, hygiene and high quality of the packaged product.
01

General

17 parameters
General
Model
AFSL-420P
Operating speed
Approx. 6–15 cycles/min
Production capacity
6000-7200 pcs/min
Max. forming area
420 × 180 mm
Max. forming depth
≤ 80 mm
Stroke
40–180 mm
Air pressure
0.6–0.8 MPa
Air consumption
≥ 0.5 m³/min
Film feed servo motor power
0.75 kW × 1 set
Forming and sealing unit drive
Pneumatic
Independent servo motor of the cutting unit
Approx. 2 kW × 1
Heating power
Approx. 12 kW
Bottom film (rigid material)
PS, PET, PVC sheets: 0.2–1.0 mm × 420 mm (max.)
Top sealing film
0.02–0.085 mm × 420 mm (max.)
Power supply
3-phase, 4-wire, 380 V / 50 Hz
Machine dimensions (L × W × H)
Approx. 4500 × 1000 × 1900 mm
Machine weight
Approx. 1500 kg

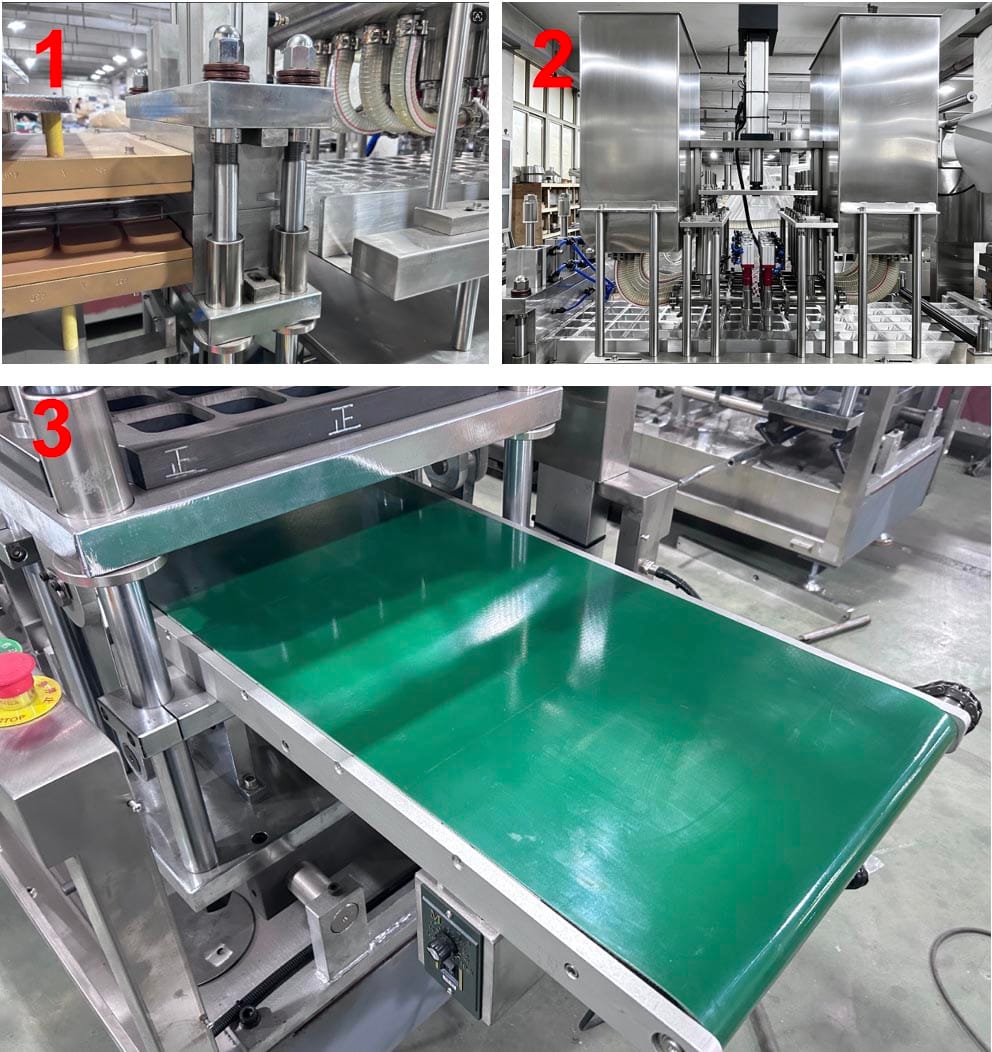

  1. PET cup forming
  2. Water filling
  3. Finished product discharge conveyor belt
02

General

7 parameters
Free spare parts
Quantity
Solid state relay (SSR)
1 pc
Mini relay
1 pc
O-ring seal kit
1 set
Small wheel for the waste film winding mechanism
1 pc
Film pulling pneumatic cylinder (32 × 5)
1 pc
Anti-return pneumatic cylinder (32 × 10)
1 pc

Auxiliary Equipment (optional)

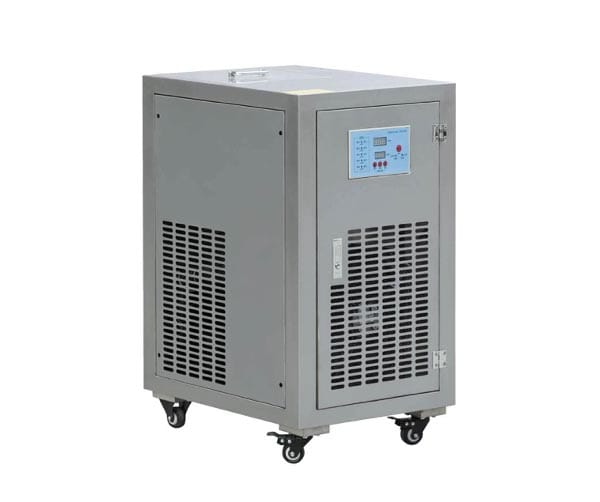

Air-cooled chiller (Air Cooling Chiller)

Application: The air-cooled chiller supplies cold water for cooling the forming and sealing molds of the automatic cup water forming, filling and sealing machine. Note: If your facility has a central water cooling system, purchasing this chiller is not necessary.
03

General

6 parameters
General
Cooling capacity
2.94 kW (2528 kcal/h)
Compressor power
0.89 kW
Pump power
0.37 kW
Refrigerant
R22
Dimensions (L × W × H)
590 × 460 × 840 mm
Weight
60 kg

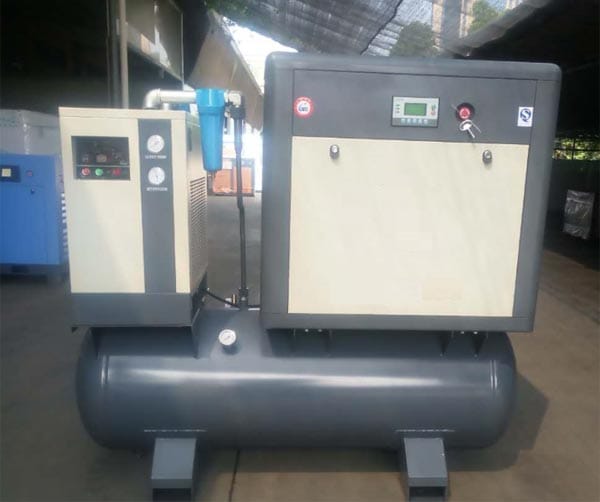

Screw compressor with air dryer (optional)

Application: The screw air compressor, together with the air dryer, supplies clean, dry compressed air to the automatic cup water packaging machine. Note: If your facility has a compressed air system, purchasing this compressor is not required.
04

General

6 parameters
General
Motor power
11 kW
Air delivery
1.52 m³/min
Working pressure
0.8 MPa
Receiver volume
0.145 m³
Weight
450 kg
Dimensions (L × W × H)
1050 × 750 × 1400 mm
Maintenance Recommendations
  1. The first maintenance should be performed after 500 hours of operation. The following are replaced:
    • screw compressor oil;
    • air filter;
    • oil filter.
  2. Subsequent maintenance is performed every 2500–3000 operating hours. The following are replaced:
    • screw compressor oil;
    • air filter;
    • oil filter;
    • sealing elements (seals).
Recommendation: When ordering the compressor, we recommend purchasing the spare parts kit required for future maintenance at the same time.

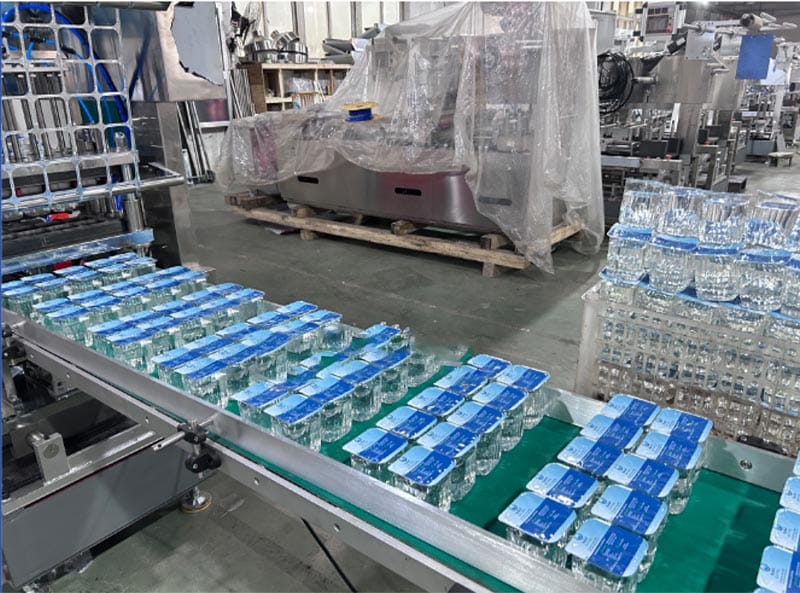

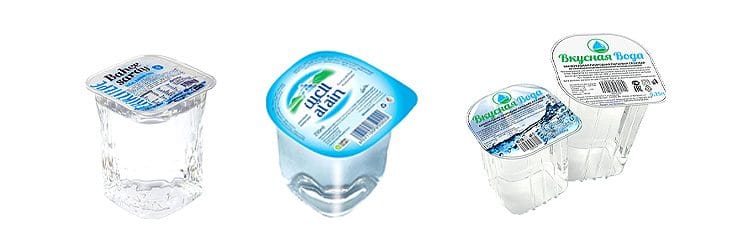

Finished Product

AFEX · CONSULTATION
Operators online

Quick price request

Leave your name and phone number — our specialist will take care of the rest.

EquipmentAFSL-420P Automatic Cup Drinking Water Production Machine

Your data is never shared with third parties

Specifications

Data provided by the manufacturer; configuration may vary per order.

General

17 parameters
Model
AFSL-420P
Operating speed
Approx. 6–15 cycles/min
Production capacity
6000-7200 pcs/min
Max. forming area
420 × 180 mm
Max. forming depth
≤ 80 mm
Stroke
40–180 mm
Air pressure
0.6–0.8 MPa
Air consumption
≥ 0.5 m³/min
Film feed servo motor power
0.75 kW × 1 set
Forming and sealing unit drive
Pneumatic
Independent servo motor of the cutting unit
Approx. 2 kW × 1
Heating power
Approx. 12 kW
Bottom film (rigid material)
PS, PET, PVC sheets: 0.2–1.0 mm × 420 mm (max.)
Top sealing film
0.02–0.085 mm × 420 mm (max.)
Power supply
3-phase, 4-wire, 380 V / 50 Hz
Machine dimensions (L × W × H)
Approx. 4500 × 1000 × 1900 mm
Machine weight
Approx. 1500 kg
02

General

7 parameters
Free spare parts
Quantity
Solid state relay (SSR)
1 pc
Mini relay
1 pc
O-ring seal kit
1 set
Small wheel for the waste film winding mechanism
1 pc
Film pulling pneumatic cylinder (32 × 5)
1 pc
Anti-return pneumatic cylinder (32 × 10)
1 pc

General

6 parameters
Cooling capacity
2.94 kW (2528 kcal/h)
Compressor power
0.89 kW
Pump power
0.37 kW
Refrigerant
R22
Dimensions (L × W × H)
590 × 460 × 840 mm
Weight
60 kg

General

6 parameters
Motor power
11 kW
Air delivery
1.52 m³/min
Working pressure
0.8 MPa
Receiver volume
0.145 m³
Weight
450 kg
Dimensions (L × W × H)
1050 × 750 × 1400 mm

Video

The equipment in operation.

Delivery and commissioning

From consultation to launch — four steps under contract.

  1. 1

    Consultation

    We define your needs, configure the line and prepare an offer.

  2. 2

    Contract

    Timeline, payment terms and warranty are fixed in the contract.

  3. 3

    Delivery

    The equipment is delivered from the manufacturer to your site.

  4. 4

    Installation and training

    Our specialists commission the equipment and train your operators.

Frequently asked questions

The most common questions about delivery, contracts and tracking.

Is it possible to track my orders online?
You can track orders online. Uzbekistan was one of the first to develop a mechanism for monitoring cargo, determining their location, and estimating the time of arrival using the GPS system. You can get this information only by entering the contract number.
How long will the shipments be delivered?
Delivery time depends on the manufacturer in most cases. Most large-scale production equipment takes 2-3 times longer to deliver than normal equipment. In the case of ready-made equipment, the delivery period starts from 30 days. Excluding the time required for customs clearance of equipment in the territory of Uzbekistan, certification processes.
What are the shipping methods available?
According to the type of goods from abroad and the period when the order was received, the goods are delivered to the territory of Uzbekistan on the following basis: By air By rail By land transport By mixed transport
What is required of me to conclude a contract?
To become a client of our company, you must: CERTIFICATE certifying the business entity; Bank details; STIR number; Copy of the manager's passport; Enterprise seal to confirm the contract
