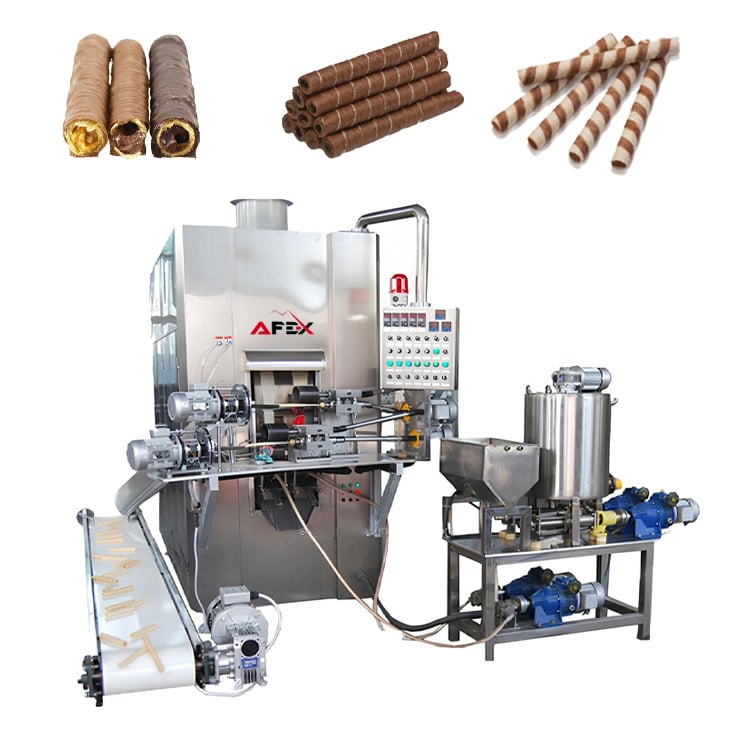

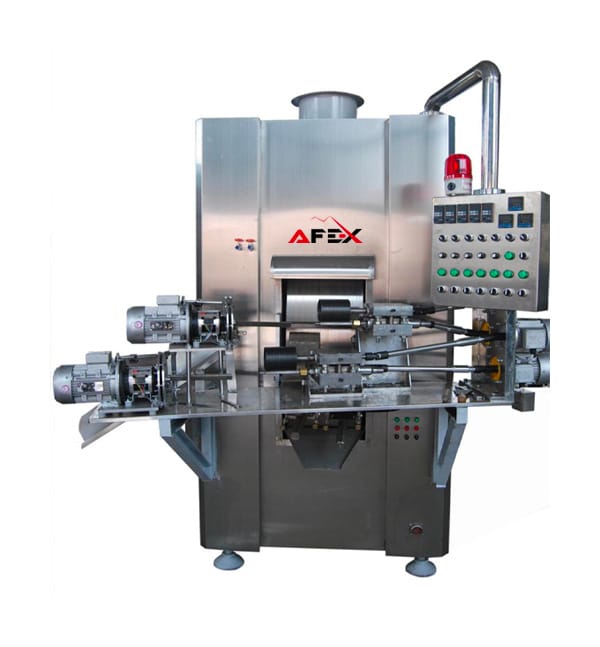

Wafer Roll Production Line

About the Line

Gas consumption: 5–6 kg/h

Number of operators: 1-2 persons

Power consumption of the gas-oven version: 8 kWh

Drum diameter: 1800 mm

Total weight: 4 t

Energy Consumption

• Gas oven: Gas consumption – 5–6 kg/h Electric power – 8 kWh
• Electric oven: Electric power – 40 kWh

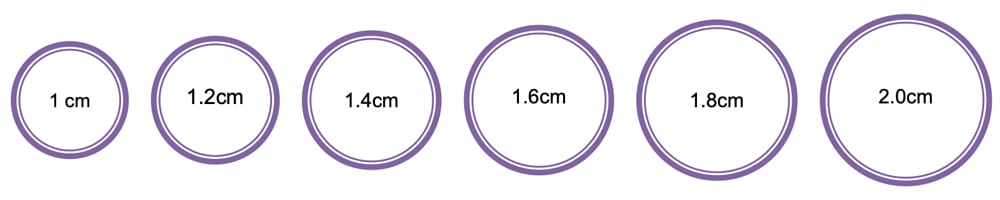

Wafer Roll Diameters

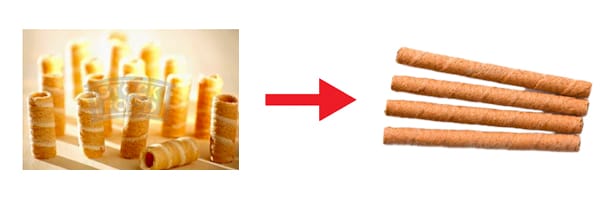

Wafer Roll Length

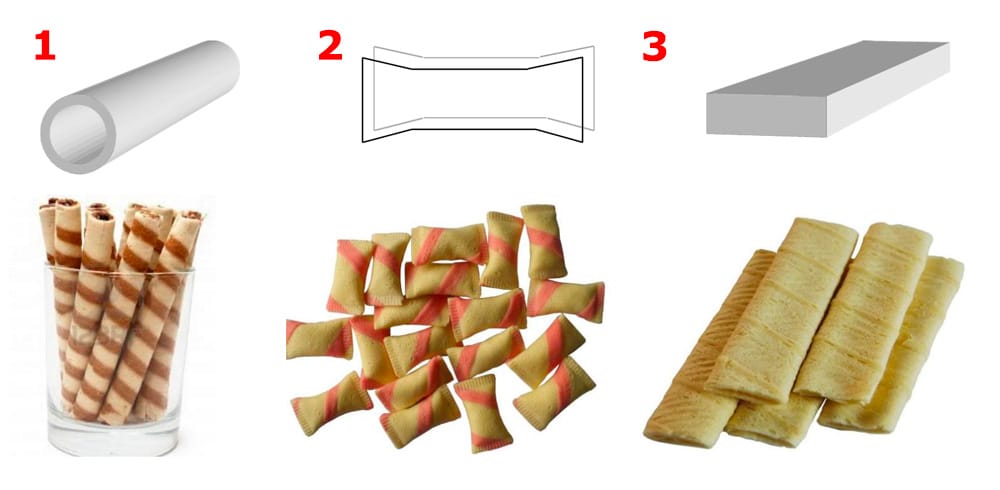

All Wafer Types the Equipment Can Produce and Their Molds

1. Wafer rolls
2. Pillow-shaped wafers
3. Flat wafers

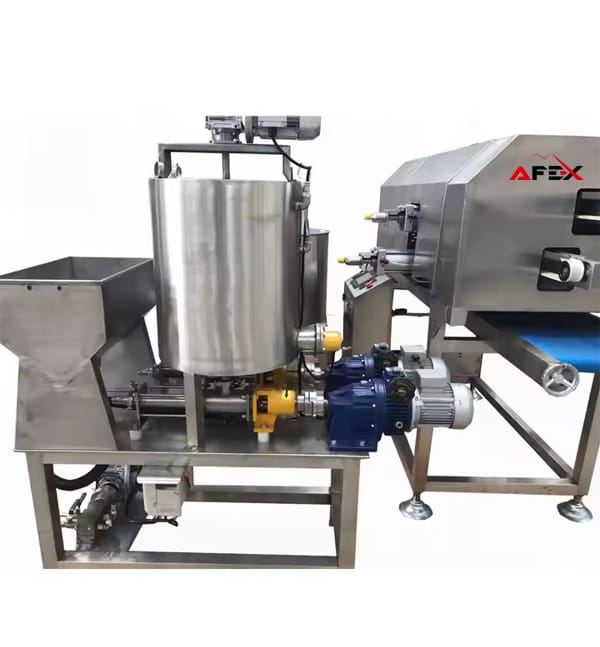

Wafer Filling Machine

Functions of this machine in the wafer roll production line:

• Batter or slurry feeding — even, precisely dosed deposition of the liquid mixture onto the wafer belt or into the mold.
• Center filling — automatic filling of the wafer rolls from the center with cream, condensed milk and other fillings, so the product comes out uniform and tasty.

In other words, this machine performs two important tasks in the production process: preparing and distributing the batter, and filling the roll from the inside.

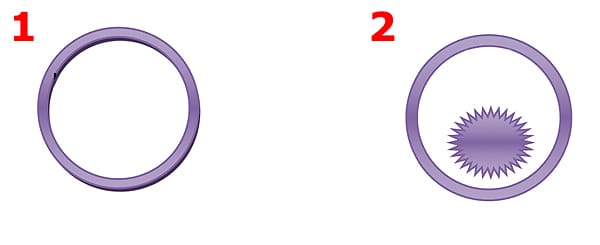

Filling Types

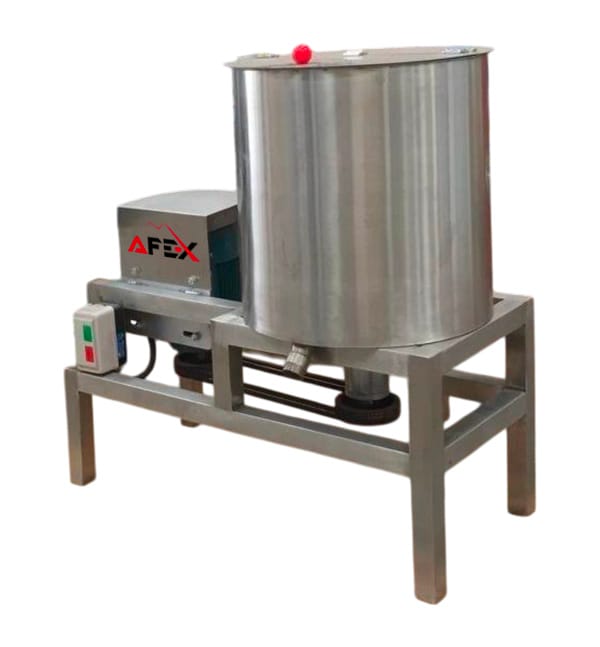

Mixer

Functions of the mixer in the wafer roll production line:

• Even and uniform mixing of batter, cream and other components
• Preventing air entrainment or introducing air to the required degree
• Speeding up preparation and improving quality

The mixer improves the elasticity and stability of the batter, which has a positive effect on the quality of the wafer rolls.

Technical Specifications

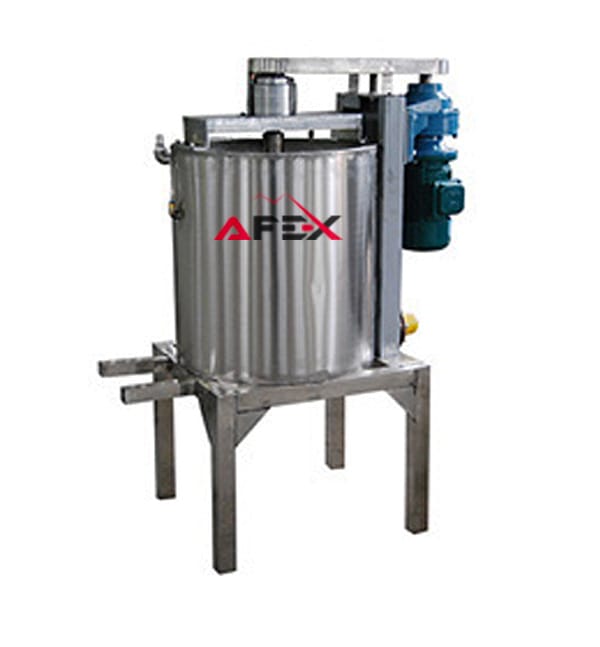

Ball Mill

• Grinding sugar, flour and other additives into fine particles
• Preparing a uniform, smooth, high-quality mixture for batter or filling
• Improving product quality and optimizing production

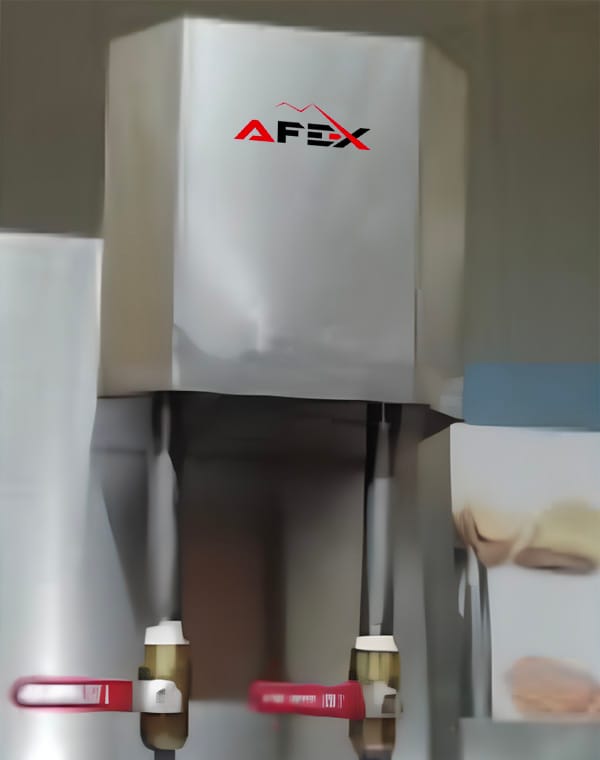

Color Decorating Machine

Functions in the wafer production line:

• Drawing attractive multicolored patterns or stripes on the wafer surface
• Allowing two different colors to be applied simultaneously in each row
• Improving product appearance and attracting customer attention
• Increasing production efficiency through fast and precise decorating
